Docker Architecture

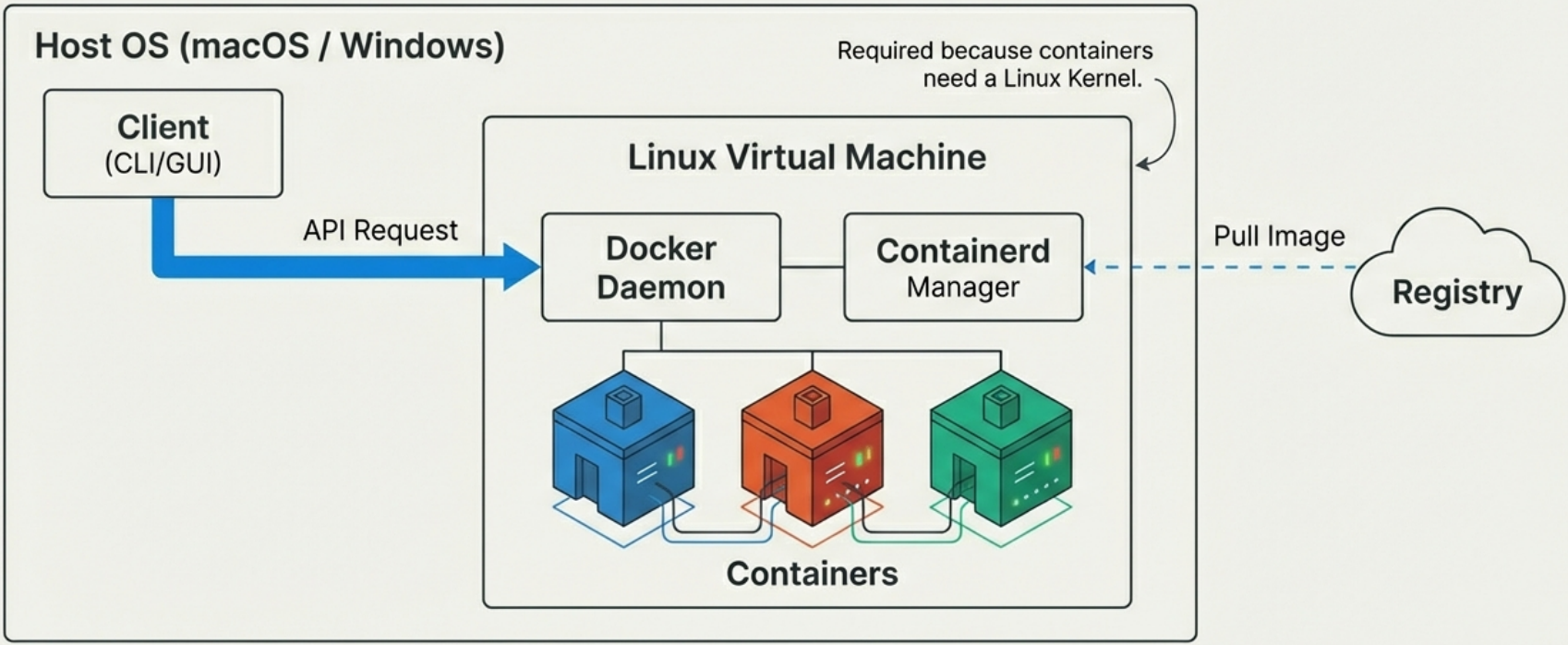

Docker uses a client-server architecture: the Docker CLI (client) converts commands into API requests and sends them to the Docker daemon (dockerd), which coordinates the actual work through a chain of specialized runtimes. The client and daemon can be on the same host or connected over a network.

---

The Delegation Chain

No single component creates a container alone. Responsibility is delegated down a chain:

Docker CLI → dockerd → containerd → shim → runc → container process

Component	Role
Docker CLI	Translates user commands into Docker API requests
dockerd	Receives API calls, coordinates the rest — no longer creates containers directly
containerd	High-level runtime — manages container lifecycle, converts images to OCI bundles
shim	Per-container process that outlives runc, keeps streams open, enables daemonless containers
runc	Low-level OCI runtime — calls the kernel to build namespaces and cgroups, then exits

For the full deep dive on each component — including history, internals, the step-by-step startup sequence, and Linux binaries — see Docker Engine.

---

Why Client-Server?

The separation of client and daemon is a deliberate design choice with real consequences:

• The daemon runs as root. dockerd needs elevated privileges to create namespaces, manage cgroups, and manipulate network interfaces. The CLI does not need to run as root — it just sends API requests.
• Remote management is a first-class feature. The daemon listens on a socket; any authorized client anywhere on the network can manage it. CI runners, Portainer, VS Code extensions — they all speak the same Docker API.
• Crash isolation. Because the daemon and the container processes are decoupled via shims, a dockerd crash or restart does not kill running containers. The shim keeps the container alive and reconnects the daemon when it comes back.

Caution

Because dockerd runs as root, access to the Docker socket is equivalent to root access on the host. A user who can run docker commands (or write to /var/run/docker.sock) can trivially escalate to root — for example, by bind-mounting / into a container. Treat Docker group membership the same as sudoers.

---

Docker Contexts

A context is a named configuration that points the Docker CLI at a specific Docker daemon. This lets you manage multiple Docker environments (local, remote server, Docker Desktop, cloud) from the same terminal without changing environment variables.

# List all configured contexts — the active one is marked with *
docker context ls

# Switch to a different context
docker context use my-remote-server

# Run any Docker command against the active context
docker ps

# Create a new context pointing at a remote daemon over SSH
docker context create my-remote-server \
  --docker "host=ssh://user@remote-host"

# Create a context for a TLS-secured remote daemon
docker context create prod \
  --docker "host=tcp://prod-host:2376,cert=~/.docker/certs/prod"

# Inspect a context
docker context inspect my-remote-server

# Remove a context
docker context rm my-remote-server

Tip

SSH contexts (host=ssh://...) are the safest way to manage a remote daemon — they use your existing SSH key auth and don’t require opening the Docker port. No TLS certificates to manage.

Contexts in Practice

Use Case	Context setup
Local development	Default context (Docker Desktop or Engine)
Remote production server	SSH context: host=ssh://deploy@prod-host
Multiple cloud environments	Separate context per region/account
CI/CD runner	Set DOCKER_CONTEXT environment variable

# Override context for a single command without switching
docker --context my-remote-server ps

# Or use the DOCKER_CONTEXT environment variable
DOCKER_CONTEXT=my-remote-server docker ps

---

Daemonless Containers

A key architectural property of Docker’s shim-based design: running containers are not children of the daemon. The shim process (containerd-shim-runc-v2) becomes the parent of each container’s PID 1 after runc exits.

This means:

• dockerd can be stopped, updated, and restarted without touching running containers
• containerd can be upgraded independently of the containers it manages
• The container survives daemon crashes — the shim holds the I/O streams and re-reports status when the daemon reconnects

This design is what makes zero-downtime Docker daemon upgrades possible on production hosts.

---

Rootless Docker

Docker can be run entirely without root — both the daemon and all container processes run as a non-privileged user. This is called rootless mode.

# Install rootless Docker (run as a non-root user)
dockerd-rootless-setuptool.sh install

# The daemon socket is now in the user's runtime dir
export DOCKER_HOST=unix://$XDG_RUNTIME_DIR/docker.sock
docker ps

	Standard Docker	Rootless Docker
Daemon privilege	Root	Non-root user
Container isolation	Kernel namespaces	Kernel namespaces + user namespaces
Performance	Full	Slight overhead from user namespace mapping
Feature parity	Full	Some features limited (e.g., binding privileged ports < 1024)
Best for	Servers, CI runners	Shared developer machines, security-sensitive environments

Note

Rootless mode is supported on Docker Engine 20.10+ and requires a kernel with user namespace support (CONFIG_USER_NS=y). Docker Desktop runs rootless by default on macOS and Windows since the entire engine is inside a VM.

---

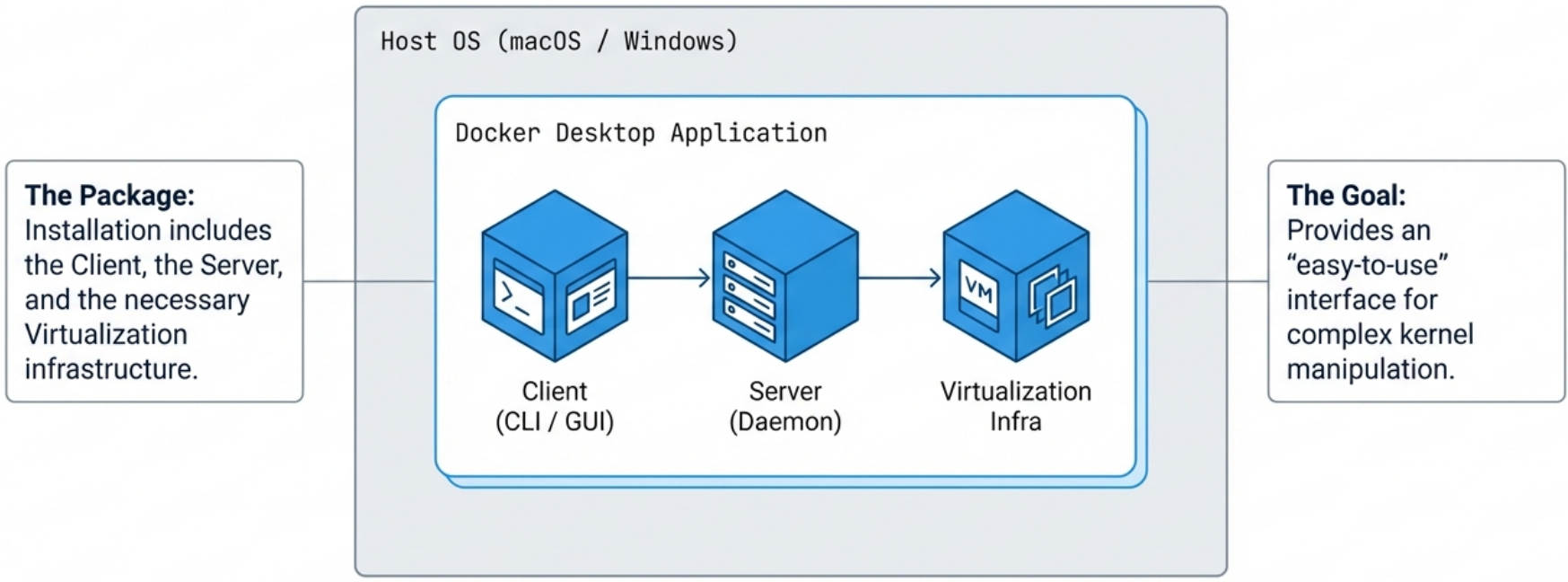

Docker Desktop

Docker Desktop is the developer-friendly distribution for macOS and Windows. It wraps Docker Engine in a Linux VM (via Apple Hypervisor / WSL2) and adds:

Component	Purpose
CLI	Standard docker commands
GUI	Manage images, containers, resource limits (CPU/memory/disk)
Credential Helper	Secure credential storage for private registries
Extensions	Third-party tools (e.g., Dive, Portainer, Trivy)
Optional Kubernetes	Single-node K8s cluster alongside Docker

Docker Engine vs Docker Desktop

	Docker Engine	Docker Desktop
OS	Linux only	macOS, Windows, Linux
License	Free (Apache 2.0)	Free for personal use; paid for large orgs
Kubernetes	Not included	Optional, single-node
GUI	None	Included
VM overhead	None	Yes (Linux VM layer)

• On Linux, prefer Docker Engine for servers and CI runners — no VM overhead, full performance.
• On macOS/Windows, Docker Desktop is the practical choice. The VM boundary means bind mounts have some performance overhead compared to native Linux.

---

How the API Works

Client and daemon communicate over a local socket by default:

• Linux: /var/run/docker.sock
• Windows: \\.\pipe\docker_engine

# Connect CLI to a remote Docker daemon
docker -H remote-host:2375 ps
export DOCKER_HOST=tcp://remote-host:2375

# The CLI is just a REST API wrapper — you can call it directly:
curl --unix-socket /var/run/docker.sock http://localhost/containers/json

Caution

Port 2375 is unauthenticated and unencrypted. Anyone who can reach it has full control of your Docker daemon — which is effectively root on the host. For remote access, use the TLS-secured port (2376) with client certificate auth, or tunnel over SSH: docker -H ssh://user@remote-host ps.

Any tool that speaks the Docker REST API — Portainer, VS Code Docker extension, CI runners — can manage Docker. The CLI is not special.
