Docker Engine

The Docker Engine is the server-side runtime responsible for running and managing containers. For VMware users, it plays a role similar to ESXi - it is the host-level execution environment, not the management UI.

The Engine is highly modular: built from many small, specialized components drawn from the OCI, the CNCF, and the Moby project - including the API, image builder, high-level runtime, low-level runtime, and shims.

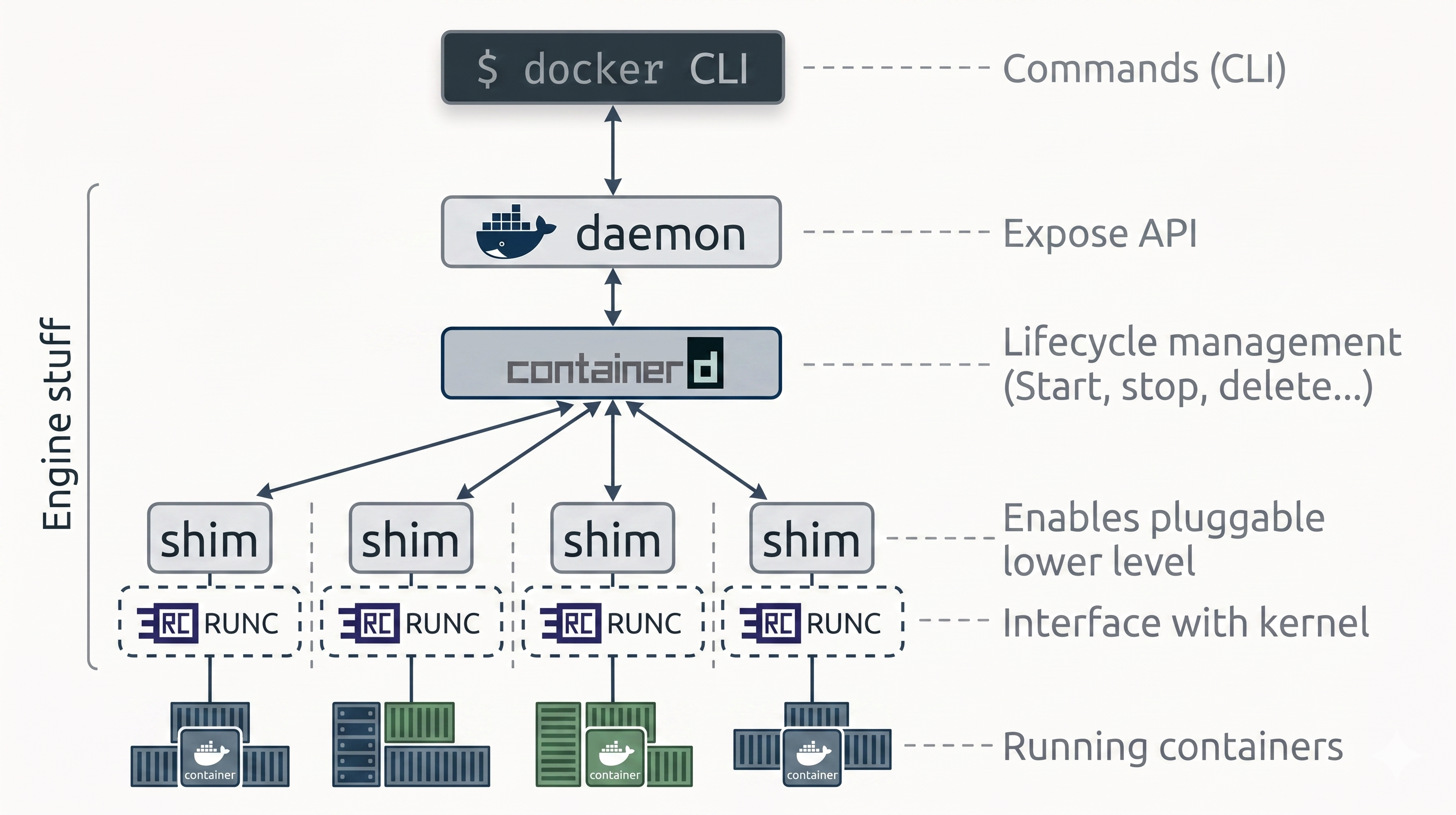

The delegation chain at a glance:

Docker CLI → dockerd → containerd → shim → runc → container process

---

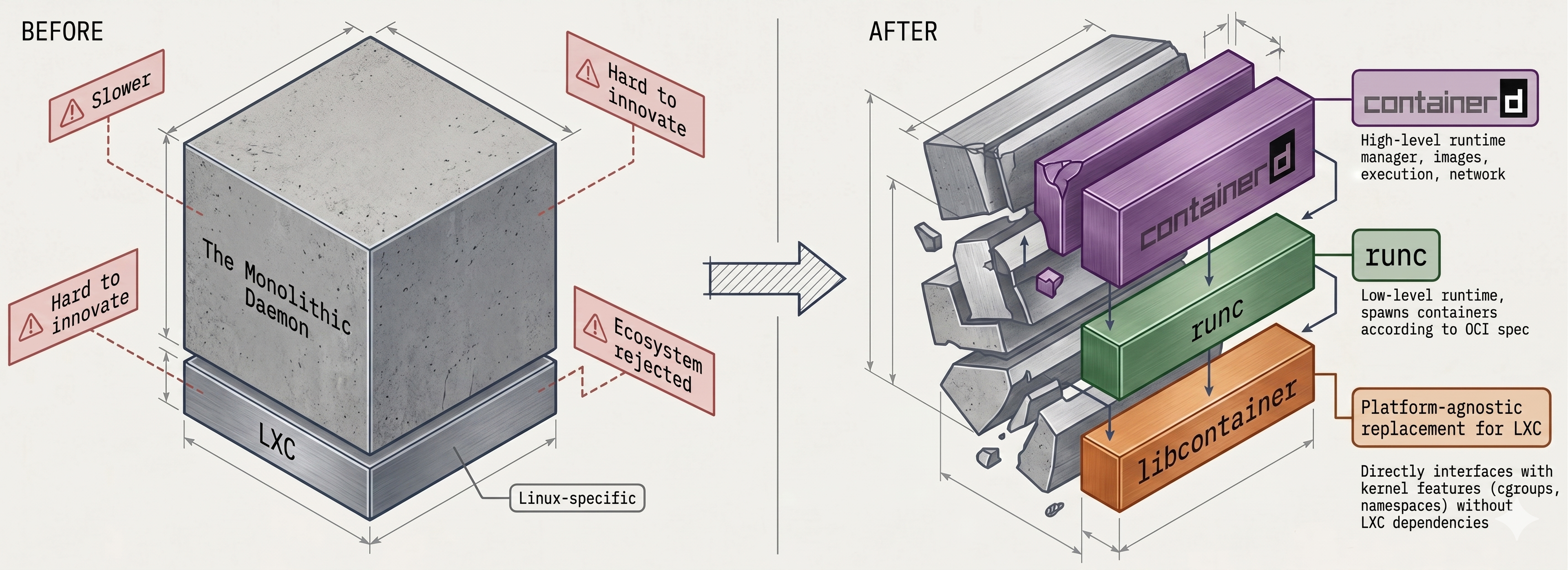

From Monolith to Modular

When Docker launched, the Engine was two things: a monolithic daemon (handling the API, image builds, container execution, volumes, and networking all in one process) and LXC (which interfaced with the Linux kernel to build cgroups and namespaces).

This created two compounding problems:

• LXC was Linux-only - a hard blocker for Docker’s cross-platform goals
• The monolithic daemon became slow and hard to evolve - not what the broader ecosystem wanted

Docker decomposed the Engine over several years:

Phase	What changed
LXC → libcontainer	Docker built its own platform-agnostic kernel interface, gaining direct control over namespaces and cgroups without depending on LXC
Daemon split	Container execution extracted into containerd (high-level) and runc (low-level)
Image management	From Docker Desktop 4.27.0, image management moved out of the daemon into containerd
Today	The daemon is an API gateway - it coordinates specialized tools but no longer does the work itself

Note

The daemon still exists and is still required - it serves the Docker API. But it no longer creates containers, manages images, or runs processes. Everything is delegated.

---

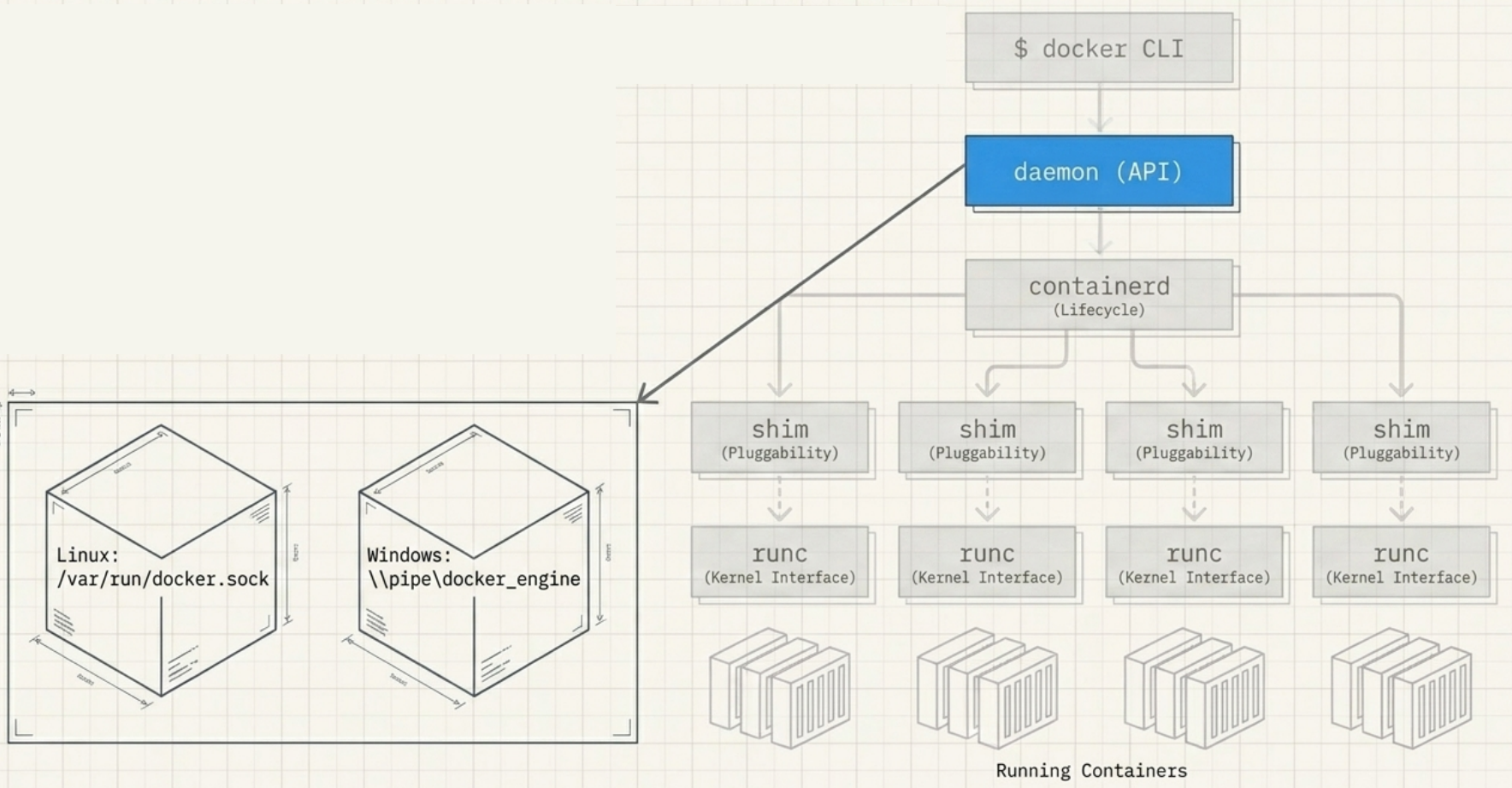

The Docker Daemon (dockerd)

• Runs on the host and exposes the Docker REST API
• Receives API calls from the CLI or any REST client
• Interprets requests and delegates to containerd via gRPC
• Can join a cluster of other daemons for orchestration (Docker Swarm)
• Linux binary: /usr/bin/dockerd

# Check daemon status
systemctl status docker

# Run a container on a remote daemon
docker -H 10.123.2.1:2375 run nginx

---

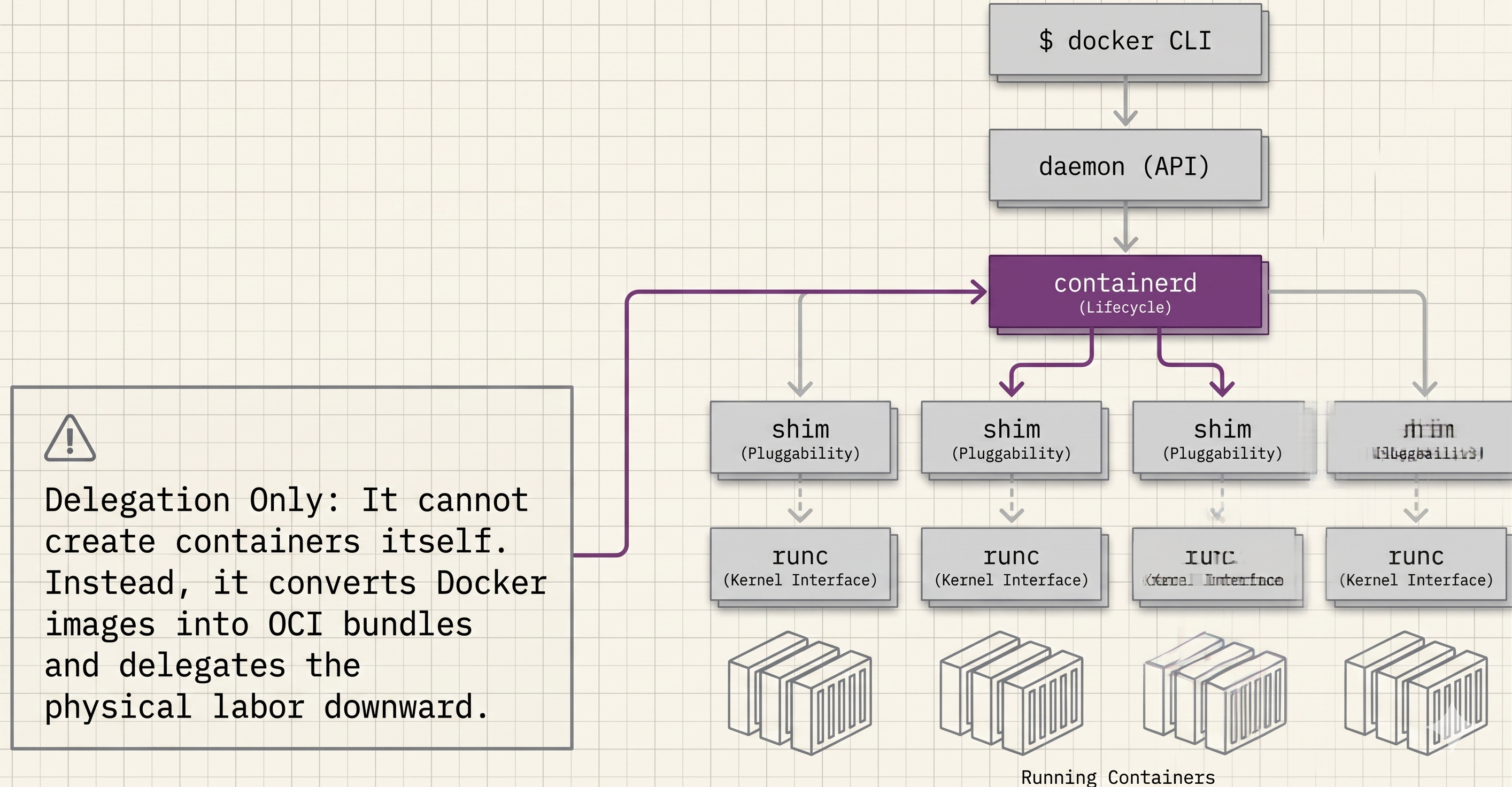

containerd - The High-Level Runtime

containerd is a high-level container runtime created by Docker Inc. to pull lifecycle management out of the monolithic daemon. It was donated to the CNCF and is now a graduated CNCF project used in production at scale.

What containerd does:

• Manages container lifecycle events: start, stop, delete
• Manages images, networks, and volumes (its scope has expanded over time)
• Receives instructions from dockerd over a gRPC API
• Converts Docker images into OCI-compliant bundles for runc
• Forks and supervises shims and runc processes for each container

What containerd does not do:

• It cannot create containers directly - that is runc’s job

Modularity: Kubernetes embeds containerd directly, using only the features it needs (image push/pull, lifecycle). This is why OCI images built with Docker run on Kubernetes unchanged - the runtime is the same, just without dockerd in the chain.

Linux binary: /usr/bin/containerd

# containerd has its own CLI (ctr) for low-level inspection:
ctr containers list

---

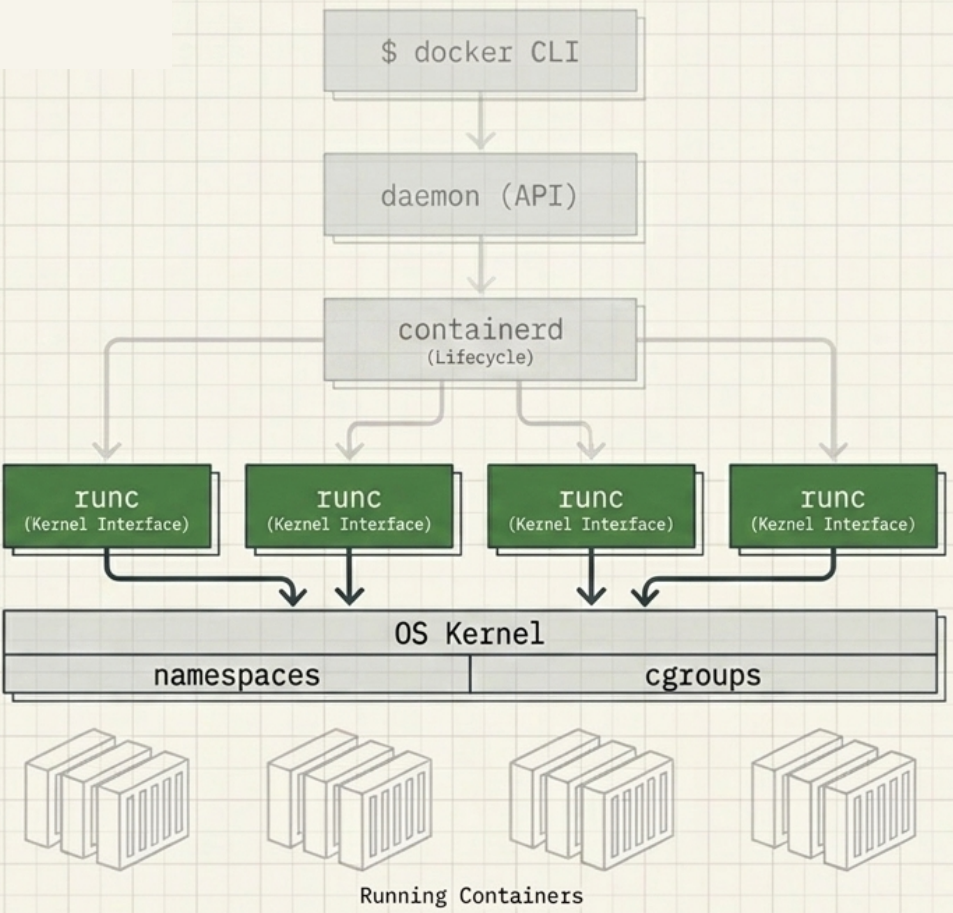

runc - The Low-Level Runtime

runc (pronounced “run-see”, always lowercase) is the OCI runtime-spec reference implementation. Docker contributed its libcontainer codebase to the OCI as the seed for runc.

What runc does:

• Receives an OCI-compliant bundle from containerd
• Interfaces directly with the host OS kernel to construct namespaces and cgroups
• Creates the container process as a child of runc
• Exits immediately after the container starts - it is not a long-running process

What runc does not do:

• It does not manage lifecycle beyond creation
• It does not keep streams open or report status - that is the shim’s job

Pluggability: Because the OCI layer is pluggable via shims, runc can be swapped for crun, gVisor (runsc), or kata-containers when a workload needs a different isolation model (e.g., hardware-level isolation or WebAssembly).

Linux binary: /usr/bin/runc

---

Shims - The Glue Layer

For every container started, containerd forks a shim alongside runc. The shim is a small, lightweight process that sits between containerd and the running container.

The three jobs of a shim:

Benefit	How the shim delivers it
Daemonless containers	Decouples running containers from the daemon - dockerd can restart without killing any containers
Process management	After runc exits, the shim holds STDIN/STDOUT open and reports container status to containerd
Pluggable OCI layer	containerd talks to the shim interface, not runc directly - making the low-level runtime swappable

Linux binary: /usr/bin/containerd-shim-runc-v2

---

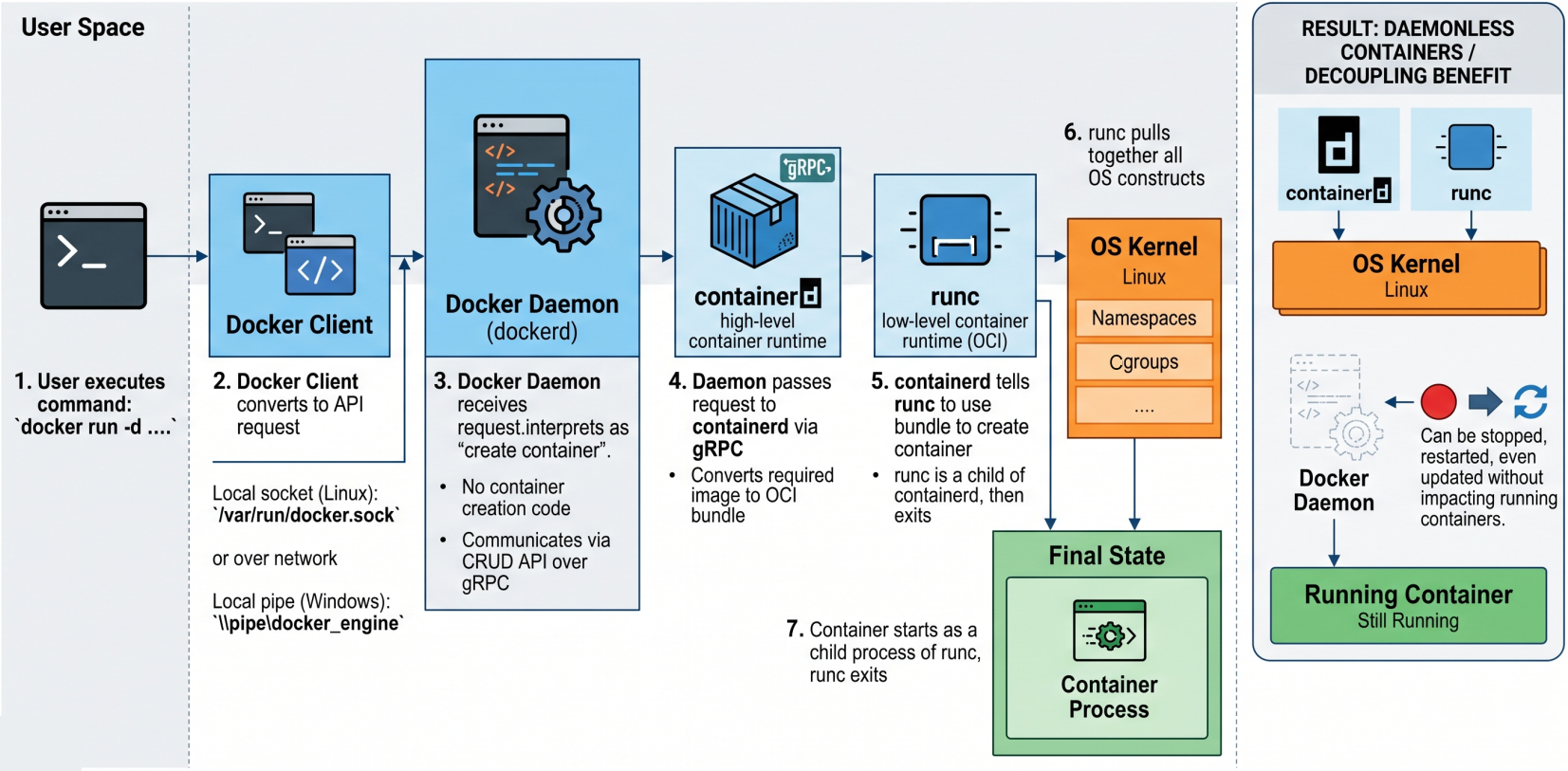

Container Lifecycle: Step by Step

What happens internally when you run docker run -d nginx:

Step 1 - CLI to Daemon

The CLI converts the command into a REST API request and sends it to dockerd over TCP or the local socket (/var/run/docker.sock on Linux, \\.\pipe\docker_engine on Windows).

Step 2 - Daemon to containerd

dockerd receives the request, interprets it as “create a container”, and passes the instruction to containerd over gRPC. The daemon no longer contains container-creation code.

Step 3 - containerd prepares the OCI bundle

containerd cannot create the container directly. It takes the nginx image and converts it into an OCI-compliant bundle - a directory containing the root filesystem and a config.json describing the container configuration.

Step 4 - containerd forks shim + runc

containerd forks two processes: a shim and a runc instance. runc reads the OCI bundle and calls into the host kernel to construct the namespaces and cgroups.

Step 5 - Container starts, runc exits

The container process starts as a child of runc. The moment it is successfully running, runc exits. This is intentional - runc is only needed for the creation phase.

Step 6 - Shim takes over

The shim becomes the container’s new parent process. It keeps STDIN/STDOUT streams open, reports container status back to containerd, and allows dockerd to restart without disrupting the running container.

---

OCI Compliance

All three OCI specs are implemented end-to-end by the Engine:

OCI Spec	Component	What it means in practice
runtime-spec	runc is the official reference implementation	Any OCI-compliant runtime can replace runc
image-spec	Docker images are OCI images	”Docker image”, “container image”, and “OCI image” are interchangeable
distribution-spec	Docker Hub and all modern registries are OCI registries	docker pull ghcr.io/org/image works identically to pulling from Docker Hub

---

How Docker Containerizes Applications

Docker uses Linux namespaces to isolate each container’s view of the system, and cgroups to limit resource consumption. No hypervisor is involved.

Tip

For the full breakdown of namespaces (pid, net, mnt, ipc, uts, user), cgroups, union filesystems, and copy-on-write mechanics, see The Mechanics of Containerization.

---

Linux Binaries

The modular architecture maps directly to separate binaries on the host. Verify them with ps or by checking the paths directly:

Binary	Role	Present
/usr/bin/dockerd	Docker daemon - serves the Docker API	Always (when Docker is running)
/usr/bin/containerd	High-level runtime - lifecycle management	Always (when Docker is running)
/usr/bin/containerd-shim-runc-v2	Shim - parent process for running containers	Only while containers are running
/usr/bin/runc	Low-level OCI runtime - interfaces with the host kernel	Only during container creation

Note

On Docker Desktop (macOS/Windows), you will not see these binaries from the host shell. They run inside the Linux VM that Docker Desktop manages - invisible to the host OS process list. To inspect them, use the Docker Desktop dashboard or open a shell inside the VM.
