Docker Registry

• A Docker Registry is a service that stores and distributes Docker images. It’s the central repository from which images are pulled and to which they are pushed.

• Images are identified as [registry-host/][namespace/]name[:tag]

• Default registry: Docker Hub (docker.io). If no registry is specified in an image name, Docker Hub is assumed.

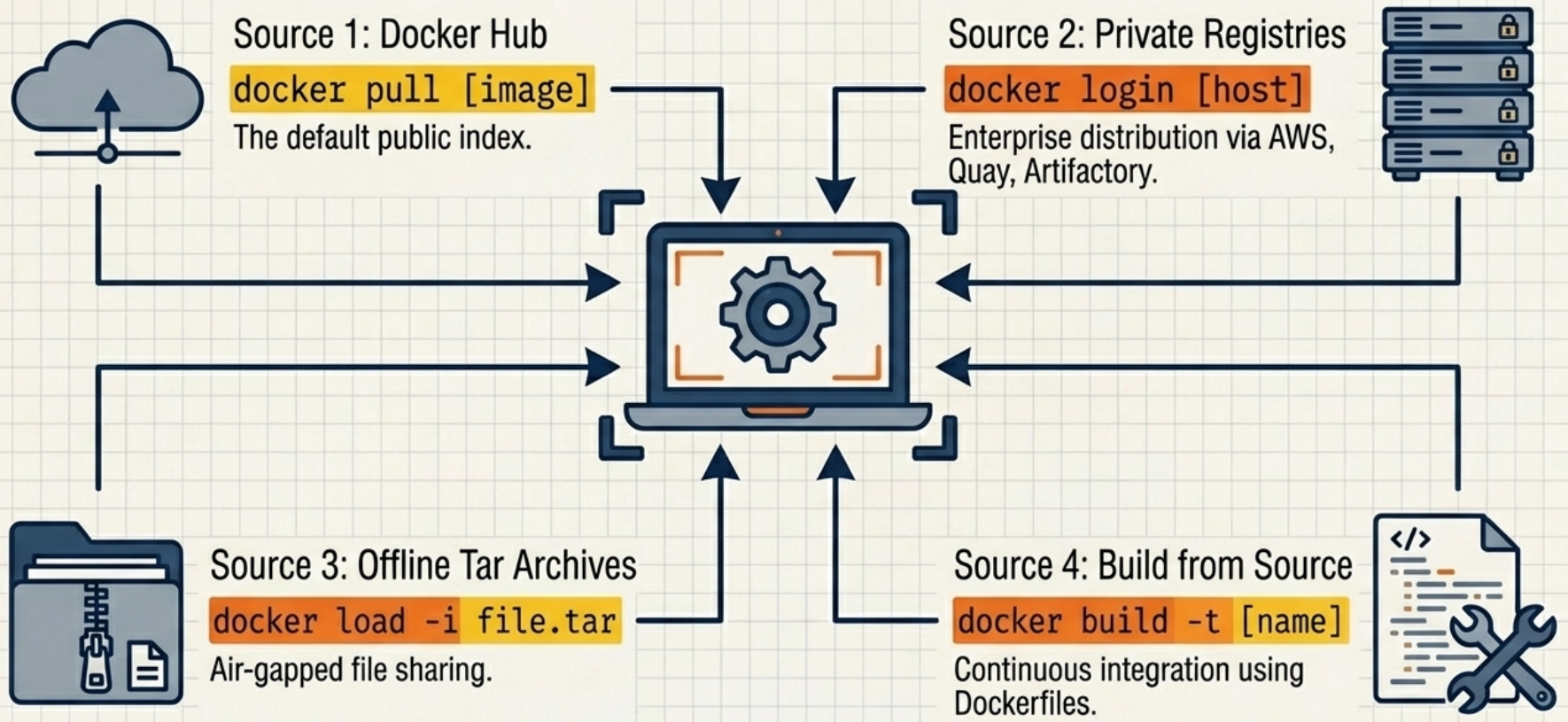

• Images can reach a Docker host through four sources: pulled from Docker Hub, pulled from a private registry, loaded from an offline TAR archive, or built locally from a Dockerfile.



Choosing an Acquisition Method

Method	Primary Use Case	Advantage	Key Weakness
Docker Hub	Default public open-source software	Zero configuration	Third-party reliance - not suitable for proprietary code
Private Registries	Corporate infrastructure	Complete access control and central governance	Introduces a single point of failure
Tar Archives	Air-gapped or offline networks	Bypasses network requirements completely	No distribution facilities or version tracking
Dockerfiles	Version-controlled team projects	Extremely lightweight to share	Risk of dependency drift during delayed builds

Decision Criteria

When no single method is universally optimal, evaluate your requirements against these nine criteria:

Criterion	What It Determines
Cost	Free (public hosted) to expensive (self-hosted infra). Typically the most flexible criterion — organizations trade cost for features like confidentiality.
Visibility	How discoverable your images are. Open-source wants maximum; internal tools and proprietary software need minimum.
Transport speed	Concurrent layer downloads vs. flat file shipping. Critical for just-in-time deployments; less important for local dev.
Access control	Protection from unauthorized access. Rigid — typically dictated by compliance or business requirements.
Artifact integrity	Cryptographic guarantees that what you pull is what was published. Protects against man-in-the-middle and registry compromise.
Artifact confidentiality	Whether image contents are protected from the provider itself. Hosted registries can never fully satisfy the most sensitive requirements.
Longevity control	Business risk of relying on third parties. If a hosted provider shuts down, you lose your distribution channel.
Availability control	Your ability to resolve outages directly. Hosted = SLA only. Self-hosted = full control and full responsibility.
Requisite expertise	Hosted tools need minimal knowledge. Private registries and custom pipelines require deep operational experience.

Public vs Private Registries

Registry	Provider	Type	Notes
Docker Hub	Docker Inc	Public/Private	Default. Free tier has pull rate limits.
GitHub Container Registry (GHCR)	GitHub	Public/Private	Integrated with GitHub Actions.
Azure Container Registry (ACR)	Microsoft	Private	Native AKS/Azure integration. Geo-replication.
AWS ECR	Amazon	Private	Native ECS/EKS integration. IAM auth.
Google Artifact Registry	Google	Private	Replaced GCR. Multi-format (Docker, npm, Maven).
Harbor	CNCF	Self-hosted	Open-source. Vulnerability scanning, RBAC.
Nexus Repository	Sonatype	Self-hosted	Multi-format proxy and private registry.

Working with Registries

# Login to Docker Hub
docker login
# ⚠️ Credentials are stored as base64 in ~/.docker/config.json — not encrypted.
# Use a credential helper (docker-credential-pass, docker-credential-osxkeychain)
# to store them securely. See: docker help login

# Login to a private registry
docker login myregistry.azurecr.io

# Pull an image from Docker Hub (implicit registry)
docker pull nginx:alpine

# Pull from a private registry (must be logged in)
docker pull myregistry.azurecr.io/apps/my-app:v1.2

# Tag an existing local image for a registry
docker tag my-app:latest myregistry.azurecr.io/team/my-app:v1.2

# Push to registry
docker push myregistry.azurecr.io/team/my-app:v1.2

# List images in a registry (Docker Hub example via API)
curl -s https://hub.docker.com/v2/repositories/library/nginx/tags | jq '.results[].name'

# Logout
docker logout myregistry.azurecr.io

Running a Private Registry

Docker distributes an official registry image you can self-host:

# Run a local registry on port 5000
docker run -d \
  -p 5000:5000 \
  --name registry \
  --restart=always \
  -v registry-data:/var/lib/registry \   # persist images
  registry:2

# Push an image to your local registry
docker tag my-app:latest localhost:5000/my-app:latest
docker push localhost:5000/my-app:latest

# Pull from your local registry
docker pull localhost:5000/my-app:latest

For a production private registry, add:

• TLS: Use a reverse proxy (Nginx, Caddy) with a valid certificate. Docker requires HTTPS for non-localhost registries.
• Authentication: Basic auth via htpasswd file, or proxy through an OAuth provider.
• Vulnerability scanning: Use Harbor or Trivy integration.

Infrastructure Patterns

A self-hosted registry enables distribution architectures that hosted services cannot:

• Regional caches — Deploy registry instances per geographic region to reduce pull latency for distributed teams.
• Environment-specific pools — Separate registries for dev, staging, and production enforce promotion workflows and prevent accidental cross-environment image usage.
• Corporate approval gates — Images must pass vulnerability scanning and policy checks before being promoted to a production registry.
• Team-scoped namespaces — Restrict image visibility and write access at the team level, invisible to the broader organization.
• Mirroring external dependencies — Copy images from Docker Hub into your own registry to insulate against upstream deletions, tag changes, or rate limits.

Trade-offs

Strength	Consideration
First method truly suitable for trade secrets — you control TLS, storage encryption, and auth	Requires substantial operational expertise to run at high availability
No external network dependency — clients pull from internal infrastructure	Cost scales with storage volume and transaction rate, not a flat per-repo fee
100% longevity and availability control	The open-source Distribution server ships with no auth — you must integrate NGINX, LDAP/Kerberos, and Redis separately

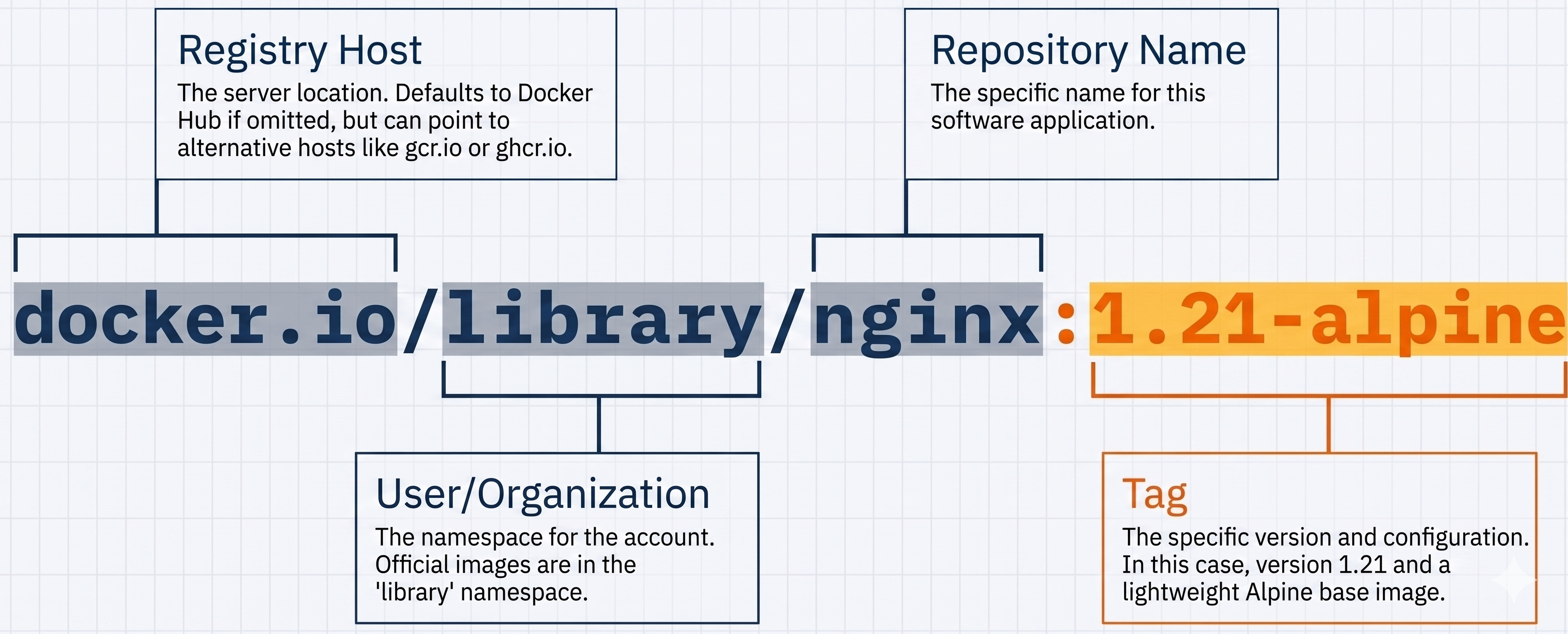

Image Naming Deep Dive

Image Reference	Resolved To
nginx	docker.io/library/nginx:latest
nginx:alpine	docker.io/library/nginx:alpine
myuser/myapp	docker.io/myuser/myapp:latest
myregistry.io/myapp:v2	myregistry.io/myapp:v2
myapp@sha256:abc123	Content-addressed, exact digest

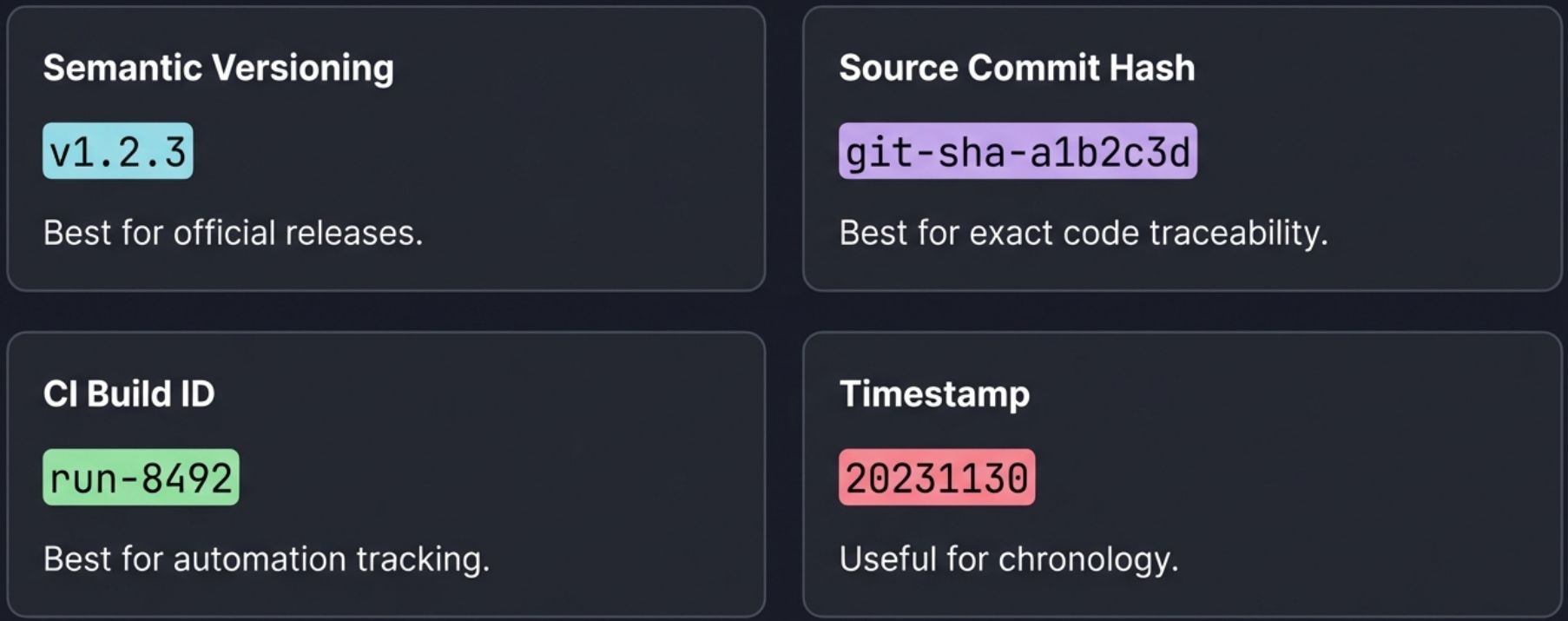

• Digest pinning: sha256:... digests are immutable. Unlike tags, they cannot be overwritten. Use digests in production for reproducible deployments.

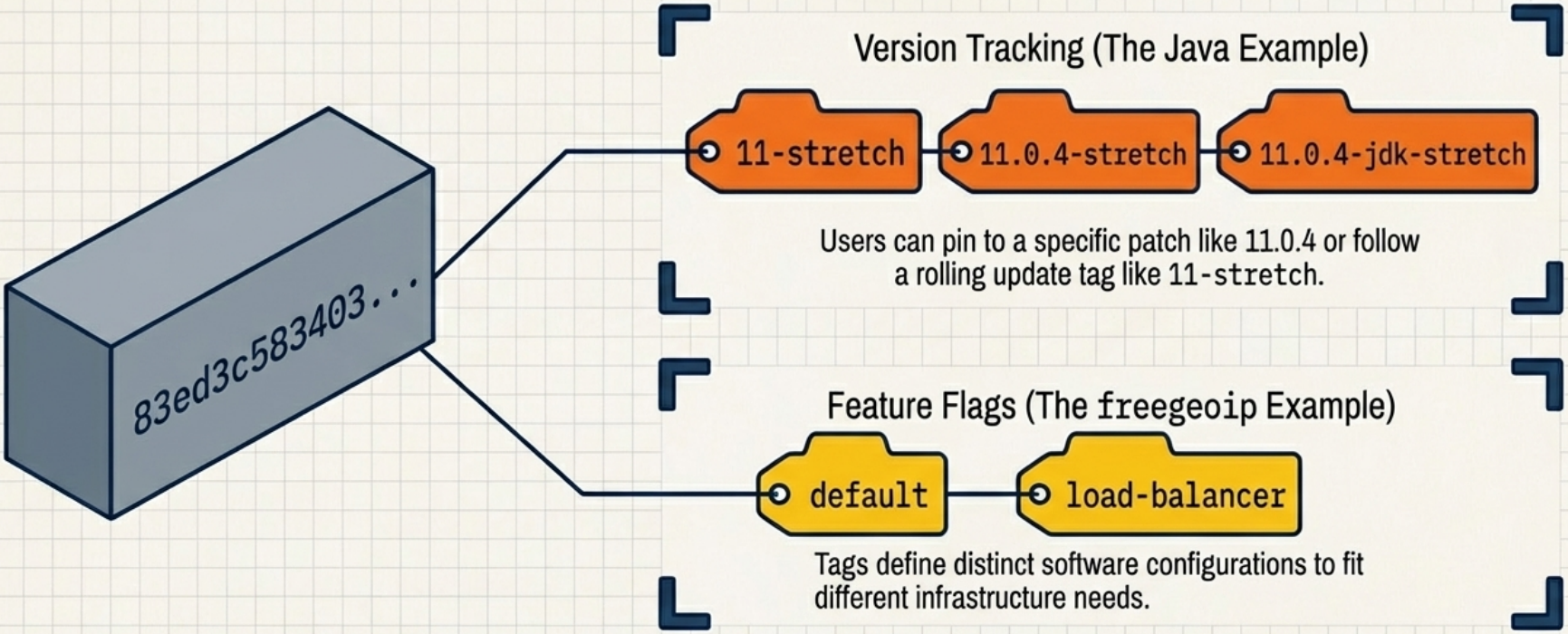

• Tags are mutable. The image behind nginx:latest changes every time a new release is published. Never rely on latest in CI/CD.

• Content Trust: Set DOCKER_CONTENT_TRUST=1 to enforce that only cryptographically signed images are pulled. Requires the image publisher to sign with Docker Notary. Not widely adopted outside official images, but useful in high-security environments.



Docker Hub Rate Limits

• Unauthenticated pulls: 100 pulls per 6 hours per IP.
• Authenticated free tier: 200 pulls per 6 hours per account.
• Paid plans: unlimited.

For CI/CD pipelines that frequently pull from Docker Hub, either:

1. Authenticate your CI runner with a Docker Hub account.
2. Mirror Docker Hub through a private registry (pull-through cache) to avoid rate limits hitting your entire team.

# Configure a Docker Hub pull-through mirror in /etc/docker/daemon.json
cat > /etc/docker/daemon.json <<'EOF'
{
  "registry-mirrors": ["https://my-dockerhub-mirror.mycompany.io"]
}
EOF

# Restart Docker for the change to take effect
systemctl restart docker

Offline Distribution

When a registry is unavailable - air-gapped environments, offline CI, or transferring images between isolated networks - Docker images can be packaged into a TAR archive and loaded on another machine:

# Export one or more images to a TAR archive
docker save -o my-images.tar nginx:alpine my-app:v1.2

# Verify the archive contents
tar -tf my-images.tar

# Transfer the file (scp, USB, shared volume, etc.)
scp my-images.tar user@target-host:/tmp/

# Load images from the archive on the target machine
docker load -i /tmp/my-images.tar

# Confirm images are available
docker images

Note

docker save exports the full image including all layers and metadata. docker load restores it with the original repository name and tag intact. This is different from docker export (which exports a running container’s filesystem without layer history) and docker import (which creates a single flat layer from that export).

Source Distribution (Dockerfile via Git)

Instead of distributing a built image, you distribute the Dockerfile and build context and let consumers build the image themselves. Standard registry commands (docker push, docker pull) are not involved — the only Docker tool used is the builder.

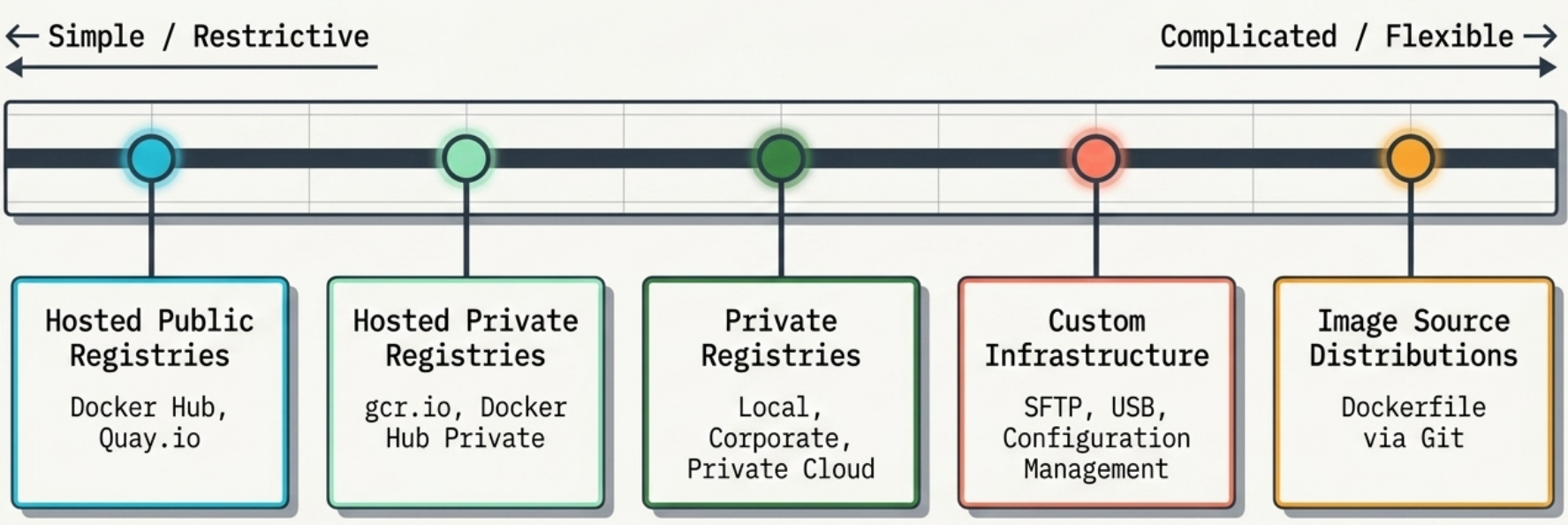

This is the most flexible method on the distribution spectrum since any version-control or file-sharing tool works, but it places the full build burden on the consumer.

Roles

• Producer: Packages the Dockerfile and required source files into a repository. No registry account required.
• Consumer: Clones the repository and runs docker build locally. Must be familiar with Docker build tooling and Dockerfile syntax.

Example: GitHub Workflow

# Producer — publish the source
git init && git add Dockerfile src/
git commit -m "chore: initial Dockerfile"
git remote add origin https://github.com/org/my-app
git push origin main

# Consumer — build from source
git clone https://github.com/org/my-app
docker build -t my-app:local ./my-app

Evaluation

Criterion	Rating	Notes
Cost	✅ Best	Free on public GitHub repositories
Visibility	✅ Best	GitHub search and social discovery
Transport speed	✅ Good	GitHub CDN + consumer pulls base layers from the nearest registry
Access control	✅ Good	Private repos with collaborator management
Artifact integrity	✅ Good	Git history makes tampering visible and recoverable
Requisite expertise	⚠️ Good	Requires Git + Dockerfile familiarity from both parties
Longevity & availability	❌ Worst	Entirely dependent on GitHub’s uptime and business continuity
Confidentiality	❌ Worst	Source code is fully exposed on public repositories

Caution

Source distribution has no artifact consistency guarantees. The final image varies depending on which base image tag resolves at build time and which package versions are available. Always pin base images by digest in your Dockerfile to mitigate build-time drift.
