ConfigMaps & Secrets

Most applications consist of two parts:

1. The Application Binary and its
2. Configuration.

How you package those two parts together determines how painful your multi-environment deployments will be.

---

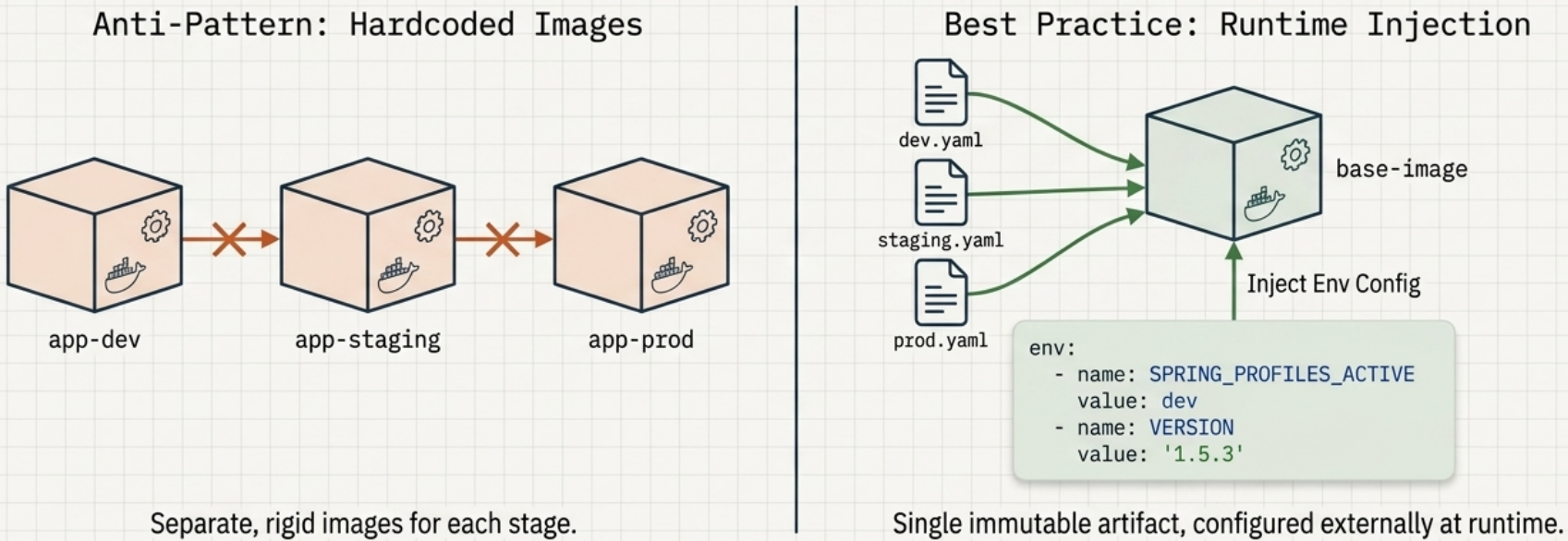

Why Decouple Configuration?

The anti-pattern is embedding configuration directly inside the container image. It forces you to maintain a separate image per environment (dev, staging, prod) — each with its own build, its own repository slot, and its own deployment pipeline. A one-line config change means rebuilding and redeploying everything.

The Kubernetes approach: build one hardened base image with no embedded environment config, store it once, and inject the correct configuration at run time. The same image runs in every environment — only the configuration resource changes.

	Coupled (anti-pattern)	Decoupled (Kubernetes way)
Images per environment	3 (dev, staging, prod)	1
Config change requires	Full rebuild + redeploy	Update config resource only
Security scanning	Per-image	One image
”Works in dev, fails in prod” risk	High (image drift)	Low (same image everywhere)

Kubernetes provides two first-class API objects for this:

• ConfigMaps — non-sensitive configuration (hostnames, ports, feature flags, config files)
• Secrets — sensitive data (passwords, TLS certificates, API keys)

---

Inline Pod Configuration

Before reaching ConfigMaps and Secrets, you can configure a container directly in the pod manifest — overriding the image’s default command, arguments, and environment variables without rebuilding the image.

Container Command and Arguments

Every Docker image bakes in a default executable (ENTRYPOINT) and optional default arguments (CMD). The pod manifest exposes two fields that map directly to these:

Dockerfile directive	Pod manifest field	What it does
ENTRYPOINT	command	The executable that runs
CMD	args	Default arguments to that executable

Override only the arguments (keep the image’s executable):

spec:
  containers:
    - name: app
      image: my-app:1.0
      args: ["--listen-port", "9090"] # replaces the image's default CMD

Override the entire command (change the executable itself):

spec:
  containers:
    - name: app
      image: my-app:1.0
      command: ["node", "--cpu-prof", "--heap-prof", "app.js"]

Both command and args accept a list of strings. You can write them as YAML arrays (["a", "b"]) or as block lists:

command:
  - node
  - --cpu-prof
  - app.js

Caution

The YAML parser silently coerces unquoted words to booleans or nulls. Always quote numbers and reserved words: "8080", "true", "yes", "no", "null", "on", "off", "y", "n", "t", "f".

Environment Variables

Env vars are declared per container (there is no pod-level global env block). All values must be strings — quote numbers and booleans.

spec:
  containers:
    - name: app
      image: my-app:1.0
      env:
        - name: APP_ENV
          value: "production"
        - name: MAX_CONNECTIONS
          value: "100" # must be quoted — YAML would parse 100 as an integer

Variable referencing with $(VAR_NAME):

Kubernetes lets env vars reference other env vars defined in the same container using $(NAME):

env:
  - name: POD_NAME
    value: "web-server"
  - name: LOG_PREFIX
    value: "$(POD_NAME)-log" # resolves to "web-server-log"
  - name: LISTEN_PORT
    value: "8080"
args:
  - --port
  - $(LISTEN_PORT) # also works in command/args

Rules for $(VAR_NAME) resolution:

Rule	Detail
Order matters	The referenced var must be declared before the var that uses it
Manifest-only	Cannot reference vars baked into the image (e.g., NODE_VERSION from a Node.js base image)
Unresolved	If the reference can’t be resolved, it stays as the literal string $(VAR_NAME) — no error
Escaping	Use $$(VAR_NAME) to pass the literal dollar-paren string without resolution

To reference image-baked or OS-level variables, run the command through a shell — the shell resolves them at runtime using standard $VAR syntax:

command:
  - sh
  - -c
  - 'echo "Running on $HOSTNAME"; sleep infinity' # shell resolves $HOSTNAME

---

ConfigMaps

A ConfigMap is a v1 core API object that stores non-sensitive configuration data as a flat map of key-value pairs. Containers consume it as environment variables, startup arguments, or mounted files — without any Kubernetes-specific application code.

Characteristics

Property	Detail
API group / version	v1 (core)
Structure	data block (plain text) and optional binaryData block (Base64)
No spec or status	ConfigMaps hold data only, not operational state
Key format	Alphanumeric, dashes -, dots ., underscores _ only
Size limit	1 MiB — use external config stores for larger payloads
Namespaced	Yes — only visible to pods in the same namespace

What to Store (vs. Secrets)

Store in ConfigMaps	Store in Secrets instead
Database hostnames and ports	Passwords and credentials
Feature flags	TLS certificates and private keys
Config files (nginx.conf, app.yaml)	API keys and OAuth tokens
Service names	Any cryptographically sensitive data
Account names (non-sensitive)

Creating ConfigMaps

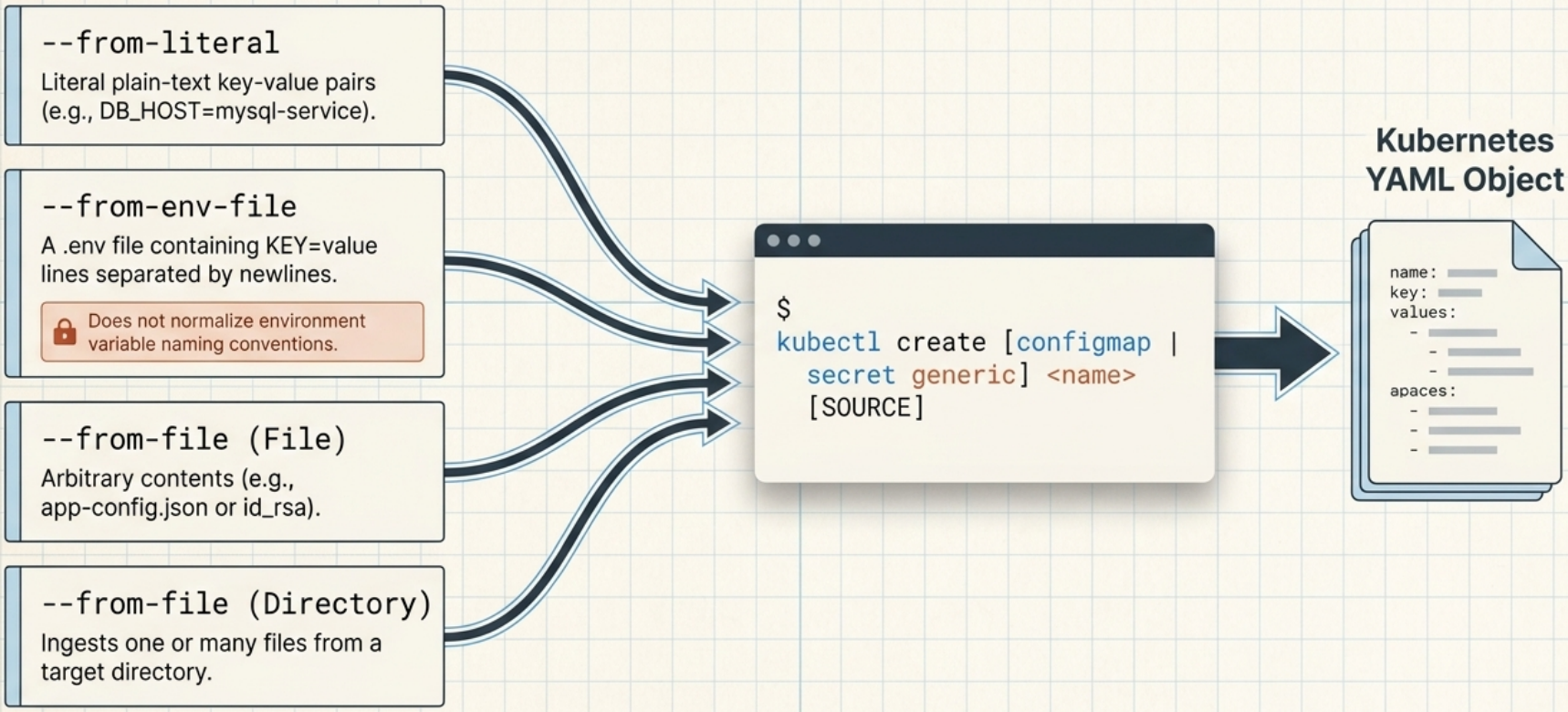

Imperative Creation

Imperative — from literal values:

kubectl create configmap app-config \
  --from-literal=db_host=postgres.prod.svc \
  --from-literal=db_port=5432

Imperative — from files:

# File name becomes the key; file contents become the value
kubectl create configmap nginx-config --from-file=nginx.conf

# Custom key name (instead of using the filename)
kubectl create configmap nginx-config --from-file=server-config=nginx.conf

# Entire directory — every file in the dir becomes a key (subdirs/symlinks ignored)
kubectl create configmap app-config --from-file=config/

Imperative — from an env file (key=value lines):

kubectl create configmap app-config --from-env-file=app.env

Note

You can combine multiple --from-literal and --from-file flags in one command, but --from-env-file cannot be mixed with either of the other two flags.

Declarative — data for text, binaryData for binary:

apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
data:
  db_host: "postgres.prod.svc"
  db_port: "5432"
  nginx.conf: | # pipe (|) = literal block — entire block is one string value
    server {
      listen 80;
      server_name _;
      location / {
        proxy_pass http://backend:8080;
      }
    }
binaryData:
  icon.png: iVBORw0KGgo... # Base64-encoded binary — kubectl handles this automatically

Tip

When creating ConfigMaps from files, ensure the files have no trailing whitespace. A trailing space forces the YAML parser to represent the value as a heavily-escaped single-line string with \n characters instead of a clean multi-line block.

| vs |-: Both are literal block scalars. | keeps a trailing newline at the end of the block; |- strips it. When kubectl creates a ConfigMap from a file it uses |- to avoid appending a stray newline to the stored value.

kubectl apply -f app-config.yaml

kubectl get configmap app-config -o yaml
kubectl describe configmap app-config

Injecting ConfigMap Data into Containers

1. Single Key (configMapKeyRef)

Bind a specific ConfigMap key to a named environment variable:

spec:
  containers:
    - name: app
      image: my-app:1.0
      env:
        - name: DB_HOST
          valueFrom:
            configMapKeyRef:
              name: app-config # ConfigMap name
              key: db_host # key to extract
              optional: true # if true, container starts even if CM or key is missing
        - name: DB_PORT
          valueFrom:
            configMapKeyRef:
              name: app-config
              key: db_port

2. Entire ConfigMap (envFrom)

Bulk-inject all keys from a ConfigMap as environment variables:

spec:
  containers:
    - name: app
      image: my-app:1.0
      envFrom:
        - prefix: APP_ # optional: prepend APP_ to every key → APP_DB_HOST, APP_DB_PORT
          configMapRef:
            name: app-config
            optional: true # container starts even if the ConfigMap doesn't exist

envFrom behaviour rules:

Scenario	What happens
Two ConfigMaps with the same key	Last one listed wins
A key conflicts with an env block entry	The explicit env entry always takes precedence
Keys with invalid env var characters	Silently skipped — use configMapKeyRef for those keys

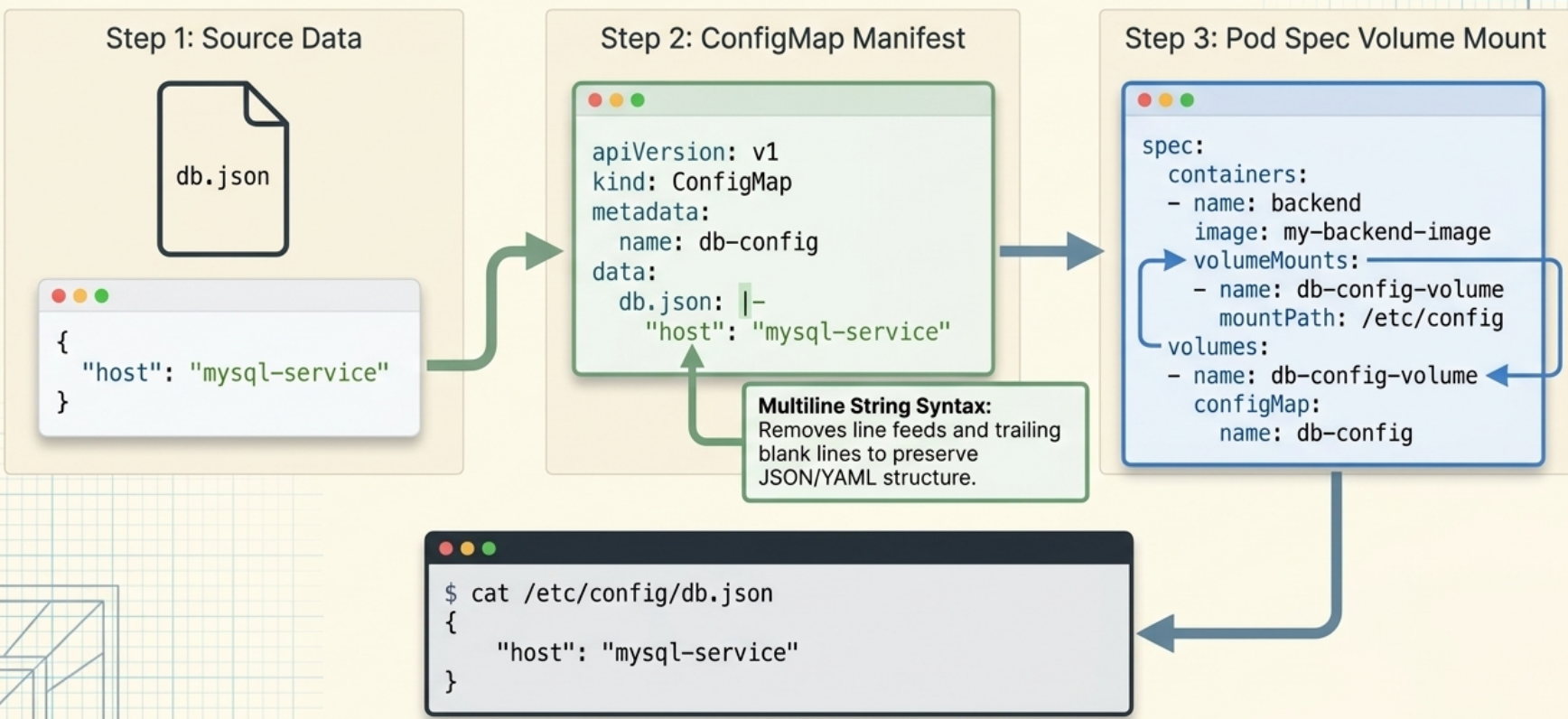

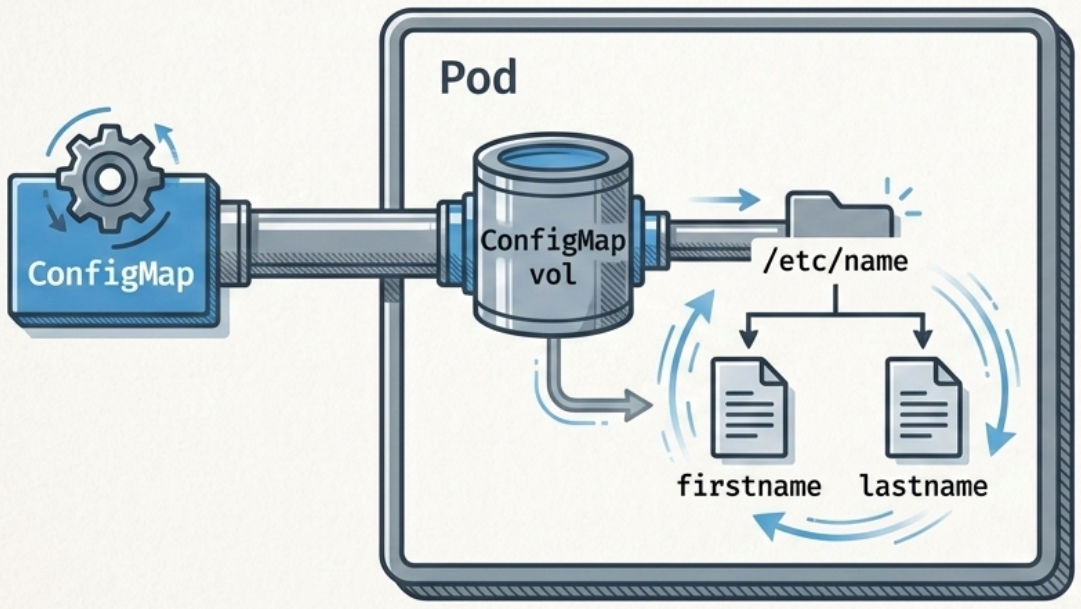

3. Volume Mount (Recommended for files)

Each key becomes a separate file inside the mounted directory:

spec:
  volumes:
    - name: config-vol
      configMap:
        name: app-config
  containers:
    - name: app
      image: nginx
      volumeMounts:
        - name: config-vol
          mountPath: /etc/app-config

Result: /etc/app-config/db_host, /etc/app-config/db_port, /etc/app-config/nginx.conf

Note

Volume-mounted ConfigMaps support live updates. When you edit the ConfigMap, Kubernetes propagates the change to mounted files in running containers within 1–2 minutes — without a pod restart. Environment variables (env/envFrom) do not update automatically; the pod must be restarted.

For advanced volume mechanics — atomic symlink updates, selective key projection, subPath caveats, and optional flag — see Volumes & Storage → ConfigMap Volumes.

Injection Method Comparison

Method	Updates propagate?	Best for
configMapKeyRef	❌ No (static at startup)	Specific key → named env var, custom var name
envFrom	❌ No (static at startup)	Bulk-inject all keys, prefix namespacing
Volume mount	✅ Yes (1–2 min)	Config files, hot-reload, multi-file configs

Error Handling and Startup Blocking

By default, a missing ConfigMap or key blocks the container from starting (the pod still schedules and other containers may start). Add optional: true to allow the container to start with the variable simply unset.

Immutable ConfigMaps

Updating a ConfigMap while pods are running risks a split-brain: pods that restarted after the change pick up the new config, while older replicas still run the old one. To prevent this, lock the ConfigMap:

apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config-v1
data:
  db_host: "postgres.prod.svc"
immutable: true # API server rejects any further data changes

Once immutable is set, you cannot change the data — only delete the object. To roll out a new config:

1. Create a new ConfigMap with a version suffix (app-config-v2)
2. Update the pod template’s configMapRef or configMapKeyRef to point to the new name
3. Rolling restart picks up the new config cleanly

Tip

Immutable ConfigMaps also reduce API server load in large clusters — kubelets no longer need to watch for changes on them, cutting unnecessary polling overhead.

---

Secrets

Secrets store sensitive data using the same key-value structure as ConfigMaps but are handled differently: distributed only to nodes that need them, and stored in memory via tmpfs so they never touch disk.

Secrets vs ConfigMaps: Field Comparison

Secret field	ConfigMap equivalent	Description
data	binaryData	Base64-encoded values
stringData	data	Plain-text values — write-only (converted to data on apply)
immutable	immutable	Locks the object from further data changes
type	(no equivalent)	Declares the Secret category for validation

Caution

stringData is write-only. When you apply a Secret with stringData, Kubernetes converts those entries to data (Base64) and stores them. When you kubectl get secret -o yaml, you will only see the data field — stringData is gone. Plan your GitOps manifests accordingly.

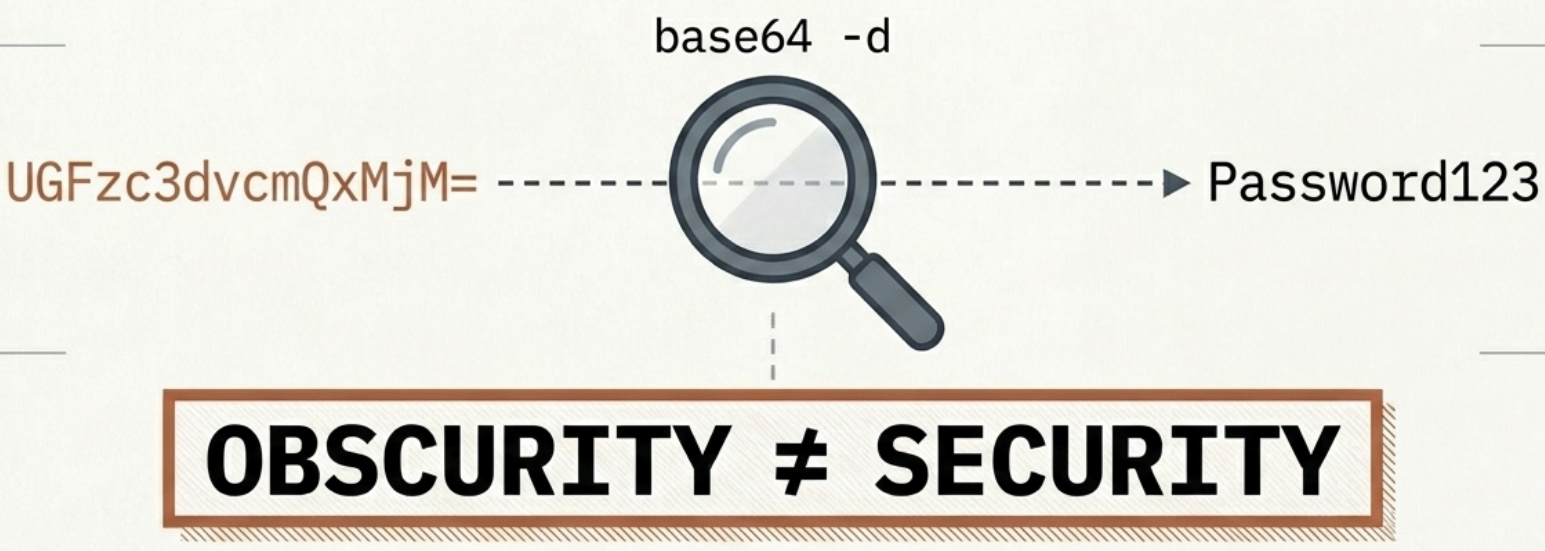

Why Secrets Aren’t Truly Secure (Out of the Box)

Caution

Standard Kubernetes Secrets are not encrypted by default:

• Stored as plain text in etcd
• Transmitted in plain text from API server to the node
• The data field uses Base64 encoding — reversible without any key

echo "UGFzc3dvcmQxMjM=" | base64 -d
# Output: Password123

Never commit Secret manifests to public source control.

Built-in Secret Types

Type	Required keys	Use case
Opaque	Any	Default — arbitrary user credentials
kubernetes.io/tls	tls.crt, tls.key	TLS certificates for Ingress and services
kubernetes.io/dockerconfigjson	.dockerconfigjson	Private container registry pull credentials
kubernetes.io/dockercfg	.dockercfg	Legacy Docker registry format
kubernetes.io/basic-auth	username, password	HTTP Basic authentication
kubernetes.io/ssh-auth	ssh-privatekey	SSH private key
kubernetes.io/service-account-token	token, ca.crt, namespace	ServiceAccount tokens
bootstrap.kubernetes.io/token	token-id, token-secret	Node bootstrapping

Kubernetes validates that a Secret’s keys match the requirements for the declared type.

Creating Secrets

Imperative — generic (Opaque):

kubectl create secret generic db-creds \
  --from-literal=username=admin \
  --from-literal=password=S3cur3P@ss!

Imperative — TLS:

kubectl create secret tls app-tls \
  --cert=server.crt \
  --key=server.key

Imperative — Docker registry pull secret:

kubectl create secret docker-registry registry-creds \
  --docker-server=registry.example.com \
  --docker-username=deployer \
  --docker-password=token123 \
  --docker-email=ci@example.com

# Or import directly from local Docker config
kubectl create secret docker-registry registry-creds \
  --from-file=$HOME/.docker/config.json

Use a pull secret in a pod via spec.imagePullSecrets:

spec:
  imagePullSecrets:
    - name: registry-creds
  containers:
    - name: app
      image: registry.example.com/my-private-app:1.0

Declarative — data block (pre-encoded Base64 values):

Encode the value first, then paste the output into the manifest:

# Encode a value
echo -n 'S3cur3P@ss!' | base64
# S3N1cjNQQHNzIQ==

# Decode to verify
echo -n 'S3N1cjNQQHNzIQ==' | base64 --decode
# S3cur3P@ss!

apiVersion: v1
kind: Secret
metadata:
  name: db-creds
type: Opaque
data:
  password: S3N1cjNQQHNzIQ== # Base64-encoded — must be pre-encoded manually

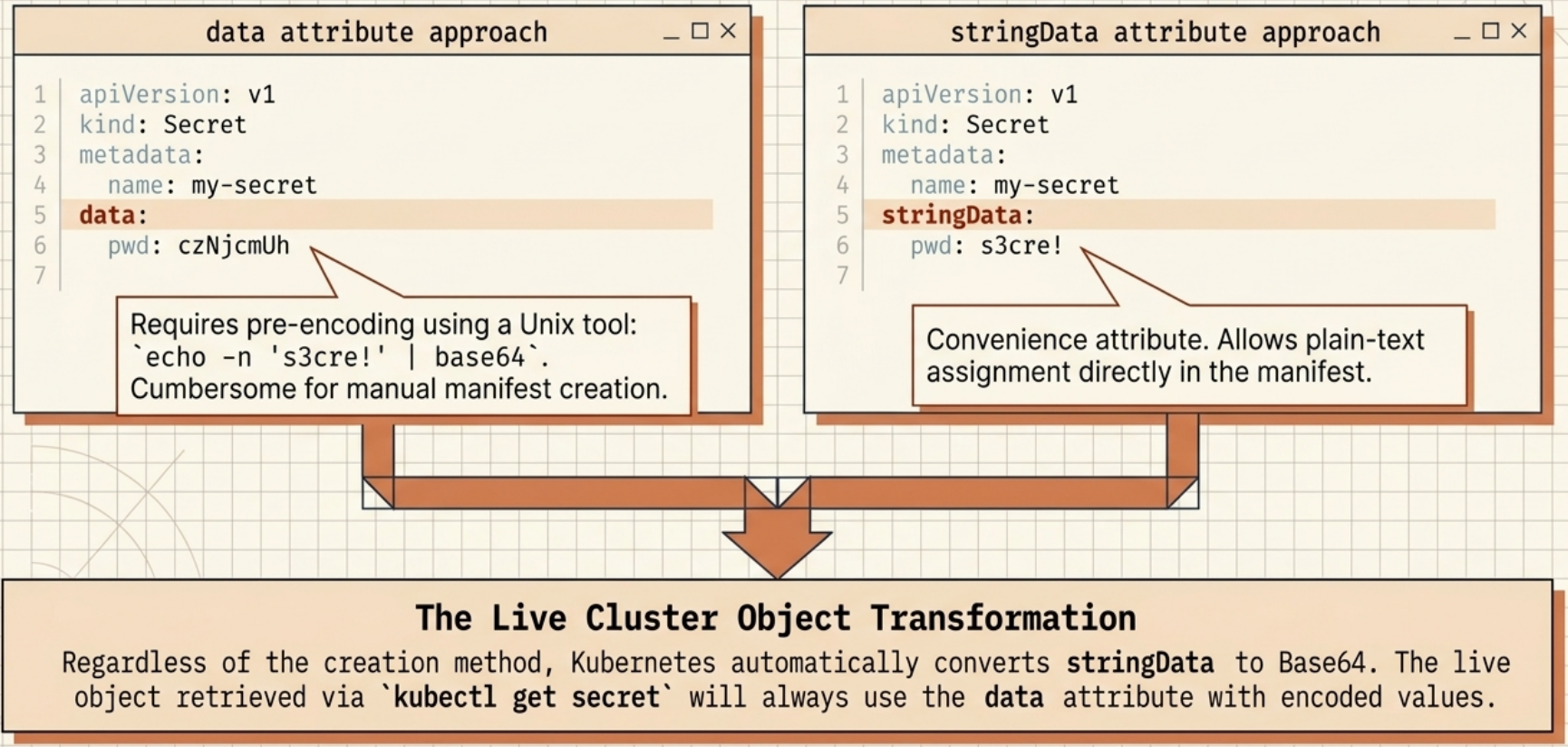

Declarative — stringData (plain text, auto-encoded on apply):

apiVersion: v1
kind: Secret
metadata:
  name: db-creds
type: Opaque
stringData:
  username: admin # Kubernetes base64-encodes this on apply
  password: S3cur3P@ss!

Dry-run trick — generate a Secret manifest without manual Base64 encoding:

kubectl create secret generic db-creds \
  --from-literal=username=admin \
  --from-literal=password=S3cur3P@ss! \
  --dry-run=client -o yaml > db-creds.yaml

Injecting Secrets into Containers

Single key (secretKeyRef)

spec:
  containers:
    - name: app
      image: my-app:1.0
      env:
        - name: DB_PASSWORD
          valueFrom:
            secretKeyRef:
              name: db-creds
              key: password
              optional: true

Entire Secret (envFrom)

spec:
  containers:
    - name: app
      image: my-app:1.0
      envFrom:
        - secretRef:
            name: db-creds

⚠️ Security risks of injecting Secrets via environment variables

Avoid injecting Secrets into env vars in production:

Risk	Explanation
Log exposure	Many runtimes dump env vars to stdout on startup or crash — credentials land in your logging pipeline
Child process inheritance	Every child process spawned by the container inherits all env vars — third-party scripts get your secrets
Recommended alternative	Mount Secrets as volume files instead

Volume Mount (Recommended)

spec:
  volumes:
    - name: secret-vol
      secret:
        secretName: db-creds
  containers:
    - name: app
      image: my-app:1.0
      volumeMounts:
        - name: secret-vol
          mountPath: /etc/db-creds
          readOnly: true # always read-only for Secrets

kubectl exec api-pod -- cat /etc/db-creds/password
# S3cur3P@ss!     (decoded from Base64 at mount time)

Note

secretName vs name (CKA gotcha): When mounting a volume, the attribute that references the Secret resource is secretName — not name. ConfigMap volumes use name instead. Mixing these up is a common exam mistake.

volumes:
  - name: my-vol # arbitrary volume label (same for both)
    configMap:
      name: app-config # ConfigMap → uses "name"
  - name: secret-vol
    secret:
      secretName: db-creds # Secret → uses "secretName"

For advanced Secret volume mechanics — tmpfs storage, file permissions, defaultMode, fsGroup for non-root processes — see Volumes & Storage → Secret Volumes.

Secret Lifecycle

Create Secret  →  Stored in etcd  →  Pod scheduled  →  kubelet transfers Secret
(plain text)      (unencrypted       to a node          to node over the network
                   by default)

→  container runtime mounts Secret via tmpfs  →  App reads plain text
   (Base64 decoded at mount time;               from /etc/<mount-path>
    never written to disk)

→  Pod deleted  →  kubelet wipes tmpfs replica from node memory

Secrets Limitations

Limitation	Detail
Base64 ≠ encryption	Anyone with API access can decode instantly
Unencrypted etcd	Requires explicit EncryptionConfiguration to fix
RBAC over-permission	A single misconfigured role grants cross-namespace Secret reads
No auto-rotation	Volume-mounted files update, but the app must re-read them; env vars never update
No audit by default	Standard Kubernetes logs don’t track Secret reads

Building a Secure Secrets Architecture

Layer	Mechanism	What it protects
Encryption at rest	EncryptionConfiguration + KMS provider	Secrets stored encrypted in etcd
Encryption in transit	Service mesh (mutual TLS)	Node-to-node and control-plane traffic
Access control	Least-privilege RBAC	Limits who can read/modify Secret objects
Node isolation	Avoid privileged containers; secure etcd nodes	Prevents host-path access to cached data
External vault	HashiCorp Vault / cloud KMS + Secrets Store CSI Driver	Secrets stored outside Kubernetes; injected at runtime
Sealed Secrets	Bitnami Sealed Secrets — asymmetric encryption	Encrypted manifests safe to commit to git; only in-cluster controller can decrypt
External Secrets Operator	ESO — syncs from HashiCorp Vault, AWS SM, GCP SM, etc.	Centralised external secret management; avoids storing secrets in etcd

Tip

For production workloads, store secrets in an external vault (HashiCorp Vault, AWS Secrets Manager, GCP Secret Manager) and use the Secrets Store CSI Driver to mount them dynamically into pods. This avoids storing secrets in etcd altogether.

---

Downward API

ConfigMaps and Secrets handle configuration you define before deployment. The Downward API solves a different problem: injecting metadata that is only known after the pod is scheduled — such as the pod’s own IP, the node it ran on, or its resource limits.

The Downward API is not a REST endpoint your application calls. The kubelet reads the pod’s live metadata and projects it directly into the container as environment variables or files.

To project Downward API data as files (required for labels/annotations, or file-reading sidecars), see Volumes & Storage → Downward API Volumes.

fieldRef vs resourceFieldRef

Reference type	What it exposes
fieldRef	Pod-level metadata: name, namespace, IP, node name, labels, annotations
resourceFieldRef	Container-level compute resources: CPU/memory requests and limits

Supported Fields

Field path	Inject as env?	Inject as file?	Description
metadata.name	✅	✅	Pod name
metadata.namespace	✅	✅	Namespace
metadata.uid	✅	✅	Pod UID
metadata.labels['<key>']	✅	✅	Value of a single label
metadata.labels	❌	✅	All labels as key="value" lines
metadata.annotations['<key>']	✅	✅	Value of a single annotation
metadata.annotations	❌	✅	All annotations as key="value" lines
spec.nodeName	✅	❌	Worker node name
spec.serviceAccountName	✅	❌	ServiceAccount name
status.podIP / status.podIPs	✅	❌	Pod IP address(es)
status.hostIP / status.hostIPs	✅	❌	Node IP address(es)

Injecting Pod Metadata as Environment Variables

spec:
  containers:
    - name: app
      image: my-app:1.0
      env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name # resolves to the pod's name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: POD_IP
          valueFrom:
            fieldRef:
              fieldPath: status.podIP
        - name: NODE_NAME
          valueFrom:
            fieldRef:
              fieldPath: spec.nodeName

# Verify resolved values at runtime
kubectl exec <pod-name> -- env | grep -E 'POD_|NODE_'

Injecting Container Resource Limits

Some runtimes (JVM, Node.js) need to know their allocated CPU and memory to tune thread pools and garbage collection. Use resourceFieldRef:

env:
  - name: MEM_LIMIT_MIB
    valueFrom:
      resourceFieldRef:
        resource: limits.memory
        divisor: 1Mi # divide raw bytes by 1Mi → reports value in MiB
  - name: CPU_LIMIT_MILLICORES
    valueFrom:
      resourceFieldRef:
        resource: limits.cpu
        divisor: 1m # reports CPU in millicores

Divisor reference:

Unit	Divisor	Reports
Bytes (default)	1	Raw byte count
Kibibytes	1Ki	Value ÷ 1,024
Mebibytes	1Mi	Value ÷ 1,048,576
Millicores (CPU)	1m	CPU in millicores (e.g., 500m → 500)

Cross-container reference — one container reading another’s limits:

env:
  - name: SIDECAR_MEM_LIMIT
    valueFrom:
      resourceFieldRef:
        containerName: envoy-sidecar # reference a different container's resources
        resource: limits.memory
        divisor: 1Mi

---

Troubleshooting

Symptom	Likely cause	Diagnostic	Fix
Pod stuck Pending with configmap not found	ConfigMap doesn’t exist in the namespace	kubectl get configmap -n <ns>	Create the ConfigMap before the pod
Container blocked from starting	Required ConfigMap/key missing; optional: true not set	kubectl describe pod → Events	Add optional: true or create the missing resource
Env var is empty or wrong value	Wrong key name in configMapKeyRef	kubectl exec -- env	Verify key matches the ConfigMap
Config change not reflected in running container	Using env vars (static injection)	Check injection method	Switch to volume mount, or rolling restart
Trailing whitespace causes escaped output in ConfigMap	File had trailing spaces	kubectl get cm -o yaml — look for \n in values	Strip trailing whitespace from source files
$(VAR_NAME) appears as a literal string	Referencing a var defined after it in the manifest	Check env block order	Move the referenced var above the referencing var
Secret value is garbled	data field not properly Base64-encoded	Decode: echo "<val>" | base64 -d	Use stringData and let Kubernetes encode
Downward API env var shows wrong value	Field path typo or unsupported field	kubectl describe pod	Check supported fields table above
Secret not updating in env var after CM change	Env vars are static — only volumes update	kubectl exec -- env	Rolling restart: kubectl rollout restart deployment/<name>
