Scheduling

The kube-scheduler watches for newly created Pods that have no node assigned and selects the best-fit node for each one. Understanding how it makes that decision — and how to constrain or influence it — is central to running reliable production workloads.

---

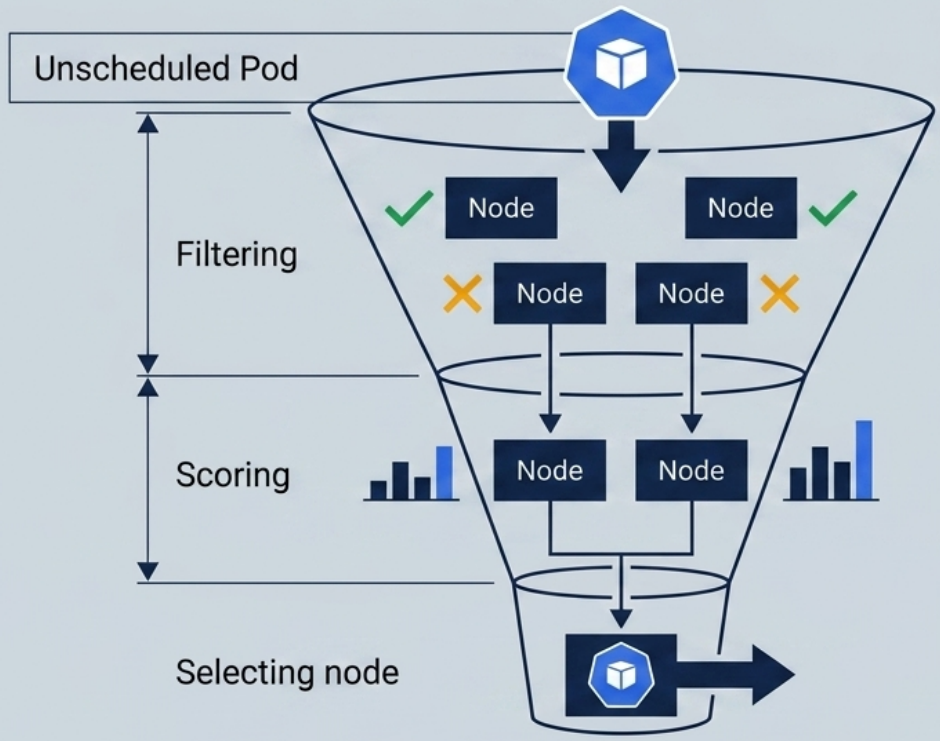

How the Scheduler Works

The scheduler runs a continuous loop and evaluates every unscheduled Pod using a strict two-step process:

Step 1 — Filter (Feasibility)

Eliminates nodes that cannot run the Pod. Checks include:

• Node has enough unallocated CPU and memory (requests)
• Node satisfies nodeSelector labels
• Node satisfies required affinity rules
• Node does not carry an unmatched taint (with NoSchedule effect)
• Node passes other hard constraints (volume topology, port conflicts, etc.)

Step 2 — Score (Ranking)

Ranks the surviving candidate nodes. Common scoring factors:

• Spreading pods across nodes/zones
• Preferring nodes with more remaining resources
• Soft affinity preferences

The node with the highest score wins. The scheduler writes the chosen node name into the Pod’s spec.nodeName and the kubelet on that node picks up the pod.

If no node survives the filter step, the pod stays Pending until the loop re-evaluates.

Note

The scheduler runs as a pod in the kube-system namespace. Verify it is healthy before debugging scheduling failures:

kubectl get pods -n kube-system | grep kube-scheduler
# kube-scheduler-<control-plane-node>   1/1   Running

---

Inspecting Node Assignment

Three ways to find which node a Pod was placed on:

# 1. Wide output — adds NODE and IP columns
kubectl get pod nginx -o wide

# 2. Filter YAML — prints the specific field
kubectl get pod nginx -o yaml | grep nodeName

# 3. Describe — top section shows "Node: <name>/<ip>"
kubectl describe pod nginx

---

nodeName — Bypass the Scheduler

Setting spec.nodeName directly in a manifest skips filtering and scoring entirely — the pod is assigned to that node unconditionally:

spec:
  nodeName: worker-node-02 # bypasses scheduler — use only for debugging
  containers:
    - name: app
      image: nginx:1.27.1

Caution

nodeName is a hard-assignment mechanism. It ignores taints, resource capacity, and affinity rules. The pod will remain Pending indefinitely if the named node is unavailable. Don’t use it in production manifests.

---

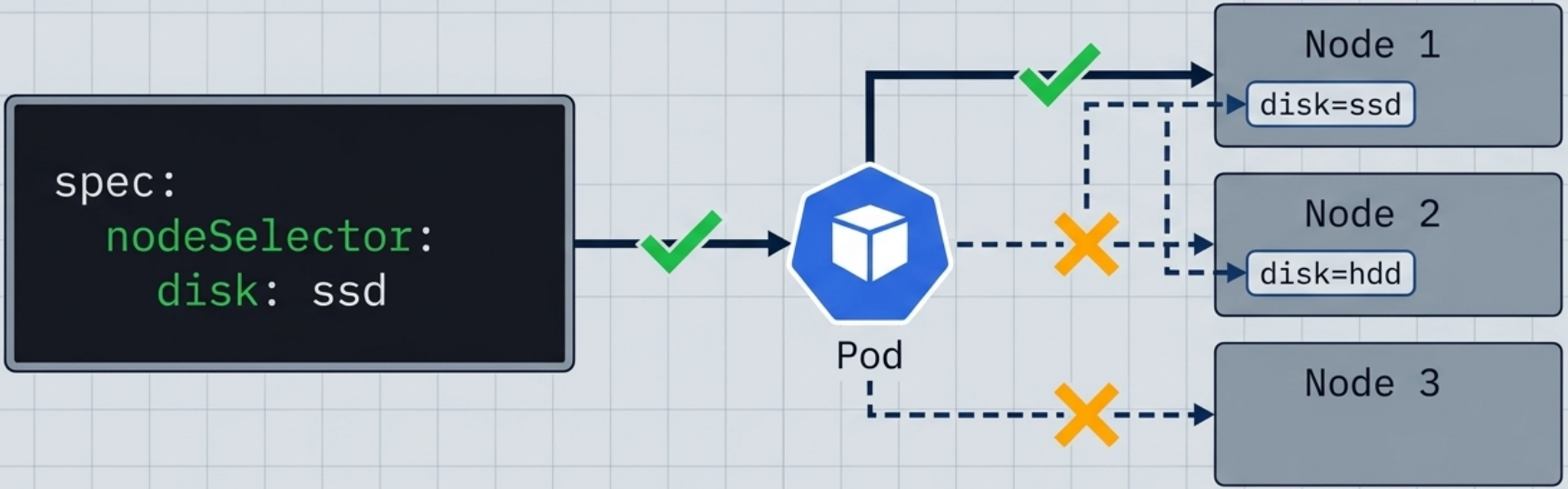

Node Selectors

A nodeSelector is a hard requirement — the pod can only be scheduled on nodes that have all specified labels. No match → pod stays Pending.

# Label a node first
kubectl label node worker-node-03 disk=ssd

# Verify
kubectl get nodes --show-labels | grep disk=ssd

spec:
  nodeSelector:
    disk: ssd # must match node label exactly (key=value)
    kubernetes.io/os: linux # can combine multiple labels — all must match
  containers:
    - name: app
      image: nginx:1.27.1

Characteristic	Detail
Semantics	Logical AND — all labels must be present on the node
Flexibility	Exact key=value match only — no operators or ranges
On no match	Pod stays Pending
Mutable	Changing node labels in/out of scope triggers pod creation/deletion

Well-Known Node Labels

Kubernetes and cloud providers automatically apply a set of standard labels to every node — you can use these in nodeSelector or affinity rules without manually labelling nodes first:

Label	Applied by	Common use case
kubernetes.io/hostname	Kubernetes	Per-node topology key for spreading
kubernetes.io/os	Kubernetes	Windows/Linux targeting (linux, windows)
kubernetes.io/arch	Kubernetes	CPU architecture (amd64, arm64)
topology.kubernetes.io/zone	Cloud providers	Zone-level HA and spreading
topology.kubernetes.io/region	Cloud providers	Region-level targeting
node.kubernetes.io/instance-type	Cloud providers	GPU, spot, or specific instance targeting

# Inspect all labels on a node
kubectl get node <name> --show-labels

---

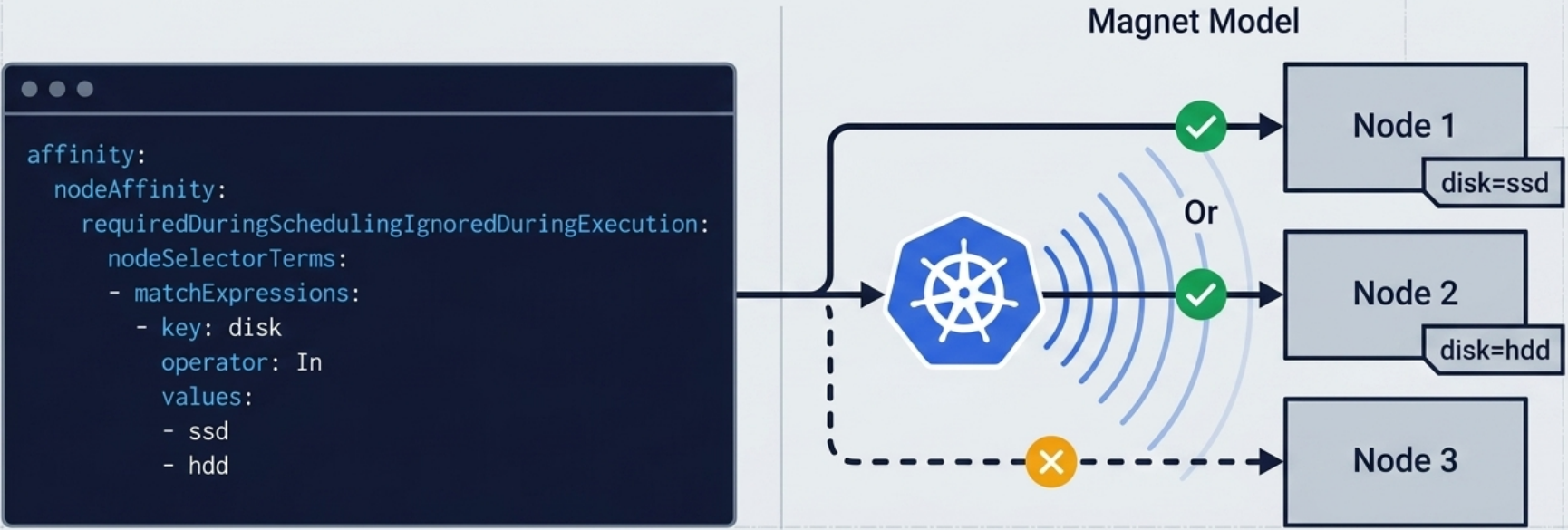

Node Affinity and Anti-Affinity

Node affinity extends nodeSelector with operators and soft preferences. It lives under spec.affinity.nodeAffinity.

Affinity Types

Type	Short name	Effect
requiredDuringSchedulingIgnoredDuringExecution	required	Hard rule — pod is not scheduled if no node matches
preferredDuringSchedulingIgnoredDuringExecution	preferred	Soft rule — scheduler tries its best but won’t block scheduling

IgnoredDuringExecution on both types means: already-running pods are never evicted if node labels change after scheduling.

Operators

Operator	Meaning
In	Node label value is in the specified set
NotIn	Node label value is not in the specified set
Exists	Node has the label key (any value, or no value needed)
DoesNotExist	Node does not have the label key
Gt	Node label value is numerically greater than the specified value
Lt	Node label value is numerically less than the specified value

Hard Requirement (required)

spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
          - matchExpressions:
              - key: disk
                operator: In
                values:
                  - ssd
                  - nvme # pod can run on any node with disk=ssd OR disk=nvme
  containers:
    - name: app
      image: nginx:1.27.1

Soft Preference (preferred)

spec:
  affinity:
    nodeAffinity:
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 80 # higher weight = stronger preference (1–100)
          preference:
            matchExpressions:
              - key: disk
                operator: In
                values:
                  - ssd
        - weight: 20
          preference:
            matchExpressions:
              - key: zone
                operator: In
                values:
                  - us-east-1a

Node Anti-Affinity

Achieved with negating operators (NotIn, DoesNotExist):

spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
          - matchExpressions:
              - key: disk
                operator: NotIn
                values:
                  - spinning-disk # repel from nodes with spinning-disk label

Note

Multiple nodeSelectorTerms entries are evaluated as OR — the pod can land on a node that matches any of them. Multiple matchExpressions inside a single term are AND — all must be true.

---

Pod Affinity and Anti-Affinity

Where node affinity targets specific nodes by their labels, pod affinity targets other pods — it tells the scheduler to place a pod near (or away from) pods with a given label. The topologyKey defines what “near” means.

• podAffinity → “schedule me on a node that also runs pods matching label X”
• podAntiAffinity → “schedule me on a node that does not run pods matching label X”

Both support the same required/preferred types as node affinity.

Pod Affinity — Co-locate pods (e.g. app + cache)

spec:
  affinity:
    podAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        - labelSelector:
            matchLabels:
              app: cache          # must co-locate with pods labelled app=cache
          topologyKey: kubernetes.io/hostname  # "same node" = same hostname value

Pod Anti-Affinity — Spread replicas across nodes

spec:
  affinity:
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        - labelSelector:
            matchLabels:
              app: web            # avoid nodes that already run an app=web pod
          topologyKey: kubernetes.io/hostname  # enforce one replica per node

Swap topologyKey to topology.kubernetes.io/zone to spread across zones instead of nodes.

Soft Anti-Affinity (preferred)

spec:
  affinity:
    podAntiAffinity:
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 100
          podAffinityTerm:
            labelSelector:
              matchLabels:
                app: web
            topologyKey: kubernetes.io/hostname

Caution

Pod affinity/anti-affinity requires the scheduler to evaluate all existing pods in the cluster, which becomes expensive at scale. For replica spreading across nodes or zones, prefer Topology Spread Constraints — they achieve the same result more efficiently and give finer control over the allowed skew.

---

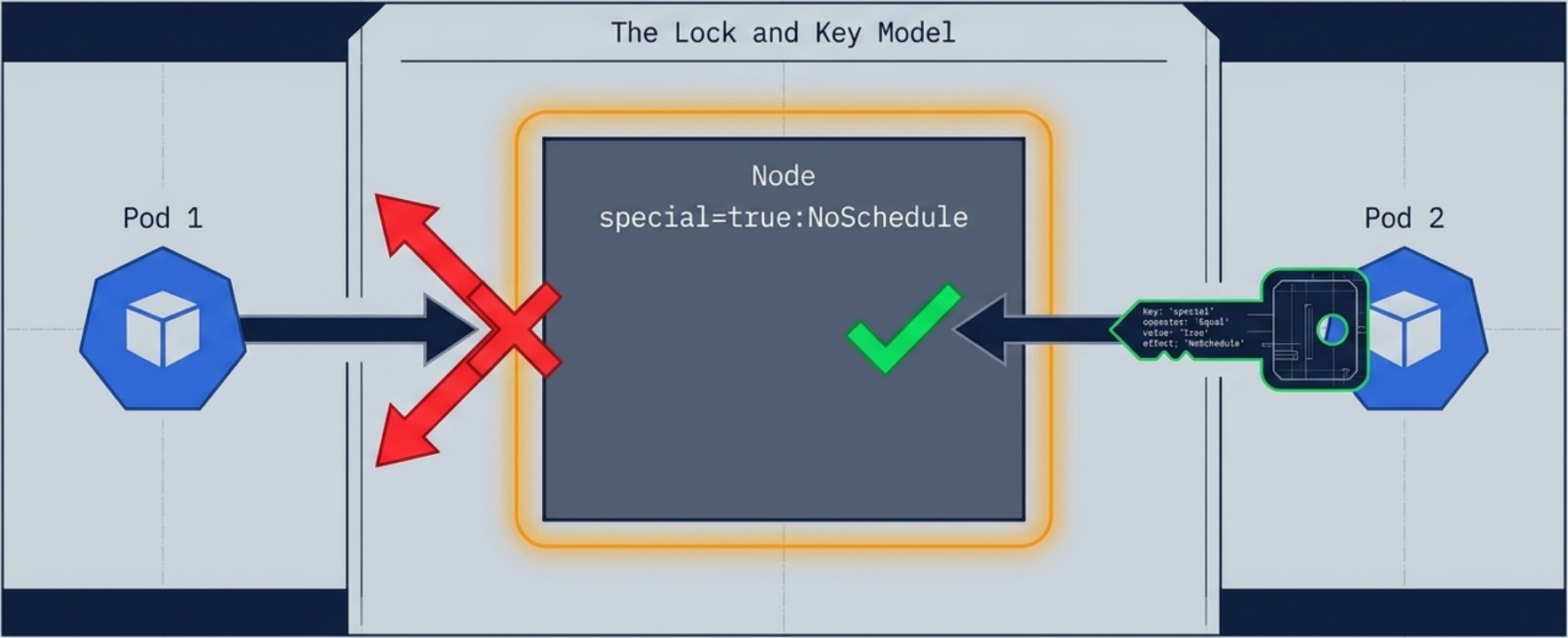

Taints and Tolerations

Affinity pulls pods toward nodes. Taints repel pods from nodes. A pod can only be scheduled on a tainted node if it carries a matching toleration.

A taint consists of three parts — key, value, and effect — formatted as key=value:effect. The key and value are a freeform pair (similar to a label assignment) that identify what kind of taint this is. The effect tells the scheduler how to enforce it.

Primary use case: Protect dedicated nodes (GPU nodes, control plane nodes, spot-instance pools) from general workloads.

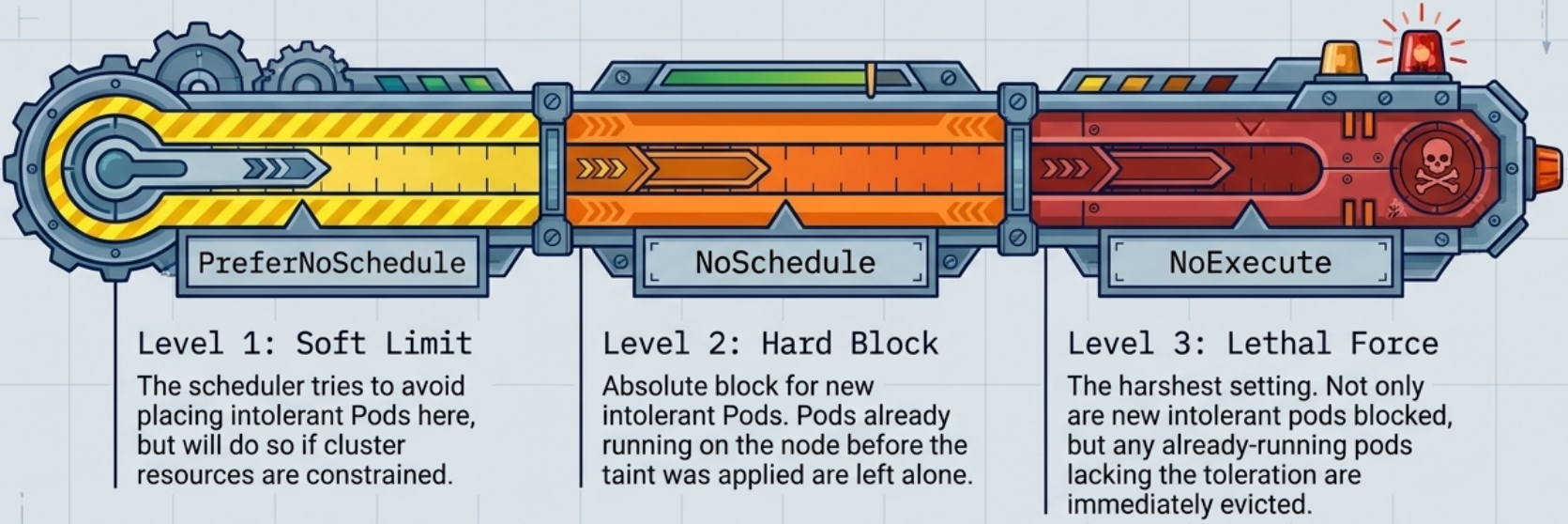

Taint Effects

Effect	Scheduling	Running pods
NoSchedule	Blocks new pods without a matching toleration	Already-running pods continue unaffected
PreferNoSchedule	Scheduler avoids the node; will use it as last resort	Already-running pods continue unaffected
NoExecute	Blocks new pods and evicts already-running pods that don’t tolerate it	Pods are evicted immediately (or after tolerationSeconds)

# Apply a taint — format: key=value:effect
kubectl taint node worker-node-02 special=true:NoSchedule

# Inspect taints on a node
kubectl get node worker-node-02 -o yaml | grep -A 5 taints:

# Remove a taint (append - to the taint string)
kubectl taint node worker-node-02 special=true:NoSchedule-

Adding a Toleration to a Pod

spec:
  tolerations:
    # Equal operator — key, value, and effect must all match the taint
    - key: "special"
      operator: "Equal"
      value: "true"
      effect: "NoSchedule"

    # Exists operator — matches any taint with this key regardless of value
    # - key: "special"
    #   operator: "Exists"
    #   effect: "NoSchedule"

    # Wildcard — tolerates ALL taints on the node (use for infrastructure daemons)
    # - operator: "Exists"
  containers:
    - name: app
      image: nginx:1.27.1

Matching Rules

A toleration matches a taint when key + effect are identical (and value matches if operator: Equal).

Toleration operator	value field required?	Matches
Equal	Yes	Taint with same key, value, and effect
Exists	No	Any taint with the same key (if effect specified) or any taint at all (if effect omitted)

Note

The control plane node carries node-role.kubernetes.io/control-plane:NoSchedule by default. DaemonSets that must run everywhere (CNI plugins, kube-proxy) use operator: Exists with no key/effect to tolerate all taints.

tolerationSeconds — Delayed Eviction under NoExecute

With NoExecute, you can specify how long a pod should remain on the node after the taint appears before being evicted. This is critical for handling transient node conditions gracefully:

tolerations:
  - key: "node.kubernetes.io/not-ready"
    operator: "Exists"
    effect: "NoExecute"
    tolerationSeconds: 300  # stay running for 5 minutes; evict if node is still not-ready

Without tolerationSeconds, a NoExecute toleration lets the pod stay indefinitely.

Note

Kubernetes automatically adds tolerationSeconds: 300 tolerations for not-ready and unreachable to every pod by default — giving the kubelet 5 minutes to recover before pods are evicted from a failing node.

Built-in System Taints

Kubernetes automatically applies taints in response to node conditions. Knowing these is essential for designing pods that survive node failures:

Taint	When applied
node.kubernetes.io/not-ready:NoExecute	Node fails its readiness check
node.kubernetes.io/unreachable:NoExecute	API server cannot reach the node
node.kubernetes.io/memory-pressure:NoSchedule	kubelet reports low memory
node.kubernetes.io/disk-pressure:NoSchedule	kubelet reports low disk
node.kubernetes.io/pid-pressure:NoSchedule	kubelet reports PID pressure
node.kubernetes.io/unschedulable:NoSchedule	Node is cordoned (kubectl cordon)
node-role.kubernetes.io/control-plane:NoSchedule	Default on all control plane nodes

---

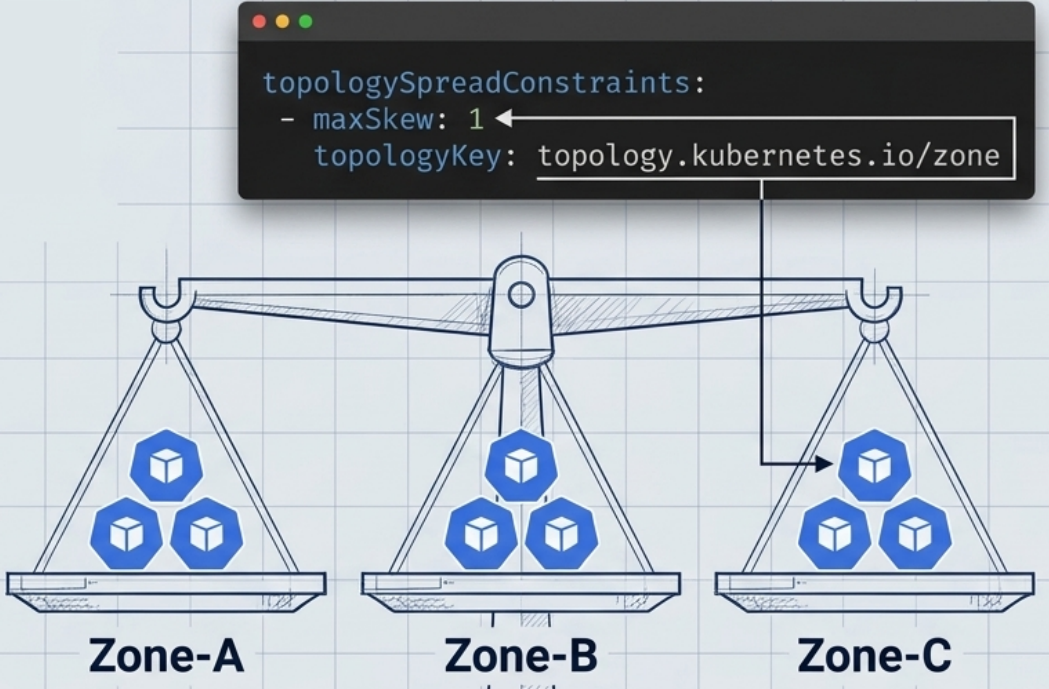

Pod Topology Spread Constraints

Controls how pods are distributed across topology domains (zones, nodes, racks) for resilience and availability. Unlike affinity, which attracts pods to specific nodes, topology spread constraints enforce even distribution.

spec:
  topologySpreadConstraints:
    - maxSkew: 1 # max pod count difference between any two zones
      topologyKey: topology.kubernetes.io/zone # domain: standard zone node label
      whenUnsatisfiable: DoNotSchedule # hard: keep pod Pending if constraint can't be met
      labelSelector:
        matchLabels:
          app: web # count only pods with this label
  containers:
    - name: app
      image: nginx:1.27.1

Fields

Field	Purpose
maxSkew	Maximum allowed difference in pod count between the most and least loaded topology domain
topologyKey	Node label key that defines the domain boundaries (e.g. topology.kubernetes.io/zone → zone-level spreading, kubernetes.io/hostname → node-level spreading)
whenUnsatisfiable	DoNotSchedule (hard — pod stays Pending) or ScheduleAnyway (soft — schedule but try to minimize skew)
labelSelector	Identifies which pods to count when evaluating skew

Practical Example: 6 Replicas Across 3 Zones

apiVersion: apps/v1
kind: Deployment
metadata:
  name: web
spec:
  replicas: 6
  selector:
    matchLabels:
      app: web
  template:
    metadata:
      labels:
        app: web
    spec:
      topologySpreadConstraints:
        # Spread evenly across zones (max 1 pod difference per zone)
        - maxSkew: 1
          topologyKey: topology.kubernetes.io/zone
          whenUnsatisfiable: DoNotSchedule
          labelSelector:
            matchLabels:
              app: web
        # Also spread across individual nodes within each zone
        - maxSkew: 1
          topologyKey: kubernetes.io/hostname
          whenUnsatisfiable: ScheduleAnyway # soft — don't block if a node is full
          labelSelector:
            matchLabels:
              app: web
      containers:
        - name: app
          image: nginx:1.27.1

Caution

Topology spread constraints only affect pods at scheduling time — they do not rebalance already-running pods if the distribution drifts. Overly strict constraints (DoNotSchedule + limited nodes) can leave pods permanently Pending. Use ScheduleAnyway for non-critical spreading requirements.

---

Priority and Preemption

Kubernetes uses PriorityClasses to determine scheduling order when the cluster is under resource pressure. Higher-priority pods schedule first and can preempt (evict) lower-priority pods to make room.

PriorityClass Resource

apiVersion: scheduling.k8s.io/v1
kind: PriorityClass
metadata:
  name: high-priority
value: 1000000          # higher value = higher priority (default pods have value 0)
globalDefault: false    # if true, applied to all pods without a priorityClassName
description: "For critical production services"

kubectl get priorityclasses
# NAME                      VALUE        GLOBAL-DEFAULT
# high-priority             1000000      false
# system-cluster-critical   2000000000   false
# system-node-critical      2000001000   false

Using a PriorityClass in a Pod

spec:
  priorityClassName: high-priority
  containers:
    - name: app
      image: nginx:1.27.1

Preemption Behaviour

If a high-priority pod cannot be scheduled due to insufficient resources, the scheduler will:

1. Find a node where evicting lower-priority pods would free enough capacity
2. Gracefully terminate those lower-priority pods (honouring terminationGracePeriodSeconds)
3. Schedule the high-priority pod on the now-available node

Built-in System Priority Classes

Class	Value	Used by
system-node-critical	2,000,001,000	Node-essential pods (kube-proxy, CSI drivers)
system-cluster-critical	2,000,000,000	Cluster-essential pods (coredns, CNI plugins)

Caution

Preemption can disrupt running workloads. Use high-priority classes deliberately — only for workloads that genuinely must schedule regardless of impact on others. Overusing high priorities defeats the purpose of the mechanism.

---

Scheduling Mechanisms: Quick Reference

Mechanism	Direction	Hard or Soft	Primary use case
nodeName	Assigns to specific node	Hard	Debugging only — bypasses all scheduler logic
nodeSelector	Attracts to labeled nodes	Hard	Simple node targeting (exact label match)
Node Affinity (required)	Attracts to nodes matching expressions	Hard	Complex targeting with operators (In, Gt, etc.)
Node Affinity (preferred)	Attracts to preferred nodes	Soft	”Prefer zone A but don’t block”
Node Anti-Affinity	Repels from nodes matching expressions	Hard or Soft	Workload isolation, zone spreading
Pod Affinity	Co-locates with matching pods	Hard or Soft	Performance — keep app and cache on same node
Pod Anti-Affinity	Separates from matching pods	Hard or Soft	HA — spread replicas across nodes/zones
Taint + NoSchedule	Repels from tainted nodes	Hard	Dedicated nodes (GPU, spot, control plane)
Taint + PreferNoSchedule	Soft repel from tainted nodes	Soft	Gentle node isolation
Taint + NoExecute	Repels + evicts	Hard	Node draining, emergency isolation
Topology Spread	Distributes evenly across domains	Hard or Soft	High availability across zones/nodes
Priority / Preemption	Schedules high-priority pods first	Hard	Critical workloads that must schedule regardless
