Persistent Volumes

Container filesystems are ephemeral by design — when a container restarts or a pod is rescheduled, everything written to the container’s local disk is gone. For stateful workloads (databases, message queues, shared uploads), you need storage that outlives the pod. Kubernetes solves this through the persistent volume subsystem: a layered abstraction that lets applications claim durable storage from any cloud or on-premises backend without knowing the underlying hardware.

Architecture Overview

The persistent volume subsystem separates the concerns of storage administration from storage consumption using three distinct layers:

┌──────────────────────┐     ┌────────────────────┐     ┌──────────────────────────────────┐
│   Storage Providers  │     │   Plugin Layer       │     │   Kubernetes PV Subsystem         │
│                      │     │                      │     │                                  │
│  AWS EBS             │────▶│   CSI Drivers        │────▶│  StorageClass  →  PV  →  PVC     │
│  GCP Persistent Disk │     │   (in kube-system)   │     │                                  │
│  Linode Block Store  │     │                      │     │  Pods reference PVCs,            │
│  NetApp / EMC        │     │  ebs.csi.aws.com     │     │  not PVs directly                │
│  NFS / File stores   │     │  pd.csi.storage.gke  │     │                                  │
└──────────────────────┘     └────────────────────┘     └──────────────────────────────────┘

Layer	Role
Storage Providers	Physical or cloud storage backends — own the hardware, provide replication, snapshots, encryption
CSI Plugin Layer	Translation bridge between Kubernetes API and vendor-specific storage APIs
PV Subsystem	Kubernetes-native API objects (`StorageClass`, `PersistentVolume`, `PersistentVolumeClaim`) that pods use to request and mount storage

Two key architectural rules:

1:1 mapping — A single physical volume maps to exactly one PersistentVolume. You cannot split a 50 GiB disk into two 25 GiB PVs.
Locality — Storage is geographically bound. Pods must run in the same zone/region as their volume. Cross-zone mounts fail.

The Container Storage Interface (CSI)

The Container Storage Interface is an open-source, vendor-neutral spec that defines how container orchestrators talk to storage backends. It replaced the old “in-tree” plugin model where storage code was compiled directly into Kubernetes.

In-Tree vs Out-of-Tree (CSI)

Attribute	Legacy in-tree plugins	Modern CSI drivers
Code location	Compiled into Kubernetes core	Maintained outside the core repository
Licensing	Must be open source	Vendors can keep code proprietary
Release cycle	Updates tied to Kubernetes releases	Vendors ship updates independently at any time
Maintenance	High burden on core maintainers	Vendors own their own codebases

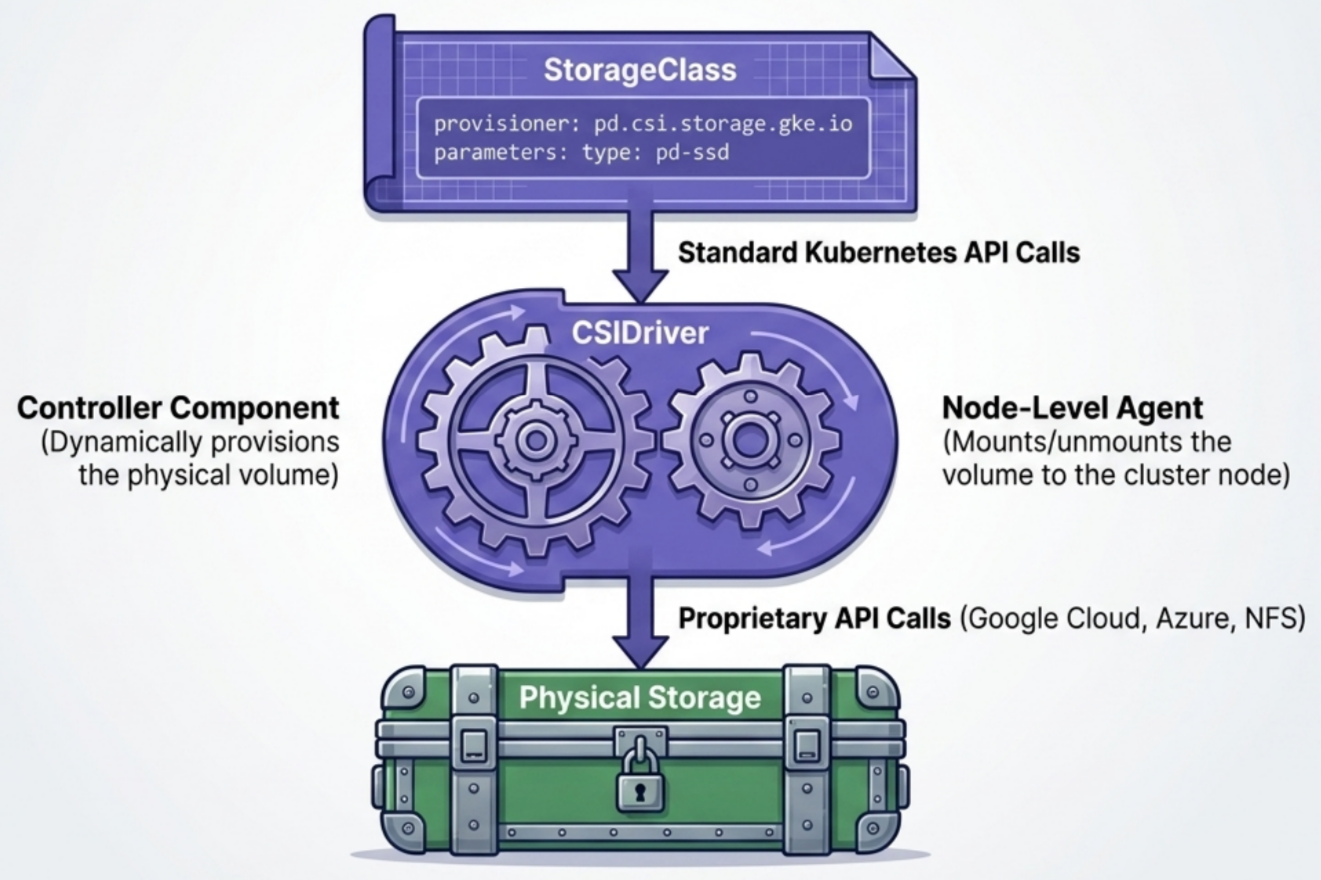

How CSI Drivers Deploy

CSI drivers run as regular pods inside the cluster. A typical driver is split into two co-operating components:

           ┌──────────────────────────────────────┐
           │         Kubernetes API Server          │
           └──────────────────────────────────────┘
              ╱                               ╲
             ╱ manages PVs                     ╲ manages mounts
            ▼                                   ▼
┌───────────────────────┐          ┌───────────────────────┐
│  Controller Component  │          │   Node-Level Agent     │
│  - Dynamic provisioning│          │  - Attaches/detaches   │
│  - PV deletion         │          │  - Mounts/unmounts     │
│  - Deployed centrally  │          │  - Runs per worker node│
└───────────────────────┘          └───────────────────────┘

Controller — watches the API server for new PVCs and calls the cloud API to provision/delete physical disks
Node agent — runs on every worker node (e.g., as pdcsi-node-xyz in kube-system) to attach storage hardware to the node and mount it into containers

Deployment methods:

Distributed via Helm charts or YAML manifests
Managed cloud platforms (GKE, EKS, LKE) pre-install their native CSI drivers automatically
On-premises or third-party backends (NetApp, EMC) require manual driver installation

Driver examples:

Cloud	CSI driver name
AWS EBS	`ebs.csi.aws.com`
GCP Persistent Disk	`pd.csi.storage.gke.io`
GCP Filestore (NFS)	`filestore.csi.storage.gke.io`
Linode Block Storage	`linodebs.csi.linode.com`

Non-CSI in-tree backends still in use:

Type	Use case
`fc` (Fibre Channel)	Enterprise SAN storage attached directly to pods — requires specialized FC hardware on nodes
`iscsi`	SCSI storage over IP networks — provides raw block-level access

The `CSIDriver` API Resource

CSI drivers register themselves in the cluster using the CSIDriver cluster-scoped resource:

kubectl get csidrivers    # list all registered drivers

Key spec fields inside a CSIDriver:

Field	Purpose
`attachRequired`	Whether the volume must be attached to a node before being mounted
`fsGroupPolicy`	How the driver handles filesystem group ownership changes on mount
`volumeLifecycleModes`	Whether the driver supports ephemeral inline volume lifecycles

Admins rarely write CSIDriver manifests manually — they ship as part of the driver vendor’s Helm chart or YAML bundle.

The Three API Objects

The persistent volume subsystem uses three resources that work together. Admins manage StorageClass and PersistentVolume; developers work with PersistentVolumeClaim.

Developer:                Pod  ─────────────▶  PVC (namespace-scoped)
                                                 │
                                                 │ requests StorageClass
                                                 ▼
Admin:                StorageClass  ─────▶  CSI driver  ─────▶  Backend disk
                                                 │
                                                 ▼
                                           PV (cluster-wide)  ◀──  bound to PVC

StorageClass

A StorageClass is a blueprint for a tier of storage. It defines which CSI driver to call, what parameters to pass it, and how volumes should be provisioned and reclaimed.

API: storage.k8s.io/v1 | Kind: StorageClass | Short: sc
Scope: Cluster-wide (not namespaced)
Immutable — once deployed, a StorageClass cannot be modified. Delete and recreate under a new name if a change is needed.

Key Fields

Field	Purpose
`provisioner`	Which CSI driver to invoke for this class
`parameters`	Driver-specific key-value config (disk type, IOPS, encryption…) — opaque to Kubernetes
`reclaimPolicy`	What happens to the PV and physical disk when the PVC is deleted
`volumeBindingMode`	When to provision the physical disk — immediately or when a pod needs it
`allowVolumeExpansion`	Whether pods can resize the volume after it’s provisioned
`allowedTopologies`	Restricts volume provisioning to specific zones / regions

Annotated StorageClass

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: fast-ssd
provisioner: ebs.csi.aws.com          # CSI driver that provisions the disk
reclaimPolicy: Retain                  # Keep disk alive when PVC is deleted
volumeBindingMode: WaitForFirstConsumer # Provision only after a pod is scheduled
allowVolumeExpansion: true             # Allow resizing existing volumes
parameters:                            # AWS-specific — docs: driver README
  encrypted: "true"
  type: io1                            # Provisioned IOPS SSD
  iopsPerGB: "10"
allowedTopologies:                     # Restrict provisioning to one zone
  - matchLabelExpressions:
      - key: topology.ebs.csi.aws.com/zone
        values:
          - eu-west-1a

`reclaimPolicy` Options

Policy	What happens when PVC is deleted	Default for
`Delete`	PV object and physical backend disk are deleted automatically — use with caution	Dynamic provisioning
`Retain`	PV and physical disk are preserved — admin must manually clean up and delete the PV	Statically provisioned PVs
`Recycle`	Basic data scrub (`rm -rf`) then PV becomes `Available` — deprecated, avoid	—

`volumeBindingMode` Options

Mode	When disk is provisioned
`Immediate`	As soon as the PVC is created, regardless of whether a pod is ready
`WaitForFirstConsumer`	Delayed until a pod referencing the PVC is scheduled to a node — ensures the disk is created in the pod’s zone

PersistentVolume (PV)

A PersistentVolume is the Kubernetes representation of a physical storage volume on a cloud or on-premises backend.

API: v1 | Kind: PersistentVolume | Short: pv
Scope: Cluster-wide (not namespaced)
With dynamic provisioning: the StorageClass controller creates PVs automatically
With static provisioning: admins pre-create PVs by hand to represent existing volumes

PV Lifecycle Phases

A PV passes through distinct phases during its lifetime:

Phase	Meaning
Available	Freshly created; not yet bound to any PVC
Bound	A matching PVC has claimed it — dedicated exclusively to that claim
Released	The PVC was deleted, but the PV still holds data from it — cannot be re-bound yet
Failed	Automatic reclamation failed

[Created/Provisioned] ──▶ Available ──▶ Bound ──▶ Released ──▶ [manually cleaned] ──▶ Available
                                                       │
                                                       └──▶ Failed (if reclamation errors)

Deletion Protection (Finalizers)

Kubernetes blocks deletion of storage resources that are still actively in use:

What you try to delete	When it’s blocked	When deletion completes
PV (while bound to PVC)	Immediately blocked; PV status → `Terminating`	When the PVC is deleted
PVC (while used by a running pod)	Immediately blocked; PVC status → `Terminating`	When the pod is terminated

The application pod continues running unaffected in both cases — Kubernetes will never evict a pod because an administrator requested its storage back.

PersistentVolumeClaim (PVC)

A PersistentVolumeClaim is a developer’s request for storage. Pods never reference PVs directly — they always reference a PVC by name.

API: v1 | Kind: PersistentVolumeClaim | Short: pvc
Scope: Namespaced

PVC Spec Fields

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: app-pvc
spec:
  accessModes:
    - ReadWriteOnce              # how the volume can be mounted
  volumeMode: Filesystem         # Filesystem (default) or Block
  storageClassName: fast-ssd    # which StorageClass to use for provisioning
  resources:
    requests:
      storage: 10Gi             # minimum capacity required

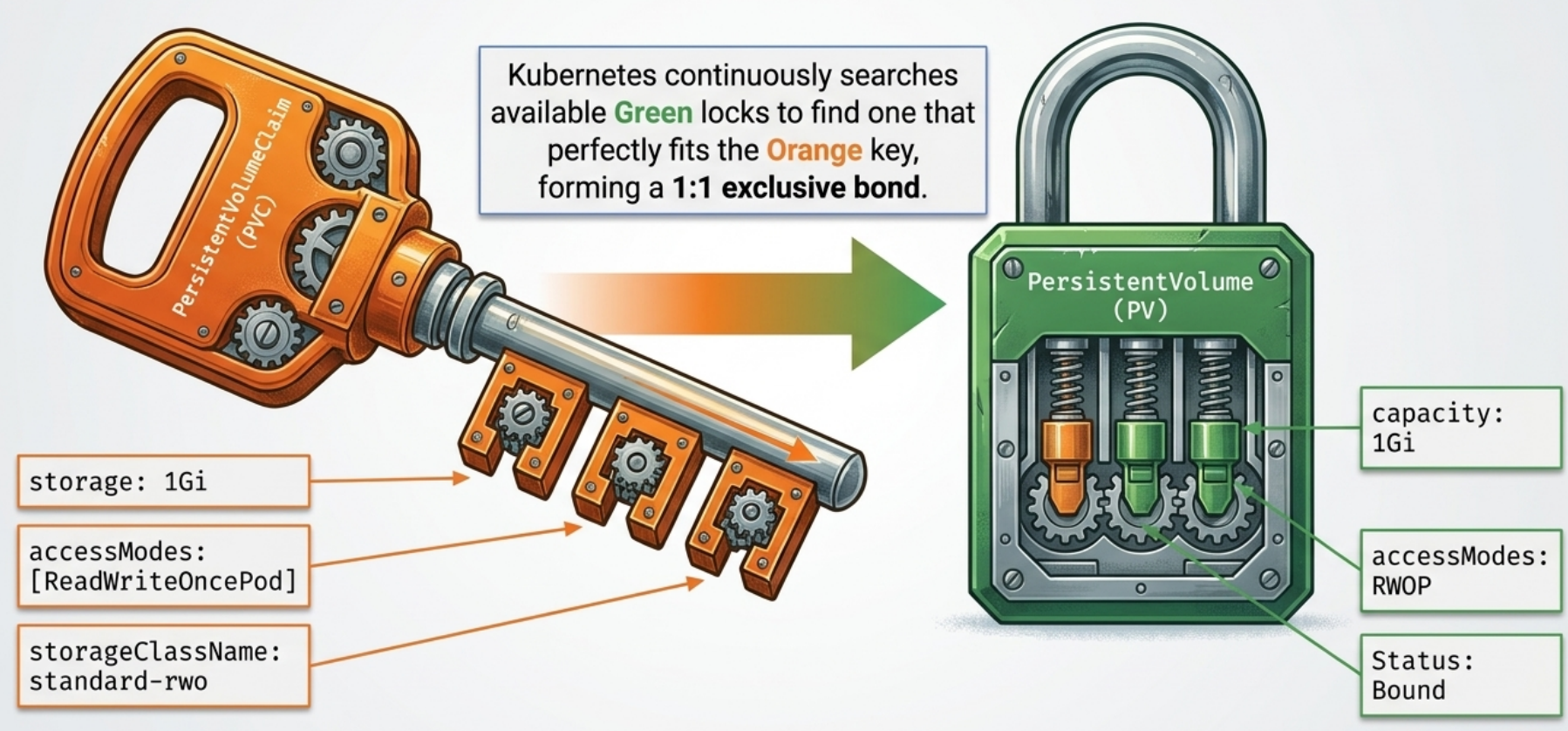

Binding Mechanics

When a PVC is created, a control loop automatically searches for an existing, unbound PV to satisfy the claim based on four criteria:

Storage Capacity: The PV’s capacity must be greater than or equal to the PVC’s requested size. A larger PV can bind to a smaller PVC, but the remaining capacity is wasted.
Access Modes: The PV must support all access modes requested by the claim.
StorageClass Match:
- Static: Set storageClassName: "" in the PVC to force it to bypass dynamic provisioners and only look for statically created PVs without a class.
- Dynamic: If a class is specified, the PVC only matches PVs of that class, or triggers the class’s provisioner if no match exists.
Volume Mode: The requested volume mode (Filesystem vs Block) must match.

The 1-to-1 Binding Rule

The relationship between a bound PVC and its PV is strictly one-to-one. Once bound, the PV is locked to that specific claim. Even if a 10Gi PV binds to a 2Gi PVC, the remaining 8Gi cannot be partitioned out to other claims.

Explicit Binding by Name

To bypass the automatic matching algorithm, you can force a PVC to connect to a specific PV by setting spec.volumeName:

spec:
  volumeName: specific-db-pv    # Bypasses automatic matching
  accessModes: [ReadWriteOnce]
  resources:
    requests:
      storage: 1Gi

For this to succeed, the targeted PV must exist, be Available, and meet the capacity/access mode requirements. If not, the PVC remains stuck in Pending.

Access Modes

Access modes control how many nodes (and pods) can mount the volume simultaneously:

Mode	Short	Exclusivity	Typical storage
`ReadWriteOncePod`	RWOP	Single pod across the entire cluster	Block storage, strict isolation
`ReadWriteOnce`	RWO	Single node — multiple pods on that node can share	Block storage (EBS, PD)
`ReadWriteMany`	RWX	Multiple nodes, read-write	NFS, file storage
`ReadOnlyMany`	ROX	Multiple nodes, read-only	Any

Key Distinctions

RWOP vs RWO — the difference is the unit of exclusivity:

RWOP: only one pod anywhere in the cluster can mount the volume. If a second pod tries, it stays Pending until the first terminates.
RWO: only one node can mount. Multiple pods scheduled on that same node can all read/write concurrently. Any pod on a different node gets a FailedAttachVolume / Multi-Attach error.

RWX depends on the storage backend — block storage (EBS, GCP PD) does not support RWX out of the box. You need a file storage backend (NFS, GCP Filestore) or an addon that provides file-based storage classes.

Storage Architecture Constrains Your Access Mode

The access mode you can request is determined by the physical storage type, not just by what you write in the PVC:

Storage type	Supported access modes
Block storage (SAN, iSCSI, cloud block disks like EBS/GCP PD)	`ReadWriteOnce` (RWO), `ReadWriteOncePod` (RWOP) only
Shared file systems (NFS, GCP Filestore, AWS EFS)	`ReadWriteMany` (RWX), `ReadOnlyMany` (ROX)

Requesting RWX on a block storage backend will leave the PVC Pending indefinitely — the CSI driver simply doesn’t support it.

Pre-Populating ROX Volumes (PVC Cloning)

A ReadOnlyMany volume provisioned dynamically starts empty, which is useless. Use dataSourceRef to clone it from an existing PVC at provisioning time:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: shared-read-only
spec:
  accessModes:
    - ReadOnlyMany
  volumeMode: Filesystem
  resources:
    requests:
      storage: 10Gi
  dataSourceRef:           # clone content from this existing PVC
    kind: PersistentVolumeClaim
    name: source-data-pvc

Volume Mode

spec.volumeMode controls how the storage is presented inside the container:

Mode	How it appears in the container	Use case
`Filesystem` (default)	Formatted filesystem mounted as a directory	Most workloads
`Block`	Raw block device — no filesystem, maximum I/O performance	High-perf databases, custom storage engines

spec:
  volumeMode: Block    # exposed as /dev/xvda inside the container

Static vs Dynamic Provisioning

	Static	Dynamic
Who creates the disk	Admin manually	CSI driver automatically
Who creates the PV	Admin manually	CSI driver automatically
Admin effort	High — one PV per disk	Low — configure StorageClass once
Sizing	Rigid — PVC binds to nearest fitting PV (may waste space)	Precise — carves exactly the requested size
Portability	Low — PVCs must match specific labels/sizes	High — same PVC works on any cluster with a matching SC name
Default reclaim	`Retain`	`Delete`
Best for	Node-local disks, bare-metal, existing NAS	Cloud environments (EBS, GCP PD, Azure Disk)

Static Provisioning Lifecycle

Admin provisions the physical disk (NFS share, cloud disk, local directory)
Admin creates PV manifest pointing to the disk — sets capacity, access modes, and storage class
Developer creates PVC requesting matching size and access mode
Kubernetes binds — scans available PVs; PV capacity must be ≥ PVC request; access modes must satisfy PVC; first match wins; PV becomes exclusively Bound
Pod mounts the PVC via its volume spec

After PVC is deleted (with Retain policy):

PV transitions to Released — data is safe but PV cannot be re-bound
A new PVC will remain Pending indefinitely, blocked by the old claimRef metadata
Admin must manually release it:
- Option A — Delete and recreate the PV object (doesn’t touch physical files; just removes the Kubernetes pointer). Fresh PV → Available
- Option B — Edit the live PV and remove the spec.claimRef block → status immediately flips to Available

Dynamic Provisioning — Full Lifecycle

Dynamic provisioning eliminates the need for admins to pre-create volumes. The flow when WaitForFirstConsumer is set:

[1] kubectl apply Pod+PVC+SC
         │
         ▼
[2] PVC enters Pending  ◀─── WaitForFirstConsumer holds provisioning
         │
         ▼
[3] Scheduler picks a node for the Pod
         │
         ▼
[4] StorageClass controller detects pending PVC, invokes CSI plugin
         │
         ▼
[5] CSI plugin calls cloud API → physical disk created in pod's zone
         │
         ▼
[6] CSI reports back → controller creates PV object in cluster
         │
         ▼
[7] PVC binds to PV (status: Bound)
         │
         ▼
[8] kubelet mounts disk into container at mountPath

CSIStorageCapacity — Smarter Provisioning Decisions

CSIStorageCapacity is a cluster-scoped API object that CSI drivers publish to report how much capacity is available per topology zone. The scheduler uses this data to make smarter pod placement decisions when using WaitForFirstConsumer.

Without it: The scheduler may place a pod on a node in a zone where the CSI driver cannot provision the requested disk size, leaving the PVC in Pending after the pod is already scheduled.

With it: If a zone has insufficient capacity, the scheduler skips that zone and picks one that can accommodate the PVC — preventing a difficult-to-diagnose stuck state.

kubectl get csistoragecapacities -A   # view per-zone capacity objects published by CSI drivers

Node-Local PersistentVolumes

Some workloads need ultra-low latency or direct hardware access — network-attached storage adds too much overhead. Node-local PVs provision storage on a worker node’s own disk.

Why Not Just Use `hostPath`?

Problem with `hostPath`	Local PV solution
Pod reschedules to a different node → loses data	Scheduler guarantees pods are always placed on the node owning the PV
Any user can mount arbitrary host paths	Only admin-approved PV objects are claimable; regular users cannot specify raw host paths

Setting Up Local Storage (Admin)

1. Create the physical directory on the node

# On GKE node:
mkdir /tmp/my-disk

# On a Kind cluster (node is a Docker container):
docker exec kind-worker mkdir /tmp/my-disk

2. Create the StorageClass (no auto-provisioner)

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: local-storage
provisioner: kubernetes.io/no-provisioner  # no automatic provisioning
volumeBindingMode: WaitForFirstConsumer    # CRITICAL: delay until pod is scheduled

WaitForFirstConsumer is mandatory for local storage — the scheduler must see both the pod’s requirements AND the volume’s nodeAffinity before choosing a node.

3. Create the PV with `nodeAffinity` (Strictly Mandatory)

apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-disk-node-01
spec:
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteOnce
  storageClassName: local-storage
  persistentVolumeReclaimPolicy: Retain
  local:
    path: /tmp/my-disk             # directory on the physical worker node
  nodeAffinity:                    # tells the scheduler which node owns this disk
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - node-01          # name of the worker node

The nodeAffinity is what makes local PVs fundamentally different from hostPath — it lets the scheduler co-locate pods with their storage.

Claiming and Using Local Storage (Developer)

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: db-local-pvc
spec:
  storageClassName: local-storage
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi   # ≤ PV capacity

The PVC stays Pending until a pod references it. When a pod is created:

Scheduler sees WaitForFirstConsumer → evaluates pod constraints alongside PV nodeAffinity
Scheduler picks the node that owns the local PV
Kubernetes binds the PVC → PV
Kubelet mounts the host directory into the container

Reclaiming Local Volumes

With Retain policy, deleting the PVC leaves the PV in Released — no new PVC can bind to it (data-leak protection). To reuse:

Clean the physical files: SSH into the node and delete/archive old data
Reset the PV pointer: either delete + recreate the PV object, or edit the live PV and remove spec.claimRef

Complete Three-Way Manifest (Dynamic)

# ----- StorageClass: defines the storage tier -----
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: premium-ssd
provisioner: pd.csi.storage.gke.io      # GKE block storage CSI driver
volumeBindingMode: WaitForFirstConsumer  # provision after pod is scheduled
reclaimPolicy: Delete                    # auto-delete disk when PVC is removed
allowVolumeExpansion: true
parameters:
  type: pd-ssd                           # GCP SSD disk type
---
# ----- PersistentVolumeClaim: developer's storage request -----
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: app-pvc
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: premium-ssd
  resources:
    requests:
      storage: 50Gi
---
# ----- Pod: mounts the PVC -----
apiVersion: v1
kind: Pod
metadata:
  name: app-pod
spec:
  volumes:
    - name: app-storage
      persistentVolumeClaim:
        claimName: app-pvc              # references the PVC by name (not the PV)
  containers:
    - name: app
      image: nginx:stable
      volumeMounts:
        - name: app-storage
          mountPath: /var/www/html

kubectl apply -f storage-stack.yaml
kubectl get pvc -w        # watch Pending → Bound
kubectl get pv            # inspect the auto-created PV
kubectl describe pod app-pod

Ephemeral Persistent Volumes

An ephemeral PV is a CSI-backed temporary volume defined inline in the pod spec. No separate PVC object needed — Kubernetes creates and destroys it automatically with the pod.

spec:
  volumes:
    - name: scratch
      ephemeral:
        volumeClaimTemplate:
          spec:
            accessModes: [ReadWriteOnce]
            storageClassName: fast-ssd   # omit to use cluster default
            resources:
              requests:
                storage: 10Gi
  containers:
    - name: app
      image: my-app:1.0
      volumeMounts:
        - name: scratch
          mountPath: /mnt/scratch

Auto-generated PVC naming: {pod-name}-{volume-name} — e.g., pod batch-job + volume scratch → PVC batch-job-scratch.

Lifecycle:

Pod created → ephemeral volume controller detects the template → creates the PVC
CSI provisions the PV → PVC binds → pod schedules → volume mounts
kubectl delete pod → PVC deleted automatically → Delete reclaim policy → PV and physical disk cleaned up

Ephemeral PV vs emptyDir

Feature	`emptyDir`	Ephemeral PV
Storage topology	Node-local only	Node-local or network-attached (depends on SC)
Size enforcement	No hard limit	Fixed size limit (e.g., `10Gi`) enforced
Resize	Not supported	Supported via `allowVolumeExpansion`
Snapshots	Not supported	Supported if CSI driver supports it
Storage class	Not applicable	Uses any configured StorageClass

Volume Expansion

When application data grows, resize an existing bound PVC without data loss — no need to clone or recreate.

Prerequisites:

The StorageClass must have allowVolumeExpansion: true
Volume size can only be increased — shrinking is not supported

Resize Workflow

# Edit the PVC to request more capacity:
spec:
  resources:
    requests:
      storage: 50Gi    # was 10Gi

kubectl apply -f pvc.yaml
kubectl describe pvc app-pvc   # check for FileSystemResizePending condition

You may see this condition immediately after applying:

Conditions:
  Type                   Status  Message
  FileSystemResizePending True   Waiting for user to (re-)start a pod to finish file system resize...

This means the storage backend has expanded the disk, but the filesystem inside the container cannot resize while it’s mounted. Delete and recreate the pod — on restart, the kubelet expands the filesystem and the new capacity becomes visible.

Volume Snapshots

Kubernetes can take point-in-time backups of PVCs if the underlying CSI driver supports it. Snapshots use three resources mirroring the SC/PV/PVC pattern:

Resource	Scope	Role
`VolumeSnapshotClass`	Cluster	Which driver handles snapshots + deletion policy
`VolumeSnapshot`	Namespace	Developer’s request for a specific PVC backup
`VolumeSnapshotContent`	Cluster	Auto-created backend representation of the actual backup

Taking a Snapshot

Step 1 — Admin: create a VolumeSnapshotClass

apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshotClass
metadata:
  name: gcp-pd-snapshots
driver: pd.csi.storage.gke.io    # CSI driver that handles the snapshot
deletionPolicy: Delete            # delete physical backup when VolumeSnapshot is deleted

Step 2 — Developer: request a snapshot

apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
  name: app-data-backup-1
spec:
  volumeSnapshotClassName: gcp-pd-snapshots
  source:
    persistentVolumeClaimName: app-pvc   # the PVC to back up

Monitoring:

kubectl get vs        # vs = VolumeSnapshot shorthand
# NAME                  READYTOUSE   RESTORESIZE   SNAPSHOTCONTENT
# app-data-backup-1     true         50Gi          snapcontent-abc123

kubectl get vsc       # vsc = VolumeSnapshotContent (cluster-scoped)

READYTOUSE transitions from false → true when the backup completes. The auto-created VolumeSnapshotContent is the cluster-scoped backend representation (like a PV is the cluster-scoped backend of a PVC).

Restoring from a Snapshot

Create a new PVC pointing to the snapshot via dataSourceRef:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: app-data-restored
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 50Gi
  dataSourceRef:
    apiGroup: snapshot.storage.k8s.io   # REQUIRED for snapshots (not needed for PVC clones)
    kind: VolumeSnapshot
    name: app-data-backup-1

If the StorageClass uses WaitForFirstConsumer, restoration is deferred until a pod references the new PVC and is scheduled.

Volume Group Snapshots

For multi-volume stateful applications (e.g., a database with separate PVCs for data and WAL logs), snapshotting each volume independently can leave an inconsistent state — the data snapshot may be seconds ahead of the WAL log snapshot.

Volume Group Snapshots (Beta, K8s 1.32+) allow taking crash-consistent, atomic snapshots of multiple PVCs simultaneously using two new resources:

# Step 1 — Admin: define which CSI driver handles group snapshots
apiVersion: groupsnapshot.storage.k8s.io/v1beta1
kind: VolumeGroupSnapshotClass
metadata:
  name: gcp-group-snapshots
driver: pd.csi.storage.gke.io
deletionPolicy: Delete
---
# Step 2 — Developer: trigger a group snapshot targeting a label selector
apiVersion: groupsnapshot.storage.k8s.io/v1beta1
kind: VolumeGroupSnapshot
metadata:
  name: db-consistent-backup
spec:
  volumeGroupSnapshotClassName: gcp-group-snapshots
  source:
    selector:
      matchLabels:
        app: my-database   # snapshots ALL PVCs with this label atomically

kubectl get volumegroupsnapshot         # check status
kubectl get volumegroupsnapshotcontent  # inspect the cluster-scoped backend object

VolumeAttributesClass (VAC)

A VolumeAttributesClass (Beta, K8s 1.31+) lets you modify storage performance parameters on an existing volume without recreating it — the equivalent of changing disk IOPS or throughput tier post-provisioning.

The core problem it solves: StorageClasses are immutable. Once a volume is provisioned, you could not change iopsPerGB or throughput without deleting the PVC and recreating it (with data loss risk). VAC separates mutable performance attributes from the immutable StorageClass.

Workflow

# Step 1 — Admin: define performance tiers as VolumeAttributesClass objects
apiVersion: storage.k8s.io/v1beta1
kind: VolumeAttributesClass
metadata:
  name: high-iops
driverName: ebs.csi.aws.com
parameters:
  iops: "10000"
  throughput: "500"
---
apiVersion: storage.k8s.io/v1beta1
kind: VolumeAttributesClass
metadata:
  name: standard-iops
driverName: ebs.csi.aws.com
parameters:
  iops: "3000"
  throughput: "125"

# Step 2 — Developer: reference VAC in PVC at creation time
spec:
  storageClassName: fast-ssd
  volumeAttributesClassName: standard-iops   # start at standard tier
  resources:
    requests:
      storage: 50Gi

# Step 3 — Upgrade tier in place (edit PVC — no data loss, no recreation)
spec:
  volumeAttributesClassName: high-iops       # CSI driver applies change non-disruptively

StatefulSet PVC Retention Policy

When a StatefulSet creates volumes via volumeClaimTemplates, those PVCs are not automatically deleted by default when the StatefulSet scales down or is deleted. This leads to orphaned storage that accumulates cost indefinitely.

The persistentVolumeClaimRetentionPolicy field (Stable, K8s 1.32) controls this lifecycle explicitly:

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: postgres
spec:
  replicas: 3
  persistentVolumeClaimRetentionPolicy:
    whenDeleted: Retain    # keep PVCs when StatefulSet is deleted (safe default)
    whenScaled:  Delete    # auto-delete PVCs for pods that scale down
  volumeClaimTemplates:
    - metadata:
        name: data
      spec:
        accessModes: [ReadWriteOnce]
        storageClassName: fast-ssd
        resources:
          requests:
            storage: 50Gi

Policy field	Value	Behaviour
`whenDeleted`	`Retain` (default)	PVCs survive StatefulSet deletion — data is safe, manual cleanup required
`whenDeleted`	`Delete`	PVCs deleted automatically when StatefulSet is deleted
`whenScaled`	`Retain` (default)	PVCs for scaled-down replicas persist — safe but costly over time
`whenScaled`	`Delete`	PVCs deleted when a pod is removed due to scale-down

Checking the policy on an existing StatefulSet:

kubectl get sts postgres -o jsonpath='{.spec.persistentVolumeClaimRetentionPolicy}'
# → {"whenDeleted":"Retain","whenScaled":"Delete"}

Quick Reference

Object	API Group	Short	Scope	Immutable?	Created by
`StorageClass`	`storage.k8s.io/v1`	`sc`	Cluster	✅ Yes	Admin
`PersistentVolume`	`v1`	`pv`	Cluster	No	Auto (dynamic) or Admin (static)
`PersistentVolumeClaim`	`v1`	`pvc`	Namespace	Partially	Developer
`VolumeSnapshotClass`	`snapshot.storage.k8s.io/v1`	—	Cluster	No	Admin
`VolumeSnapshot`	`snapshot.storage.k8s.io/v1`	`vs`	Namespace	No	Developer
`VolumeSnapshotContent`	`snapshot.storage.k8s.io/v1`	`vsc`	Cluster	No	Auto

Configuration	Options
Access modes	`ReadWriteOncePod` (1 pod), `ReadWriteOnce` (1 node), `ReadWriteMany` (N nodes), `ReadOnlyMany`
Volume mode	`Filesystem` (default), `Block` (raw device)
Reclaim policy	`Delete` (default dynamic), `Retain` (default static), `Recycle` (deprecated)
Binding mode	`Immediate`, `WaitForFirstConsumer`

Troubleshooting

Symptom	Likely cause	Diagnostic	Fix
PVC stuck in `Pending`	No matching StorageClass, or CSI driver not installed	`kubectl describe pvc` → Events	Check SC name; verify CSI driver pods in `kube-system`
PVC stuck in `Pending` (dynamic, no error)	CSI driver cannot allocate capacity in zone	`kubectl get csistoragecapacities -A`	Check zone capacity; switch to `WaitForFirstConsumer`
Pod stuck in `ContainerCreating`	PVC not yet `Bound`	`kubectl get pvc`	Wait for binding; check SC binding mode
Mount failure: zone mismatch	Disk provisioned in wrong zone (`Immediate` mode)	`kubectl describe pod` → Events	Use `WaitForFirstConsumer` binding mode
PVC stuck in `Released` after PVC delete	`Retain` reclaim policy — PV not reusable	`kubectl get pv`	Delete PV and recreate, or remove `spec.claimRef` from PV
`Multi-Attach error` on pod	RWO volume attached to a different node	`kubectl describe pod`	Ensure pods land on the same node, or switch to RWX storage
CSI driver errors	Driver not installed or misconfigured	`kubectl get pods -n kube-system \| grep csi`	Install driver; check driver-specific docs
Volume resize not working	`allowVolumeExpansion: false` in StorageClass	`kubectl get sc -o yaml`	Recreate SC with `allowVolumeExpansion: true`; resize PVC
Resize stuck at `FileSystemResizePending`	Filesystem can’t resize while mounted	`kubectl describe pvc`	Delete and recreate the pod; kubelet resizes FS on restart
Snapshot `READYTOUSE: false`	Snapshot in progress or driver doesn’t support it	`kubectl describe volumesnapshot` → Events	Wait; check CSI driver capabilities
Pod on wrong node (local PV)	Missing or wrong `nodeAffinity` in PV	`kubectl get pv -o yaml`	Correct `nodeAffinity` to match the node hosting the disk
PVC binds to dynamic PV instead of static	`storageClassName` not set to `""` in PVC — default SC provisioner takes over	`kubectl describe pvc` → `StorageClass` field	Set `storageClassName: ""` explicitly to force static binding
StatefulSet PVCs not deleted on scale-down	`persistentVolumeClaimRetentionPolicy.whenScaled` is `Retain` (default)	`kubectl get sts -o yaml`	Set `whenScaled: Delete` in StatefulSet spec

CKA Exam Strategies

Speed and accuracy are essential for the CKA exam. Keep these strategies in mind when working with storage:

Use Short-Forms: Always use built-in aliases to save time: pv, pvc, and sc.
No Imperative PV Creation: There is no kubectl create pv command. You must write or copy a YAML manifest and apply it.
Reveal Volume Mode: Standard kubectl get pv output hides the volume mode (Filesystem vs Block). Use kubectl get pv -o wide to see the VOLUMEMODE column.
Inspect StorageClasses: kubectl get storageclass lists all available classes — look for the (default) marker to identify which class is auto-applied to PVCs with no storageClassName. Use kubectl describe storageclass <name> to inspect reclaim policy, provisioner, and binding mode.
Fast JSONPath Extraction: Use jsonpath to quickly inspect critical PV configurations without scrolling through full YAML outputs:
- Check access modes: kubectl get pv db-pv -o jsonpath='{.spec.accessModes}'
- Check reclaim policy: kubectl get pv db-pv -o jsonpath='{.spec.persistentVolumeReclaimPolicy}'
Practice Failure Scenarios: Create a PVC requesting 10Gi against a 5Gi static PV. Watch it get stuck in Pending. This muscle memory is invaluable for troubleshooting exam scenarios.
