DaemonSets & StatefulSets

Two specialized workload controllers for use cases that fall outside the standard Deployment pattern: DaemonSets run exactly one Pod per node (node-level daemons), while StatefulSets manage ordered, identity-stable replicas for stateful clustered applications like databases and key-value stores.

---

DaemonSets

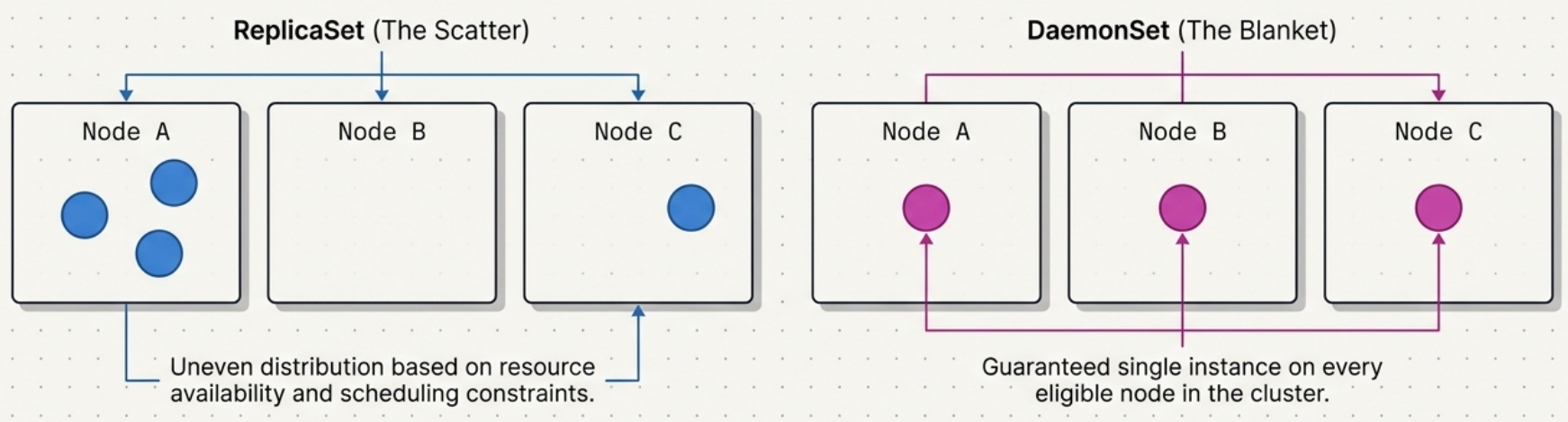

A DaemonSet ensures that exactly one Pod runs on each eligible node in the cluster. Unlike a Deployment where you specify a replica count and the Scheduler distributes Pods however it likes, DaemonSets let the cluster topology drive the Pod count — as nodes join or leave, the controller automatically creates or removes Pods.

When to choose DaemonSet over Deployment: Deployments optimize for desired count across the cluster (some nodes might run 3 replicas, others 0). DaemonSets optimize for per-node coverage — every matching node gets exactly one.

DaemonSet Manifest Template

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: node-agent
  namespace: monitoring
  labels:
    app: node-agent
spec:
  # --- Selector (must match spec.template.metadata.labels — immutable after creation) ---
  selector:
    matchLabels:
      app: node-agent

  # --- Update strategy ---
  updateStrategy:
    type: RollingUpdate # default; use OnDelete for critical infra (CNI, CSI drivers)
    rollingUpdate:
      maxSurge: 0 # default: 0 — prevents port/lock conflicts on host
      maxUnavailable: 1 # default: 1 — replace one node's pod at a time
  minReadySeconds: 10 # wait 10s after a pod is Ready before moving to the next node

  template:
    metadata:
      labels:
        app: node-agent # must match spec.selector.matchLabels above

    spec:
      # --- Restrict to a node subset (optional; omit to target all nodes) ---
      nodeSelector:
        kubernetes.io/os: linux # built-in label — available on every node
        # node-role.kubernetes.io/worker: "" # uncomment to skip control plane nodes explicitly

      # --- Tolerations (required to deploy on tainted nodes like control plane) ---
      tolerations:
        - operator: Exists # wildcard: tolerates ALL taints on any node
          # More restrictive alternative:
          # - key: node-role.kubernetes.io/control-plane
          #   operator: Exists
          #   effect: NoSchedule

      # --- Eviction protection (system-level daemons should survive resource pressure) ---
      priorityClassName: system-node-critical # integer: 2,000,001,000
      # priorityClassName: system-cluster-critical  # use when pod can reschedule to another node

      # --- Host namespace access (grant only what's needed) ---
      # hostNetwork: true    # pod shares node IP — needed when binding to node ports directly
      # hostPID: true        # access host process tree — needed for low-level monitoring
      # hostIPC: true        # access host IPC namespace — rarely needed

      containers:
        - name: agent
          image: my-org/node-agent:1.0.0
          imagePullPolicy: IfNotPresent

          # --- Host port mapping (exposes container port on the node's IP) ---
          ports:
            - name: metrics
              containerPort: 8080
              hostPort: 8080 # bind directly to node IP:8080

          # --- Narrow security context (prefer capabilities over privileged: true) ---
          securityContext:
            # privileged: true           # full kernel access — only for kube-proxy / eBPF agents
            capabilities:
              add:
                - SYS_PTRACE # example: needed for profiling agents
              drop:
                - ALL # drop all capabilities first, then add back only what's needed
            readOnlyRootFilesystem: true

          # --- Resource limits (always set — prevents a daemon from starving workload pods) ---
          resources:
            requests:
              cpu: "50m"
              memory: "64Mi"
            limits:
              cpu: "200m"
              memory: "256Mi"

          # --- Inject node identity via Downward API (useful for local Service clients) ---
          env:
            - name: NODE_NAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
            - name: NODE_IP
              valueFrom:
                fieldRef:
                  fieldPath: status.hostIP

          # --- Mount host filesystem paths (e.g., to read node logs or lock files) ---
          volumeMounts:
            - name: host-logs
              mountPath: /var/log/host # inside the container
              readOnly: true
            - name: host-run
              mountPath: /run/host
              readOnly: true

          livenessProbe:
            httpGet:
              path: /healthz
              port: 8080
            initialDelaySeconds: 10
            periodSeconds: 30

          readinessProbe:
            httpGet:
              path: /ready
              port: 8080
            initialDelaySeconds: 5
            periodSeconds: 10

      # --- Host filesystem volumes ---
      volumes:
        - name: host-logs
          hostPath:
            path: /var/log # actual path on the node
            type: Directory
        - name: host-run
          hostPath:
            path: /run
            type: Directory

      terminationGracePeriodSeconds: 30

Common Workloads

Category	Examples	Why DaemonSet?
Log collection	Fluentd, Logstash, Filebeat	Must read logs from every node’s filesystem
System monitoring	Prometheus node exporter, Datadog agent	Node-level CPU, memory, disk metrics
Cluster networking	kube-proxy, Calico, Cilium, kindnet	Network rules must exist on every node
Storage	CSI node drivers, local volume managers	Storage attachments are node-local
Hardware / GPU	CUDA device plugins, GPU drivers	Hardware is node-specific
Security	Falco, Sysdig agent	Host-level syscall monitoring

Why DaemonSets over systemd? All Kubernetes-native tooling — kubectl rollout, resource limits, RBAC, monitoring — works uniformly with DaemonSets. No separate configuration management layer needed.

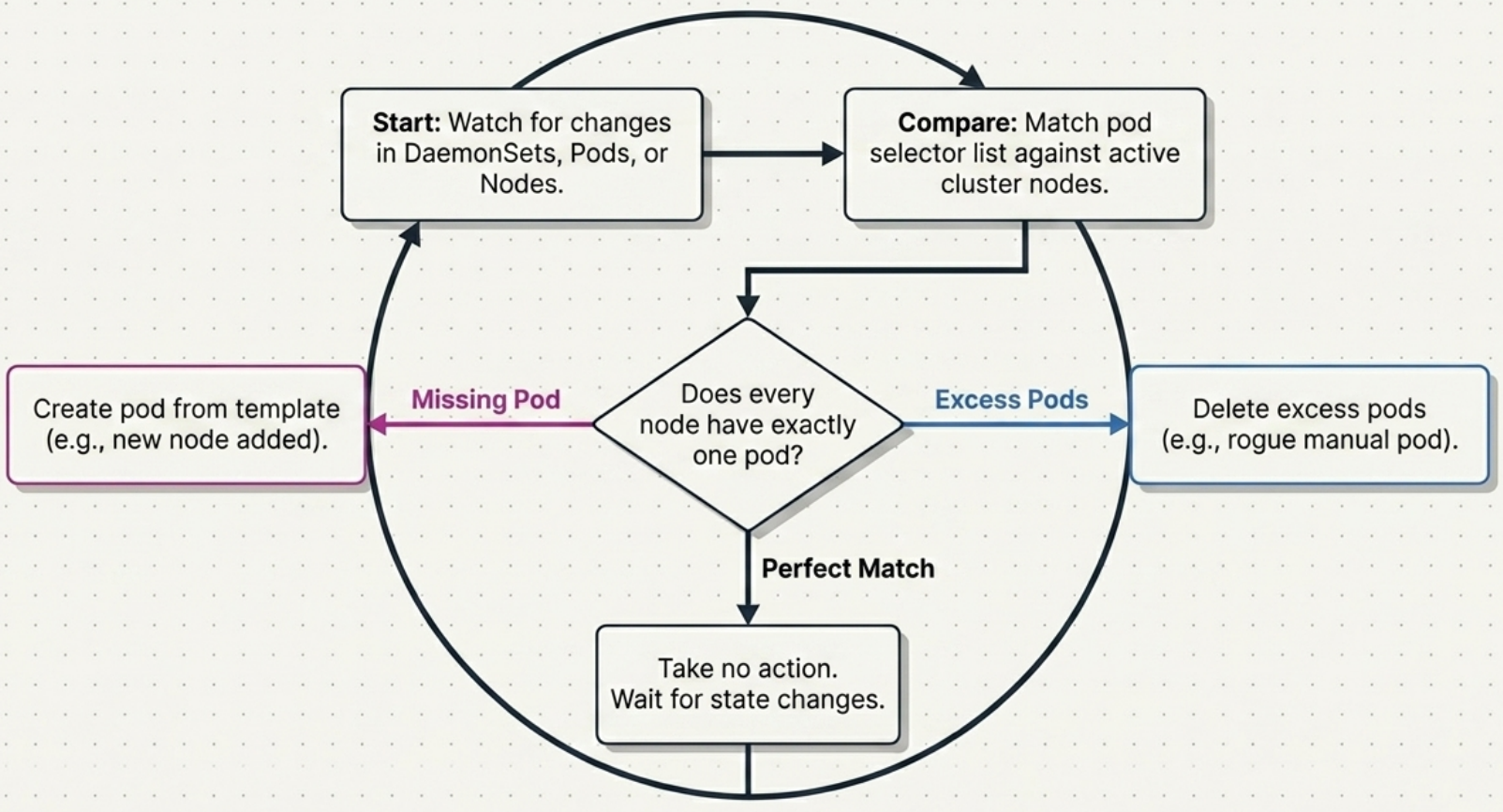

The Reconciliation Loop

The DaemonSet controller watches DaemonSets, Pods, and Nodes. On every reconciliation pass it ensures exactly one Pod per eligible node:

Scenario	Cause	Controller action
Pod missing on a node	New node joined, or daemon Pod crashed/deleted	Creates a new Pod from the template for that node
Excess Pod on a node	Manually created matching Pod	Deletes the excess Pod
Node removed	Node deregistered from cluster	Deletes the orphaned Pod
Balanced (one per node)	Normal operation	No action

The .status section tracks: desiredNumberScheduled, currentNumberScheduled, numberReady, and numberAvailable (ready for at least spec.minReadySeconds).

Scheduling Behavior

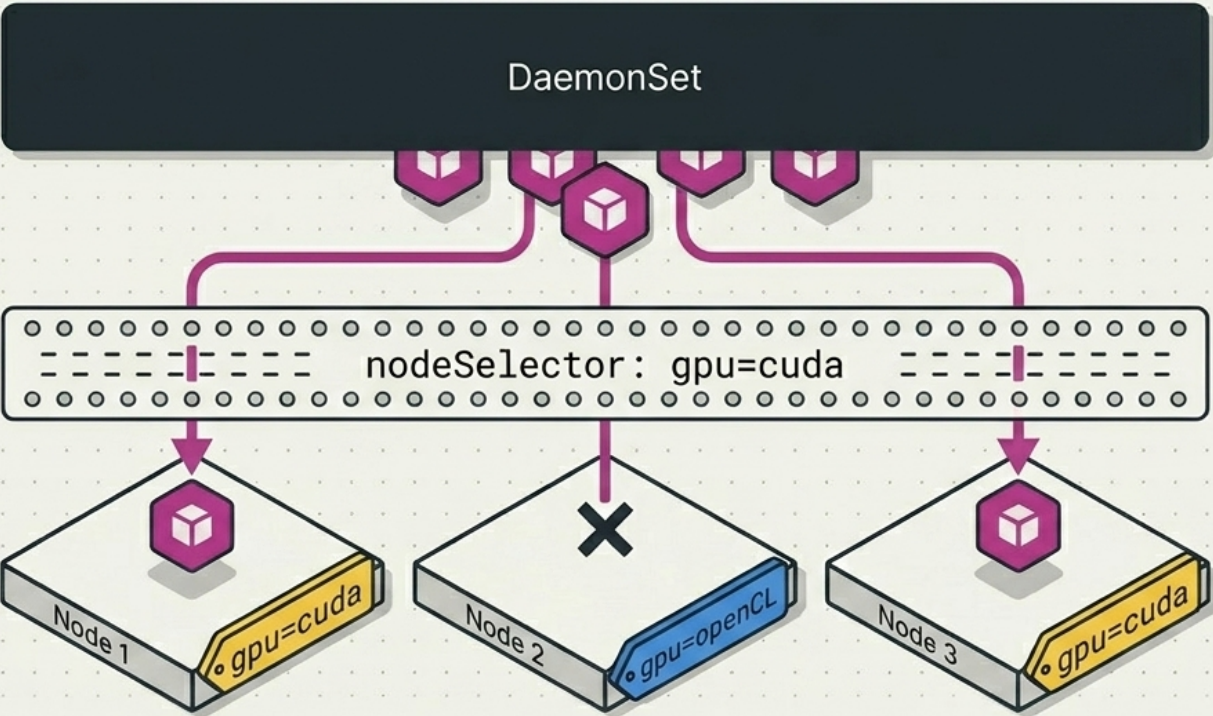

Targeting Node Subsets

A DaemonSet deploys to every eligible node by default. Use nodeSelector in the Pod template spec to restrict to a subset:

spec:
  template:
    spec:
      nodeSelector:
        gpu: cuda # only nodes labeled gpu=cuda

The node selector is mutable. Adding a label to a node (kubectl label node <name> gpu=cuda) triggers Pod creation on that node; removing the label triggers deletion. Standard system labels (kubernetes.io/arch, kubernetes.io/os, kubernetes.io/hostname) are automatically applied to every node.

Heterogeneous clusters (mixed architectures):

Option	When to use
Single DaemonSet + multi-arch image	Image is the only difference between arch variants
Two separate DaemonSets with kubernetes.io/arch selector	Pods differ in resource limits or config, not just the image

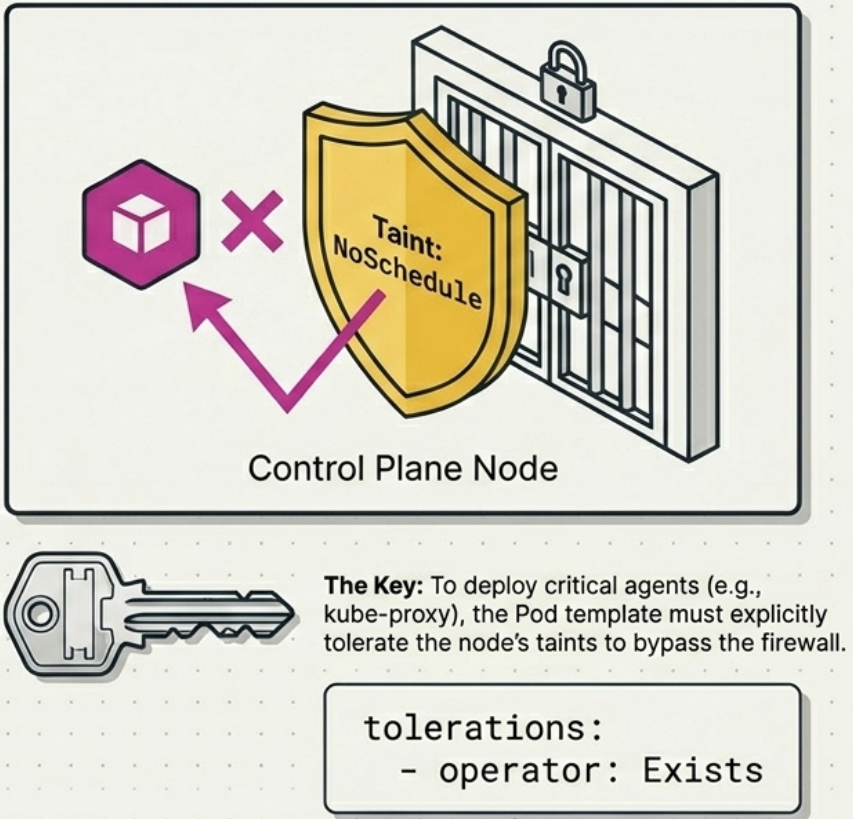

Control Plane Nodes

By default, DaemonSets skip control plane nodes — they carry taints that repel general workloads. For infrastructure daemons that must run on every node (CNI plugins, kube-proxy), add a wildcard toleration in the Pod template:

spec:
  template:
    spec:
      tolerations:
        - operator: Exists # tolerates all taints — deploys on every node including control plane

Scheduling Implementation

Modern Kubernetes delegates DaemonSet placement to the Scheduler via nodeAffinity (requiredDuringSchedulingIgnoredDuringExecution). This ensures taints, resource constraints, and custom affinity rules are evaluated before placement — superseding the historical spec.nodeName approach that bypassed the Scheduler entirely.

Update Strategies

Strategy	Behaviour	Key parameters	Use when
RollingUpdate (default)	Replaces Pods automatically, one node at a time	maxSurge (default: 0), maxUnavailable (default: 1), minReadySeconds	Standard updates
OnDelete	Nothing happens until you manually delete a Pod	—	Core infrastructure (CNI, storage drivers) where silent failures must be verified manually

Why maxSurge: 0 by default: Most daemon workloads bind to host ports or acquire system-level locks (e.g., xtables.lock). A surge Pod would fail to bind and stall the entire update indefinitely.

Why OnDelete for critical daemons: If a broken CNI plugin version passes readiness probes but silently breaks pod networking, RollingUpdate propagates the failure across the entire cluster node-by-node. With OnDelete you update one node, verify thoroughly, and proceed manually.

Tip

To update all nodes simultaneously (similar to a Deployment’s Recreate strategy), set maxSurge: 0 and maxUnavailable: 10000.

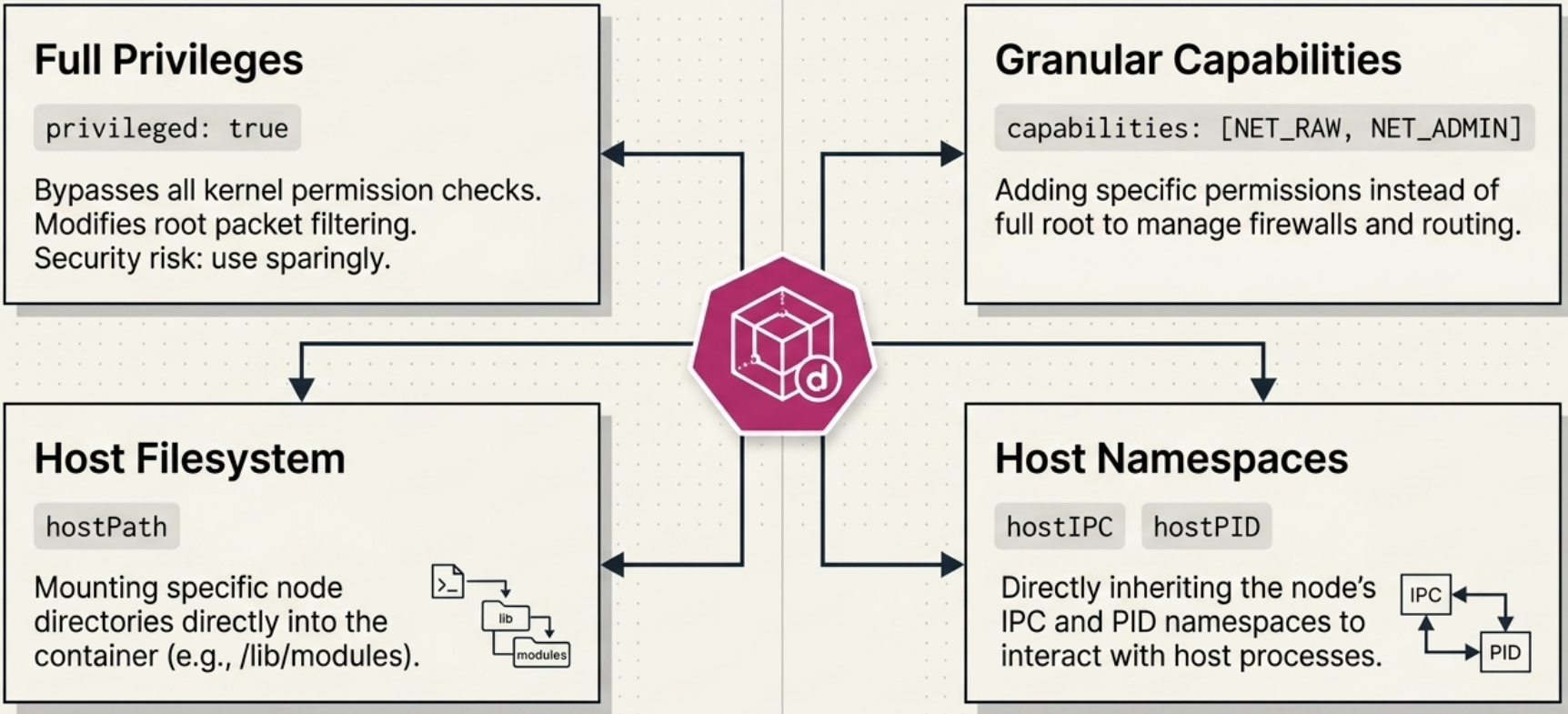

Host Access

Node agents frequently need host-level privileges unavailable to regular Pods. All of the following are configured in the Pod template spec:

Access type	Configuration	Production example
Full kernel access	securityContext.privileged: true	kube-proxy — modifies iptables rules
Specific capabilities	securityContext.capabilities.add: [NET_ADMIN, NET_RAW]	kindnet — manages routes without full root
Host filesystem	hostPath volume	kube-proxy — reads /run/xtables.lock, /lib/modules
Host network namespace	hostNetwork: true	Pod shares node IP; no container IP assigned
Host PID / IPC namespaces	hostPID: true, hostIPC: true	Monitoring daemons needing host-level process visibility

Caution

hostNetwork: true is a significant security risk — a compromised Pod can bind to any port on the host node. Prefer the Local Service pattern or hostPort with minimal scope instead.

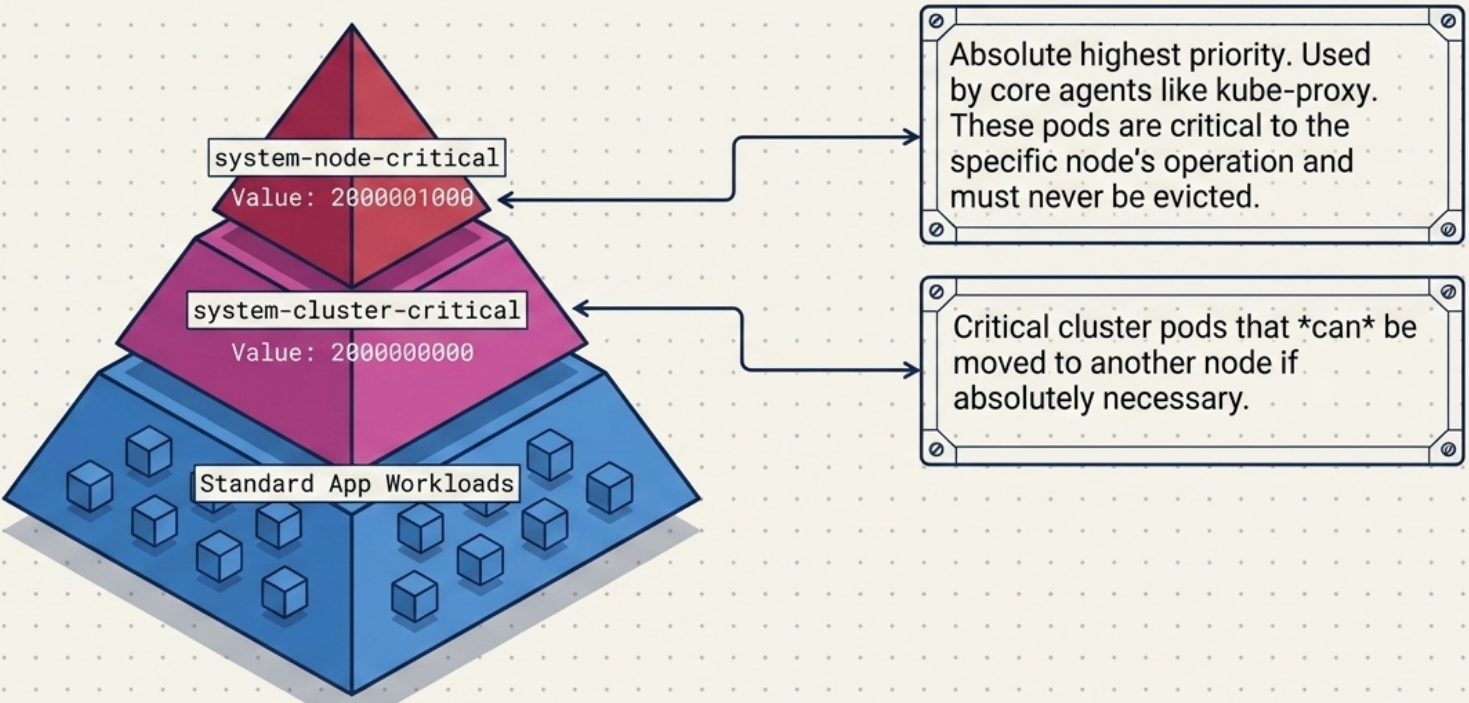

Priority Classes

System daemon Pods should not be evicted under resource pressure. Assign a built-in priority class in the Pod template:

spec:
  template:
    spec:
      priorityClassName: system-node-critical

Priority class	Integer value	Use when
system-node-critical	2,000,001,000	Pod must stay on its node (e.g., kube-proxy, CSI node driver)
system-cluster-critical	2,000,000,000	Pod is important but can be rescheduled to another node

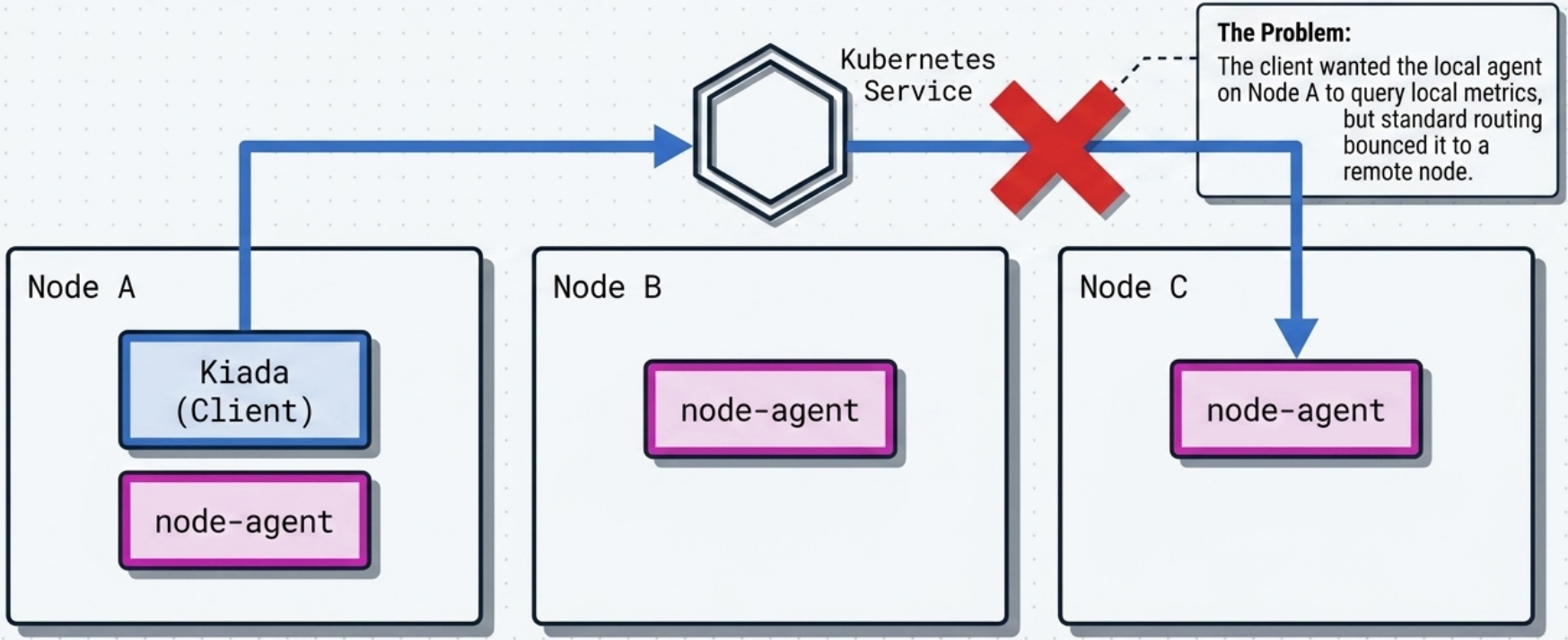

Communicating with Local Daemon Pods

Daemon Pods provide node-local services (metrics, log aggregation). Standard Services randomly forward to any matching Pod in the cluster — defeating the purpose. Three approaches to enforce local routing:

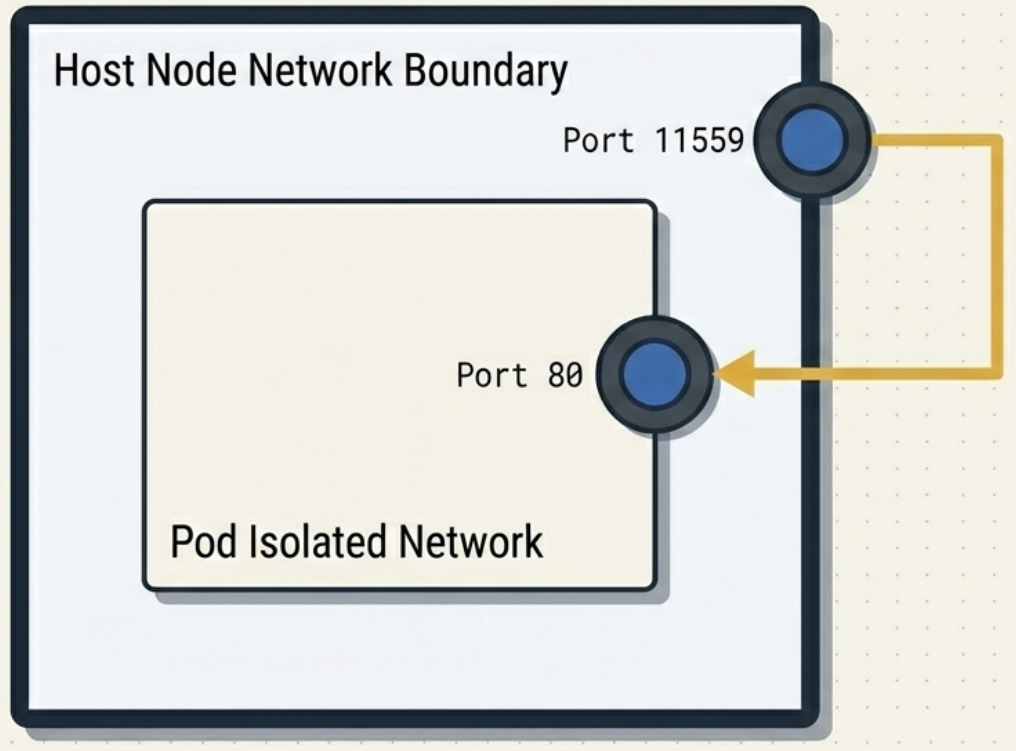

Option 1 — hostPort: Map a container port directly to a host port. Clients use the Downward API to get the node’s IP at runtime:

# DaemonSet container spec
ports:
  - containerPort: 80
    hostPort: 11559

# Client Deployment — inject node IP via Downward API
env:
  - name: NODE_IP
    valueFrom:
      fieldRef:
        fieldPath: status.hostIP
  - name: DAEMON_URL
    value: http://$(NODE_IP):11559

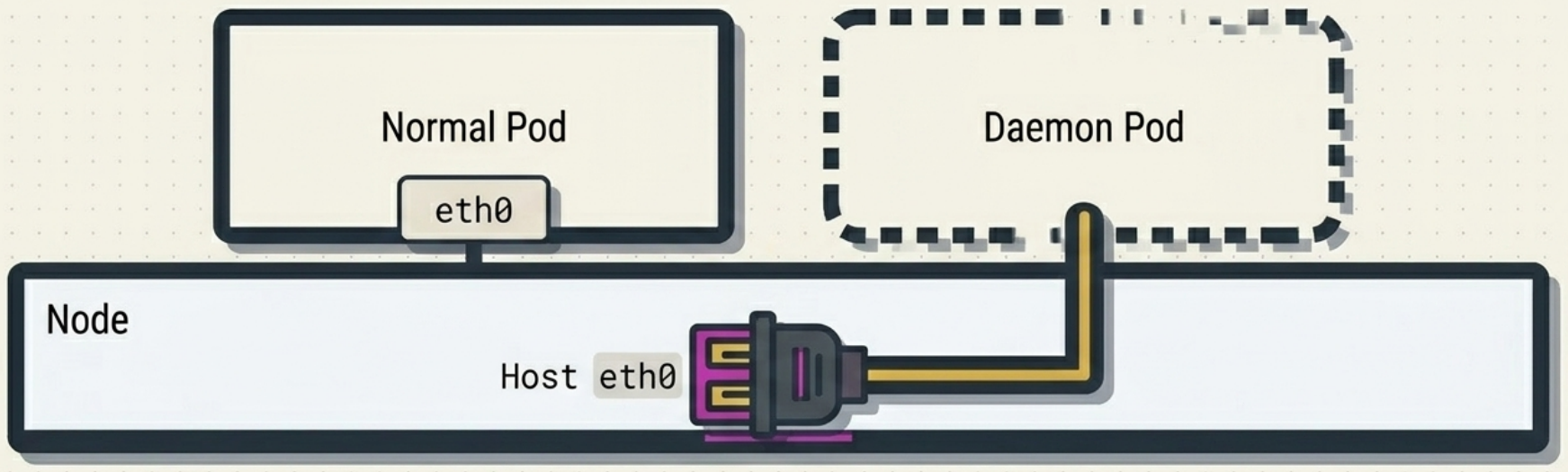

Option 2 — hostNetwork: true: Pod runs in the host network namespace, binding directly to node ports. Client still needs status.hostIP. Higher security risk than hostPort.

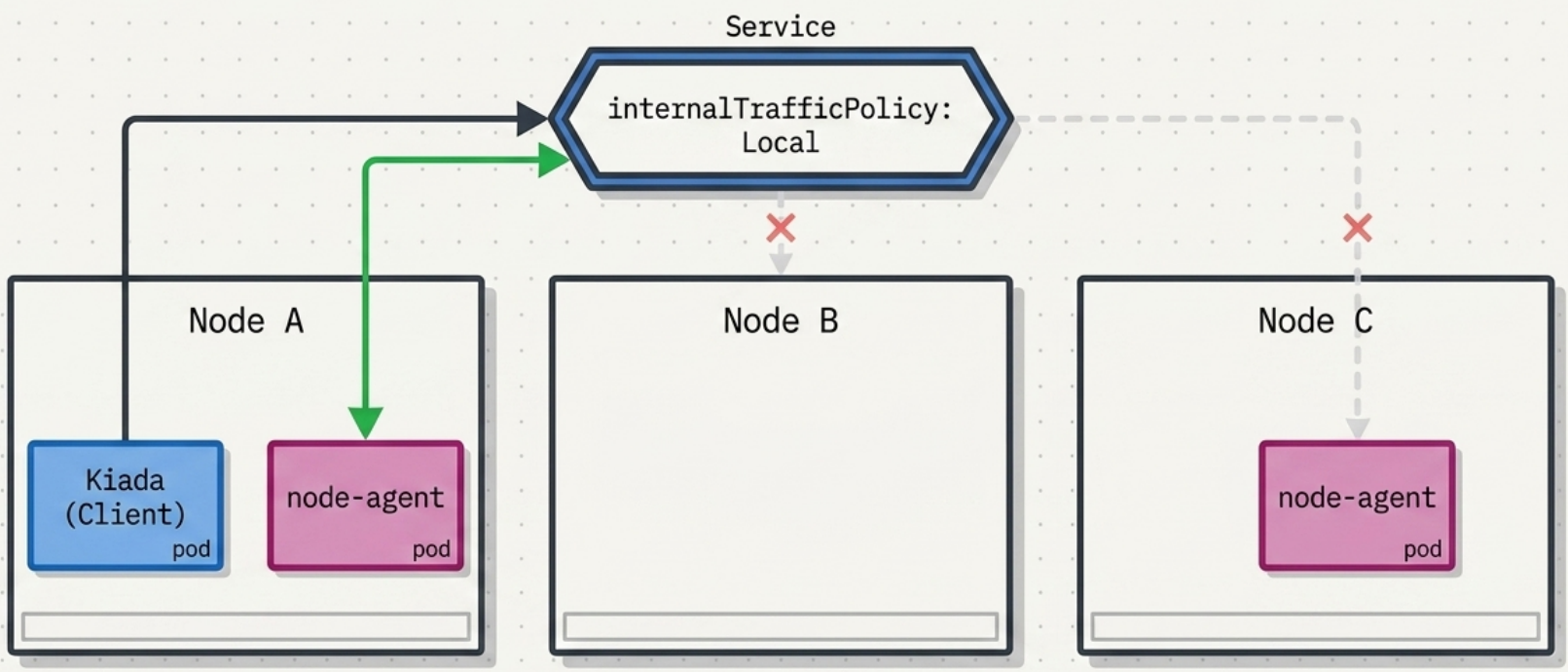

Option 3 — Local Service (recommended): Standard Service with internalTrafficPolicy: Local:

apiVersion: v1
kind: Service
spec:
  internalTrafficPolicy: Local # only routes to Pods on the same node as the client
  selector:
    app: node-agent
  ports:
    - port: 80

	hostPort	hostNetwork	Local Service
Network isolation	Port-level only	None — shares host namespace	Full container isolation
Client config	Downward API (status.hostIP)	Downward API (status.hostIP)	Standard DNS name
External visibility	Exposed via node IP:port	Exposed via node IP:port	Cluster-internal only
Security risk	Minimal	High	Lowest

Tip

Default to the Local Service pattern. It requires no host namespace privileges and clients reference a plain DNS name — no Downward API needed.

---

StatefulSets

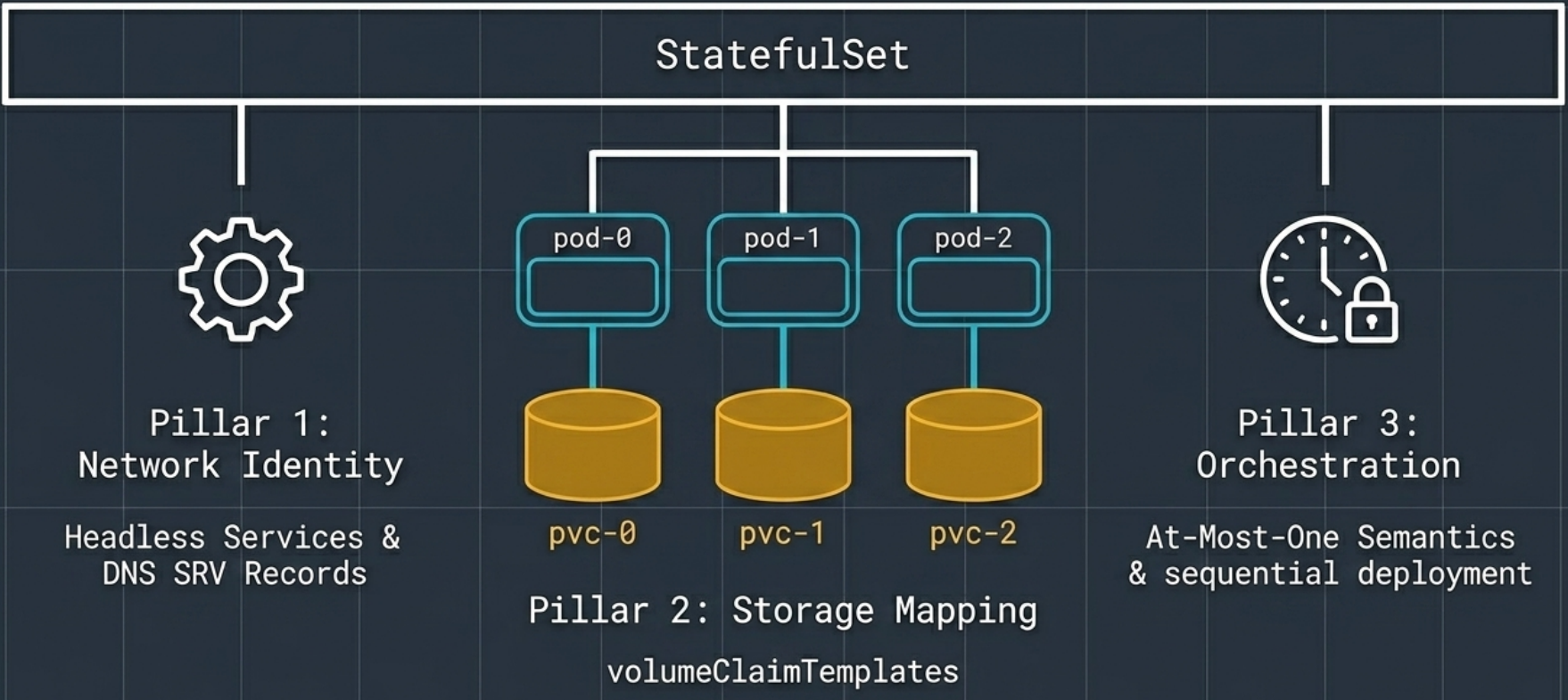

A StatefulSet is the controller for stateful applications — workloads that create and save valuable data. Unlike a Deployment, which treats all Pods as interchangeable, a StatefulSet gives each replica a permanent, predictable identity that survives failures, restarts, rescheduling, and scaling events. This is built on three pillars:

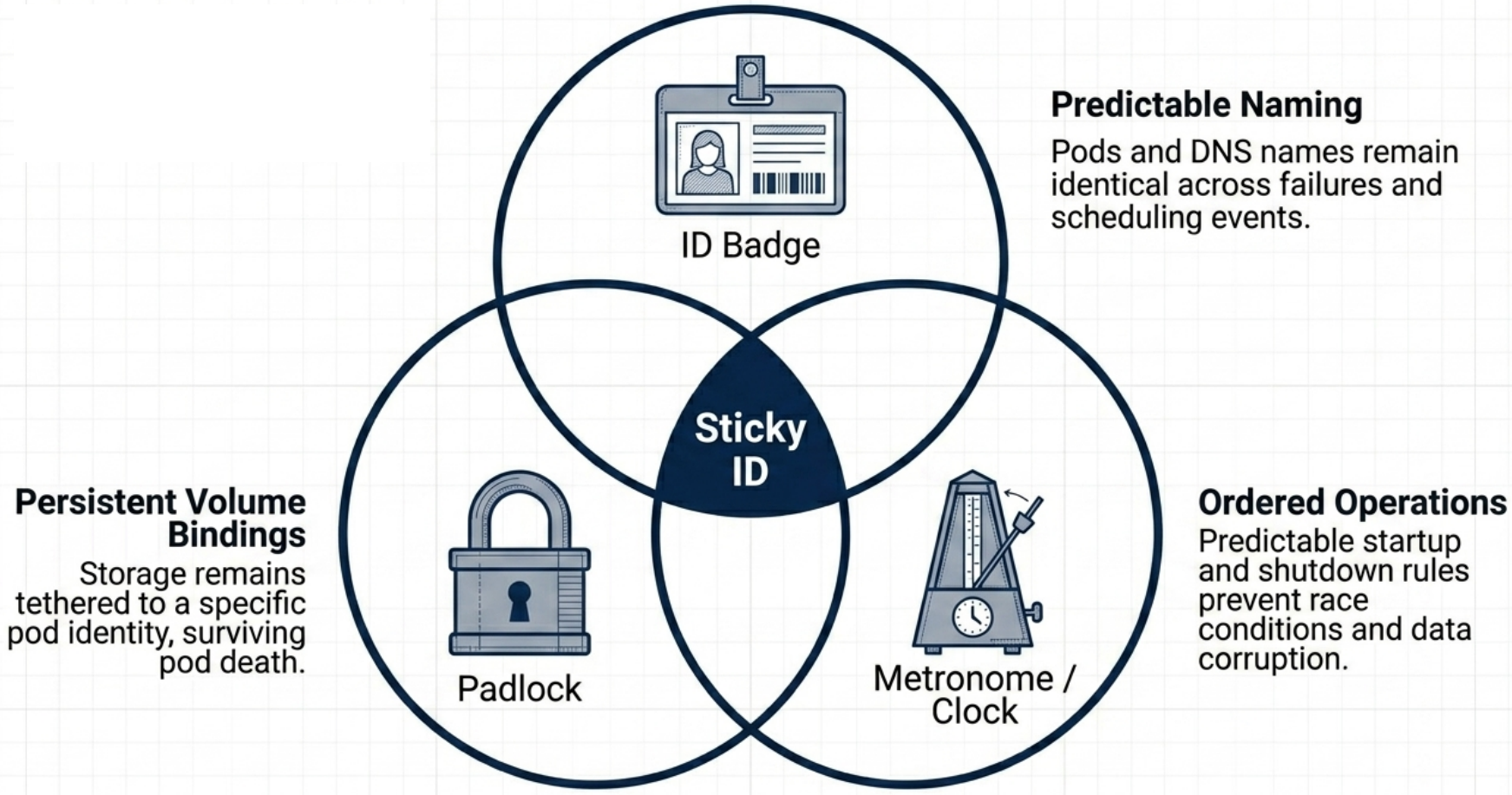

Pillar	Mechanism	What it provides
1 — Network Identity	Headless Service + DNS SRV records	Each pod gets a stable, predictable FQDN (e.g. my-db-0.my-db-headless.default.svc.cluster.local) that survives rescheduling
2 — Storage Mapping	volumeClaimTemplates	One dedicated PVC per replica (pvc-0, pvc-1, pvc-2) — permanently bound to the pod with the same ordinal
3 — Orchestration	At-Most-One semantics + sequential startup	Pods start and stop in strict order; two pods with the same identity can never run simultaneously

Common stateful workloads: databases (PostgreSQL, MySQL), key-value stores (Redis, etcd), message brokers (Kafka), and any application that persists client session state.

StatefulSet Manifest Template

A StatefulSet is almost always paired with a headless Service (its governing Service). Both are shown here:

# ── 1. Governing headless Service ────────────────────────────────────────────
apiVersion: v1
kind: Service
metadata:
  name: my-db-headless
  namespace: default
spec:
  clusterIP: None # headless — no virtual IP, no load-balancing
  selector:
    app: my-db
  ports:
    - name: db
      port: 5432
  publishNotReadyAddresses: true # register DNS immediately — required for bootstrap quorum
---
# ── 2. Optional: standard client Service (only routes to Ready pods) ─────────
apiVersion: v1
kind: Service
metadata:
  name: my-db
  namespace: default
spec:
  selector:
    app: my-db
  ports:
    - name: db
      port: 5432
---
# ── 3. StatefulSet ────────────────────────────────────────────────────────────
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: my-db
  namespace: default
spec:
  # --- Governing headless Service (provides DNS subdomain for pod hostnames) ---
  serviceName: my-db-headless # must match the headless Service name above

  replicas: 3

  # --- Selector (must match spec.template.metadata.labels — immutable after creation) ---
  selector:
    matchLabels:
      app: my-db

  # --- Pod creation / teardown order ---

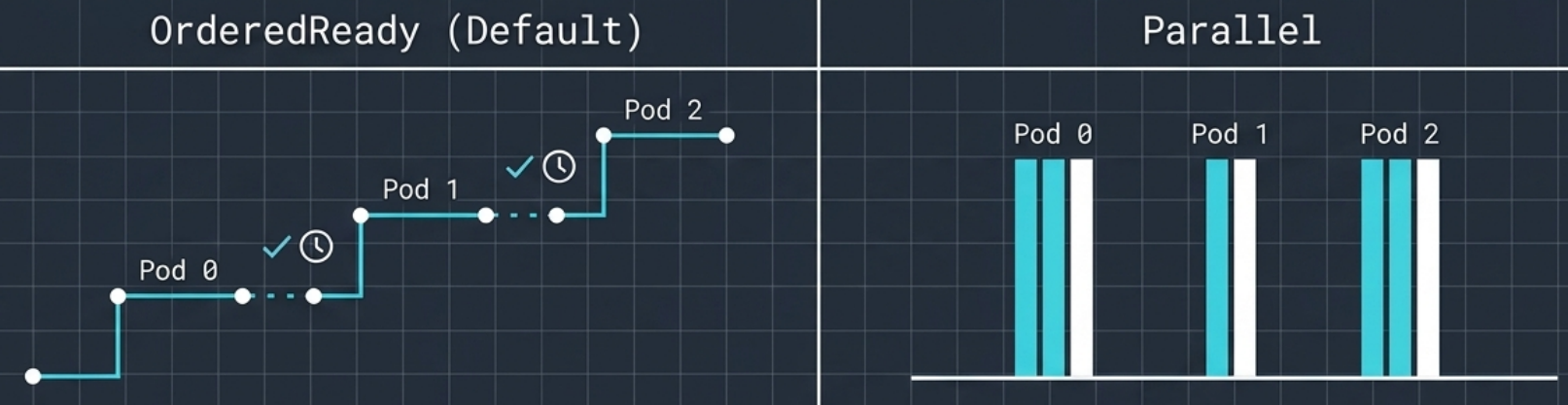

  podManagementPolicy: OrderedReady # default: sequential start/stop with readiness gate
  # podManagementPolicy: Parallel    # all pods start/stop simultaneously (use for bootstrap deadlock workaround)

  # --- Update strategy ---
  updateStrategy:
    type: RollingUpdate # default; reverse-ordinal, one pod at a time
    rollingUpdate:
      partition: 0 # default: 0 (full rollout); increase to stage/canary
      # partition: 2             # only pods with ordinal >= 2 are updated (canary = replicas-1)
      # partition: 3             # equal to replicas = stage without triggering (dry-run updates)
  minReadySeconds: 10 # cooldown between successive pod replacements

  # --- PVC lifecycle policy (defaults: both Retain — safest option) ---
  persistentVolumeClaimRetentionPolicy:
    whenScaled: Retain # keep PVCs when scaling down (reattaches on scale-up)
    whenDeleted: Retain # keep PVCs when StatefulSet is deleted
    # whenScaled: Delete         # ⚠ auto-deletes PVCs on scale-down — risk of data loss

  template:
    metadata:
      labels:
        app: my-db # must match spec.selector.matchLabels above

    spec:
      # --- Stable hostname used in peer-discovery connection strings ---
      # Each pod's FQDN: <pod-name>.<serviceName>.<namespace>.svc.cluster.local
      # e.g. my-db-0.my-db-headless.default.svc.cluster.local

      containers:
        - name: db
          image: postgres:16
          imagePullPolicy: IfNotPresent

          ports:
            - name: db
              containerPort: 5432

          # --- Environment (inject pod identity for self-aware clustering) ---
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name # e.g. "my-db-1"
            - name: POSTGRES_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: my-db-secret
                  key: password

          # --- Resource limits (always set on stateful workloads) ---
          resources:
            requests:
              cpu: "250m"
              memory: "512Mi"
            limits:
              cpu: "1"
              memory: "1Gi"

          # --- Mount the per-replica volume (provided by volumeClaimTemplates below) ---
          volumeMounts:
            - name: data # must match volumeClaimTemplates[].metadata.name
              mountPath: /var/lib/postgresql/data

          livenessProbe:
            exec:
              command: ["pg_isready", "-U", "postgres"]
            initialDelaySeconds: 30
            periodSeconds: 10

          readinessProbe:
            exec:
              command: ["pg_isready", "-U", "postgres"]
            initialDelaySeconds: 5
            periodSeconds: 5

      # --- Allow time to flush writes and close connections before SIGKILL ---
      terminationGracePeriodSeconds: 60

  # ── volumeClaimTemplates ──────────────────────────────────────────────────
  # The StatefulSet controller creates one PVC per replica from this template.
  # Naming: <template-name>-<pod-name>  →  data-my-db-0, data-my-db-1, data-my-db-2
  # PVCs are NOT deleted when pods are deleted or scaled down (Retain policy above).
  volumeClaimTemplates:
    - metadata:
        name: data # referenced in container.volumeMounts[].name
      spec:
        accessModes: ["ReadWriteOnce"] # one node at a time — standard for block storage
        storageClassName: fast-ssd # omit to use cluster default StorageClass
        resources:
          requests:
            storage: 20Gi

Controller Architecture

A StatefulSet is a standard Kubernetes API resource managed by a control loop — but with a key architectural difference from Deployments: the StatefulSet controller directly manages its own self-healing, scaling, and rolling updates. It does not delegate to an underlying ReplicaSet.

Controller	Self-healing via	Notes
Deployment	ReplicaSet controller	Two-layer architecture
StatefulSet	Direct management	Single-layer; enables strict ordering guarantees

StatefulSets vs. Deployments

Capability	Deployment	StatefulSet
Pod identity	Random suffix (my-app-x7k2p)	Stable ordinal (my-app-0, my-app-1)
Pod startup order	Parallel (all at once)	Sequential (one at a time)
Scale-down order	Priority-based heuristic	Reverse ordinal (highest first)
Storage per Pod	Shared or none	Unique PVC per replica
Network identity	Single ClusterIP Service	Individual DNS hostnames via headless Service
Race conditions	Can occur during parallel startup	Prevented by sequential ordering

---

The Sticky ID

Every StatefulSet Pod has a sticky ID — the combination of its persistent name, DNS hostname, and volume binding. The StatefulSet controller guarantees this identity survives pod failures, restarts, rescheduling onto different nodes, and scaling events.

If replica my-db-1 crashes, its replacement is created with:

• The exact same name: my-db-1
• The exact same DNS hostname: my-db-1.my-db-headless.default.svc.cluster.local
• Reconnected to the exact same PVC: data-my-db-1

Pod Naming

Pods receive names using the pattern <StatefulSetName>-<integer>, where the integer is a zero-based ordinal index:

StatefulSet: my-db   replicas: 3
→ my-db-0
→ my-db-1
→ my-db-2

Caution

StatefulSet names must follow valid DNS naming conventions (alphanumerics and hyphens only). The name is embedded in every Pod’s DNS hostname, so exotic characters will cause DNS resolution failures.

---

Ordered Lifecycle

StatefulSets enforce strict sequential ordering across all lifecycle operations — creation, scaling, updates, and shutdown. This is what prevents the race conditions common in Deployments, where all Pods start simultaneously.

Startup Sequence

Pods are created one at a time, in ascending ordinal order. The controller starts my-db-0 and waits for it to be Running and Ready (all containers active, readiness probe passing) before starting my-db-1:

# Watch sequential startup
kubectl get pods --watch
# my-db-0   0/1   Pending           → ContainerCreating → Running   ← must be Ready first
# my-db-1   0/1   (creation starts only after my-db-0 is Ready)
# my-db-2   0/1   (creation starts only after my-db-1 is Ready)

In practice, each Pod can take ~30 seconds depending on container init time and storage attachment speed.

Scaling

Direction	Order	Rule
Scale up (3 → 5)	Ascending: my-db-3 first, then my-db-4	Each new Pod must reach Running+Ready before the next starts
Scale down (5 → 3)	Descending: my-db-4 first, then my-db-3	Each Pod must fully terminate before the next is removed

Eliminating parallel terminations is critical for clustered stateful workloads — simultaneous shutdowns can break consensus algorithms (e.g., Raft, Paxos) or cause data loss.

# Scale up — Pods are created sequentially with stable names
kubectl scale statefulset <name> --replicas=5

# Scale down — Pods are terminated in reverse-ordinal order
kubectl scale statefulset <name> --replicas=3

# Watch the sequential transitions in real time
kubectl get pods -w

Caution

If any existing replica is in a failed state, the StatefulSet controller halts all scale-down operations. Fix the failing Pod first — this safeguard protects cluster consensus and data integrity.

Pod Management Policy

The default OrderedReady policy enforces all sequential rules. Switching to Parallel speeds up scaling at the cost of ordering guarantees:

spec:
  podManagementPolicy: Parallel # default: OrderedReady

Policy	Scaling behaviour	Rollout behaviour
OrderedReady	Sequential — one at a time	Sequential reverse-ordinal
Parallel	Simultaneous — all at once	Still sequential reverse-ordinal

Note

Parallel only affects scaling speed. Rolling updates always follow the strict reverse-ordinal progression regardless of this setting.

Bootstrap deadlock under OrderedReady: If the first Pod (my-db-0) fails its readiness probe while waiting for peers to form a quorum (common in databases requiring 2+ members before they become healthy), the controller refuses to start subsequent Pods — a circular dependency. Two resolutions:

1. Temporarily switch to Parallel to bring all Pods up simultaneously, letting them discover each other via DNS
2. Adjust the readiness probe to check basic process availability (not cluster health) until the quorum is formed, then restore the strict health check

---

Storage

PVC Templates

Instead of a single shared volume, StatefulSets use spec.volumeClaimTemplates to automatically generate a unique Persistent Volume Claim for each replica. This requires a StorageClass for dynamic provisioning:

spec:
  volumeClaimTemplates:
    - metadata:
        name: data
      spec:
        accessModes: ["ReadWriteOnce"]
        storageClassName: fast-ssd
        resources:
          requests:
            storage: 10Gi

For a StatefulSet named my-db with 3 replicas, this provisions:

Pod	PVC auto-created
my-db-0	data-my-db-0
my-db-1	data-my-db-1
my-db-2	data-my-db-2

PVC naming pattern: <volumeClaimTemplate-name>-<StatefulSetName>-<ordinal>

Decoupled Lifecycle

Pods and their PVCs have completely independent lifecycles — volumes outlive Pods:

Event	Pod	PVC
Pod crashes	Deleted, then recreated with same name	Unaffected — stays Bound
Scale down (my-db-2 removed)	Pod terminated	data-my-db-2 stays Bound (shows Used by: <none>)
Scale back up (my-db-2 recreated)	New my-db-2 Pod starts	Automatically reattaches to existing data-my-db-2
StatefulSet deleted	Pods removed	PVCs remain — must be deleted manually

Caution

Deleting a StatefulSet or scaling it to zero never automatically deletes PVCs. This is intentional data-safety behaviour. You must manually delete PVCs to release backend storage and prevent unexpected cloud billing:

kubectl delete pvc data-my-db-0 data-my-db-1 data-my-db-2

PVC Retention Policy

If your workload does not need to preserve data after scale-down or deletion, you can automate PVC cleanup:

spec:
  persistentVolumeClaimRetentionPolicy:
    whenScaled: Delete # auto-delete PVCs when scaling down
    whenDeleted: Retain # keep PVCs when the StatefulSet itself is deleted

Field	Retain (default)	Delete
whenScaled	PVCs survive scale-down; reattached on scale-up	PVCs permanently deleted on scale-down
whenDeleted	PVCs survive StatefulSet deletion	PVCs deleted along with the StatefulSet

Caution

Setting whenScaled: Delete is dangerous. The safe decommissioning protocol scales to zero before deleting the StatefulSet — which means the scale-down policy fires first, permanently destroying all PVCs and data before you even run kubectl delete sts. Use Retain unless you fully understand the implications.

Data Seeding

Caution

Never seed data using an init container inside the StatefulSet Pod template. With 3 replicas, the init container runs on every Pod creation — causing all 3 Pods to write the same seed data concurrently, resulting in data corruption or import collisions.

The correct approach is a dedicated, single-run importer Pod with restartPolicy: OnFailure. It connects to the primary replica via the headless Service’s SRV DNS and imports data once. The database’s internal replication propagates it to all secondaries automatically.

---

Peer Discovery

Stateful clustered workloads (databases, consensus systems) need replicas to communicate directly with specific peers, bypassing load balancers. StatefulSets use a headless Service as their governing Service to enable this.

Headless Service

A headless Service has spec.clusterIP: None — it has no virtual IP and performs no load-balancing. Instead, it registers individual DNS records for each Pod directly:

apiVersion: v1
kind: Service
metadata:
  name: my-db-headless
spec:
  clusterIP: None # ← disables the ClusterIP "head"
  selector:
    app: my-db
  ports:
    - port: 5432

Declare it as the governing Service in the StatefulSet via spec.serviceName:

spec:
  serviceName: my-db-headless # this headless Service manages the DNS subdomain

publishNotReadyAddresses: By default, DNS records are only registered after a Pod passes its readiness probe. For distributed databases that must discover peers before they can become Ready (e.g., bootstrapping a MongoDB quorum), add this field to the headless Service:

spec:
  clusterIP: None
  publishNotReadyAddresses: true # register DNS immediately, even for unready Pods

Dual-service design pattern: Production stateful deployments commonly pair two Services:

Service	Type	Purpose
Governing headless Service	clusterIP: None + publishNotReadyAddresses: true	Internal peer discovery — Pods find each other during bootstrap
Standard client Service	ClusterIP or LoadBalancer	Client traffic — only routes to fully Ready Pods

DNS Hostnames

The combination of a headless Service and a StatefulSet generates a fully predictable FQDN for every replica:

<pod-name>.<governing-service-name>.<namespace>.svc.cluster.local

For my-db + governing service my-db-headless in the default namespace:

Pod	FQDN
my-db-0	my-db-0.my-db-headless.default.svc.cluster.local
my-db-1	my-db-1.my-db-headless.default.svc.cluster.local
my-db-2	my-db-2.my-db-headless.default.svc.cluster.local

Under the Hood: DNS Records

A headless Service used with any pod selector returns the IPs of matching pods when queried — but that’s all. The per-pod hostname DNS records (<pod-name>.<service>.<namespace>.svc.cluster.local) are a StatefulSet-exclusive feature:

Setup	DNS behaviour
Headless Service (standalone, no StatefulSet)	Service name → list of current Pod IPs (A records). No per-pod hostname records.
Headless Service as governing Service of a StatefulSet	Service name → list of Pod IPs AND individual A records per pod, addressable by stable hostname

This per-pod hostname record is what gives StatefulSet Pods their stable network identity. Deleting and rescheduling my-db-0 onto a different node updates the A record to the new IP — clients using the hostname never need to know the IP changed.

When a client queries the headless Service name, cluster DNS returns the full topology:

• SRV records — one per active Pod matching the selector; maps the headless Service hostname to individual Pod FQDNs
• A records — each individual Pod hostname resolves to its current cluster IP

# Verify from inside the cluster
dig SRV my-db-headless.default.svc.cluster.local
# Answer section: Pod FQDNs
# Additional section: Pod FQDNs → current cluster IPs

Note

StatefulSets and headless Services establish the DNS framework — they don’t implement clustering logic. Your application must be coded to query cluster DNS (SRV + A records) so replicas can discover peers and perform synchronization or election handshakes.

---

Rolling Updates

Reverse-Ordinal Progression

StatefulSet rollouts always proceed from the highest ordinal downward to 0, one Pod at a time:

# Rollout order for my-db with 3 replicas:
1. Terminate + replace my-db-2 → wait for Running+Ready
2. Terminate + replace my-db-1 → wait for Running+Ready
3. Terminate + replace my-db-0

If a newly updated replica fails its readiness check, the rollout halts immediately — healthy, older-version replicas continue serving traffic across the rest of the cluster.

Staged Rollouts with partition

Note

kubectl rollout pause is not supported on StatefulSets — running it returns an error. Use partition instead to achieve the same effect.

The partition field gates which Pods receive the update. Only Pods whose ordinal is greater than or equal to the partition value are updated:

partition value	Effect
Equal to or higher than replicas	Stage without triggering — template is updated internally, zero pods are replaced
replicas - 1	Canary — only the highest-ordinal Pod is updated
0 (default)	Full rollout — all Pods are updated

Workflow:

# 1. Stage: set partition = replicas to update the template without triggering any replacement
kubectl patch sts my-db -p '{"spec":{"updateStrategy":{"rollingUpdate":{"partition":3}}}}'

# 2. Canary: lower to replicas-1 to update only the highest-ordinal Pod
kubectl patch sts my-db -p '{"spec":{"updateStrategy":{"rollingUpdate":{"partition":2}}}}'

# 3. Verify the canary, then complete: set partition to 0 to roll out all remaining Pods
kubectl patch sts my-db -p '{"spec":{"updateStrategy":{"rollingUpdate":{"partition":0}}}}'

Partition safety — what happens if you delete a Pod while partitioned:

Pod’s ordinal vs partition	Pod deleted by you	Replacement uses
Below partition (old version)	kubectl delete pod my-db-0	Old template — partition protects it
Above or equal to partition (new version)	kubectl delete pod my-db-2	New template

Observing partition state via .status:

kubectl get sts my-db -o yaml
# status:
#   replicas: 3            — total pods
#   readyReplicas: 3       — pods passing readiness probes
#   currentReplicas: 2     — pods on the OLD revision
#   updatedReplicas: 1     — pods on the NEW revision
#   currentRevision: my-db-6c48bdd8df
#   updateRevision: my-db-6945968d9

Update Strategies

Strategy	Behaviour	Use when
RollingUpdate (default)	Replaces Pods one at a time, reverse-ordinal, with readiness gate	Standard controlled rollouts
OnDelete	Controller only replaces a Pod after you manually delete it	Full manual control; surgical canary testing on individual replicas

spec:
  updateStrategy:
    type: OnDelete # you control when each Pod is replaced by deleting it manually

What makes OnDelete different from RollingUpdate:

• Any order — you are not forced to delete in reverse-ordinal order. You can update my-db-0 first, then my-db-2, then my-db-1 if your workload requires it
• Any pace — pause for minutes, hours, or days between individual pod updates
• Readiness is your responsibility — if you delete a pod and its replacement fails readiness, the controller doesn’t block you from deleting the next pod. You decide whether to proceed
• Rollback is also semi-automatic — kubectl rollout undo reverts the template, but you must manually delete each pod to apply the older template. Nothing happens automatically

Revision History and Rollbacks

Unlike Deployments (which track history via secondary ReplicaSets), StatefulSets store update history in ControllerRevision objects — immutable snapshots of the Pod template at each revision point:

# Monitor rollout progress in real time (hangs if any Pod fails readiness)
kubectl rollout status sts <name>

# View revision history
kubectl rollout history sts <name>

# Inspect the underlying ControllerRevision objects
kubectl get controllerrevisions

# Roll back to the previous revision
kubectl rollout undo sts <name>

# Roll back to a specific revision number
kubectl rollout undo sts <name> --to-revision=<number>

Rollbacks follow the same update strategy as forward updates — reverse-ordinal, one Pod at a time, with a readiness gate. Rolling updates do not support maxSurge or maxUnavailable — exactly one Pod is replaced at a time.

minReadySeconds: Add a cooldown delay between individual Pod replacements. The controller waits this many seconds after a Pod becomes Ready before proceeding to the next:

spec:
  minReadySeconds: 30 # wait 30 seconds after each Pod is Ready before replacing the next

---

Failure Scenarios

Clean Pod Failures

When a StatefulSet Pod crashes or is manually deleted, the controller schedules a replacement with the same name on any available node and reconnects it to the same PVC:

# Simulate a failure
kubectl delete pod my-db-0

# Watch the recovery
kubectl get pods --watch
# my-db-0   Terminating → Pending → ContainerCreating → Running

# Confirm the same volume is reattached
kubectl describe pod my-db-0 | grep ClaimName
# ClaimName: data-my-db-0

At-Most-One Semantics and Node Failures

StatefulSets enforce at-most-one execution: two Pods with the same name cannot run concurrently in the same namespace. When a node goes NotReady, its Pods transition to Terminating — but the StatefulSet controller deliberately refuses to automatically schedule replacements. The original containers on the unreachable node are still running; creating a replacement would violate at-most-one, risking two Pods writing to the same volume simultaneously.

To relocate a Pod after confirming the node is truly offline:

kubectl delete pod <pod-name> --force --grace-period=0

Caution

Force deletion bypasses Kubelet confirmation. If the partitioned node recovers, both Pods briefly run concurrently. Only use after you have confirmed the node is genuinely and permanently offline. Modern clusters use storage fencing to mitigate this — but it is not universally guaranteed.

Scheduling deadlocks after force deletion:

Storage type	Symptom	Resolution
Local volumes	Pod stuck Pending — FailedScheduling: volume node affinity conflict	Node must come back online; or delete Pod + PVC if the app can rebuild state from peers
Network-attached volumes	Pod stuck ContainerCreating — FailedAttachVolume: Multi-Attach error	Volume still attached to dead node; restore connectivity, or delete Pod + PVC if app supports replication from scratch

---

Safe Decommissioning

Deleting a StatefulSet object directly does not terminate Pods in an orderly sequence and does not clean up storage. Always follow this protocol:

# Step 1: Scale to zero — triggers safe, sequential, reverse-ordinal shutdown
kubectl scale sts my-db --replicas=0

# Step 2: Delete the StatefulSet controller object
kubectl delete sts my-db

# Step 3: Delete the governing headless Service
kubectl delete svc my-db-headless

# Step 4: Manually delete PVCs to release backend storage (prevents cloud billing surprises)
kubectl delete pvc data-my-db-0 data-my-db-1 data-my-db-2

# Step 5: Delete the StorageClass if it is no longer needed
kubectl delete sc fast-ssd

Note

Set terminationGracePeriodSeconds to 10 seconds or more in the Pod template so containers have time to flush memory buffers and commit in-flight writes to disk before the Pod is killed.

---

Operators

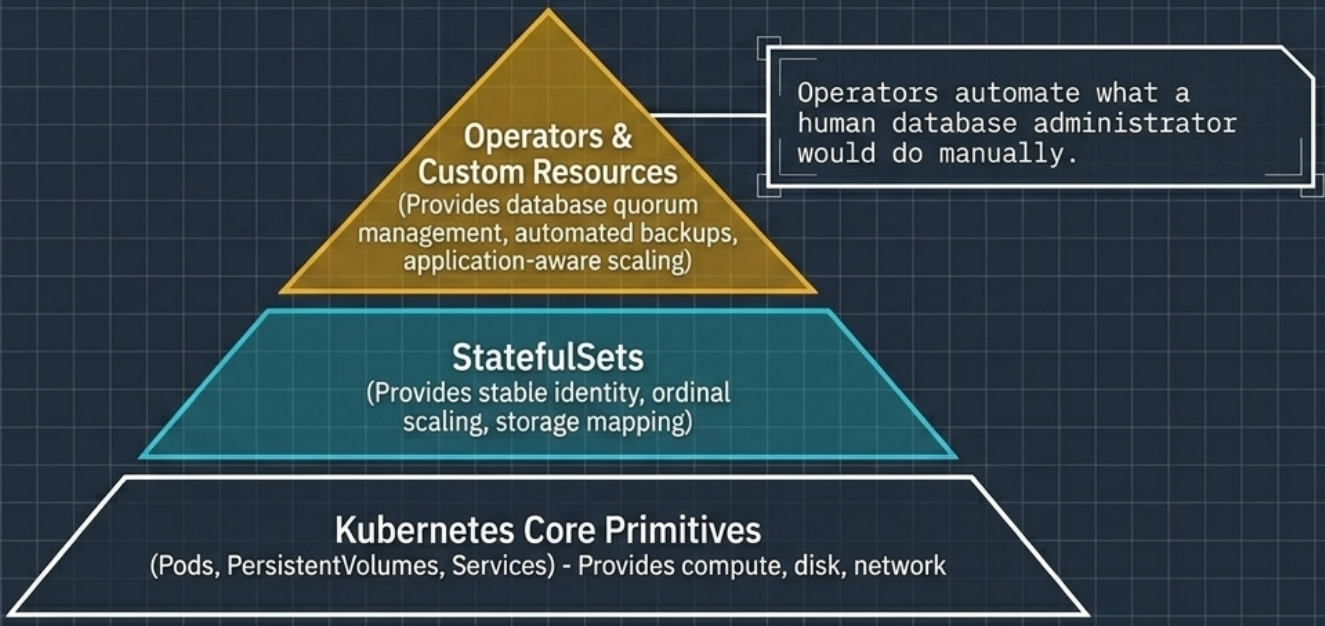

StatefulSets automate the infrastructure layer — stable naming, ordered lifecycle, PVC binding, and rolling updates. They cannot handle application-level operational tasks:

• Reconfiguring cluster membership when a database replica is scaled out or removed
• Triggering leader re-election after a node failure
• Running schema migrations before a version upgrade
• Bootstrapping quorum in a fresh cold-start scenario

A Kubernetes Operator is an application-specific custom controller that encodes these operational procedures in code. Operators are typically built by the same team that develops the software — they have the deepest domain knowledge on how to deploy, scale, and recover that specific application.

The Operator Pattern

Operators extend the Kubernetes API by registering Custom Resource Definitions (CRDs) — new object types specific to the application (e.g., MongoDBCommunity, PostgresCluster, KafkaCluster). Users declare desired state via these custom resources; the Operator’s reconciliation loop provisions and manages the underlying standard Kubernetes objects:

User applies:  MongoDBCommunity resource
                      ↓
       Kubernetes API stores the CR
                      ↓
  Operator watches CR via reconciliation loop
                      ↓
  Operator creates:  StatefulSet + Services + Secrets + ConfigMaps
                      ↓
  Operator continuously monitors child resources
  and reverts any manual drift back to the CR's declared state

Caution

If you manually scale an Operator-managed StatefulSet directly (kubectl scale sts), the Operator’s reconciliation loop will immediately detect the drift and revert it. Always modify state through the custom resource — never the generated child resources directly.

Operator Lifecycle

# Install the Operator (typically via Helm or kubectl apply)
kubectl apply -f operator-manifests/

# Declare desired state via custom resource — Operator handles StatefulSet creation,
# peer discovery setup, and cluster initialization automatically
kubectl apply -f my-db-cluster.yaml

# Scale by updating the CR field (e.g., members: 5), not kubectl scale
kubectl edit mongodbcommunity my-db

# Cleanup — deleting the CR triggers cascading deletion of all child resources
kubectl delete mongodbcommunity my-db

Finding Operators

OperatorHub.io catalogs community and vendor-supported Operators for most major stateful applications (PostgreSQL, Kafka, Elasticsearch, Redis, Cassandra, etcd). The Operator Lifecycle Manager (OLM) handles Operator installation, versioning, and dependency management within the cluster.
