Ingress API (Legacy)

Caution

The Kubernetes Ingress API was sunset in 2026. It receives no new features and is frozen at networking.k8s.io/v1. Existing workloads continue to function, but all new deployments should use the Gateway API instead. This page is retained as a reference for understanding legacy infrastructure and planning migration.

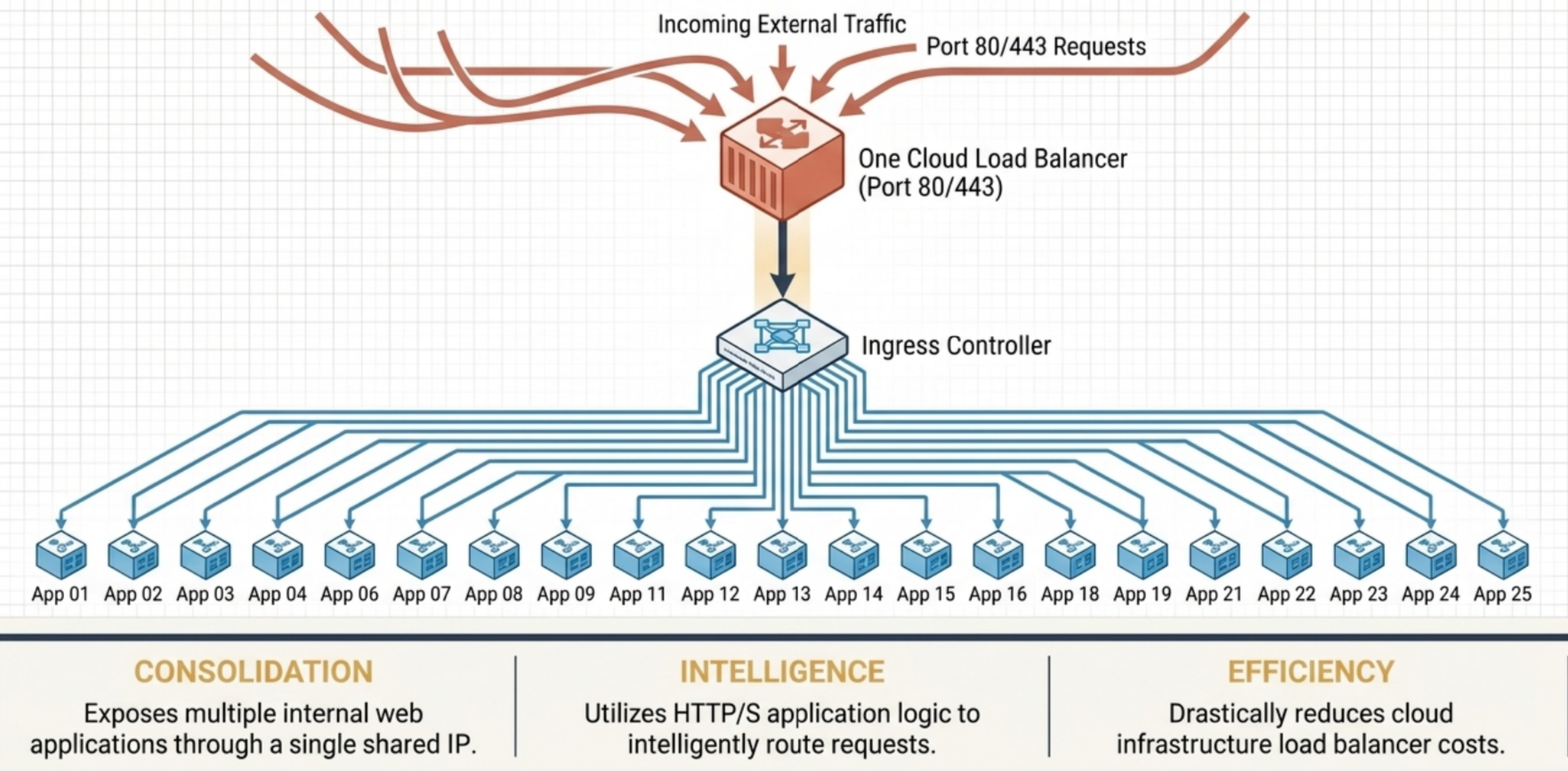

Every web-facing Kubernetes workload needs a way in from the internet. A LoadBalancer Service works, but costs you one cloud load balancer per service - 30 apps means 30 public IPs, 30 billing items, 30 quota slots. Ingress collapses all of that behind a single entry point by operating at Layer 7, where it can read hostnames and URL paths and route accordingly.

Two generations of Kubernetes ingress infrastructure:

• Ingress API - the original L7 routing mechanism, GA since Kubernetes 1.19. Stable and widely deployed, but monolithic and annotation-heavy for anything beyond basic routing.
• Gateway API - the next-generation replacement, developed by the Kubernetes Network SIG. Role-oriented, multi-protocol (L4-L7), and extensible without vendor annotations.

Key terms:

• Ingress (capital I) is the Kubernetes API resource (networking.k8s.io/v1). Lowercase ingress just means incoming traffic.
• Ingress controller is the reconciliation process that watches Ingress objects and configures the underlying proxy. Kubernetes ships none by default - you install one.
• Layer 7 aware: both Ingress and Gateway API operate at the HTTP application layer, routing on hostnames, paths, headers, and cookies - things a Layer 4 TCP balancer cannot see.

---

Why Ingress Exists

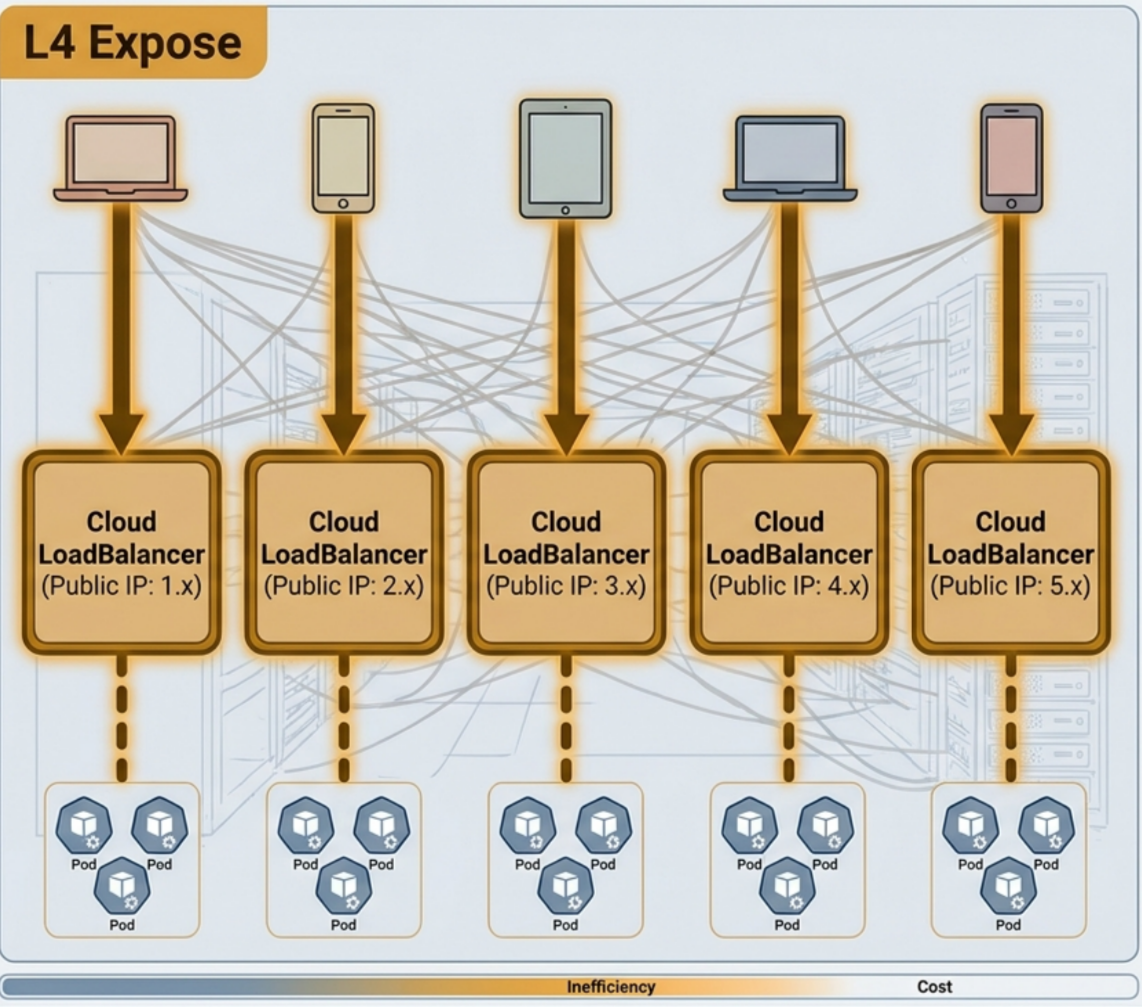

Layer 4 vs. Layer 7 Load Balancing

Aspect	NodePort	LoadBalancer	Ingress
OSI layer	L4 Transport (TCP/UDP)	L4 Transport (TCP/UDP)	L7 Application (HTTP/HTTPS)
Entry point	High port (30000-32767) on every Node IP	Dedicated cloud LB IP per Service	Shared cloud LB IP - port 80/443 for all Services
Public IPs	None (use node IP + port)	One per Service	One shared across all Services
Routing logic	IP + port only	IP + port only	Host header, URL path, cookies, headers
Traffic target	Service ClusterIP (via kube-proxy)	Service ClusterIP (via kube-proxy)	Pod IPs directly (bypasses kube-proxy)

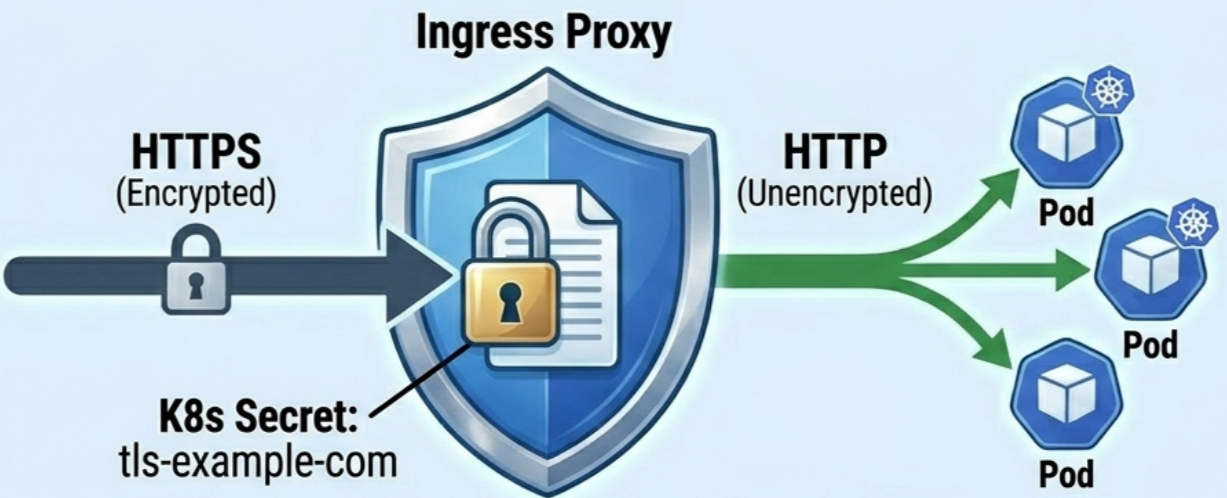

TLS termination	Not supported	Not supported	Native via spec.tls
Session affinity	Client IP only	Client IP only	Cookie-based (L7 inspection)
Cost & friction	Lowest cost - high client friction (raw ports)	High cost - 1:1 mapping limits	Highly efficient - 1-to-many mapping
Best use case	Local dev, testing, internal access	Single high-traffic or non-HTTP service	Microservices cluster with multiple web apps

Note

Ingress reverse proxies route HTTP traffic directly to Pod IPs from EndpointSlice objects, bypassing the Service ClusterIP and kube-proxy entirely. The backing Service object is used only as a selector/label grouping mechanism.

---

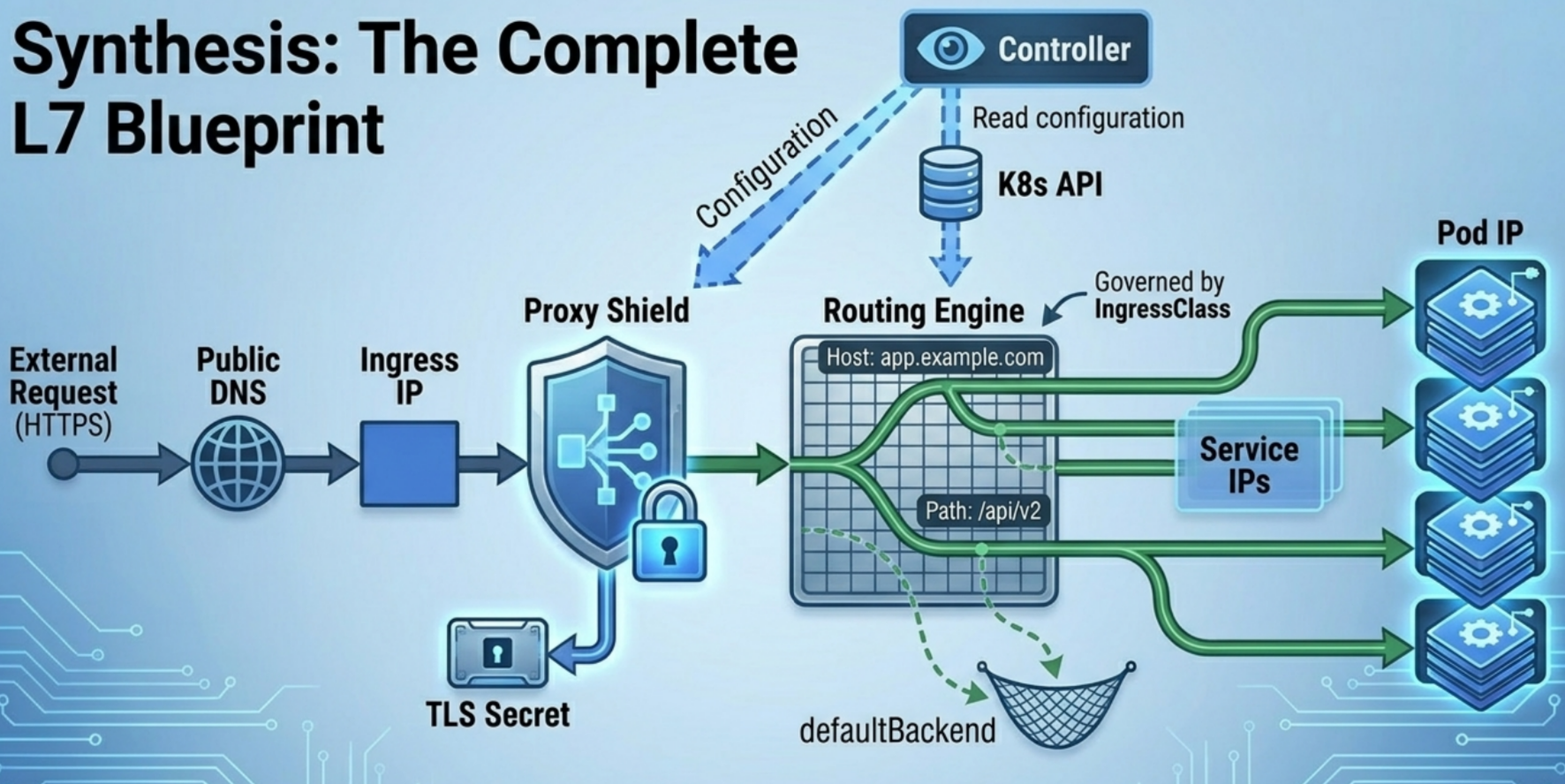

Ingress Architecture

Three distinct layers work together:

• Ingress API Object - the declarative spec: hostnames, paths, TLS secrets, backend Service references. Stored in the API server, processed by nothing on its own.
• Ingress Controller - the control-plane reconciliation loop. Watches the API server for Ingress, Service, and EndpointSlice changes, synthesizes proxy config, and applies it to the reverse proxy.
• L7 Reverse Proxy - the data-plane engine (Nginx, Envoy, HAProxy, cloud ALB). Physically terminates client connections and forwards HTTP requests to Pod IPs.

flowchart TD
    subgraph ControlPlane["Control Plane"]
        API["☸️ Kubernetes API Server<br/><code>Ingress</code> · <code>Service</code> · <code>EndpointSlice</code>"]
        IC["⚙️ Ingress Controller<br/><i>Reconciliation loop · synthesizes config</i>"]
        API -->|"watch stream"| IC
    end
    subgraph DataPlane["Data Plane"]
        Proxy["🔀 L7 Reverse Proxy<br/><i>Nginx / Envoy / HAProxy / Cloud ALB</i>"]
        Pods["📦 Target Pod(s)<br/><i>Direct Pod IP routing</i>"]
        Proxy -->|"bypasses ClusterIP & kube-proxy"| Pods
    end
    Client["👤 Client"] -->|"HTTP / HTTPS request"| Proxy
    IC -->|"generates / reconfigures"| Proxy

Reconciliation Loop

The controller continuously watches three API resources:

1. Ingress - routing rules and TLS config
2. Service - port mapping and selector metadata
3. EndpointSlice - live Pod IP list

On any change, it merges the Ingress spec with current Pod IPs and reconfigures the proxy. When an Ingress is deleted, the controller removes the corresponding proxy rules and any associated resources.

Controller + Proxy Deployment Topologies

• Co-located (common open-source setup): Controller and proxy run as two processes in the same Pod (e.g., community Nginx Ingress Controller).
• Cloud-managed (external topology): An in-cluster controller interface talks to cloud infrastructure to provision external load balancers (GKE GLBC, AWS ALB Controller, Azure AGIC).

No Default Controller

Unlike Deployments or ReplicaSets, Kubernetes does not ship a built-in Ingress controller. You must install one:

Cloud / Tool	Controller
GKE	GLBC (GCE L7 Load Balancer)
AWS EKS	AWS Load Balancer Controller
Azure AKS	AGIC (Application Gateway Ingress Controller)
Self-managed	Nginx Ingress (k8s.io/ingress-nginx), Traefik, Contour, Ambassador, HAProxy

Tip

Use the community k8s.io/ingress-nginx controller for standard self-managed clusters. The Nginx Inc. variant (nginx.com/ingress-nginx) is a separate, commercially supported fork with different feature parity.

Installing (Local Dev)

kind:

# kind cluster must map host ports 80/443 and label the control-plane node ingress-ready=true
kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/main/deploy/static/provider/kind/deploy.yaml

minikube:

minikube addons enable ingress
minikube tunnel   # required to reach LoadBalancer/Ingress IPs from host OS

Caution

After installing the controller, creating an Ingress object may fail with failed calling webhook for a few seconds while the admission webhook initializes. Retry after 10-15 seconds.

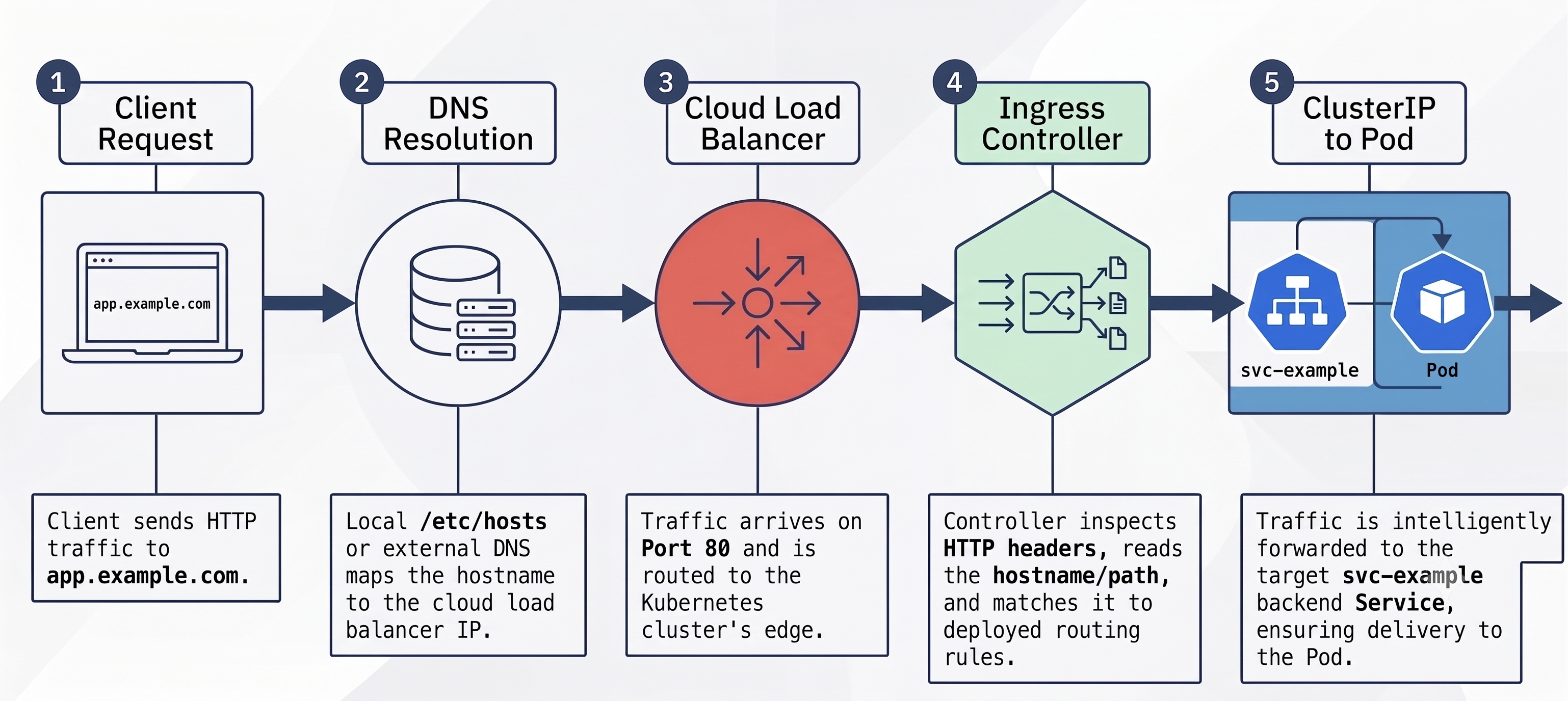

Journey of Ingress Request

---

IngressClass

IngressClass is a cluster-scoped resource that links an Ingress object to a specific controller implementation. It replaced the legacy kubernetes.io/ingress.class annotation (deprecated).

apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  name: nginx
spec:
  controller: k8s.io/ingress-nginx   # unique string identifying the controller process

Binding an Ingress to a Class

spec:
  ingressClassName: nginx   # set in the Ingress spec, not metadata

Controllers ignore Ingress objects that don’t match their class - critical when running multiple controllers in the same cluster.

Setting the Default Class

An Ingress without ingressClassName uses the cluster default:

apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  name: nginx
  annotations:
    ingressclass.kubernetes.io/is-default-class: "true"   # marks as default
spec:
  controller: k8s.io/ingress-nginx

Class Parameters (Advanced)

Controllers that need structured configuration (beyond annotations) use spec.parameters to reference a CRD instance:

# IngressClass referencing AWS-specific parameters
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  name: aws-alb
spec:
  controller: ingress.k8s.aws/alb
  parameters:
    apiGroup: elbv2.k8s.aws
    kind: IngressClassParams
    name: my-alb-params
---
# The CRD holding AWS ALB settings
apiVersion: elbv2.k8s.aws/v1beta1
kind: IngressClassParams
metadata:
  name: my-alb-params
spec:
  scheme: internal        # internal vs internet-facing ALB
  ipAddressType: dualstack
  tags:
  - key: org
    value: my-org

kubectl get ingressclasses
kubectl describe ingressclass nginx

---

Ingress Resources

Backend Service Preparation

The Ingress controller routes to ClusterIP Services. The Service does not need to be NodePort or LoadBalancer - it just needs to exist:

apiVersion: v1
kind: Service
metadata:
  name: web
spec:
  type: ClusterIP         # Ingress handles external exposure
  selector:
    app: web
  ports:
  - name: http
    port: 80
    targetPort: 8080
  - name: https
    port: 443
    targetPort: 8443

Basic Ingress Manifest

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: web-ingress        # name it after the host/domain, not the app
spec:
  ingressClassName: nginx  # selects the controller; see IngressClass section
  rules:
  - host: app.example.com  # matched against HTTP Host header
    http:
      paths:
      - pathType: Prefix
        path: /
        backend:
          service:
            name: web
            port:
              number: 80

Caution

On GKE, Ingress object names must not contain dots - the cloud load balancer name is derived from the Ingress name and dots are invalid. Use hyphens: app-example-com, not app.example.com.

Imperative Creation

Fastest way to create an Ingress - useful as a starting point that you then edit for annotations:

# Rule format: <host>/<path>=<service>:<port>
kubectl create ingress web-ingress \
  --rule="app.example.com/=web:80" \
  --rule="app.example.com/api=api-service:8080"

# Generate YAML template without creating (add annotations before applying)
kubectl create ingress web-ingress \
  --rule="app.example.com/=web:80" \
  --dry-run=client -o yaml > ingress.yaml
# Edit ingress.yaml to add annotations, then:
kubectl apply -f ingress.yaml

• HTTP port 80 is implied when no TLS Secret is referenced.
• Specifying tls=mysecret in the rule adds port 443 automatically.
• Annotations (e.g. rewrite-target, affinity) cannot be set via --rule flags - always use dry-run + edit for those.

Inspecting Ingress Objects

# List all Ingresses (ing is the official shorthand)
kubectl get ing
# NAME          CLASS   HOSTS             ADDRESS       PORTS   AGE
# web-ingress   nginx   app.example.com   11.22.33.44   80      30s

# Full rule breakdown - shows live Pod IPs when healthy
kubectl describe ing web-ingress
# Rules:
#   Host             Path  Backends
#   ----             ----  --------
#   app.example.com  /     web:80 (10.244.1.4:8080, 10.244.2.3:8080)
# Events:
#   Normal  Sync  5m  nginx-ingress-controller  Scheduled for sync

# Extract the public IP
kubectl get ing web-ingress -o jsonpath='{.status.loadBalancer.ingress[0].ip}'

The ADDRESS field may take a few minutes to appear in cloud environments while the load balancer provisions. If it stays empty, the controller is not picking up the Ingress - check ingressClassName and that the controller pod is running.

Endpoint error - most common misconfiguration:

Rules:
  Host              Path  Backends
  ----              ----  --------
  app.example.com
                    /     web:80 (<error: endpoints "web" not found>)

Causes and fixes:

• Service doesn’t exist - kubectl create service clusterip web --tcp=80:8080
• No matching pods - check Service selector matches Pod labels: kubectl get ep web
• Port mismatch - Service port in Ingress rule must match the Service’s exposed port, not the container port

Always check the Events section at the bottom of kubectl describe ing - Warning events show sync failures.

---

Routing Rules

Path-Based Routing

Route different URL paths under one hostname to different backend Services:

spec:
  rules:
  - host: api.example.com
    http:
      paths:
      - path: /orders          # Exact: /orders only
        pathType: Exact
        backend:
          service:
            name: orders
            port:
              name: http
      - path: /catalog         # Prefix: /catalog, /catalog/items, etc.
        pathType: Prefix
        backend:
          service:
            name: catalog
            port:
              name: http

Path Matching Types

pathType	Behaviour	Example
Exact	Case-sensitive exact character match	/foo matches /foo only, not /foo/ or /foobar
Prefix	Element-by-element match split on /	/foo matches /foo, /foo/bar, /foo/ but NOT /foobar
ImplementationSpecific	Controller-defined logic (regex, wildcards)	GKE: /foo/* wildcard; Citrix: custom HTTPRoute

Tip

Precedence: Exact always beats Prefix when both match the same request path. List Exact rules before Prefix rules for readability but rely on this precedence rule for correctness.

Prefix matching detail - element splitting:

Rule:    /foo        elements: ["foo"]
/foo/bar            elements: ["foo", "bar"]  -> MATCH (first element = "foo")
/foobar             elements: ["foobar"]       -> NO MATCH ("foobar" != "foo")
/foo/               trailing slash ignored     -> MATCH

A catch-all prefix rule uses / - matches every path.

Multi-Host Consolidation

Combine multiple virtual hosts into one Ingress to share a single public IP:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: main-ingress
spec:
  ingressClassName: nginx
  rules:
  # Virtual host 1
  - host: app.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: web
            port:
              name: http
  # Virtual host 2 - path-based
  - host: api.example.com
    http:
      paths:
      - path: /orders
        pathType: Exact
        backend:
          service:
            name: orders
            port:
              name: http
      - path: /catalog
        pathType: Prefix
        backend:
          service:
            name: catalog
            port:
              name: http

Wildcard Host Matching

The host field accepts *.domain.tld wildcards - one DNS label only:

Rule host	Matches	Does NOT match
app.example.com	app.example.com	api.example.com, foo.app.example.com
*.example.com	app.example.com, api.example.com	example.com, foo.app.example.com
(omitted)	Any host header	-

Precedence: exact host rules always win over matching wildcard rules.

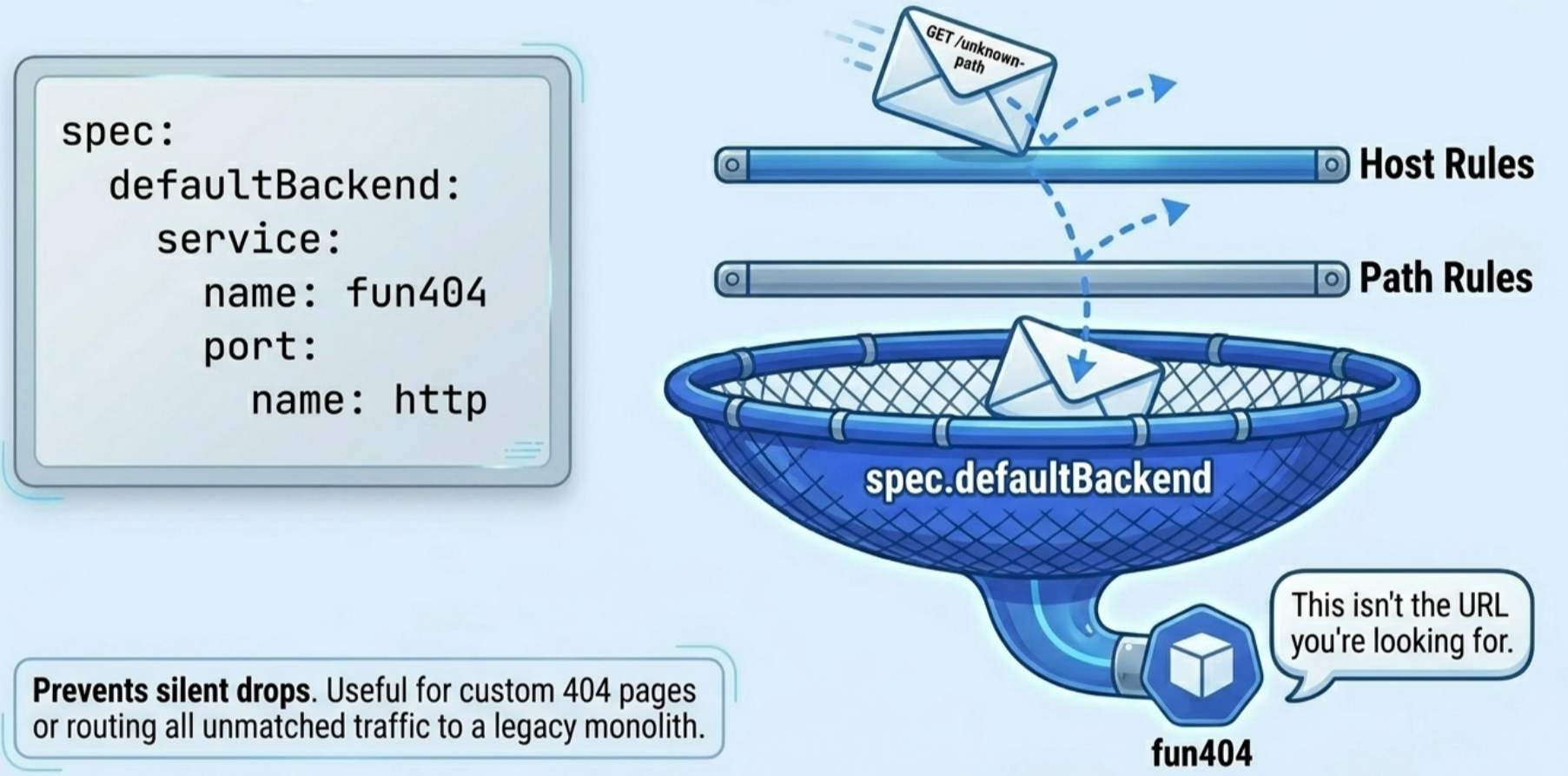

Default Backend

Traffic that matches no host or path rule goes to the default backend. Without one, the proxy returns HTTP 404:

spec:
  defaultBackend:           # catch-all for unmatched requests
    service:
      name: fallback
      port:
        name: http
  rules:
  - host: app.example.com
    # ...

Note

kubectl describe ing may show default-http-backend not found if no cluster-wide default HTTP service exists in kube-system. Safe to ignore unless you need catch-all routing.

A rules-free Ingress (only defaultBackend, no spec.rules) exposes a single service with full L7 features (TLS, cookie affinity, header rewrites) - useful if you need those without a LoadBalancer Service.

---

Testing Ingress Locally

Because Ingress routing is virtual-host-based, querying the raw IP without a Host header will not match any rule.

curl --resolve

Injects a hostname-to-IP mapping into curl’s local DNS cache without touching system files:

# Replace 11.22.33.44 with output of: kubectl get ing -o jsonpath='{.items[0].status.loadBalancer.ingress[0].ip}'
curl --resolve app.example.com:80:11.22.33.44 http://app.example.com -v

# Path-based routes
curl --resolve api.example.com:80:11.22.33.44 http://api.example.com/orders
curl --resolve api.example.com:80:11.22.33.44 http://api.example.com/catalog/items

/etc/hosts (Browser Testing)

# /etc/hosts  (Linux/macOS) or C:\Windows\System32\drivers\etc\hosts (Windows)
11.22.33.44    app.example.com  api.example.com

Environment-Specific IP Resolution

Cluster type	Address behaviour	Fix
minikube (VM)	ADDRESS may show localhost - only valid inside VM	Run minikube ip for actual VM IP; run minikube tunnel
kind (Docker)	Host ports 80/443 mapped via control-plane node config	Use 127.0.0.1 in --resolve or /etc/hosts
Cloud (GKE/EKS/AKS)	Real public IP, may take 1-3 minutes to appear	Wait; verify controller pod is running

Testing with wget

wget is a useful alternative to curl for quick Ingress path testing, particularly for verifying Exact vs. Prefix pathType behaviour:

# Exact match - returns 200 OK
wget app.example.com/api --timeout=5 --tries=1

# Trailing slash with Exact pathType - returns 404 Not Found
# Fix: change pathType to Prefix in the Ingress manifest
wget app.example.com/api/ --timeout=5 --tries=1

If app.example.com doesn’t resolve locally, add it to /etc/hosts first (see section above).

---

TLS Termination

The Ingress proxy decrypts HTTPS at the entry point and forwards plain HTTP to backend Pods. Backend apps need no TLS logic.

Client (HTTPS :443) -> Ingress Proxy (terminates TLS) -> HTTP -> Backend Pod

Step 1: Create a TLS Secret

# Generate a self-signed cert (dev/testing only)
openssl req -x509 -newkey rsa:2048 -keyout tls.key -out tls.crt \
  -sha256 -days 365 -nodes \
  -subj '/CN=*.example.com' \
  -addext 'subjectAltName = DNS:*.example.com'

# Store in Kubernetes as type kubernetes.io/tls
kubectl create secret tls tls-example-com --cert=tls.crt --key=tls.key

The Secret contains tls.crt (PEM certificate) and tls.key (PEM private key).

Step 2: Reference in the Ingress

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: main-ingress
spec:
  tls:
  - secretName: tls-example-com   # references the Secret
    hosts:                        # must match cert CN/SAN
    - app.example.com
    - api.example.com
  rules:
  - host: app.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: web
            port:
              name: http

Caution

All hostnames in tls.hosts must match the certificate’s Common Name (CN) or Subject Alternative Names (SAN). Mismatch = TLS handshake error for clients.

spec.tls is an array - attach multiple Secrets for different domain/cert combinations in one Ingress.

Step 3: Test

curl https://app.example.com --resolve app.example.com:443:11.22.33.44 -k -v
# -k skips cert validation for self-signed; remove -k in production

TLS Termination vs. TLS Passthrough

	TLS Termination	TLS Passthrough
Decryption at	Ingress proxy	Backend Pod
Pod traffic	Unencrypted HTTP	Encrypted HTTPS
Cert management	Centralized in K8s Secret	Per-pod (volumes, app code)
L7 inspection	Full (path, cookies, headers)	None (proxy can’t see payload)
API support	Standard spec.tls field	Vendor annotations only (e.g. nginx.ingress.kubernetes.io/ssl-passthrough: "true")
Controller flag	Default enabled	Must enable --enable-ssl-passthrough in Nginx

Use TLS termination unless you specifically need end-to-end encryption to the Pod.

---

Production DNS and TLS Automation

In a cloud cluster, two tools eliminate manual certificate and DNS management entirely:

• ExternalDNS - watches Ingress and Service resources, automatically creates and updates A/CNAME records in your DNS provider (Route53, Cloud DNS, Cloudflare, etc.) to point to the load balancer IP.
• cert-manager - manages the full lifecycle of TLS certificates: requests, DNS-01/HTTP-01 ACME challenges, renewal, and storing certs as Kubernetes Secrets.

cert-manager

# Install cert-manager (Helm)
helm repo add jetstack https://charts.jetstack.io
helm install cert-manager jetstack/cert-manager \
  --namespace cert-manager --create-namespace \
  --set crds.enabled=true

Define a ClusterIssuer for Let’s Encrypt (shared across all namespaces):

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-prod
spec:
  acme:
    server: https://acme-v02.api.letsencrypt.org/directory
    email: ops@example.com
    privateKeySecretRef:
      name: letsencrypt-prod-account-key
    solvers:
    - http01:                        # HTTP-01: valid for non-wildcard, publicly reachable
        ingress:
          ingressClassName: nginx
    # For wildcard certs use dns01 solver instead:
    # - dns01:
    #     route53:
    #       region: us-east-1
    #       hostedZoneID: ZXXXXXXXXXXXXX

Annotate an Ingress to trigger automatic certificate issuance:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: web-ingress
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod   # triggers cert-manager
spec:
  ingressClassName: nginx
  tls:
  - hosts:
    - app.example.com
    secretName: app-example-com-tls                    # cert-manager populates this
  rules:
  - host: app.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: web
            port:
              number: 80

cert-manager detects the annotation, creates a Certificate resource, completes the ACME challenge, and stores the cert in app-example-com-tls. The Ingress controller picks it up automatically.

# Monitor certificate lifecycle
kubectl get certificates
kubectl describe certificate app-example-com-tls
kubectl get certificaterequests

Tip

Use DNS-01 challenges in production - they work behind firewalls, with private clusters, and are mandatory for wildcard certificates (*.example.com). HTTP-01 requires the Ingress to be publicly reachable during validation.

ExternalDNS

Automates DNS record creation when Ingress/Service resources appear:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: external-dns
  namespace: external-dns
spec:
  template:
    spec:
      containers:
      - name: external-dns
        image: registry.k8s.io/external-dns/external-dns:v0.15.1
        args:
        - --source=ingress          # also: service, gateway-httproute
        - --domain-filter=example.com
        - --provider=aws            # or: google, cloudflare, azure
        - --policy=upsert-only      # never delete records
        - --registry=txt            # TXT records for ownership tracking
        - --txt-owner-id=my-cluster

• ExternalDNS reads the spec.rules[].host values from Ingress resources and creates A records pointing to the load balancer IP.
• Use --source=gateway-httproute to support Gateway API HTTPRoute resources.
• Scope it with --domain-filter to avoid touching DNS zones you don’t own.
• Use --policy=upsert-only to prevent accidental deletion in production.

Automated Workflow (cert-manager + ExternalDNS together)

flowchart TD
    S1["1️⃣ Developer creates Ingress<br/><i>Includes hostnames & cert-manager annotation</i>"]
    S2["2️⃣ ExternalDNS reads hostnames<br/><i>Creates DNS A record pointing to Load Balancer IP</i>"]
    S3["3️⃣ cert-manager starts ACME HTTP-01 challenge<br/><i>Provisions temporary challenge path on Ingress</i>"]
    S4["4️⃣ Let's Encrypt validates challenge<br/><i>Verifies domain ownership & issues certificate</i>"]
    S5["5️⃣ cert-manager stores certificate<br/><i>Writes cert + private key to Kubernetes TLS Secret</i>"]
    S6["6️⃣ Ingress controller mounts Secret<br/><i>TLS terminated · HTTPS live 🔒</i>"]

    S1 --> S2
    S2 --> S3
    S3 --> S4
    S4 --> S5
    S5 --> S6

Total manual steps: zero after initial setup.

---

Annotations and Advanced Customisation

The core Ingress spec is intentionally minimal (spec.rules, spec.tls, spec.defaultBackend, spec.ingressClassName). Advanced proxy features use metadata.annotations with vendor-prefixed keys - controllers ignore annotations not meant for them.

Common Capabilities via Annotations

Capability	Nginx annotation	Use case
Cookie session affinity	nginx.ingress.kubernetes.io/affinity: "cookie"	Stateful sessions without client IP dependency
Session cookie name	nginx.ingress.kubernetes.io/session-cookie-name: "SID"	Custom cookie name
URL rewriting	nginx.ingress.kubernetes.io/rewrite-target: /	Strip /api/v1 prefix before forwarding
SSL passthrough	nginx.ingress.kubernetes.io/ssl-passthrough: "true"	End-to-end TLS to pod
HTTP auth	nginx.ingress.kubernetes.io/auth-type: basic	Protect endpoints at proxy level
HTTPS redirect	nginx.ingress.kubernetes.io/ssl-redirect: "true"	Force HTTP -> HTTPS

Cookie-Based Session Affinity Example

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: web-ingress
  annotations:
    nginx.ingress.kubernetes.io/affinity: "cookie"
    nginx.ingress.kubernetes.io/session-cookie-name: "SESSION"
spec:
  ingressClassName: nginx
  rules:
  - host: app.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: web
            port:
              number: 80

How it works:

1. First request: proxy picks a Pod, returns Set-Cookie: SESSION=<hash>; Path=/
2. Client sends Cookie: SESSION=<hash> on all subsequent requests
3. Proxy reads cookie and pins to the same Pod

CRD-Based Configuration (Cloud Controllers)

Some controllers (GKE GLBC, AWS ALB) use Custom Resource Definitions instead of annotations for strongly-typed configuration:

GKE BackendConfig: attach to a Service via annotation, configure session affinity or health checks in the CRD:

# Service references BackendConfig by name
apiVersion: v1
kind: Service
metadata:
  name: web
  annotations:
    cloud.google.com/backend-config: '{"default": "web-backend-cfg"}'
spec:
  type: ClusterIP
  selector:
    app: web
  ports:
  - name: http
    port: 80
    targetPort: 8080
---
# BackendConfig holds the actual policy
apiVersion: cloud.google.com/v1
kind: BackendConfig
metadata:
  name: web-backend-cfg
spec:
  sessionAffinity:
    affinityType: GENERATED_COOKIE

This decouples backend policy from the Ingress manifest - any Ingress routing to web automatically picks up the config.

---

Resource Backends

Instead of routing to a standard Service, an Ingress rule can route to a Custom Resource - used by controllers like Citrix that implement advanced routing logic in their own CRDs:

spec:
  ingressClassName: citrix
  rules:
  - host: example.com
    http:
      paths:
      - pathType: ImplementationSpecific   # required for custom backends
        backend:
          resource:                        # replaces backend.service
            apiGroup: citrix.com
            kind: HTTPRoute
            name: my-route-config

The referenced HTTPRoute CRD holds the actual routing rules and capabilities specific to the Citrix controller.

---

---

Ingress Limitations

The Ingress API works well for basic HTTP/HTTPS routing but hits a ceiling in production multi-team environments:

• Vendor annotation proliferation: Advanced features (traffic splitting, rate limiting, header manipulation, canary routing) are only available via controller-specific annotations. These annotations are non-portable - switching controllers breaks configuration.
• Weak multi-tenancy: A single monolithic Ingress object mixes infrastructure config (listeners, TLS certs) with application routing rules. There’s no clean RBAC boundary between cluster operators and app teams.
• Protocol lock-in: Ingress is designed for HTTP/HTTPS only. gRPC, TCP, and UDP routes require custom extensions or a separate service mesh.
• Monolithic design: All routing logic for an application lives in one object. At scale, Ingress objects become large, difficult to own across teams, and error-prone to edit.

The Gateway API was created to solve all four of these problems.

---

---

Migrate to Gateway API

The Gateway API is the official successor to Ingress and solves the limitations described above – role-oriented ownership, multi-protocol support (L4–L7), and standardised filters replacing vendor annotations.

Tip

Ready to migrate? See the Gateway API page for a full equivalence table, phased migration strategy, and the ingress2gateway CLI tool that automates manifest conversion.
