Volumes & Storage

Every container has its own isolated filesystem provided by its image. When a container crashes and Kubernetes recreates it, the new instance starts with a completely clean slate — anything written to the container’s local filesystem is gone. For stateful workloads this is a problem. Volumes solve it by providing storage that lives outside the container’s isolated layer.

	Container filesystem (no volume)	Kubernetes volume
Isolation	Fully isolated — other containers cannot access it	Shareable — multiple containers in the same pod can mount it
On container crash/restart	All data lost; container starts with a clean slate	Data preserved; remounted into the new container instance
On pod deletion	Deleted	Deleted (unless backed by external PV)
Use cases	Short-term scratch, stateless operations	Data persistence, inter-container communication, decoupled config

---

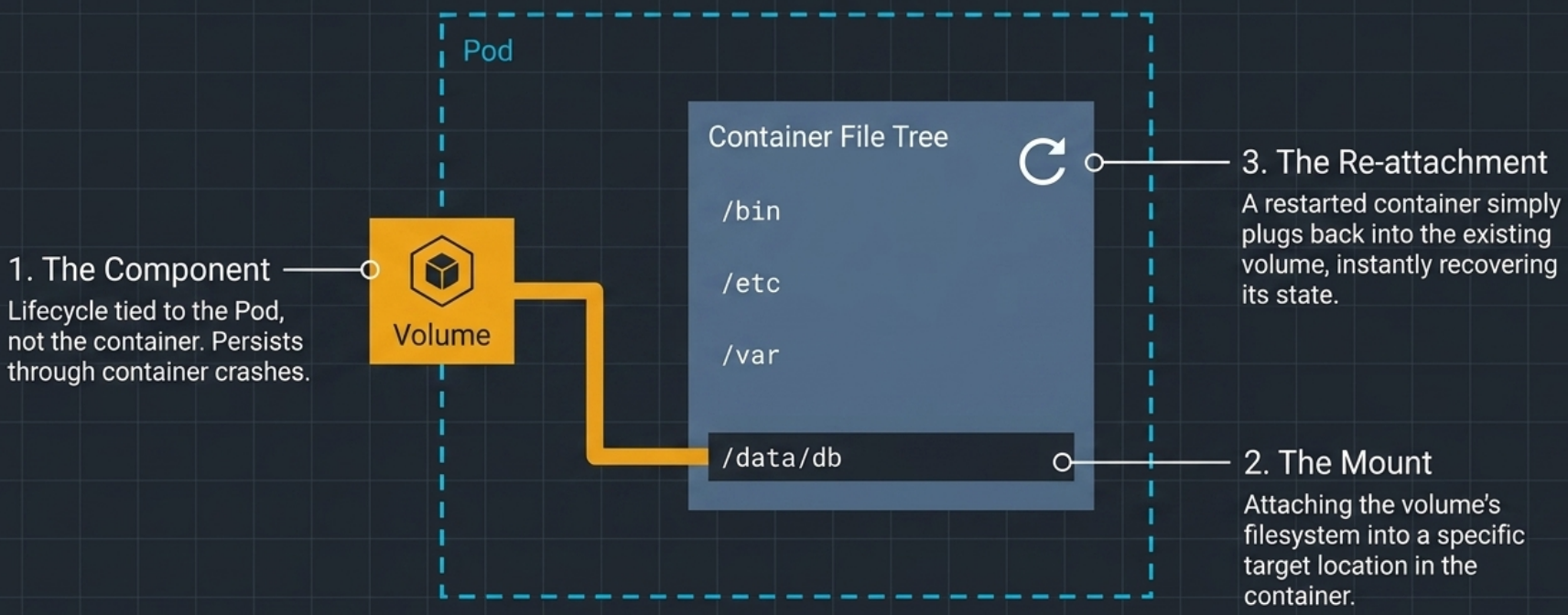

How Volumes Work

Volumes are not independent Kubernetes objects — they are sub-components of a pod, defined inside the pod spec. This means:

• Created before containers start: all volumes in a pod are provisioned during pod setup, before any container launches.
• Outlive container restarts: if a container crashes and is recreated, the volumes remain intact and are remounted into the new container instance.
• Deleted with the pod: when the entire pod is removed, its volumes are deleted too (unless backed by external persistent storage whose lifecycle is independent).
• Shared across containers in the same pod: multiple containers can mount the same volume, enabling file-based inter-container communication.

Note

When deciding what to persist in a volume, think about self-healing. Persisting a corrupted cache across a container restart can trap the pod in an endless crash loop. If the bad state can be fixed by starting fresh, leave it out of the volume.

Mounting

Mounting is the act of attaching a volume’s filesystem to a specific path inside the container’s directory tree. After mounting, any file read or written at that path goes to the volume — not the container’s ephemeral layer.

---

Volume Types at a Glance

Type	Lifecycle	Writable	Shared across pods?	Use case
emptyDir	Pod	✅	❌	Scratch space, inter-container sharing
hostPath	Node (external)	✅	Node-local only	System pods, node-level log access
nfs	External (NFS server)	✅	✅	Shared persistent access across pods
configMap	Pod (data from ConfigMap)	❌	❌	Config files, runtime flags
secret	Pod (data from Secret)	❌	❌	Credentials, certs, keys
downwardAPI	Pod (runtime metadata)	❌	❌	Pod name, namespace, resource limits
projected	Pod (aggregated sources)	❌	❌	Combine CM + Secret + Downward API
image	Pod (OCI image)	❌	❌	Seed static assets/DB scripts without init containers
persistentVolumeClaim	External (PV lifecycle)	✅	Depends on access mode	Databases, durable application state
ephemeral	Pod (inline PVC)	✅	❌	PVC-backed temp storage auto-deleted with pod
csi	External	✅	Driver-dependent	Direct CSI plugin use without PVC layer

---

emptyDir

emptyDir is the simplest volume type — it creates an empty directory on the worker node just before the pod’s containers start. It persists data across container restarts within the same pod, but is permanently deleted when the pod is removed.

Use Cases

• Crash-resistant scratch space — database working directories (e.g., MongoDB /data/db) survive container crashes without external storage
• Writable space for read-only root filesystems — when a container’s root FS is locked down, emptyDir provides a writable path
• Inter-container file sharing — a writer container produces files, a reader container serves them, both mount the same volume

YAML Schema

spec:
  volumes:
    - name: cache-vol
      emptyDir:
        medium: Memory # omit for disk; "Memory" for tmpfs (RAM-backed)
        sizeLimit: 128Mi # critical when medium: Memory — prevents OOM
  containers:
    - name: app
      image: my-app:1.0
      volumeMounts:
        - name: cache-vol
          mountPath: /var/cache/app
          readOnly: false

emptyDir field	Default	Effect
medium	"" (node disk)	Set to Memory for tmpfs — RAM-backed, never written to disk
sizeLimit	Unlimited	Caps storage use; essential for Memory volumes

volumeMounts Options

Field	Description
mountPath	Absolute path inside the container where the volume appears
readOnly	Restricts write access for this container only (default false)
recursiveReadOnly	Enforces read-only recursively across all subdirectories (set "Enabled") — default is non-recursive
subPath	Mount a specific subdirectory — isolates per-container access within a shared volume
subPathExpr	Like subPath but resolves name from an env var
mountPropagation	How host mounts nested below propagate: None / HostToContainer / Bidirectional

Caution

Using subPath disables the symbolic-link update mechanism. Files mounted via subPath from a ConfigMap or Secret will not automatically update when the source object changes.

Physical Location

emptyDir is just a normal directory on the worker node:

/var/lib/kubelet/pods/<pod-UID>/volumes/kubernetes.io~empty-dir/<volume-name>/

File I/O speed depends on the node’s underlying disk hardware (unless medium: Memory is used).

Seeding Data into emptyDir

Because emptyDir starts empty, applications that need pre-seeded files use one of two approaches:

Method A — Init Container

spec:
  volumes:
    - name: initdb
      emptyDir: {}
    - name: db-data
      emptyDir: {}
  initContainers:
    - name: seeder
      image: my-app/quiz-initdb:0.1
      volumeMounts:
        - name: initdb
          mountPath: /initdb.d/
  containers:
    - name: mongo
      image: mongo:7
      volumeMounts:
        - name: db-data
          mountPath: /data/db
        - name: initdb
          mountPath: /docker-entrypoint-initdb.d/
          readOnly: true

The seeder init container copies scripts into initdb, then exits. MongoDB starts and finds the scripts in its init directory, executing them on first boot.

Method B — Inline Heredoc in Init Container

For small config files, write content directly from the pod manifest:

initContainers:
  - name: config-writer
    image: busybox
    command:
      - sh
      - -c
      - |
        cat <<EOF > /mnt/config/app.conf
        db_host=mysql-service
        log_level=info
        EOF
    volumeMounts:
      - name: config-vol
        mountPath: /mnt/config

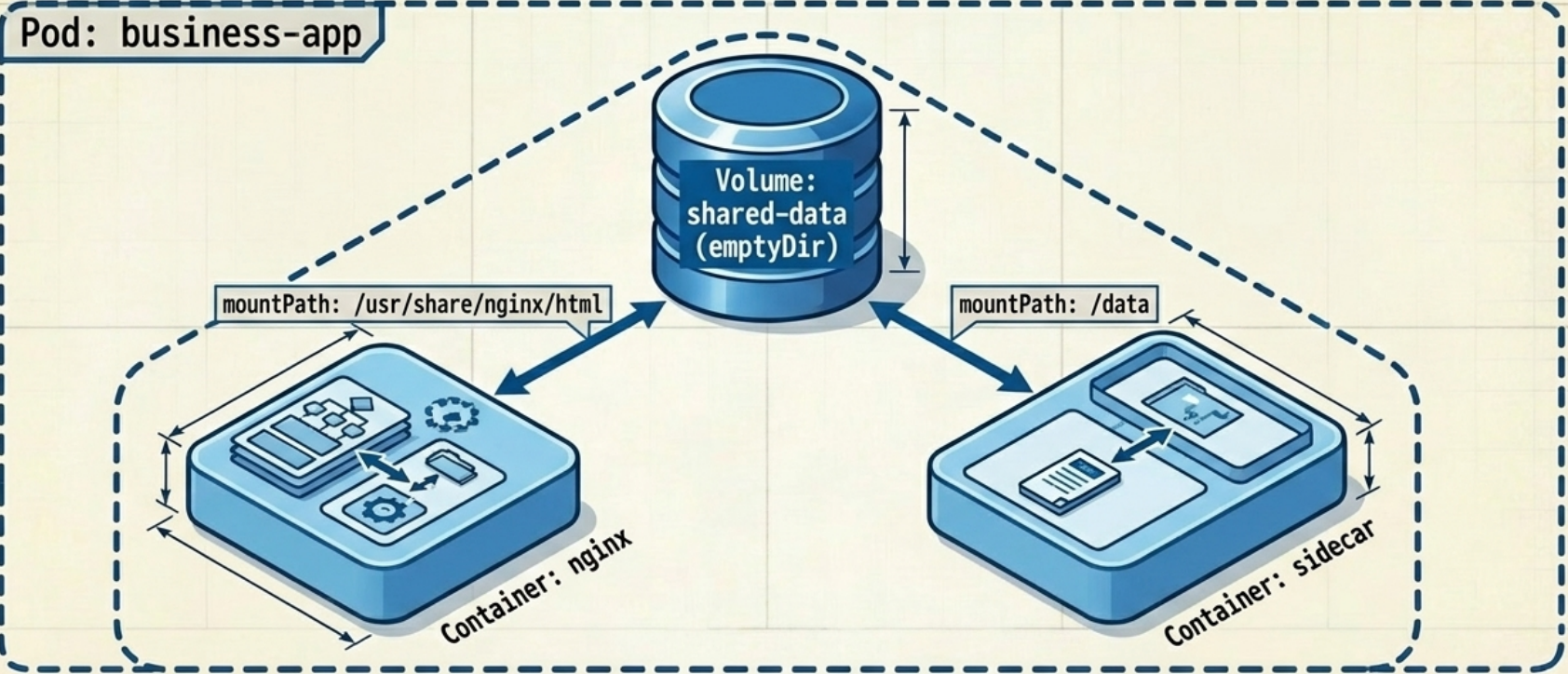

Multi-Container Sharing

spec:
  volumes:
    - name: shared-data
      emptyDir: {}
  containers:
    - name: writer # writes files
      image: busybox:1.37.0
      volumeMounts:
        - name: shared-data
          mountPath: /var/local/output
    - name: nginx # reads and serves files
      image: nginx:alpine
      volumeMounts:
        - name: shared-data
          mountPath: /usr/share/nginx/html
          readOnly: true # nginx cannot write — security isolation

Read-Only Mounts

Marking a mount readOnly is per-container — one container can write while another reads the same volume:

volumeMounts:
  - name: shared-data
    mountPath: /usr/share/nginx/html
    readOnly: true # this container cannot write
    # recursiveReadOnly: Enabled  # also lock down all subdirectories

Field	Behaviour
readOnly: true	Write operations from this container are blocked at the volume mount level
recursiveReadOnly: "Enabled"	Also enforces read-only recursively on all subdirectory mounts beneath the path

Note

Standard readOnly: true is not recursive by default. If subdirectories within the mount path can be separately mounted, they may not inherit read-only status. Use recursiveReadOnly: "Enabled" when you need a strict guarantee across the full directory tree.

Attempting to write to a read-only mount returns: Read-only file system

Verifying Volumes in Practice

Use kubectl exec with the -c flag to target a specific container in a multi-container pod:

# Enter the writer container
kubectl exec business-app -it -c writer -- /bin/sh

# Navigate to the mount path and create a file
cd /var/local/output
touch example.txt
ls
# example.txt

# Exit, then enter the reader container
kubectl exec business-app -it -c nginx -- /bin/sh

# The file created by the writer container should be visible here
ls /usr/share/nginx/html
# example.txt  ← data sharing confirmed

Note

Without the -c <container-name> flag, kubectl exec defaults to the first container in the pod spec. In a multi-container pod, always specify -c to avoid accidentally targeting the wrong container.

---

hostPath

hostPath mounts a specific file or directory from the worker node’s physical filesystem directly into a container. The data is not portable — if the pod reschedules to a different node, it sees that node’s filesystem, not the original one’s.

Use Cases

• System-level pods that need to read node logs, hardware devices, or node-agent sockets
• Tools that introspect the container runtime (e.g., monitoring agents)

Caution

hostPath is one of the most dangerous volume types. An unrestricted hostPath can expose the entire host filesystem or the Docker socket to container processes, giving attackers root access to the node. Reserve it strictly for privileged system pods.

Common exploitation vectors:

• Mount host / → container has full node root filesystem access
• Mount /var/run/docker.sock → container can run arbitrary commands on the host with root privileges

YAML

spec:
  volumes:
    - name: host-root
      hostPath:
        path: /var/log/pods # host filesystem path
        type: Directory # optional validation type
  containers:
    - name: log-agent
      image: fluentd:latest
      volumeMounts:
        - name: host-root
          mountPath: /host-logs

Supported type Values

The type field tells Kubernetes to validate the path before mounting. If the check fails, the pod will not start.

Type	Behaviour
"" (default)	No validation — mount whatever is at the path
Directory	Fails if path is not an existing directory
DirectoryOrCreate	Uses directory if it exists; creates it (mode 0755) otherwise
File	Fails if path is not an existing file
FileOrCreate	Uses file if it exists; creates it (mode 0644) otherwise
BlockDevice	Path must be a block device
CharDevice	Path must be a character device
Socket	Path must be a UNIX domain socket

To target a specific node in a multi-node cluster, pin the pod with spec.nodeName.

---

ConfigMap Volumes

While env vars are fine for short string values, multi-line files (nginx configs, TLS settings, app config files) should be projected as mounted files via a configMap volume. Each key in the ConfigMap becomes a file inside the mounted directory.

For creating ConfigMaps and injecting them as environment variables, see ConfigMaps & Secrets → Injecting ConfigMap Data.

Note

ConfigMap volumes are pod-level resources — if the referenced ConfigMap doesn’t exist, the entire pod stays in ContainerCreating (not just one container). Use optional: true to prevent this blocking behaviour.

Projecting All Keys

spec:
  volumes:
    - name: app-config
      configMap:
        name: app-config # all keys projected as files
        optional: true # pod starts even if ConfigMap is missing
  containers:
    - name: app
      image: my-app:1.0
      volumeMounts:
        - name: app-config
          mountPath: /etc/app

Each key in app-config appears as a file under /etc/app/.

Projecting Specific Keys Only

volumes:
  - name: proxy-config
    configMap:
      name: proxy-ssl-config
      items:
        - key: proxy.yaml # only this key is projected
          path: proxy.yaml # filename inside the volume

Unlisted keys are omitted entirely from the mounted directory.

Atomic Updates via Symbolic Links

Unlike env vars (which are static after container start), files from a ConfigMap volume automatically update when the ConfigMap changes — typically within ~1 minute.

Kubernetes ensures the application never reads a half-written file by using atomic double-symlink updates:

1. Projected files are symbolic links pointing into a hidden ..data/ directory
2. ..data/ itself is a symlink to a timestamped snapshot directory
3. When the ConfigMap changes, Kubernetes writes new content into a fresh timestamped directory
4. Then atomically swaps the ..data/ symlink to point to the new snapshot — the switch is instantaneous

/etc/app/
  proxy.yaml  →  ..data/proxy.yaml
  ..data/     →  ..2024_08_15_12_00_00.123456789/
                    proxy.yaml  (old content)

  After update:
  ..data/     →  ..2024_08_15_12_01_00.987654321/  ← atomic swap
                    proxy.yaml  (new content)

Caution

Mounting via subPath bypasses this symlink mechanism and disables automatic updates. The file will be frozen at the version it was at when the container started.

Workaround: mount the entire volume into a side directory (e.g., /etc/app-src) and use symlinks inside your container image pointing into that directory.

Immutable ConfigMaps and Secrets

Setting immutable: true on a ConfigMap or Secret completely disables the kubelet’s update watch. Volume-mounted files from an immutable source are frozen permanently — the kubelet stops polling for changes.

apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config-v2 # must rename to update — treat like an image tag
immutable: true # kubelet stops watching; no more volume updates
data:
  config.yaml: |
    feature_x: enabled

Consequences for volume mounts:

• Files are never updated after initial mount, even if you kubectl edit the CM (the API server rejects edits once immutable: true is set)
• To roll out a config change, create a new CM with a new name, update the Pod spec to reference the new name, and redeploy
• Performance benefit: reduces kube-apiserver load at scale — thousands of pods watching for CM updates generate significant traffic. Immutable CMs remove that polling entirely.

Note

Use immutable ConfigMaps for versioned, release-coupled config (like feature flags that ship with a specific app version). Use mutable ConfigMaps for operational config that needs live tuning without a pod restart.

---

Secret Volumes

Secret volumes work identically to ConfigMap volumes — each key becomes a file — with two important differences:

For creating Secrets, Secret types, and injecting them as environment variables, see ConfigMaps & Secrets → Injecting Secrets.

Behaviour	Secret volume	ConfigMap volume
Volume spec field	secret: + secretName:	configMap: + name:
Storage on node	tmpfs (RAM only, never written to disk)	Node disk
Base64 decoding	Auto-decoded at mount time — app reads plain text	Not applicable

spec:
  volumes:
    - name: tls-creds
      secret:
        secretName: app-tls # note: secretName, not name
  containers:
    - name: app
      image: my-app:1.0
      volumeMounts:
        - name: tls-creds
          mountPath: /etc/tls
          readOnly: true

File Permissions

By default, files in ConfigMap/Secret volumes are created with mode 0644. Override at volume level or per-file:

volumes:
  - name: tls-creds
    secret:
      secretName: app-tls
      defaultMode: 0640 # applies to all files unless overridden
      items:
        - key: tls.key
          path: server.key
          mode: 0600 # private key: read-only for owner only
        - key: tls.crt
          path:
            server.crt
            # inherits defaultMode: 0640

Caution

Always include the leading zero in YAML (e.g., 0600 not 600). Without it, YAML treats the value as decimal, setting a completely different permission. Also, kubectl get pod -o yaml displays these values back as decimal (octal 0644 → decimal 420).

Because volume files are symlinks, use ls -lL (follow links) instead of ls -l to inspect actual permissions.

Granting Non-Root Processes Access (fsGroup)

Volume files are owned by root:root by default. If a container runs as a non-root user, it can’t read files with restricted permissions.

Set securityContext.fsGroup at the pod level to change the group ownership of volume files:

spec:
  securityContext:
    fsGroup: 101 # changes group ownership of ALL volume files to GID 101
  containers:
    - name: proxy
      image: my-proxy:1.0
      securityContext:
        runAsUser: 101 # proxy user UID

Note

fsGroup changes group ownership only — changing the owner (user) of volume files is not supported. The container process must be a member of the specified GID.

fsGroupChangePolicy — Avoid Slow Startups on Large Volumes

By default (Always), Kubernetes recursively chowns every file in a mounted volume on each pod startup to apply the fsGroup. On volumes with thousands of files (e.g., a large database), this can take minutes, causing pod startup timeouts in production.

Set fsGroupChangePolicy: OnRootMismatch to skip the recursive chown if the root directory already has the correct group ownership:

spec:
  securityContext:
    fsGroup: 101
    fsGroupChangePolicy: OnRootMismatch # Only chown if root dir permissions are wrong
  containers:
    - name: app
      image: my-app:1.0

Policy	Behaviour	When to use
Always (default)	Recursively chowns all volume files on every pod start	First-run or when you cannot guarantee prior ownership
OnRootMismatch	Skips recursive chown if root dir already has correct group	Recommended for large volumes (databases, ML model stores)

Caution

OnRootMismatch is a best-effort optimisation. If a volume was previously mounted by a different pod with a different fsGroup, the root dir check may still skip a needed chown. Use Always when in doubt about prior ownership history.

---

Downward API Volumes

The Downward API can project pod metadata as files — useful when the metadata is too large for an env var (labels, annotations) or when a file-reading sidecar needs it.

For injecting Downward API data as environment variables and the full supported fields reference, see ConfigMaps & Secrets → Downward API.

spec:
  volumes:
    - name: pod-info
      downwardAPI:
        items:
          - path: name.txt
            fieldRef:
              fieldPath: metadata.name # resolves to the pod's name
          - path: namespace.txt
            fieldRef:
              fieldPath: metadata.namespace
          - path: mem-limit.txt
            resourceFieldRef:
              containerName: app # required for resourceFieldRef in volumes
              resource: limits.memory
              divisor: 1Mi # express in MiB
  containers:
    - name: app
      image: my-app:1.0
      volumeMounts:
        - name: pod-info
          mountPath: /etc/pod-info

All labels and annotations can only be projected as files (not env vars), making the Downward API volume the only way to expose them:

- path: labels
  fieldRef:
    fieldPath: metadata.labels # all labels as key="value" lines
- path: annotations
  fieldRef:
    fieldPath: metadata.annotations # all annotations

Note

When referencing container resource fields (resourceFieldRef) inside a volume (which is defined at the pod level), you must specify containerName to tell Kubernetes which container’s limits/requests to read.

---

Projected Volumes

A projected volume aggregates multiple sources (ConfigMaps, Secrets, Downward API, ServiceAccount tokens) into a single directory. This solves a key limitation: normally mounting two separate volumes into the same directory hides the first volume’s contents.

Why Not Just Use subPath?

subPath lets you insert individual files from different volumes into the same directory, but it disables atomic updates. A projected volume mounts the entire directory as one unit, so all aggregated files update atomically when their sources change.

Annotated Manifest (Proxy Configuration)

spec:
  volumes:
    - name: etc-proxy
      projected:
        sources:
          # Source A: Proxy config from a ConfigMap
          - configMap:
              name: proxy-ssl-config
              items:
                - key: proxy.yaml
                  path: proxy.yaml

          # Source B: TLS credentials from a Secret
          - secret:
              name: app-tls
              items:
                - key: tls.crt
                  path: certs/example-com.crt
                - key: tls.key
                  path: certs/example-com.key
                  mode: 0600 # private key: strict permissions

  containers:
    - name: proxy
      image: my-proxy:1.0
      volumeMounts:
        - name: etc-proxy
          mountPath: /etc/proxy
          readOnly: true

The resulting /etc/proxy directory contains files from both sources:

/etc/proxy/
  proxy.yaml           ← from ConfigMap
  certs/
    example-com.crt    ← from Secret
    example-com.key    ← from Secret (mode 0600)

Supported sources types: configMap, secret, downwardAPI, serviceAccountToken.

The Built-In kube-api-access Volume

Kubernetes automatically injects a projected volume named kube-api-access-<random> into almost every pod. It contains:

File	Source	Purpose
token	serviceAccountToken	Authenticates the pod to the Kubernetes API
ca.crt	configMap (cluster CA)	Verifies the API server’s TLS certificate
namespace	downwardAPI	The pod’s active namespace

If your pod doesn’t need to call the Kubernetes API, disable this bundle:

spec:
  automountServiceAccountToken: false # principle of least privilege

---

Image Volumes

An image volume mounts the filesystem of an OCI container image directly into a pod as a read-only volume — no init container or copy script needed.

Why It Exists

The traditional approach to seed static assets (DB scripts, LLM weights, static files) was:

1. Create an init container image bundling the assets
2. Mount an emptyDir
3. Copy files from init container → emptyDir
4. Main container reads from emptyDir

image volumes skip steps 1–3 entirely.

Key Characteristics

• Read-only — OCI image filesystems are static; write access is blocked
• Pull before containers start — the volume image is pulled first, before any container images
• Feature gate required — needs ImageVolume feature gate enabled in the cluster

Annotated YAML

spec:
  volumes:
    - name: initdb
      image:
        reference: my-app/quiz-questions:latest # OCI image containing the files
        pullPolicy: Always
    - name: db-data
      emptyDir: {} # separate writable volume for MongoDB data

  containers:
    - name: mongo
      image: mongo:7
      volumeMounts:
        - name: db-data
          mountPath: /data/db
        - name: initdb
          mountPath: /docker-entrypoint-initdb.d/
          readOnly: true # image volumes are always read-only

Verifying volume contents:

kubectl describe pod quiz        # shows image pull order: volume image pulled first
kubectl exec quiz -c mongo -- ls /docker-entrypoint-initdb.d/

Caution

At the time of writing, ImageVolume is a feature gate that must be explicitly enabled in the cluster API server and Kubelet. On a local Kind cluster, pass a configuration file activating the gate when creating the cluster.

---

PersistentVolumeClaim Volumes

For durable external storage (databases, shared uploads), reference a PersistentVolumeClaim from the pod:

spec:
  volumes:
    - name: db-storage
      persistentVolumeClaim:
        claimName: postgres-pvc # must exist in the same namespace
  containers:
    - name: postgres
      image: postgres:16
      volumeMounts:
        - name: db-storage
          mountPath: /var/lib/postgresql/data

The PVC decouples the pod from the physical storage — it can bind to block, file, or NFS backends transparently. The data survives pod deletion and rescheduling.

See the Persistent Volumes page for StorageClasses, PV/PVC lifecycle, access modes, and dynamic provisioning.

---

Ephemeral Inline Volumes

An ephemeral volume behaves like a PVC-backed volume but is defined inline in the pod spec — no separate PVC object needed. It is deleted automatically when the pod is removed.

spec:
  volumes:
    - name: scratch
      ephemeral:
        volumeClaimTemplate:
          spec:
            accessModes: [ReadWriteOnce]
            storageClassName: fast-ssd
            resources:
              requests:
                storage: 5Gi

Use this when you need CSI-backed storage with temporary lifecycle — e.g., large scratch space for a batch job.

---

CSI Direct Volumes & Legacy Types

CSI Direct (csi)

Allows a pod to reference a CSI driver directly without a PVC layer. Only supported by certain drivers; most production setups prefer persistentVolumeClaim or ephemeral for better portability.

Legacy (Deprecated) Volume Types

These in-tree types are deprecated and should no longer be used. Use CSI drivers via persistentVolumeClaim instead.

Deprecated type	Modern equivalent
awsElasticBlockStore	EBS CSI driver + PVC
gcePersistentDisk	GCP PD CSI driver + PVC
azureDisk / azureFile	Azure CSI drivers + PVC
vsphereVolume	vSphere CSI driver + PVC
nfs	NFS CSI driver + PVC

---

Quick Reference

# List volumes for a running pod
kubectl describe pod <pod-name> | grep -A 20 "Volumes:"

# Check what's mounted inside a container
kubectl exec <pod> -c <container> -- df -h
kubectl exec <pod> -c <container> -- ls -lL /etc/secrets/

# Verify a ConfigMap volume update has propagated
kubectl exec <pod> -- cat /etc/config/app.conf

# Debug pod stuck in ContainerCreating (missing volume source)
kubectl describe pod <pod-name>     # check Events section
kubectl get configmap <name>        # verify the CM/Secret exists

Volume type	spec.volumes field	References	Data lifecycle
emptyDir	emptyDir: {}	Nothing	Deleted with pod
hostPath	hostPath.path	Node filesystem	Persists on node
configMap	configMap.name	ConfigMap object	Deleted with pod
secret	secret.secretName	Secret object	Deleted with pod
downwardAPI	downwardAPI.items	Pod/container metadata	Deleted with pod
projected	projected.sources	Multiple objects	Deleted with pod
image	image.reference	OCI image	Deleted with pod
persistentVolumeClaim	persistentVolumeClaim.claimName	PVC → PV	Governed by PV reclaim policy
ephemeral	ephemeral.volumeClaimTemplate	Auto-created PVC	Deleted with pod
