Gateway API

The Gateway API (gateway.networking.k8s.io) is the next-generation Kubernetes ingress infrastructure, developed by the Network SIG as the official successor to the legacy Ingress API.

Where Ingress is monolithic, HTTP-only, and annotation-driven, Gateway API is role-oriented, multi-protocol (L4–L7), and portable – advanced features like traffic splitting, header rewriting, and canary routing are first-class spec fields, not vendor-specific annotations.

Note

Gateway API resources are not bundled in the Kubernetes core API – install the CRDs first before creating any Gateway API objects. See Installing the Gateway API below.

• Gateway API (gateway.networking.k8s.io) is the next-generation replacement for Ingress, developed by the Kubernetes Network SIG.
• Why replace Ingress? The Ingress API is monolithic (listener config + routing rules in one object), strictly L7 HTTP/HTTPS, and forces heavy reliance on vendor annotations for any advanced feature. Furthermore, Kubernetes SIG Network and the Security Response Committee formally announced that all development and bug fixes for Ingress NGINX will permanently cease in March 2026. The Gateway API solves all these issues.
• Role-oriented: Infrastructure teams own GatewayClass/Gateway; app teams own Route objects. No cluster-admin privileges needed to deploy routes.
• Requires CRD installation - unlike Ingress, Gateway API resources are not bundled in the Kubernetes core API. Install them first.

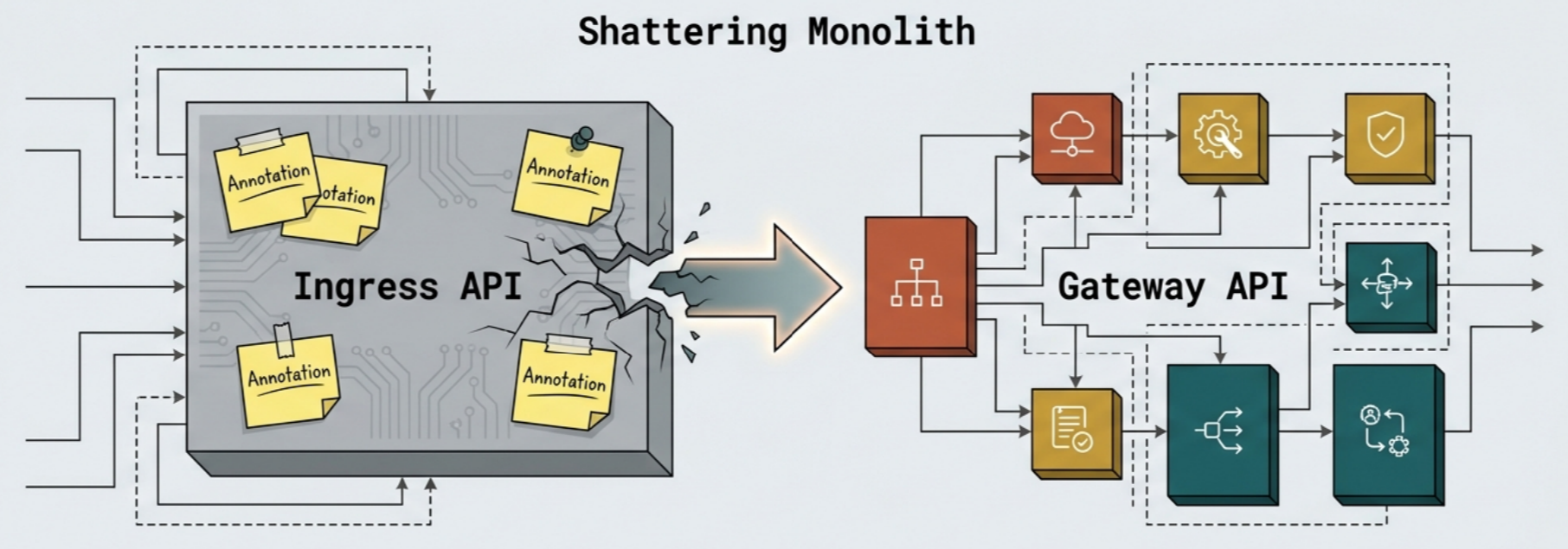

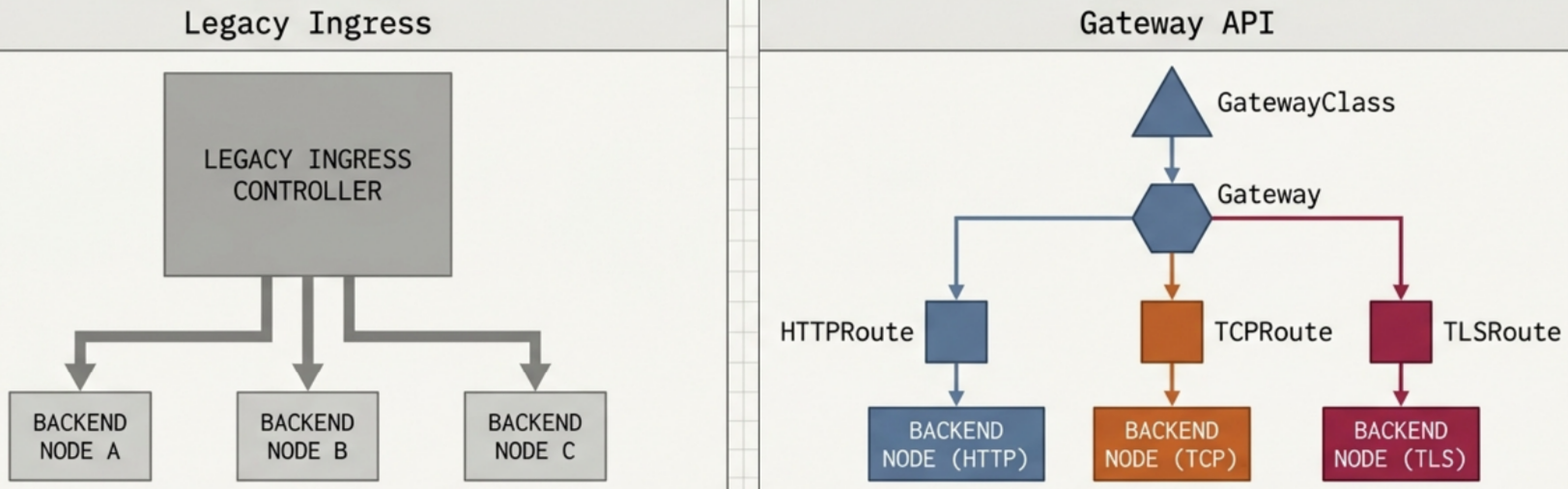

Gateway API vs. Ingress API

Dimension	Ingress API	Gateway API
API hierarchy	IngressClass -> Ingress -> Service	GatewayClass -> Gateway -> Route -> Service
Resource structure	Monolithic: listener config + routing in one object	Decoupled: Gateway defines listeners; Route objects define routing

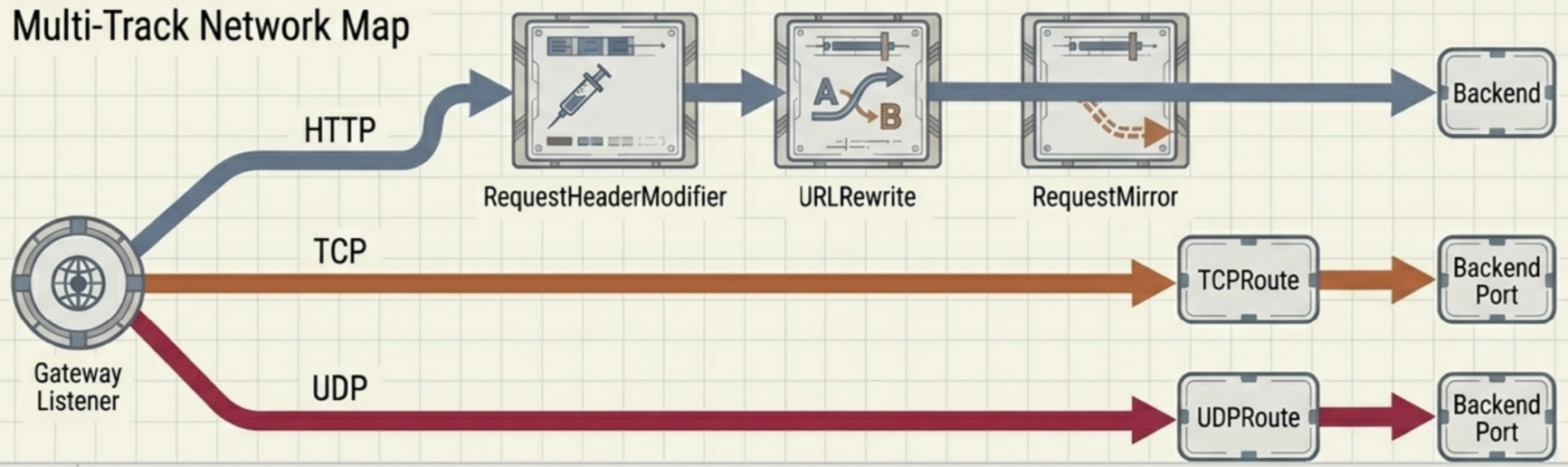

Protocol scope	L7 HTTP/HTTPS only	L4-L7: HTTPRoute, TLSRoute, GRPCRoute, TCPRoute, UDPRoute
Target binding	Direct Service reference	Gateway via parentRefs; Service via backendRefs
Cross-namespace	Single namespace only	Native: one Gateway can serve routes from many namespaces
Advanced features	Annotations only (vendor-specific, non-portable)	Standardized filters: header modify, URL rewrite, redirect, mirror

API Governance

• Release channels: Standard (stable, e.g. HTTPRoute at v1) vs Experimental (incubating, e.g. TLSRoute, TCPRoute, UDPRoute, GRPCRoute at v1alpha2).
• Support levels:
  • Core: Must be supported by every implementation - portable across providers.
  • Extended: Optional but standardized if implemented - still portable.
  • Implementation-Specific: Non-portable; exposed via ExtensionRef filter.
• Explicit group/kind: All parentRefs and backendRefs specify group and kind - this allows the GAMMA initiative to use a Service as a parentRef for east/west mesh routing.

Control Plane vs. Data Plane

Gateway API strictly separates the control plane (configuration and management logic) from the data plane (live traffic handling and routing execution).

• Control Plane: Formed by Gateway API controller Pods that observe API objects (GatewayClass, Gateway, HTTPRoute) and dynamically provision, configure, and reconcile data plane infrastructure.
• Data Plane: Handles live client request processing across L4 (TCP/UDP) and L7 (HTTP/HTTPS/gRPC). It is deployed in one of two major architectural models:

Aspect	Hybrid Data Plane	Fully Managed Data Plane
Architecture	Couples an external L4 cloud load balancer (raw TCP forwarding) with in-cluster L7 proxy Pods (e.g., Envoy, NGINX).	Tightly integrated into the cloud provider’s networking infrastructure. The cloud platform provisions a fully managed L7 load balancer.
User-Visible Proxy Pods	Yes (managed via Kubernetes Deployments inside the cluster).	No (entirely managed outside the cluster).
Example Implementations	Cilium, Envoy Gateway, Istio, NGINX Gateway Fabric, Traefik.	Proprietary cloud platform add-ons (GKE, EKS, AKS).
Trade-offs	Provides cloud mobility and consistent behavior across multi-cloud/local environments.	Simpler maintenance, but introduces potential cloud platform lock-in.

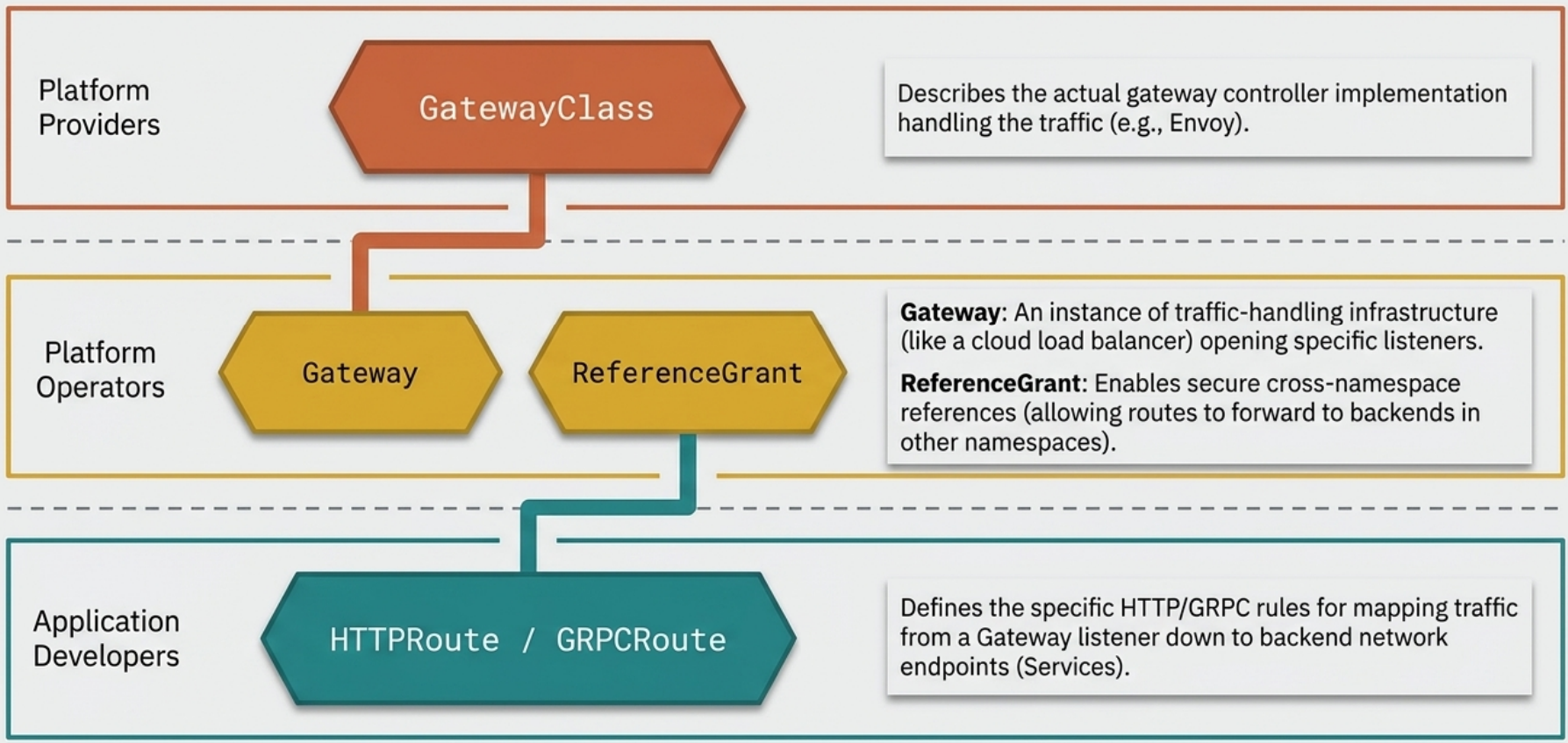

Role-Based Architecture

Unlike Ingress (one object, one owner), Gateway API splits responsibilities across three organizational roles:

flowchart TD
    subgraph ProviderRole["🏢 Platform Provider (Cluster Scope)"]
        GC["<b>GatewayClass</b><br/><i>Defines controller implementation</i>"]
    end

    subgraph AdminRole["🛠️ Cluster Administrator (Cluster / Infra Scope)"]
        GW["<b>Gateway</b><br/><i>Provisions load balancer & listeners</i>"]
    end

    subgraph DevRole["💻 Application Developer (Namespace Scope)"]
        Route["<b>HTTPRoute</b><br/><i>Path matching, rules & filters</i>"]
        Svc["<b>Service</b><br/><i>Backend Pod endpoints</i>"]
        Route -->|"backendRefs"| Svc
    end

    GC -->|"spec.gatewayClassName"| GW
    GW -->|"spec.parentRefs"| Route

• GatewayClass - managed by platform/cloud provider; specifies the controller (e.g. Envoy Gateway, NGINX Gateway Fabric)
• Gateway - managed by cluster admins; configures listeners (ports, protocols, TLS certs)
• HTTPRoute / GRPCRoute - managed by app developers; defines path matching, weights, filters, and backends

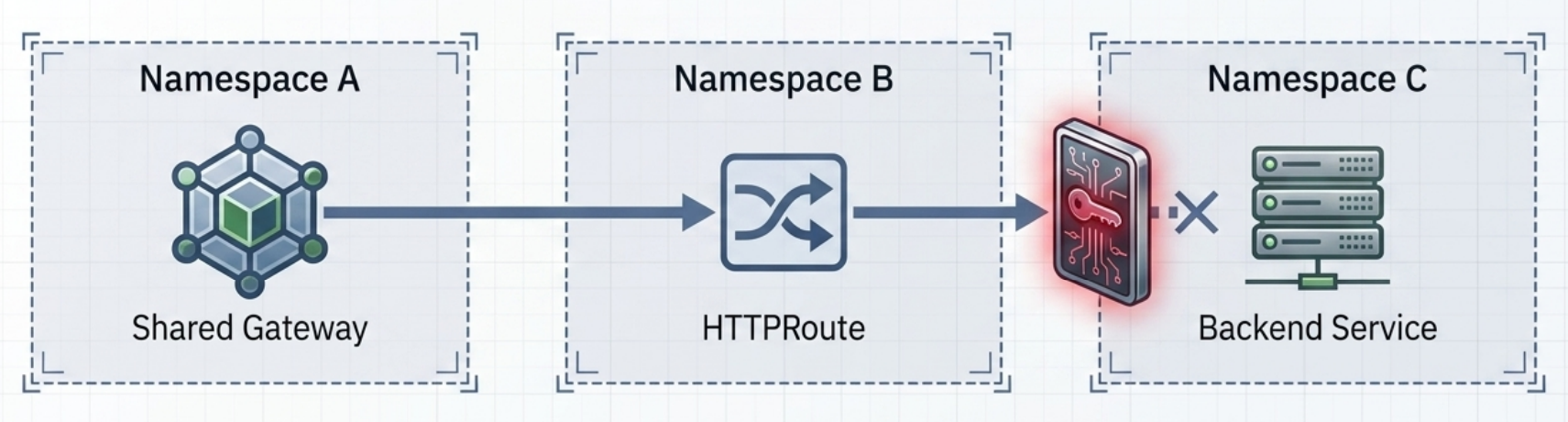

• ReferenceGrant - managed by ops; grants permission for cross-namespace route-to-service references

---

Installing the Gateway API

Step 1: Install CRDs

# Check if already installed
kubectl get crd gateways.gateway.networking.k8s.io

# Standard channel (HTTPRoute + GRPCRoute + ReferenceGrant only - stable)
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.3.0/standard-install.yaml

# Verify installed CRDs
kubectl get crds | grep gateway.networking.k8s.io

# OR: Experimental channel (also adds TLSRoute, TCPRoute, UDPRoute)
kubectl apply -k github.com/kubernetes-sigs/gateway-api/config/crd/experimental

Note

The standard channel installs: gatewayclasses, gateways, httproutes, grpcroutes, and referencegrants. Use the experimental channel to also get TLSRoute, TCPRoute, and UDPRoute.

Step 2: Install a Controller

Kubernetes ships no built-in Gateway API controller. Popular options:

Provider	Type	Notes
Envoy Gateway	Envoy-backed	CNCF project, reference implementation
Istio	Service mesh + gateway	Standalone mode available (no mesh required)
Contour	Envoy-backed	Open source
Cilium	eBPF-based	High-performance, no sidecars
Kong	API gateway	Full API management
NGINX Kubernetes Gateway	NGINX-backed	Official NGINX implementation
GKE	Cloud-managed	gcloud container clusters update --gateway-api=standard

Envoy Gateway (Helm):

helm install eg oci://docker.io/envoyproxy/gateway-helm --version v1.4.2 \
  -n envoy-gateway-system --create-namespace

# Wait for controller to be ready
kubectl wait --timeout=5m -n envoy-gateway-system \
  deployment/envoy-gateway --for=condition=Available

NGINX Gateway Fabric (Helm):

helm install ngf oci://ghcr.io/nginx/charts/nginx-gateway-fabric \
  --version 2.3.0 --namespace nginx-gateway --create-namespace

Cloud Provider for KIND (Local Testing): Runs as a process outside the cluster, authenticating with the local KIND API server.

# macOS
brew install cloud-provider-kind
# Launch (requires root)
sudo cloud-provider-kind --gateway-channel="standard"

Istio (minimal - gateway only, no mesh):

curl -sL https://istio.io/downloadIstioctl | sh -
istioctl install -y --set profile=minimal
kubectl get pods -n istio-system

GKE (managed):

gcloud container clusters update <cluster-name> --gateway-api=standard --region=<region>

Caution

When using Istio, don’t confuse the official Gateway API resource (gateway.networking.k8s.io/v1) with Istio’s legacy gateway resource (networking.istio.io/v1). They are completely separate.

---

End-to-End Quick Start (Envoy Gateway)

A minimal walkthrough: CRDs → controller → GatewayClass → Gateway → HTTPRoute → test.

# 1. Install CRDs (standard channel)
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.3.0/standard-install.yaml

# 2. Install Envoy Gateway controller
helm install eg oci://docker.io/envoyproxy/gateway-helm --version v1.4.2 \
  -n envoy-gateway-system --create-namespace
kubectl wait --timeout=5m -n envoy-gateway-system deployment/envoy-gateway --for=condition=Available

# 3. GatewayClass - binds to Envoy controller
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: envoy
spec:
  controllerName: gateway.envoyproxy.io/gatewayclass-controller
---
# 4. Gateway - listens on port 80
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: hello-gateway
spec:
  gatewayClassName: envoy
  listeners:
  - name: http
    protocol: HTTP
    port: 80
---
# 5. HTTPRoute - routes to backend service
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: hello-route
spec:
  parentRefs:
  - name: hello-gateway
  hostnames:
  - "hello.example.com"
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /
    backendRefs:
    - name: web
      port: 3000

# 6. Verify
kubectl get gatewayclasses          # ACCEPTED = True
kubectl get gateways                # PROGRAMMED = True
kubectl get httproutes

# 7. Test (no cloud LB - use port-forward)
export ENVOY_SVC=$(kubectl get svc -n envoy-gateway-system \
  --selector=gateway.envoyproxy.io/owning-gateway-name=hello-gateway \
  -o jsonpath='{.items[0].metadata.name}')

kubectl port-forward -n envoy-gateway-system svc/${ENVOY_SVC} 8080:80 &
curl -H "Host: hello.example.com" http://localhost:8080

---

GatewayClass and Gateway

GatewayClass

GatewayClass is cluster-scoped and identifies which controller manages gateways of that class - analogous to IngressClass:

apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: istio
spec:
  controllerName: istio.io/gateway-controller  # unique controller identifier
  description: The default Istio GatewayClass
  # parametersRef: links to a CRD with implementation-specific config

kubectl get gatewayclasses

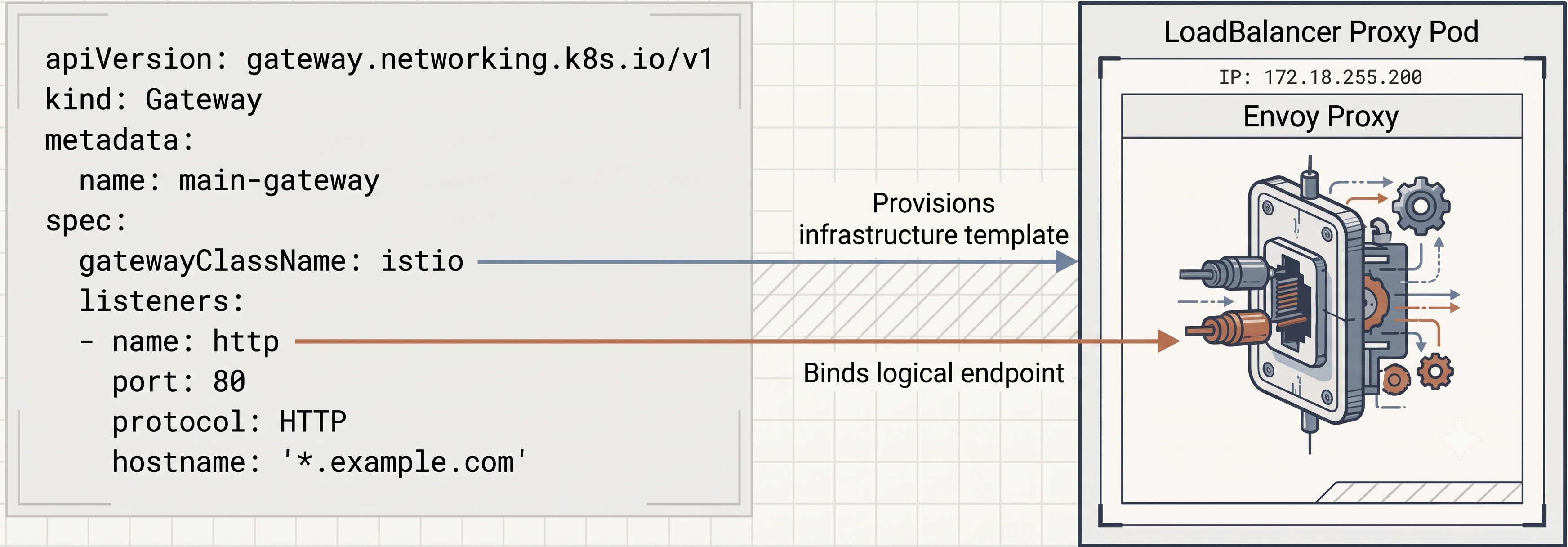

Gateway

A Gateway declares one or more network entry points (listeners) where the proxy accepts connections:

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: main-gateway
spec:
  gatewayClassName: istio           # links to GatewayClass
  listeners:
  - name: http
    port: 80
    protocol: HTTP
    hostname: '*.example.com'       # optional hostname filter on listener
    allowedRoutes:
      namespaces:
        from: All                   # All | Same (default) | Selector
  - name: https
    port: 443
    protocol: HTTPS
    tls:

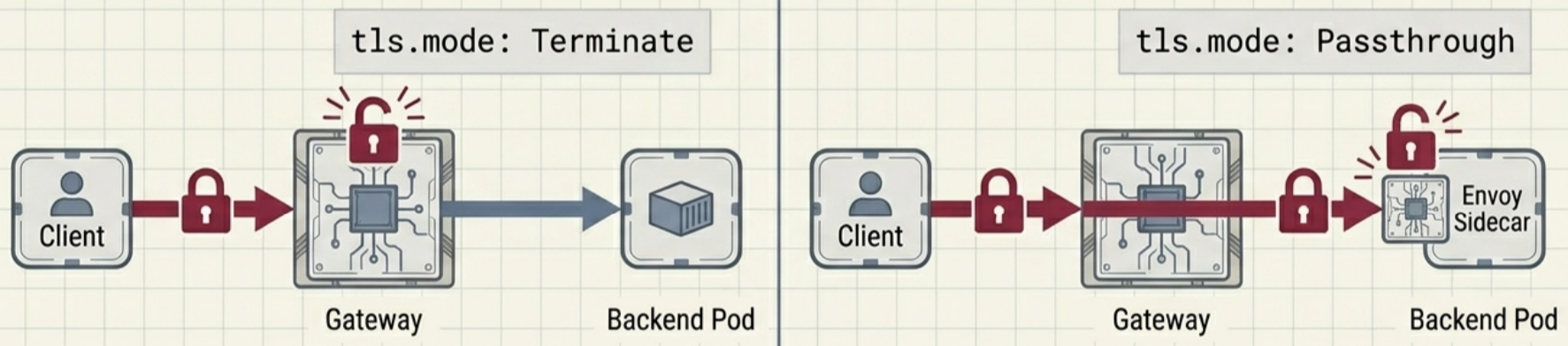

      mode: Terminate               # Terminate | Passthrough
      certificateRefs:
      - kind: Secret
        name: tls-example-com

Key listener fields:

• protocol: HTTP, HTTPS, TLS, TCP, or UDP.
• hostname: Restricts accepted connections to matching hostnames.
• allowedRoutes.namespaces.from: Same (default) | All | Selector - controls which namespaces can attach routes.

Automated Infrastructure Provisioning & Load Balancer Mechanics

When you create a Gateway, the controller automatically provisions infrastructure in a multi-stage workflow:

1. Gateway Claiming: The controller detects the Gateway matching its GatewayClass.
2. Proxy Deployment & Service: The controller deploys in-cluster L7 data-plane proxy Pods (in the same namespace as the Gateway) and creates a LoadBalancer Service.
3. NodePort Allocation: The Kubernetes Service controller assigns a unique NodePort for each listener port.
4. kube-proxy Routing: kube-proxy programs local node iptables/IPVS rules to intercept NodePort traffic and forward it to the proxy Pods.
5. Cloud Load Balancer Provisioning: The Cloud Controller Manager (CCM) provisions an external L4 cloud load balancer pointing to the node ports.
6. Public IP Attachment: The public Virtual IP (VIP) is assigned to the LoadBalancer Service and the Gateway’s status.addresses field is populated.

Orphaned Load Balancer Hazard

Deleting a cluster without first deleting deployed Gateway objects will not automatically delete the associated cloud load balancers. This can leave orphaned resources accruing costs. Always delete Gateways gracefully (kubectl delete gtw --all) before tearing down clusters.

kubectl get gtw                        # list gateways (gtw shorthand)
kubectl get gtw main-gateway -o yaml   # inspect status + assigned IP

Gateway Status and Conditions

kubectl get gtw main-gateway
# NAME           CLASS   ADDRESS          PROGRAMMED   AGE
# main-gateway   istio   172.18.255.200   True         30s

kubectl get gtw main-gateway -o yaml   # full status.addresses + conditions

Condition metadata fields (present on every condition entry):

• type: The specific condition type (e.g., Accepted).
• status: "True", "False", or "Unknown".
• reason: Machine-readable reason for the last transition.
• message: Human-readable diagnostic detail.
• lastTransitionTime: When the status last changed.
• observedGeneration: The metadata.generation this condition reflects. If it doesn’t match metadata.generation, the status is stale.

Top-level Gateway conditions:

Condition	Meaning
Accepted	Controller validated and accepted the spec
Programmed	Proxy infrastructure (Service + Pod) is provisioned and configured
Ready	Reserved for future iterations
Scheduled	Deprecated

Listener conditions (status.listeners[].conditions) - each listener is reported separately:

Condition	Status	Programmatic Reason	When it fires
Accepted	True / False / Unknown	Accepted / PortUnavailable / UnsupportedProtocol / UnsupportedAddress / Pending	Port in use, unsupported protocol, or address unbindable
Conflicted	True / False	HostnameConflict / ProtocolConflict / NoConflicts	Two listeners share a port with conflicting hostnames or protocols - neither is configured
Programmed	True / False / Unknown	Programmed / Invalid / Pending	Listener proxy config is generated and ready
Ready	True / False / Unknown	Ready / Invalid / Pending	Listener is fully active and serving traffic
ResolvedRefs	True / False	ResolvedRefs / InvalidCertificateRef / InvalidRouteKinds / RefNotPermitted	TLS Secret missing or invalid, unsupported route kinds, cross-namespace cert reference denied

Listener metadata fields:

• attachedRoutes: Count of Route objects bound to this listener. 0 = all requests return 404.
• supportedKinds: The route types (group + kind) this listener accepts (e.g., HTTPRoute).

Triage strategy: check type -> status -> reason -> message.

Route Status (status.parents)

A single Route can bind to multiple Gateways - status is reported per parent in status.parents[], not as a single top-level condition:

kubectl get httproute web-route -o yaml   # inspect per-parent conditions

Each entry in status.parents contains:

• parentRef: Which Gateway (group/kind/name/namespace) this status applies to.
• controllerName: The controller (from GatewayClass) that wrote this entry.

Route conditions per parent:

Condition	Status	Programmatic Reason	When it fires
Accepted	True / False / Unknown	Accepted / NotAllowedByListeners / NoMatchingListenerHostname / NoMatchingParent / UnsupportedValue / Pending	Route’s namespace not allowed (allowedRoutes), no listener hostname matches, invalid parent reference
ResolvedRefs	True / False	ResolvedRefs / RefNotPermitted / InvalidKind / BackendNotFound	Cross-namespace backendRef without ReferenceGrant, unknown group/kind, Service does not exist

---

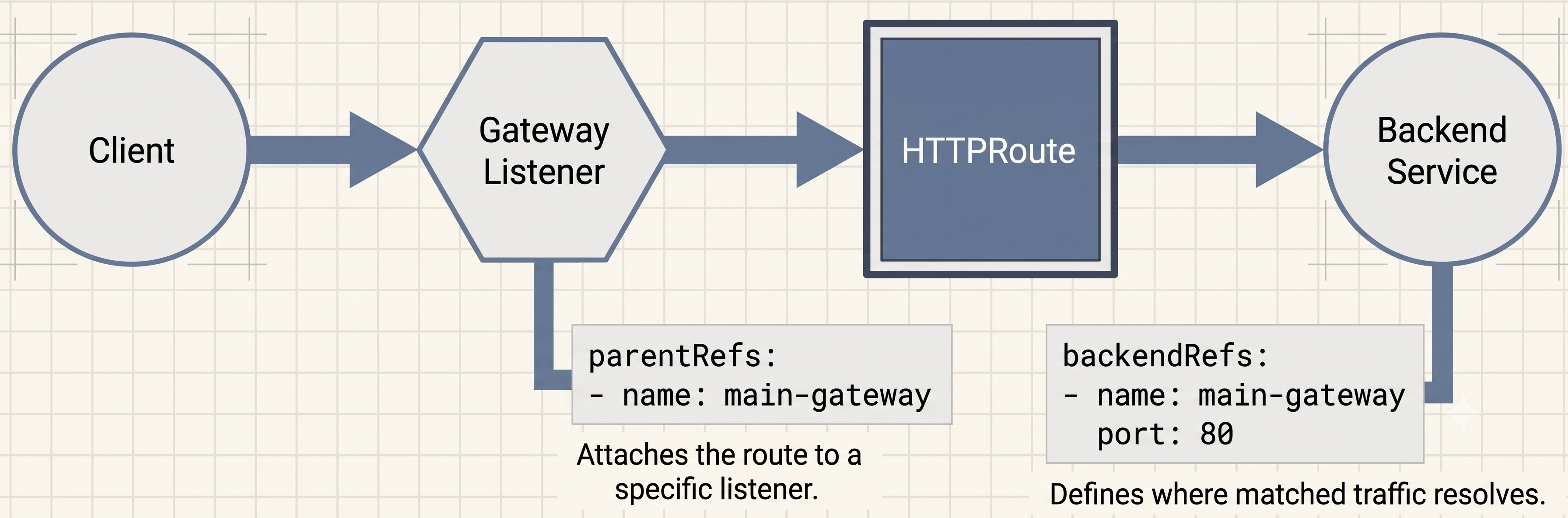

HTTPRoute

HTTPRoute is the primary Gateway API route resource (gateway.networking.k8s.io/v1, Standard channel - the only fully stable route kind).

Basic Routing

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: web-route
spec:
  parentRefs:
  - name: main-gateway              # binds to the Gateway (same namespace)
  hostnames:
  - app.example.com                 # matched against HTTP Host header
  rules:
  - backendRefs:
    - name: web                     # target Service
      port: 80

Default field expansion (controller fills in omitted values):

• parentRefs[].group -> gateway.networking.k8s.io, kind -> Gateway
• backendRefs[].group -> "" (core API), kind -> Service, weight -> 1
• rules[].matches -> catch-all PathPrefix: /

kubectl apply -f httproute.yaml
kubectl get httproutes
kubectl get httproute web-route -o yaml   # inspect full expanded spec + status

Test (same pattern as Ingress):

curl --resolve app.example.com:80:<GATEWAY_IP> http://app.example.com

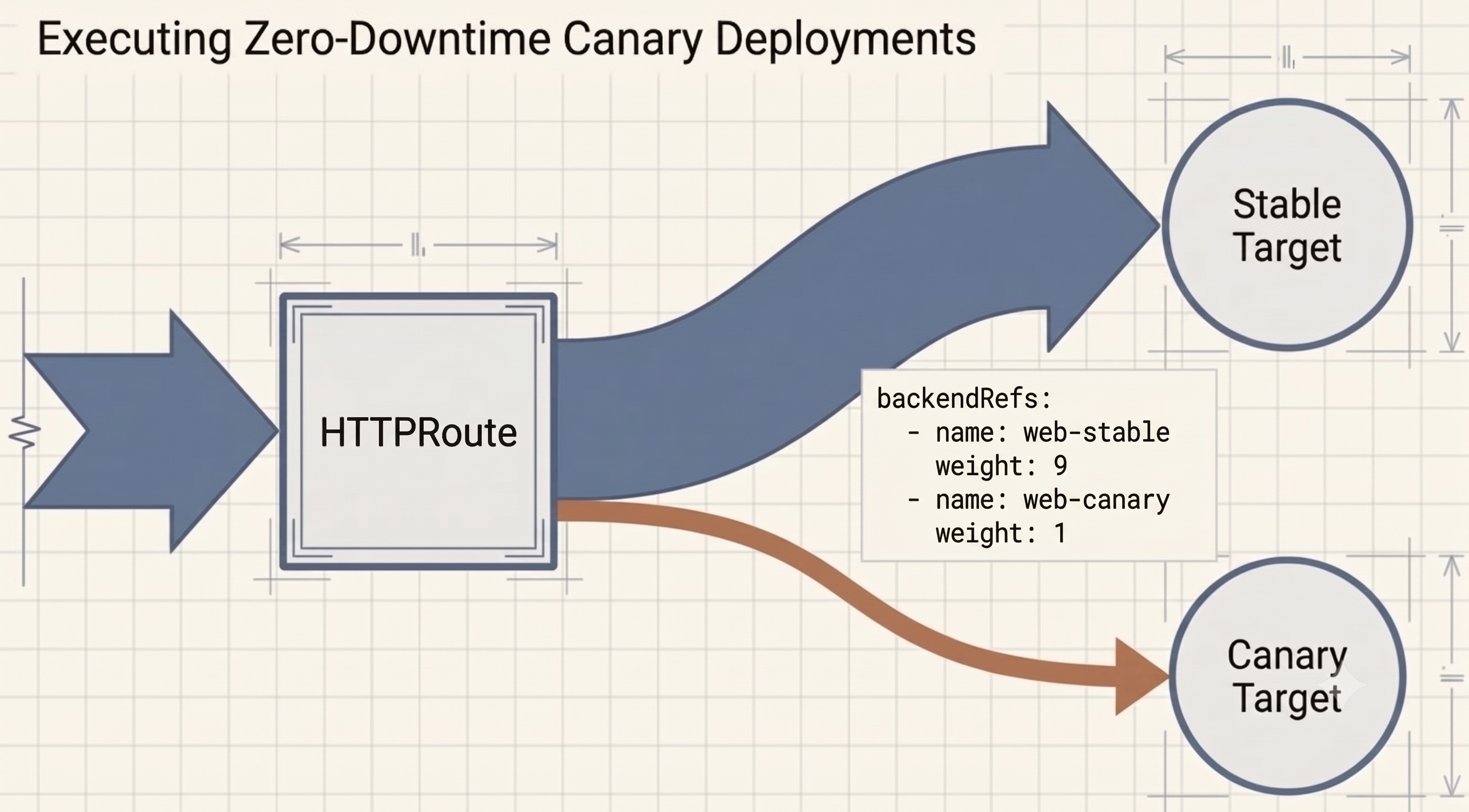

Traffic Splitting (Canary)

Weight-based splitting across multiple backends natively handles canary releases without requiring a full service mesh. Each backend needs a dedicated Service (shared selectors break weight control).

The deployment relies on decoupled layers:

1. Backend Applications: Deploy two distinct versions, each fronted by its own ClusterIP Service.
2. Ingress Gateway: Provide the shared listener (e.g., port 80).
3. HTTPRoute: Enforce the splitting ratios.

spec:
  parentRefs:
  - name: main-gateway
  hostnames:
  - app.example.com
  rules:
  - backendRefs:
    - name: web-stable              # existing release
      port: 80
      weight: 80                    # 80% of traffic
    - name: web-canary              # new release
      port: 80
      weight: 20                    # 20% of traffic

Traffic share = weight / sum(all weights). Omitting weight splits evenly. The L7 proxy pod evaluates the weights and distributes requests to the underlying ClusterIP endpoints proportionally.

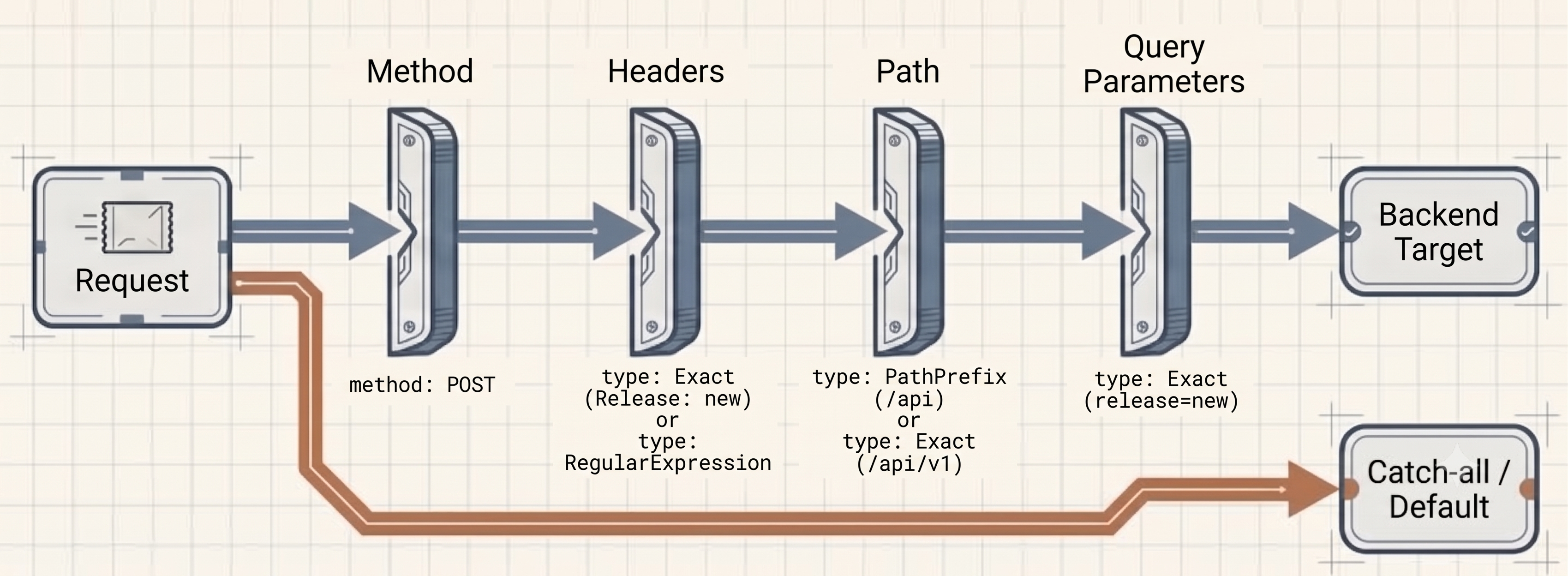

Request Matching

spec.rules.matches - AND within a match entry, OR across entries:

Method routing:

rules:
- matches:
  - method: POST                    # only POST requests
  backendRefs:
  - name: web-canary
    port: 80
- backendRefs:                      # catch-all for all other methods
  - name: web-stable
    port: 80

Header routing:

matches:
- headers:
  - type: Exact                     # Exact | RegularExpression
    name: Release
    value: canary

Path routing:

matches:
- path:
    type: PathPrefix                # PathPrefix | Exact | RegularExpression
    value: /api/v2

Query parameter routing:

matches:
- queryParams:
  - type: Exact
    name: release
    value: canary                   # matches ?release=canary

Compound match (all conditions must be met - AND logic):

matches:
- path:
    type: PathPrefix
    value: /api
  headers:
  - type: Exact
    name: Release
    value: canary
  - type: RegularExpression
    name: Cookie
    value: .*beta.*

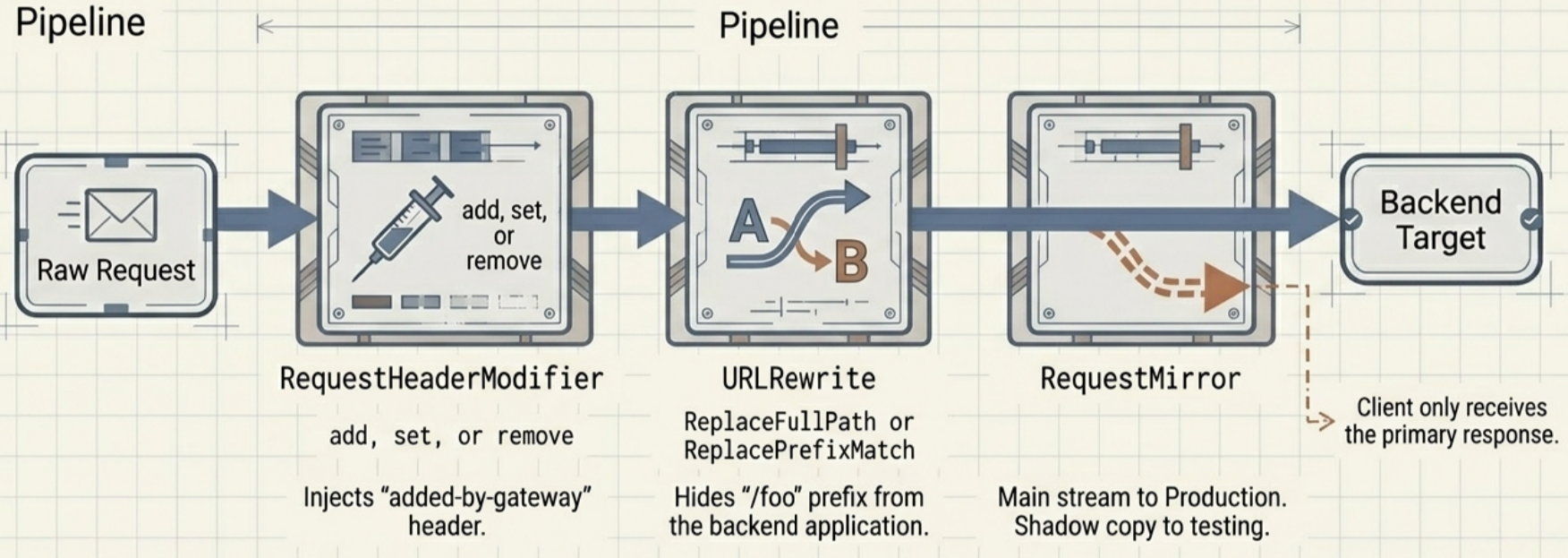

Filters (Traffic Transformation)

Declared in spec.rules.filters. Applied before forwarding to backendRefs:

Request header modification:

filters:
- type: RequestHeaderModifier
  requestHeaderModifier:
    add:
    - name: X-Added-By-Gateway
      value: "true"
    set:
    - name: X-Environment
      value: production
    remove:
    - X-Internal-Debug

Response header modification:

filters:
- type: ResponseHeaderModifier
  responseHeaderModifier:
    set:
    - name: Strict-Transport-Security
      value: max-age=31536000; includeSubDomains

URL rewrite:

# Replace full path: /foo or /foo/bar -> /new/path
filters:
- type: URLRewrite
  urlRewrite:
    path:
      type: ReplaceFullPath
      replaceFullPath: /new/path

# Replace prefix only: /foo/bar -> /new/path/bar
filters:
- type: URLRewrite
  urlRewrite:
    path:
      type: ReplacePrefixMatch
      replacePrefixMatch: /new/path

HTTP to HTTPS redirect (no backendRefs needed - gateway terminates the request):

filters:
- type: RequestRedirect
  requestRedirect:
    scheme: https
    port: 443
    statusCode: 301

Traffic mirroring (shadow testing):

# Primary response goes to client; mirror response is discarded
filters:
- type: RequestMirror
  requestMirror:
    backendRef:
      name: web-canary
      port: 80
backendRefs:
- name: web-stable
  port: 80

Vendor extension:

filters:
- type: ExtensionRef
  extensionRef:
    group: networking.example.com
    kind: SomeCustomFilter
    name: my-filter           # must be in same namespace as HTTPRoute

---

TLS in Gateway API

TLS Termination (Gateway-level)

The gateway holds the cert, decrypts traffic, forwards plain HTTP to pods:

# Gateway with TLS listener (Secret must be in same namespace as Gateway)
spec:
  listeners:
  - name: https
    port: 443
    protocol: HTTPS
    tls:
      mode: Terminate
      certificateRefs:
      - kind: Secret
        name: tls-example-com
      options:
        # provider-specific: cipher suites, min TLS version, etc.
        example.com/min-version: TLSv1.3

Attach an HTTPRoute to the HTTPS listener the same way as HTTP - the gateway handles decryption transparently. A single HTTPRoute can serve both HTTP (port 80) and HTTPS (port 443) listeners.

curl --resolve app.example.com:443:<GATEWAY_IP> https://app.example.com -k

TLS Passthrough (Pod-level)

Encrypted TLS stream passes through the gateway unmodified; pods terminate TLS themselves (e.g., via sidecar proxy):

# Gateway: protocol TLS + mode Passthrough, no certificateRefs
spec:
  listeners:
  - name: tls
    port: 443
    protocol: TLS             # not HTTPS - gateway is L4 only
    tls:
      mode: Passthrough

Use TLSRoute (experimental v1alpha2) - routing is based on SNI only, no L7 inspection possible:

apiVersion: gateway.networking.k8s.io/v1alpha2
kind: TLSRoute
metadata:
  name: web-tls
spec:
  parentRefs:
  - name: main-gateway
  hostnames:
  - app.example.com           # matched via SNI extension in ClientHello
  rules:
  - backendRefs:
    - name: web-stable
      port: 443               # pod's TLS port

SNI routing mechanic: The TLS ClientHello packet contains an unencrypted SNI extension. The gateway reads it without decrypting anything, matches the TLSRoute hostname, and forwards the raw encrypted TCP stream to the pod.

Feature	HTTPRoute (TLS Terminate)	TLSRoute (TLS Passthrough)
Decryption at	Gateway	Pod
Path/header routing	Full support	Not possible (payload encrypted)
Traffic splitting	Supported	Supported (by connection, not request)
Cert management	Centralized in Gateway	Per-pod

---

Backend TLS (Re-Encrypt) - BackendTLSPolicy

The third TLS mode: the gateway terminates client TLS and re-establishes a new TLS connection to the backend. Required when backend pods enforce HTTPS or for end-to-end encryption compliance.

Client (HTTPS) -> Gateway (terminates) -> (new TLS) -> Backend Pod (HTTPS)

BackendTLSPolicy is a Standard-channel resource (GA in v1.4.0) that configures the gateway-to-backend TLS connection:

apiVersion: gateway.networking.k8s.io/v1alpha3
kind: BackendTLSPolicy
metadata:
  name: backend-tls
spec:
  targetRefs:
  - group: ""
    kind: Service
    name: secure-backend        # the backend Service
  validation:
    caCertificateRefs:
    - kind: ConfigMap
      name: backend-ca-cert     # CA that signed the backend's cert
    hostname: secure-backend.example.com  # expected SNI / cert hostname

TLS Mode	Resource	Who holds cert	Backend traffic
Terminate	Gateway spec.listeners.tls	Gateway (Secret)	Plain HTTP
Passthrough	TLSRoute	Pod	Encrypted (unchanged)
Re-encrypt	BackendTLSPolicy	Both	New TLS connection

Note

BackendTLSPolicy targets a Service via targetRefs, not a route. Any route sending traffic to that Service inherits the backend TLS policy.

---

Session Persistence (BackendTrafficPolicy)

Unlike Ingress which relied on non-standard annotations (e.g. nginx.ingress.kubernetes.io/affinity), Gateway API standardizes sticky sessions using the BackendTrafficPolicy resource.

This policy attaches directly to the backend Service, ensuring that any route forwarding to that Service respects the persistence rules.

apiVersion: gateway.networking.k8s.io/v1alpha2
kind: BackendTrafficPolicy
metadata:
  name: web-sticky-session
spec:
  targetRefs:
  - group: ""
    kind: Service
    name: web                 # the backend Service to apply sticky sessions to
  sessionPersistence:
    sessionName: session-id
    absoluteTimeout: 24h
    type: Cookie

---

L4 Route Types (Standard)

TCPRoute

Expose any TCP-based service (databases, message queues, custom daemons):

# Gateway listener for TCP
spec:
  listeners:
  - name: tcp-db
    port: 5432
    protocol: TCP

---
apiVersion: gateway.networking.k8s.io/v1
kind: TCPRoute
metadata:
  name: db-route
spec:
  parentRefs:
  - name: main-gateway
  rules:
  - backendRefs:
    - name: postgres
      port: 5432

• No hostname matching, no path/header routing (L4 is payload-agnostic).
• Weighted splitting: Multiple backendRefs with weight fields splits TCP connections proportionally.
• Test: nc <GATEWAY_IP> 5432

UDPRoute

Expose UDP-based workloads (DNS, media streaming, game servers):

spec:
  listeners:
  - name: dns
    port: 53
    protocol: UDP

---
apiVersion: gateway.networking.k8s.io/v1
kind: UDPRoute
metadata:
  name: dns-route
spec:
  parentRefs:
  - name: main-gateway
  rules:
  - backendRefs:
    - name: dns-server
      port: 53

• Provider support varies - if status section is empty after apply, no active controller reconciled it.
• Test: nc --udp <GATEWAY_IP> 53

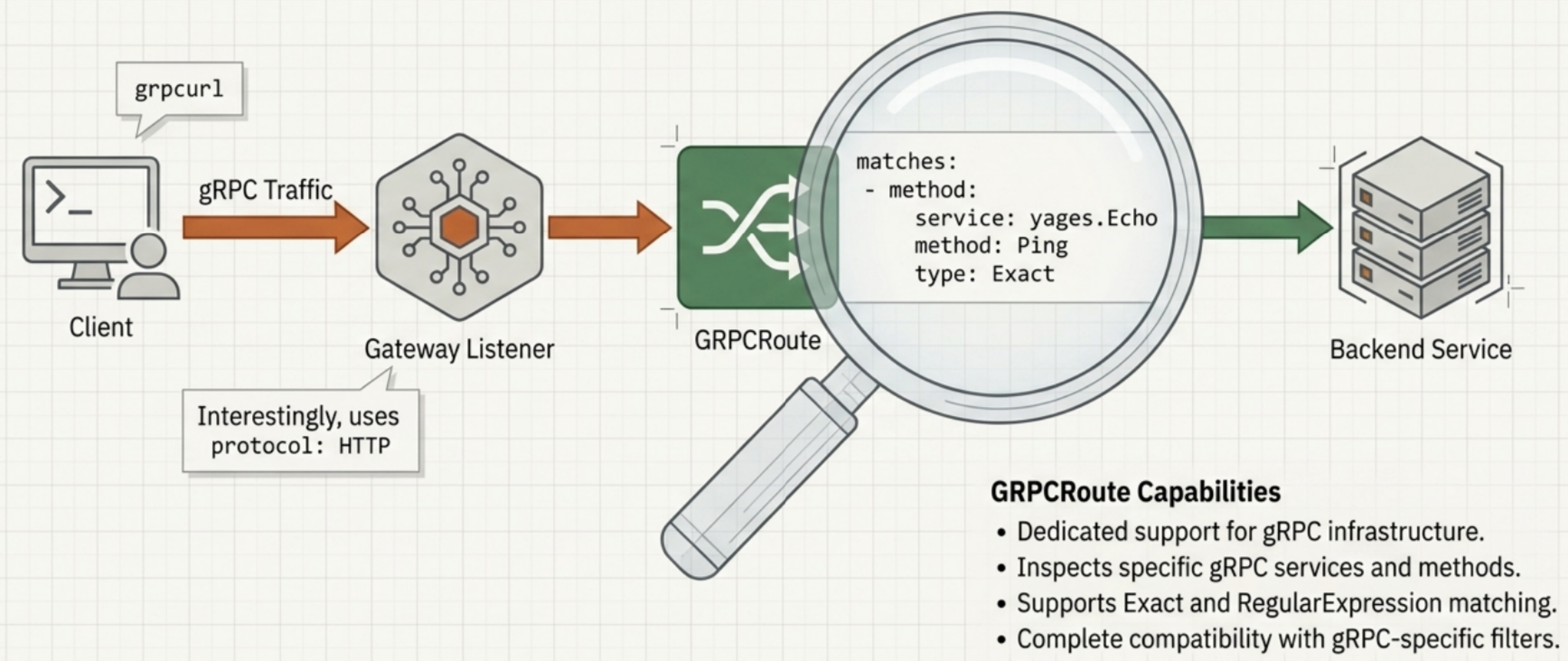

GRPCRoute

Native gRPC routing with service/method-level matching:

# Gateway: HTTP listener (gRPC runs over HTTP/2)
spec:
  listeners:
  - name: grpc
    port: 9000
    protocol: HTTP
    hostname: 'api.example.com'

---
apiVersion: gateway.networking.k8s.io/v1
kind: GRPCRoute
metadata:
  name: echo-route
spec:
  parentRefs:
  - name: main-gateway
  hostnames:
  - api.example.com
  rules:
  - matches:
    - method:
        service: myapp.Echo       # fully qualified gRPC service name
        method: Ping              # specific RPC method
        type: Exact               # Exact | RegularExpression
    backendRefs:
    - name: echo-service
      port: 9000
  # Header-based matching (gRPC metadata headers)
  - matches:
    - headers:
      - type: Exact
        name: x-tenant-id
        value: premium
    backendRefs:
    - name: echo-service-premium
      port: 9000

• Supports RequestHeaderModifier, ResponseHeaderModifier, RequestMirror, ExtensionRef filters.
• Test: grpcurl -proto schema.proto --plaintext api.example.com:9000 myapp.Echo.Ping

---

Cross-Namespace Routing

Sharing a Gateway Across Namespaces

By default, a Gateway only accepts routes from its own namespace. Configure allowedRoutes.namespaces on individual listeners:

spec:
  listeners:
  - name: http
    port: 80
    protocol: HTTP
    allowedRoutes:
      namespaces:
        from: All               # any namespace can attach routes

  - name: tcp
    port: 200
    protocol: TCP
    allowedRoutes:
      namespaces:
        from: Selector          # only namespaces matching the label
        selector:
          matchLabels:
            team: backend       # label the namespace to grant access

Routes in another namespace reference the Gateway’s namespace in parentRefs:

# HTTPRoute in namespace: app-team
spec:
  parentRefs:
  - name: main-gateway
    namespace: gateway-ns       # explicit cross-namespace reference
  hostnames:
  - app.example.com

Grant namespace access via label:

kubectl label ns app-team team=backend

If the namespace doesn’t match, the route status shows Accepted: False with reason NotAllowedByListeners.

End-to-End Multi-Tenant Scenario:

1. Infrastructure Admins (infra-admins) deploy a shared Gateway in ns-infra that restricts route attachments to namespaces carrying the gtw-prod: "true" label via allowedRoutes.namespaces.from: Selector.
2. Cluster Operators (cluster-ops) create tenant namespaces (e.g., ns-shield and ns-hydra) and apply the gtw-prod: "true" label to them.
3. Application Developers (app-devs) inside ns-shield deploy their HTTPRoute referencing the Gateway in ns-infra. Because their namespace bears the authorized label, the Gateway accepts the attachment, securely separating infrastructure control from application routing.

Cross-Namespace Backend References (ReferenceGrant)

A route can target a Service in a different namespace, but requires explicit permission from the target namespace’s admin:

# Applied in namespace: service-ns (the namespace that OWNS the Service)
apiVersion: gateway.networking.k8s.io/v1beta1
kind: ReferenceGrant
metadata:
  name: allow-httproutes-from-app-team
  namespace: service-ns         # must live in the target namespace
spec:
  from:
  - group: gateway.networking.k8s.io
    kind: HTTPRoute
    namespace: app-team         # source namespace allowed to reference
  to:
  - group: ""
    kind: Service
    name: some-service          # omit name to allow all Services in this ns

Route backendRef with explicit namespace:

rules:
- backendRefs:
  - name: some-service
    namespace: service-ns       # cross-namespace target
    port: 80

Without a ReferenceGrant, the route status shows ResolvedRefs: False with reason RefNotPermitted.

ListenerSet - Delegated Listener Management (v1.5+)

ListenerSet (Standard channel, GA in v1.5) decouples listener configuration from the core Gateway resource - app teams can add their own listeners to a shared Gateway without needing cluster-admin rights.

Without ListenerSet: an app team needing a new port/hostname must ask a cluster admin to edit the Gateway spec.

With ListenerSet: teams create ListenerSet objects in their own namespaces; the Gateway owner permits attachment.

# Cluster admin: Gateway opts into receiving ListenerSets
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: shared-gateway
  namespace: infra
spec:
  gatewayClassName: envoy
  listeners:
  - name: default-https
    port: 443
    protocol: HTTPS
    allowedRoutes:
      namespaces:
        from: All
  allowedListeners:              # permit ListenerSet attachment
    from: All
---
# App team: add their own listener (in team namespace)
apiVersion: gateway.networking.k8s.io/v1alpha1
kind: ListenerSet
metadata:
  name: team-listeners
  namespace: app-team
spec:
  parentRef:
    name: shared-gateway
    namespace: infra
  listeners:
  - name: team-app
    port: 8443
    protocol: HTTPS
    tls:
      mode: Terminate
      certificateRefs:
      - kind: Secret
        name: team-tls

An HTTPRoute then attaches to the ListenerSet instead of the Gateway:

spec:
  parentRefs:
  - kind: ListenerSet              # attach to ListenerSet, not Gateway
    name: team-listeners
    namespace: app-team
    sectionName: team-app

• Role separation preserved: infra team owns Gateway, app teams own ListenerSets and Routes.
• No privilege escalation: ReferenceGrant still governs cross-namespace backend references.

---

Service Mesh Integration (GAMMA)

The Gateway API Mesh Management and Administration (GAMMA) initiative extends Gateway API routes for east/west (service-to-service) traffic, not just north/south (external-to-cluster).

The key insight: Replace Gateway in parentRefs with a Service. This signals the mesh data plane to intercept traffic targeting that Service and apply the route rules:

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: api-v2-route
  namespace: app-team
spec:
  parentRefs:
  - group: ""                   # core API group
    kind: Service               # not Gateway - this is the key difference
    name: api-service
    port: 80
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /v2              # route /v2/* to the new version
    backendRefs:
    - name: api-service-v2
      port: 80

How it works:

1. A client pod sends a request to api-service:80.
2. The mesh sidecar (or ambient node proxy) intercepts the outbound connection.
3. It matches the HTTPRoute bound to api-service as parentRef.
4. It applies filters and routes to api-service-v2.

All HTTPRoute features work in mesh context: traffic splitting, header modification, URL rewrite, mirroring - enabling canary deployments and header-based routing entirely within the cluster network.

---

Migrating from Ingress to Gateway API

The Gateway API is the official successor to Ingress. Major controller projects (NGINX, Istio, Envoy Gateway) now offer full Gateway API implementations alongside Ingress support.

Equivalence Table

Legacy Ingress	Gateway API Equivalent	Managed by
Ingress controller	GatewayClass	Platform provider
Ingress resource (LB config + ports)	Gateway	Cluster administrator
Ingress resource (rules + paths)	HTTPRoute / GRPCRoute	Application developer
Vendor annotations (canary, rewrite)	Core HTTPRoute spec.rules.filters	Application developer
Namespace isolation (none)	ReferenceGrant	Cluster administrator

Phased Migration Strategy

1. Side-by-side: Deploy Gateway API CRDs and controller alongside the existing Ingress controller. Most modern controllers support both simultaneously - no downtime required.
2. Incremental: Start with non-critical workloads. Define HTTPRoute manifests, validate traffic, then shift production services one at a time.
3. Decommission: Once all routing is verified on Gateway API, delete the legacy Ingress objects and eventually the Ingress controller.

Automated Migration (ingress2gateway)

ingress2gateway is the official SIG-maintained CLI tool that converts existing Ingress manifests to Gateway API equivalents:

# Install
go install sigs.k8s.io/ingress2gateway@latest

# Convert manifests in current namespace
ingress2gateway print

Handles basic translations; complex annotation logic requires manual review. Not required for the CKA exam.
