Resource Management

Kubernetes resource management answers two questions:

1. How much does this container need? (requests)
2. How much can it take? (limits).

Getting these numbers right determines whether your pods schedule at all, whether they get evicted under pressure, and whether they throttle or crash under load.

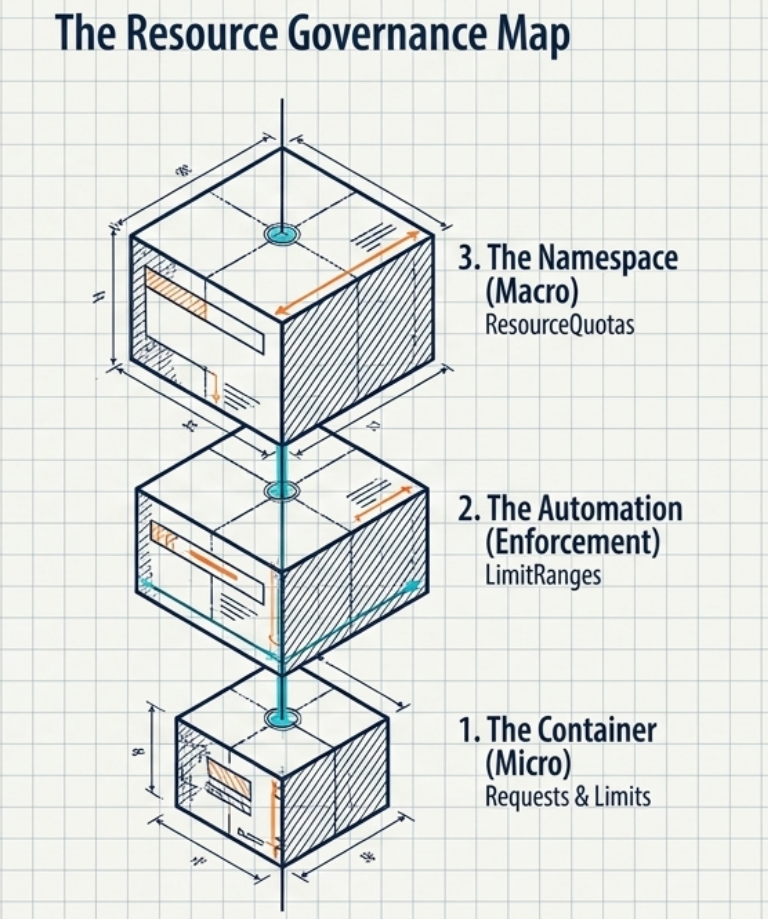

Kubernetes governs resources at three distinct levels:

1. The Container (Micro): Granular requests and limits defined directly on individual workloads.
2. The Automation (Enforcement): LimitRanges that automatically inject defaults or enforce min/max boundaries per container.
3. The Namespace (Macro): ResourceQuotas that cap the aggregate consumption of a whole team or environment.

---

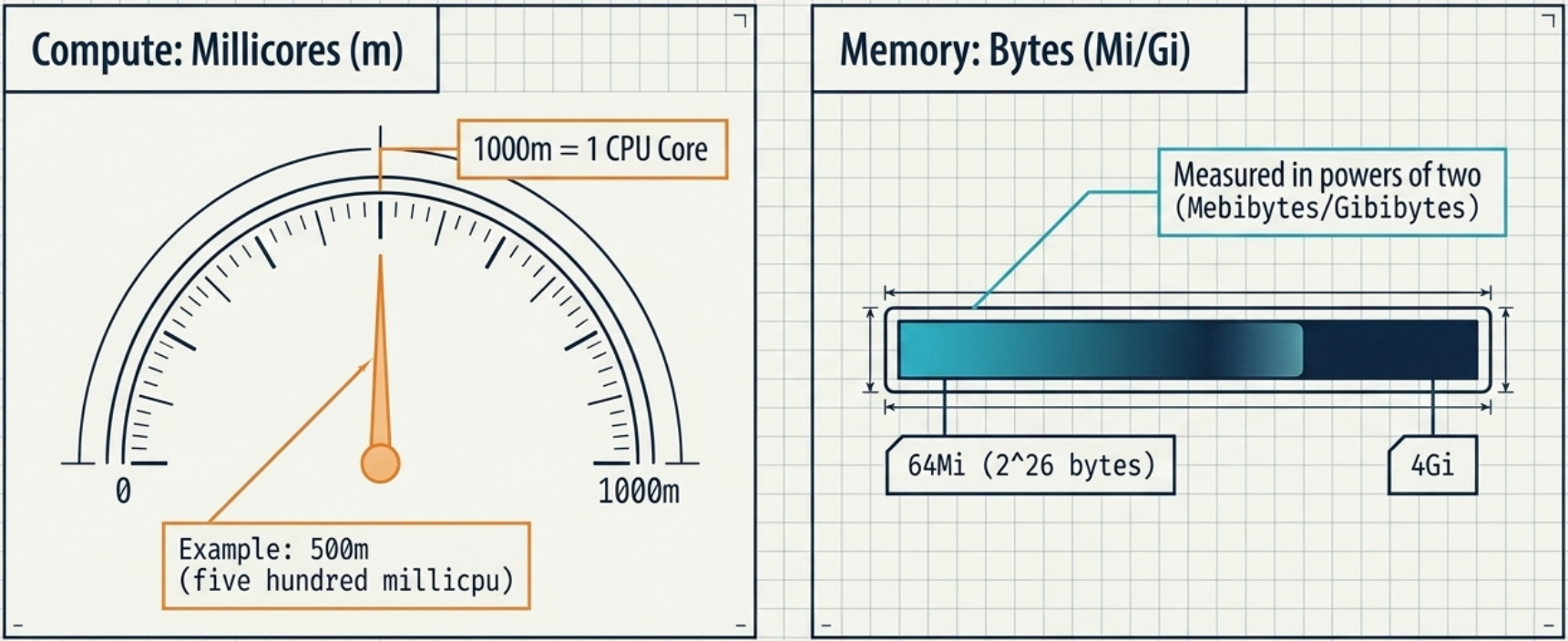

Resource Units

CPU

m = millicores = millicpu. 1000m is exactly one logical CPU (vCPU/hyperthread), regardless of the underlying hardware.

Format	Meaning	Equivalent
250m	250 millicores	0.25 of one CPU core
500m	500 millicores	0.5 of one CPU core
1	1 whole core	1000m
0.5	decimal notation	500m
2	2 whole cores	2000m

Memory

Format	Full name	Bytes
64Mi	64 Mebibytes	2²⁶ bytes
256Mi	256 Mebibytes	268,435,456 bytes
1Gi	1 Gibibyte	2³⁰ bytes
4Gi	4 Gibibytes	4,294,967,296 bytes

Caution

Mi (Mebibytes) ≠ M (Megabytes). 64Mi = 67,108,864 bytes; 64M = 64,000,000 bytes. Always use binary suffixes (Ki, Mi, Gi) in Kubernetes manifests to avoid unintentional sizing differences.

Other Resources

Resource type	Example spec field	Example value	Notes
Ephemeral storage	ephemeral-storage	4Gi	Temporary on-disk space (logs, caches)
Huge pages	hugepages-2Mi	60Mi	Must match page size configured on the node

---

Requests

A resource request is the minimum guaranteed allocation for a container. It has two effects:

1. Scheduling: kube-scheduler only places the pod on a node that has at least this much unallocated capacity
2. QoS: the kubelet uses requests to classify pods into eviction priority tiers (see QoS section)

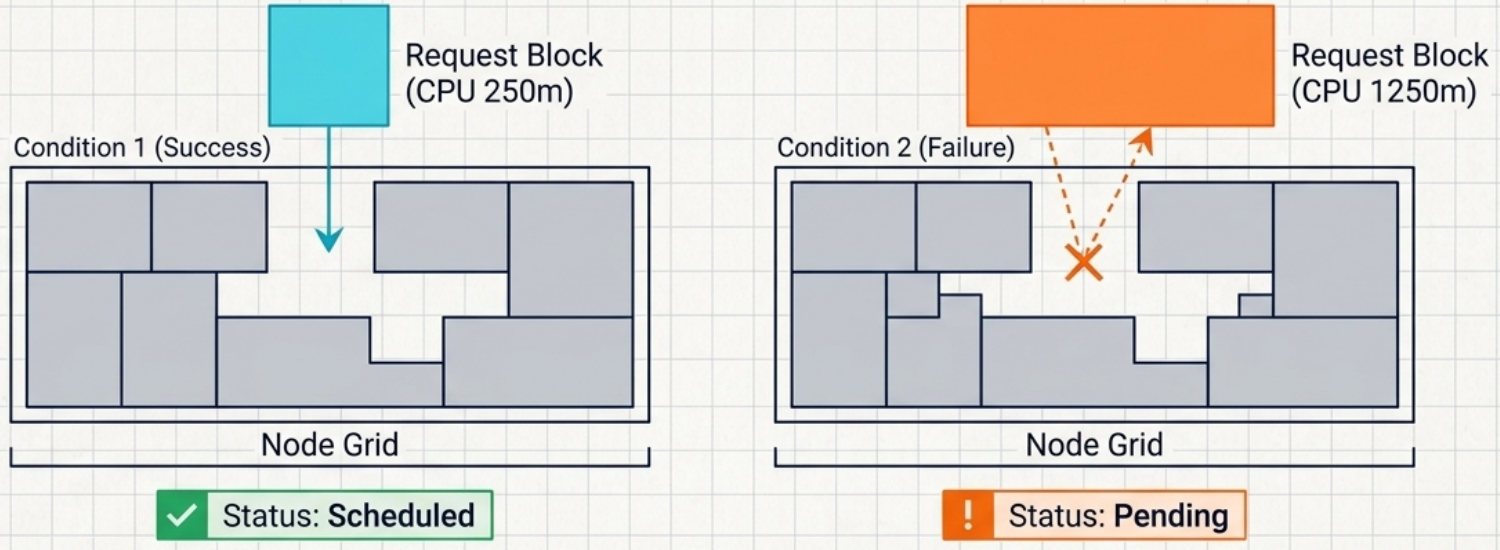

Scheduling Mechanism

The scheduler sums requests across all containers in a pod (including sidecars) and finds a node with sufficient remaining capacity:

Pod with:
  business-app  →  256Mi + 1 CPU
  sidecar       →   64Mi + 250m

Scheduler looks for a node with at least:
  → 320Mi memory AND 1250m (1.25) CPU unallocated

If no node qualifies, the pod stays Pending.

YAML

spec:
  containers:
    - name: app
      image: my-app:1.0
      resources:
        requests:
          cpu: "250m" # scheduler uses this to find a node
          memory: "256Mi" # scheduler uses this to find a node
          ephemeral-storage: "1Gi"

Best Practices

Rule	Rationale
Always define CPU requests	Scheduler can’t make accurate placement decisions without them
Always define memory requests	Prevents pod from landing on a node that will OOMKill it immediately
Set memory request = memory limit	Gives the container a guaranteed, non-overcommitted allocation (also achieves Guaranteed QoS)

---

Limits

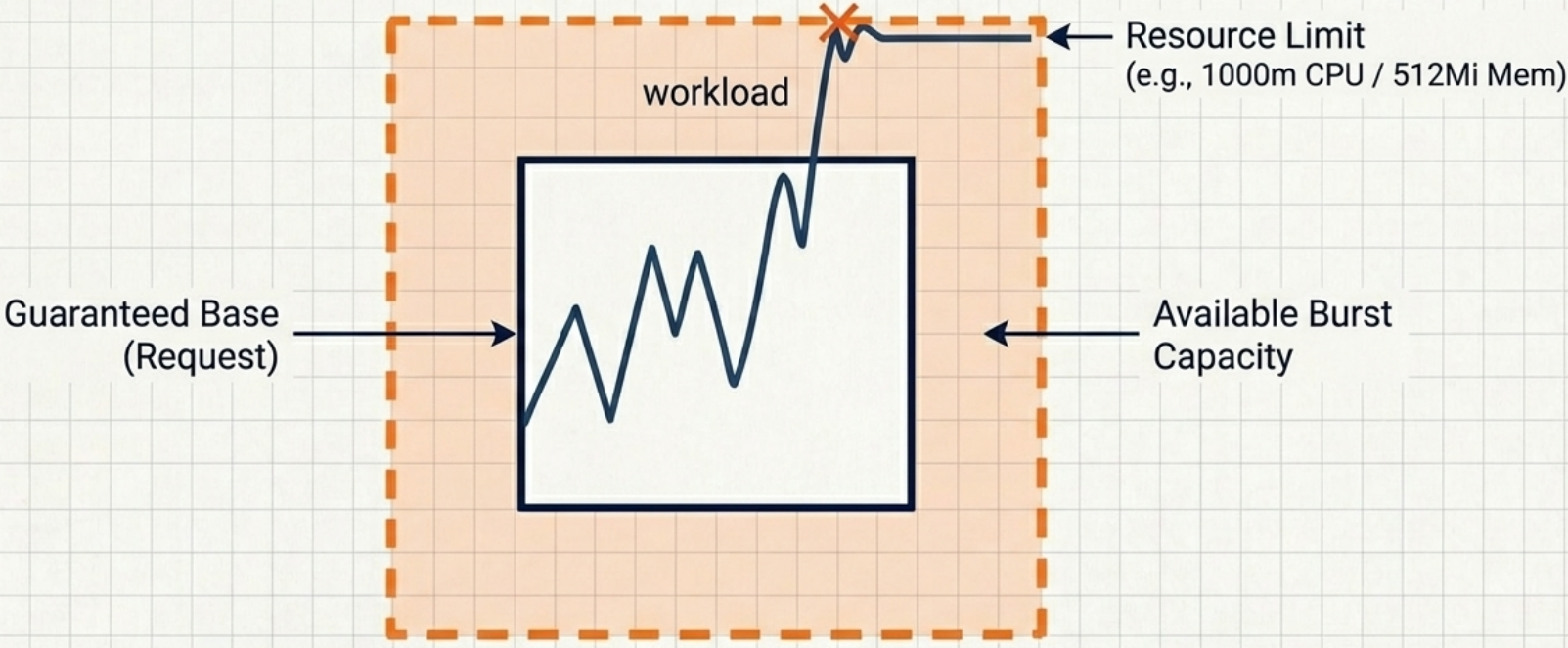

A resource limit is the maximum a container is allowed to consume at runtime. The container runtime enforces it — but enforcement differs by resource type.

Enforcement: OOMKilled vs CPU Throttle

Resource	What happens when the limit is exceeded
Memory	The Linux kernel sends SIGKILL to the container process. Pod shows OOMKilled reason. Kubelet restarts it (based on restartPolicy).
CPU	The Linux CFS scheduler throttles the container — it can’t use more CPU than its limit for a given scheduling period. The process is not killed, but it slows down.

Caution

OOMKill is abrupt — no graceful shutdown, no flush. If you set memory limits, set them high enough for your worst-case working set. For memory leaking apps, an OOMKill is intentional termination, not a crash.

YAML

spec:
  containers:
    - name: app
      image: my-app:1.0
      resources:
        requests:
          memory: "256Mi"
          cpu: "500m"
        limits:
          memory: "256Mi" # same as request → Guaranteed QoS
          # cpu: "1"       # intentionally omitted — avoids throttling

Best Practices

Rule	Rationale
Set memory limit = memory request	Non-overcommitted memory allocation; achieves Guaranteed QoS and prevents surprise OOMKills
Avoid CPU limits	CPU limits throttle the container even when the node has idle capacity — degrades latency without protecting anyone
Exception: CPU limits in strict multi-tenant environments	Prevents a noisy neighbour from consuming all spare CPU on a shared node — benchmark before enabling

Note

The “avoid CPU limits” guidance stems from how the Linux CFS scheduler handles Kubernetes CPU quota periods: a container at its limit is throttled even if the node has spare cycles. Most teams omit CPU limits and rely on requests for scheduling accuracy. In highly multi-tenant clusters, CPU limits may be justified to prevent noisy neighbours — benchmark first.

---

Quality of Service (QoS) Classes

Kubernetes automatically assigns a QoS class to every pod based on its resource declarations. The class determines eviction priority when a node runs low on memory.

Classification Rules

Class	Criteria	Eviction priority
Guaranteed	Every container has both requests and limits for both CPU and memory, and request == limit for each	Last to be evicted
Burstable	At least one container has a CPU or memory request or limit defined, but not all containers have request == limit for both CPU and memory	Middle
BestEffort	No container has any CPU or memory requests or limits	First to be evicted

Practical Classifications

# → Guaranteed: request == limit for ALL containers on BOTH CPU and memory
resources:
  requests:
    cpu: "500m"
    memory: "256Mi"
  limits:
    cpu: "500m" # same as request
    memory: "256Mi" # same as request

# → Burstable: at least one container has a request or limit, but pod is not Guaranteed
# (limits > requests, CPU limit omitted, or only some containers have resources set)
resources:
  requests:
    cpu: "250m"
    memory: "128Mi"
  limits:
    memory: "256Mi" # memory limit != request; no CPU limit → not Guaranteed

# → BestEffort: no CPU or memory requests or limits on any container
resources: {}

Note

QoS classification is automatic and read-only — you cannot set it directly. It’s derived purely from how you configure requests and limits.

# Verify a pod's assigned QoS class
kubectl describe pod <name> | grep "QoS Class"
# QoS Class:  Guaranteed

---

Sizing: Finding the Right Numbers

Understanding requests, limits, and QoS is only half the battle — the harder question is what values to actually set. Get them wrong in either direction and you’ll hit scheduling failures, OOMKills, or wasted cluster capacity.

Resource sizing is an approximation. Setting them too low causes scheduling failures and OOMKills; too high wastes cluster capacity.

Methods

Method	When to use
kubectl top pods/nodes	Immediate — shows real-time actual CPU/memory consumption; first step in any sizing investigation
Load testing	Pre-production — exercise realistic traffic patterns and measure peak CPU/memory consumption
Runtime monitoring	Post-deployment — track actual vs. requested usage with Prometheus + Grafana or cloud monitoring
VPA	In-cluster — automatically adjusts requests and limits based on observed usage; Goldilocks runs VPA in recommendation-only mode under the hood
Goldilocks	Dashboard — runs VPA in recommendation mode and surfaces sizing suggestions without auto-applying them
KRR	CLI — analyses historical Prometheus metrics and outputs concrete recommended requests/limits

In-Place Resizing (Kubernetes 1.27+)

Before 1.27, changing a container’s resource requests/limits required deleting and rescheduling the pod. From 1.27, container resize policies allow CPU and memory to be adjusted at runtime without a restart:

spec:
  containers:
    - name: app
      resizePolicy:
        - resourceName: cpu
          restartPolicy: NotRequired # CPU can be resized without restart
        - resourceName: memory
          restartPolicy: RestartContainer # memory resize requires restart

---

ResourceQuota

All the settings so far — requests, limits, QoS — operate at the container level. Kubernetes also provides two mechanisms to govern resources at the namespace level, preventing any single team or workload from monopolising shared cluster capacity. ResourceQuota is the first of these.

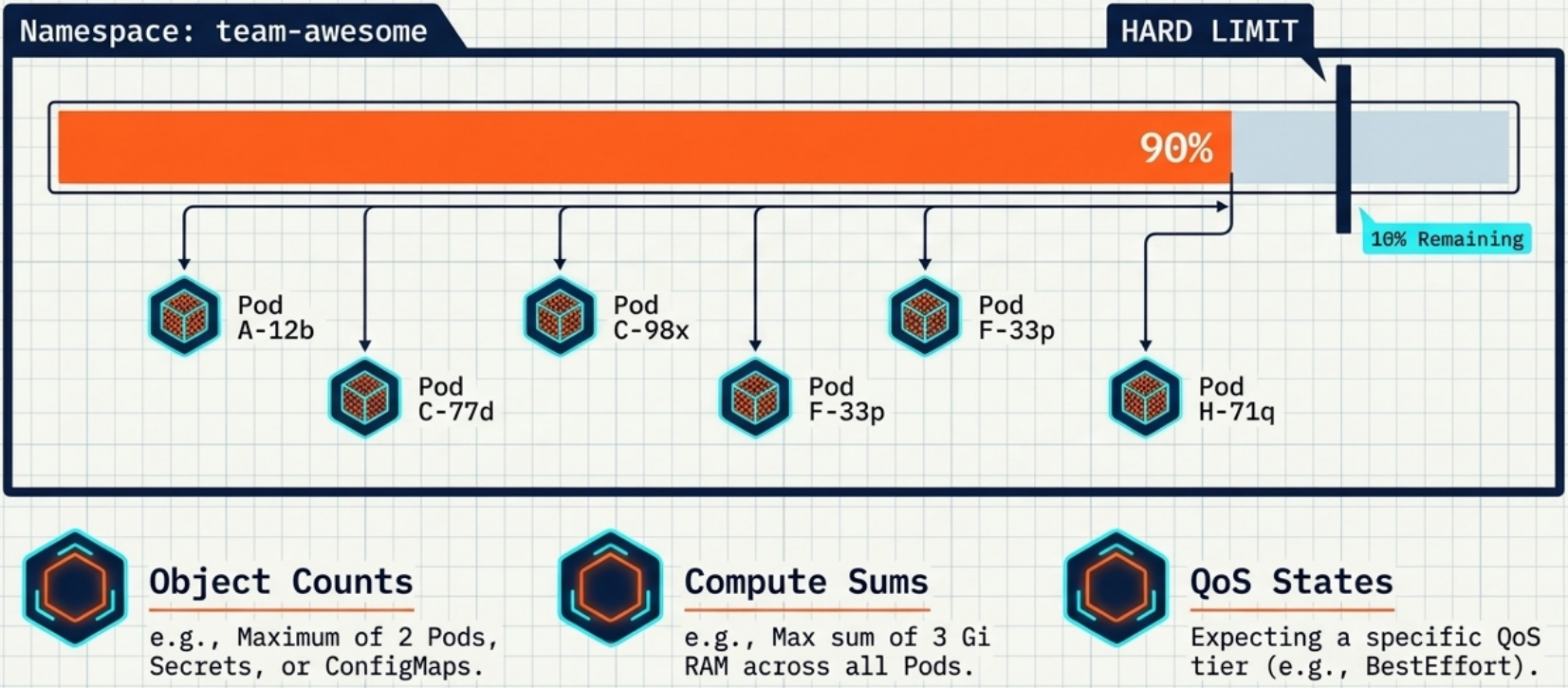

A ResourceQuota is a namespace-level cap on aggregate resource consumption. It prevents one team or workload from monopolising a shared cluster.

What You Can Limit

Type	Example constraint	Effect
Object count	pods: 2	Maximum 2 pods in the namespace
Compute (requests)	requests.cpu: "1"	Sum of all pod CPU requests ≤ 1 core
Compute (limits)	limits.memory: 4Gi	Sum of all pod memory limits ≤ 4Gi
QoS class	scopes: [BestEffort]	Only BestEffort pods allowed

YAML

apiVersion: v1
kind: ResourceQuota
metadata:
  name: backend-quota
  namespace: backend-team
spec:
  hard:
    pods: "2" # max 2 pods in this namespace
    requests.cpu: "1" # total CPU requests ≤ 1 core
    requests.memory: 1Gi # total memory requests ≤ 1Gi
    limits.cpu: "4" # total CPU limits ≤ 4 cores
    limits.memory: 4Gi # total memory limits ≤ 4Gi

# Create namespace + apply quota
kubectl create namespace backend-team
kubectl apply -f backend-quota.yaml

# Check live usage vs hard limits
kubectl describe resourcequota backend-quota -n backend-team
# NAME            AGE   REQUEST                         LIMIT
# backend-quota   5m    requests.cpu: 500m/1, ...      limits.memory: 512Mi/4Gi

Enforcement

When a ResourceQuota constrains compute resources, every pod in that namespace MUST explicitly define those resources — or the API server rejects it:

# Pod with no resources block → rejected
Error from server (Forbidden): pods "nginx" is forbidden:
  failed quota: backend-quota: must specify limits.cpu, limits.memory,
  requests.cpu, requests.memory for: nginx

When cumulative usage would exceed a hard limit → rejected:

Error from server (Forbidden): pods "nginx3" is forbidden:
  exceeded quota: backend-quota,
  requested: pods=1,requests.cpu=500m,requests.memory=512Mi,
  used: pods=2,requests.cpu=1,requests.memory=1Gi,
  limited: pods=2,requests.cpu=1,requests.memory=1Gi

Tip

Use kubectl describe resourcequota to see live Used vs Hard columns — your first stop when pods in a namespace are suddenly failing to create.

---

LimitRange

A LimitRange sets per-object (per-container or per-PVC) minimum, maximum, and default resource values. It complements ResourceQuota:

	ResourceQuota	LimitRange
Scope	Aggregate namespace totals	Individual container / PVC
Purpose	Cap total cluster consumption	Enforce healthy per-object sizing
Effect on missing resources	Rejects the pod	Injects defaults automatically

YAML

apiVersion: v1
kind: LimitRange
metadata:
  name: cpu-constraints
  namespace: default
spec:
  limits:
    - type: Container # applies to each container in every pod
      min:
        cpu: "100m" # container cannot request less than 100m
      max:
        cpu: "2" # container cannot limit more than 2 cores
      defaultRequest:
        cpu: "200m" # injected if container omits requests.cpu
      default:
        cpu: "200m" # injected if container omits limits.cpu

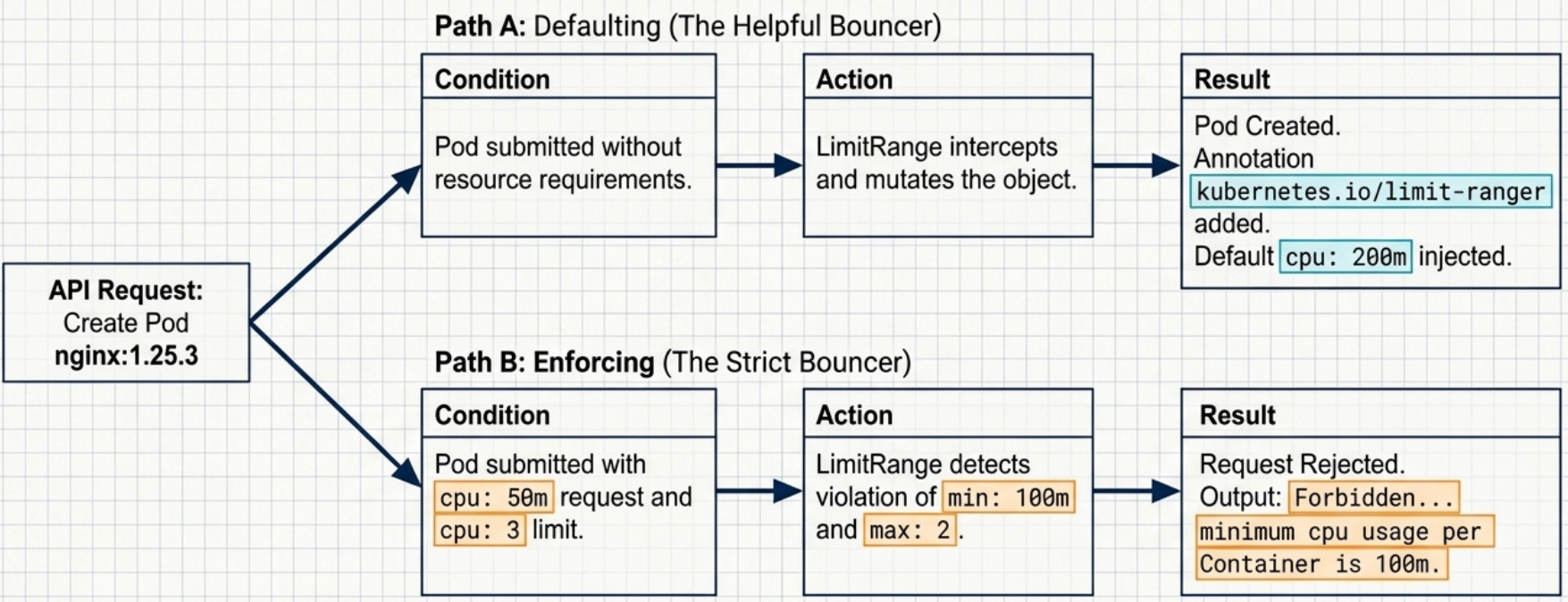

Default Injection

If a container defines no CPU resource at all, the LimitRange automatically injects the defaultRequest and default values. The mutation is recorded in a pod annotation:

kubectl describe pod my-pod
# Annotations:
#   kubernetes.io/limit-ranger: LimitRanger plugin set cpu request to 200m; cpu limit to 200m

Validation Enforcement

If a container explicitly requests less than min or limits more than max, the pod is rejected immediately:

Error from server (Forbidden): pods "nginx" is forbidden:
  [minimum cpu usage per Container is 100m, but request is 50m,
   maximum cpu usage per Container is 2, but limit is 3]

Caution

The rejection message does not name the LimitRange that blocked you. When debugging, always run kubectl get limitranges -n <namespace> and kubectl describe limitrange <name> to discover which policy is enforcing the constraint.

Best Practices

• One LimitRange per namespace — multiple LimitRanges cause non-deterministic default injection (unpredictable which one wins)
• LimitRange changes do not affect already-running pods — only new pods created after the change

---

Troubleshooting

Symptom	Likely cause	Diagnostic	Fix
Pod stuck Pending	Requests exceed available node capacity	kubectl describe pod → events show PodExceedsFreeCPU or PodExceedsFreeMemory	Lower requests, add nodes, or free capacity on existing nodes
Container keeps restarting, reason OOMKilled	Container exceeded its memory limit	kubectl describe pod → Last State: OOMKilled	Increase memory limit; check for memory leak
Container slow under load, no crash	CPU limit causing throttling	Check CPU throttle metric (container_cpu_cfs_throttled_seconds_total)	Remove CPU limit or raise it
Pod creation fails with Forbidden: must specify limits.cpu	ResourceQuota active; pod has no resource declarations	kubectl describe resourcequota -n <ns>	Add resources.requests and resources.limits to the pod spec
Pod creation fails with exceeded quota	Namespace has hit its hard cap	kubectl describe resourcequota → compare Used vs Hard	Delete unused pods, scale down deployments, or request quota increase
Pod creation fails with minimum cpu usage per Container is Xm	LimitRange min violated	kubectl get limitranges -n <ns> then describe	Raise the container’s CPU request above the minimum
Unknown defaults injected into pod	LimitRange auto-mutation	kubectl describe pod → kubernetes.io/limit-ranger annotation	Inspect the LimitRange; explicitly set resources if defaults don’t suit you
