Service Discovery Deep Dive

• Service discovery is how one microservice finds and communicates with another - by name, not by IP. Kubernetes automates the entire name-to-IP translation chain so application code only ever needs to know the target Service name.
• Division of labour: developers configure which Service names to call; Kubernetes handles ClusterIP allocation, DNS registration, EndpointSlice tracking, and kernel-level routing on every node.
• Foundation: every Service gets a stable ClusterIP and a DNS entry. The DNS entry is what makes discovery reliable regardless of Pod churn underneath.

---

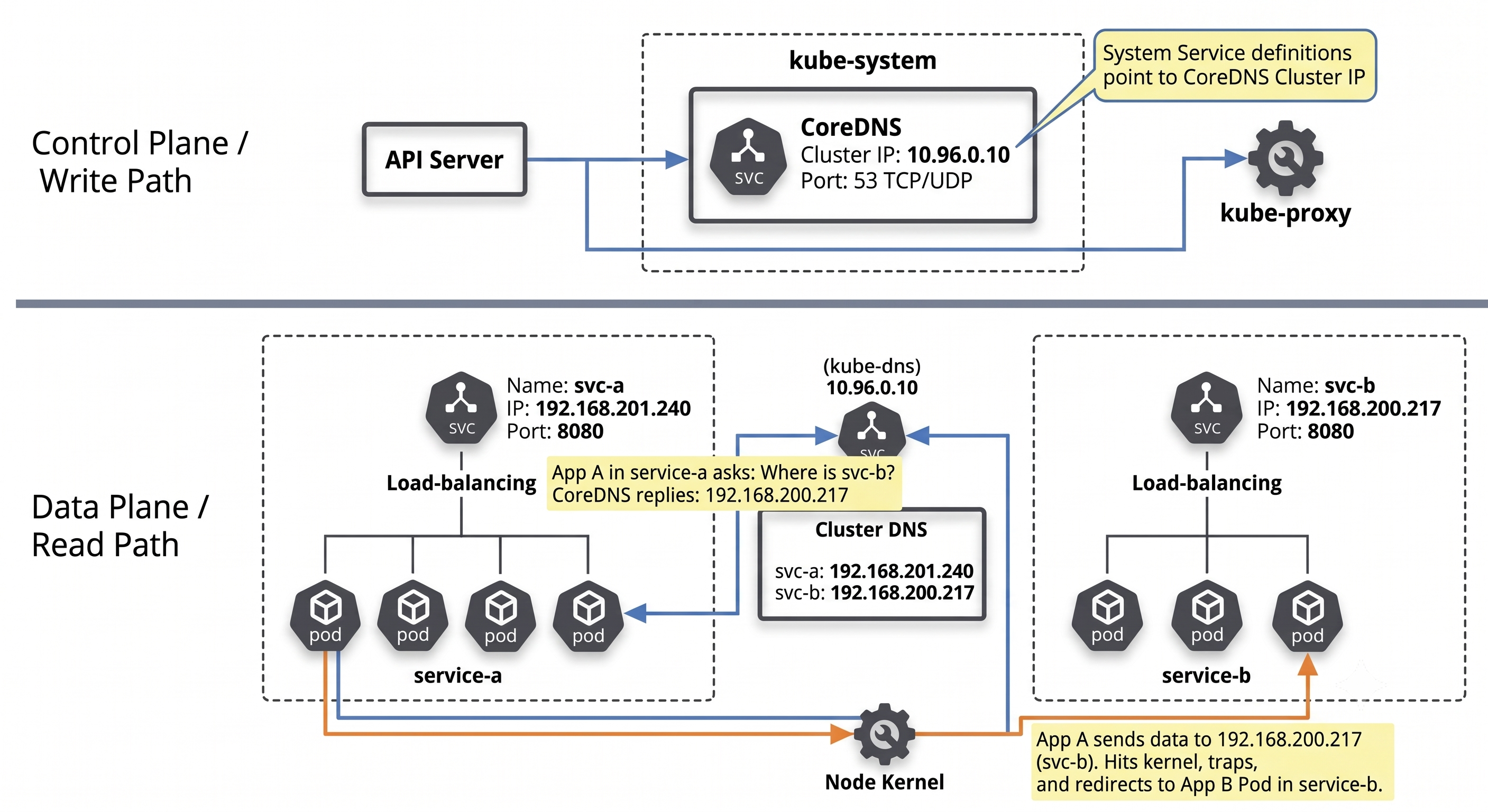

How Service Discovery Works

When app-a needs to talk to app-b, the flow is:

1. Name configured (manual): the developer sets the target Service name (app-b) in app-a’s config - this is the only manual step.
2. DNS query (automated): app-a’s container queries the cluster DNS for app-b’s IP.
3. ClusterIP returned (automated): CoreDNS resolves the name to app-b’s virtual ClusterIP.
4. Traffic sent (automated): app-a sends packets to the ClusterIP; kube-proxy kernel rules intercept and forward to a healthy Pod.

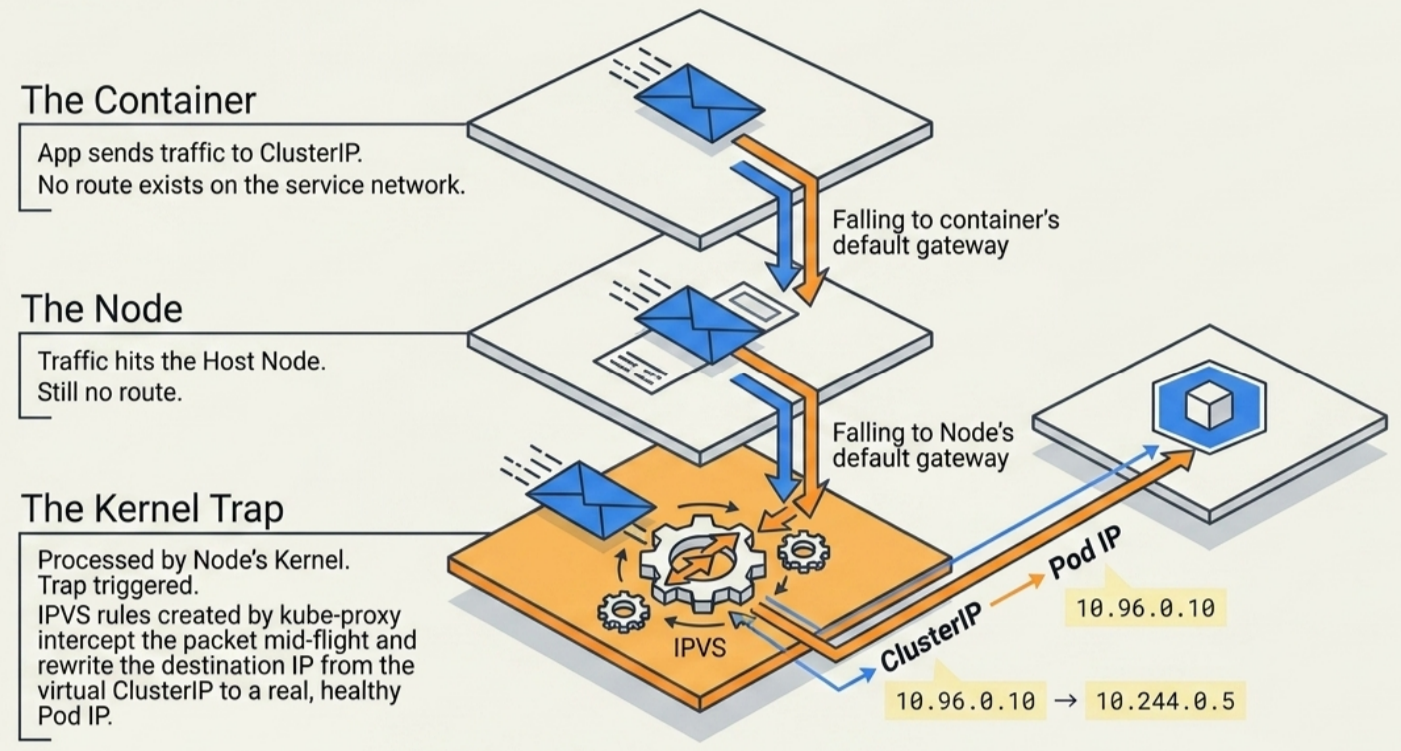

The Routing Challenge: ClusterIPs are Non-Routable

ClusterIPs live on a virtual service network that has no routes on containers or nodes. Packets fall through to default gateways:

flowchart LR
    subgraph SourcePod["📦 SOURCE CONTAINER (Pod Netns)"]
        direction TB
        P1["1️⃣ Packet sent<br/><code>dst: ClusterIP</code>"]
        P2["2️⃣ Route lookup<br/><i>No route in netns</i>"]
        P3["3️⃣ Default gateway<br/><code>via veth interface</code>"]
        P1 --> P2 --> P3
    end

    subgraph HostNode["🖥️ HOST NODE (Kernel & kube-proxy)"]
        direction TB
        H1["4️⃣ Host interface<br/><i>Packet arrives</i>"]
        H2["5️⃣ Routing check<br/><i>Towards default gw</i>"]
        H3["6️⃣ Kernel netfilter<br/><i>Processes packet</i>"]
        H4["7️⃣ kube-proxy rules<br/><code>iptables / IPVS</code>"]
        H5["8️⃣ DNAT rewrite<br/><code>ClusterIP ➔ Pod IP</code>"]
        H1 --> H2 --> H3 --> H4 --> H5
    end

    subgraph DestPod["🎯 TARGET BACKEND POD"]
        direction TB
        D1["9️⃣ Delivered to Pod<br/><code>dst: Pod IP:targetPort</code>"]
    end

    SourcePod -->|"leaves container netns"| HostNode
    HostNode -->|"routed via CNI"| DestPod

kube-proxy watches the API server for Service and EndpointSlice changes and pre-programs these kernel rules on every node. Traffic interception is transparent to the application.

Phase	Responsible entity	Action
Configure target name	Developer	Hardcode or inject Service name into app config
DNS request	Application container	Query nameserver from /etc/resolv.conf
Name resolution	CoreDNS	Resolve FQDN to ClusterIP
Packet interception	Node kernel + kube-proxy	Rewrite destination IP to Pod IP

---

DNS Resolution and /etc/resolv.conf

On Pod creation, kubelet populates /etc/resolv.conf in every container:

search dev.svc.cluster.local svc.cluster.local cluster.local
nameserver 10.96.0.10
options ndots:5

Directive Breakdown

• nameserver: the ClusterIP of the kube-dns Service - all DNS queries go here.
• search: ordered list of suffixes appended to unqualified (short) names:
  • <current-namespace>.svc.cluster.local - tried first
  • svc.cluster.local
  • cluster.local
• options ndots:5: if a name has fewer than 5 dots, search suffixes are tried before treating it as an absolute FQDN.

Short Names vs. FQDNs

Name type	Example	Scope	How it resolves
Short name	web	Same namespace only	Resolver appends <local-ns>.svc.cluster.local automatically
FQDN	web.prod.svc.cluster.local	Any namespace	Sent directly without search suffix appending

Short name resolution (intra-namespace): when a Pod in dev runs curl web:8080:

1. Resolver appends dev.svc.cluster.local - queries web.dev.svc.cluster.local
2. CoreDNS returns the ClusterIP for web in dev
3. kube-proxy rules forward traffic to a healthy Pod

Cross-namespace resolution: to reach web in prod from dev, the FQDN is required:

curl web.prod.svc.cluster.local:8080

Short names always expand to the local namespace first - they cannot reach remote namespaces.

Verify resolv.conf Inside a Pod

kubectl exec -it <pod-name> -n <namespace> -- cat /etc/resolv.conf
# Expected: search <ns>.svc.cluster.local svc.cluster.local cluster.local
#           nameserver 10.96.0.10
#           options ndots:5

The ndots:5 Performance Trap

The default ndots:5 causes up to 5 sequential DNS lookups for any external FQDN that has fewer than 5 dots. For example, calling api.github.com from a Pod in the default namespace triggers:

1. api.github.com.default.svc.cluster.local  <- NXDOMAIN
2. api.github.com.svc.cluster.local          <- NXDOMAIN
3. api.github.com.cluster.local              <- NXDOMAIN
4. api.github.com.                           <- RESOLVED (absolute)

This adds latency on every external call and hammers CoreDNS with wasted queries. Two mitigations:

• Trailing dot trick: use api.github.com. (note the trailing dot) in your config. The resolver treats a trailing dot as an absolute FQDN and skips search suffixes entirely.
• Lower ndots via dnsConfig: override per-Pod in the spec (covered in Services - DNS Policy):

spec:
  dnsConfig:
    options:
      - name: ndots
        value: "2"   # external FQDNs with 2+ dots resolve directly

Caution

Lowering ndots globally reduces DNS chatter but can break short-name resolution for internal Services if set too aggressively. Use 2 or 3 for workloads that call external APIs heavily.

---

Namespace-Scoped Discovery

FQDN Structure

Every Service gets a Fully Qualified Domain Name:

<service-name>.<namespace>.svc.cluster.local

Examples:

• web in default - web.default.svc.cluster.local
• web in dev - web.dev.svc.cluster.local
• web in prod - web.prod.svc.cluster.local

Namespace Isolation Rules

• Service names must be unique within a namespace - one web per namespace.
• Service names can be identical across namespaces - web in dev and web in prod are separate, independent Services.
• This enables parallel environments (dev/staging/prod) on the same cluster with identical manifests and no naming collisions.

StatefulSet Pod DNS

Regular Services resolve to the ClusterIP (load-balanced across all Pods). Headless Services for StatefulSets expose each Pod individually:

<pod-name>.<headless-svc-name>.<namespace>.svc.cluster.local

For a StatefulSet db backed by headless Service db-headless in namespace data:

# Individual Pod addresses - stable across restarts:
db-0.db-headless.data.svc.cluster.local  # pod 0
db-1.db-headless.data.svc.cluster.local  # pod 1
db-2.db-headless.data.svc.cluster.local  # pod 2

# The headless service itself returns all Pod IPs as A records (no ClusterIP):
nslookup db-headless.data.svc.cluster.local
# returns: 10.244.1.5, 10.244.2.3, 10.244.3.7

This is how StatefulSet Pods find each other by stable identity - for clustered databases (PostgreSQL replicas, Kafka brokers, etcd peers) where a Pod must know the address of a specific peer. See DaemonSets and StatefulSets for the full StatefulSet coverage.

Practical Example: Same Name, Different Namespaces

Two deployments - web Service in dev (responds “Hello from DEV”) and web Service in prod (responds “Hello from PROD”):

# From a Pod in the dev namespace:
curl web:8080
# Hello from DEV  <- resolves to dev namespace via search suffix

curl web.prod.svc.cluster.local:8080
# Hello from PROD  <- FQDN bypasses local search, targets prod directly

# Confirm the two services have different ClusterIPs:
kubectl get svc web -n dev    # e.g. 10.96.138.186
kubectl get svc web -n prod   # e.g. 10.96.147.32

Tip

CKA: Cross-namespace communication is a common exam scenario. Remember: short names only work within the same namespace. Always use <svc>.<namespace>.svc.cluster.local to reach Services in other namespaces.

---

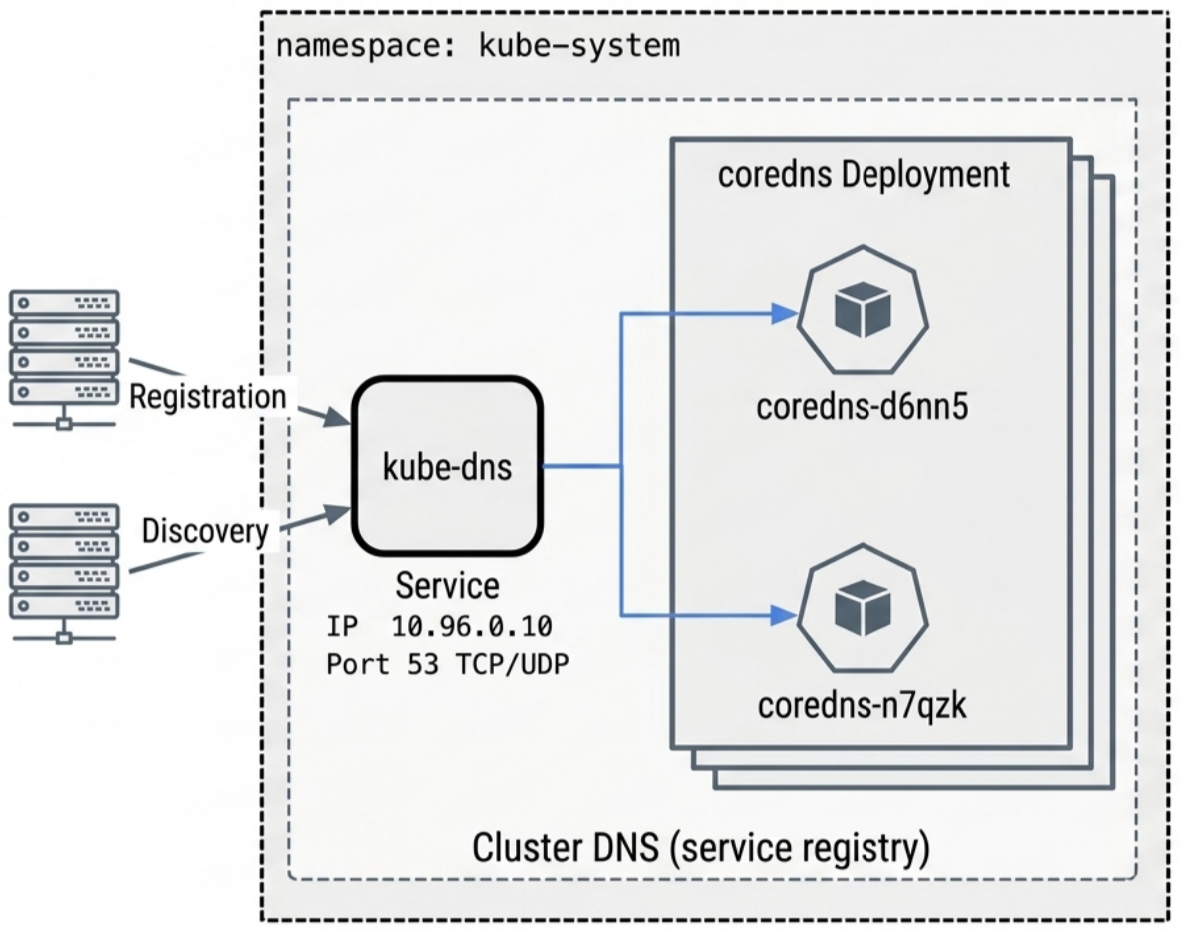

CoreDNS: The Service Registry

Every cluster runs an internal cluster DNS (CoreDNS) as the service registry - a Kubernetes-native application built from standard API objects, all in kube-system with label k8s-app=kube-dns.

Note

2026 CoreDNS Updates: Modern CoreDNS versions (v1.14+) feature strict resource limit hardening, improved proxy health checking, and native support for modern secure protocols like DNS-over-QUIC (DoQ), DNS-over-TLS (DoT), and DNS-over-HTTPS (DoH) out of the box.

The 4 Components

Component	Object name	Role	Key details
Deployment	coredns (or kube-dns)	Manages DNS Pod lifecycle and replicas	Typically 2+ replicas for redundancy
Pods	coredns-xxxxx-xxxxx	Process A/AAAA and SRV resolution queries	Image: registry.k8s.io/coredns/coredns
Service	kube-dns	Stable ClusterIP frontend for all DNS queries	Always named kube-dns across all clusters; ports 53/UDP, 53/TCP, 9153/TCP
EndpointSlice	kube-dns-xxxxx	Tracks active CoreDNS Pod IPs	Prefixed kube-dns- (e.g. kube-dns-jb72g)

Caution

The ClusterIP of the kube-dns Service must exactly match the nameserver IP in every container’s /etc/resolv.conf. A mismatch means all DNS lookups across the cluster fail silently.

Inspection Commands

# All 4 components share this label
kubectl get deploy,pods,svc,endpointslice -n kube-system -l k8s-app=kube-dns

# Or individually:
kubectl get deploy -n kube-system -l k8s-app=kube-dns
kubectl get pods -n kube-system -l k8s-app=kube-dns
kubectl get svc kube-dns -n kube-system
kubectl get endpointslice -n kube-system -l k8s-app=kube-dns

---

Customising CoreDNS

CoreDNS is configured via a Corefile stored in the coredns ConfigMap in kube-system. You can edit it to add forwarding rules, stub zones, hosts overrides, or custom caching.

# View the current Corefile
kubectl get configmap coredns -n kube-system -o yaml

Default Corefile structure:

.:53 {
    errors
    health {
       lameduck 5s
    }
    ready
    kubernetes cluster.local in-addr.arpa ip6.arpa {  # handles cluster DNS
       pods insecure
       fallthrough in-addr.arpa ip6.arpa
       ttl 30
    }
    prometheus :9153                                  # metrics endpoint
    forward . /etc/resolv.conf {                      # upstream for external names
       max_concurrent 1000
    }
    cache 30                                          # cache TTL in seconds
    loop
    reload
    loadbalance
}

Common Customisations

Forward a specific domain to an internal resolver (split-horizon DNS for on-prem):

corp.example.com:53 {
    errors
    forward . 192.168.1.53   # on-prem DNS resolver
    cache 30
}

Add static host entries (useful for legacy services without DNS):

hosts {
    10.0.1.50  legacy-db.internal
    fallthrough
}

Override external DNS (redirect a domain to a cluster Service for testing):

rewrite name api.external.com internal-api-svc.default.svc.cluster.local

After editing, CoreDNS picks up changes automatically via the reload plugin - no restart needed. Validate with:

# Edit the ConfigMap
kubectl edit configmap coredns -n kube-system

# Watch CoreDNS logs for reload confirmation
kubectl logs -f <coredns-pod> -n kube-system
# [INFO] plugin/reload: Running configuration SHA512 = <new-hash>

Caution

A Corefile syntax error will crash CoreDNS Pods. Always test changes in a non-production cluster first. The reload plugin will not apply a broken config, but if the Pod restarts it will fail to start entirely.

---

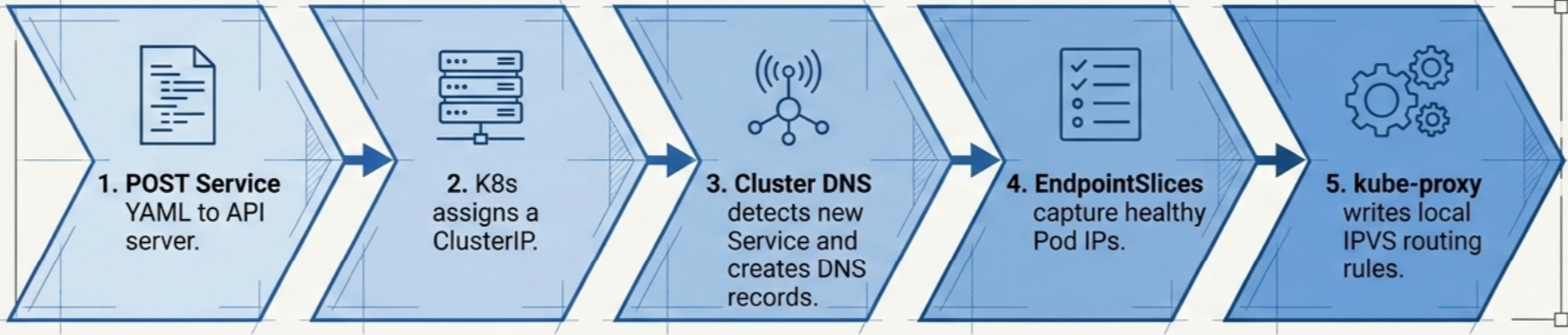

Service Registration Pipeline

When a developer posts a Service manifest, 8 automated stages fire in sequence:

flowchart TD
    subgraph Row1["Phase 1: Registration & Storage (Control Plane)"]
        direction LR
        S1["1️⃣ POST YAML<br/><code>API server</code>"] --> S2["2️⃣ ClusterIP allocated<br/><i>Service IP range</i>"] --> S3["3️⃣ Persisted to etcd<br/><i>Cluster store</i>"] --> S4["4️⃣ CoreDNS detects<br/><i>via API watch</i>"]
    end

    subgraph Row2["Phase 2: DNS & Data Plane Sync (Worker Nodes)"]
        direction RL
        S8["8️⃣ IPVS rules live<br/><i>Kernel interception</i>"]
        S7["7️⃣ kube-proxy syncs<br/><i>Node daemon</i>"] --> S8
        S6["6️⃣ EndpointSlices created<br/><i>Controller</i>"] --> S7
        S5["5️⃣ DNS records written<br/><i>A/AAAA & SRV</i>"] --> S6
    end

    Row1 -->|"API watch events trigger sync"| Row2

• Stage 1 - POST to API server: manifest authenticated, RBAC checked, schema validated.
• Stage 2 - ClusterIP allocation: a unique virtual IP is drawn from the service network range.
• Stage 3 - Persisted to etcd: Service state and ClusterIP written to the cluster store.
• Stage 4 - CoreDNS detects: CoreDNS maintains a watch stream on the API server; new Service detected instantly.
• Stage 5 - DNS records written: CoreDNS generates A/AAAA records (name to ClusterIP) and SRV records (named ports to port numbers).
• Stage 6 - EndpointSlices created: the EndpointSlice controller matches the Service selector against healthy Pods and populates slices with Pod IPs.
• Stage 7 - kube-proxy syncs: the kube-proxy daemon on every node pulls the new Service and EndpointSlice data.
• Stage 8 - Kernel rules programmed: kube-proxy writes IPVS/iptables rules to intercept ClusterIP traffic and load-balance it to Pod IPs.

Note

The pipeline is fully asynchronous. Stages 4-8 happen in parallel after the API server accepts the manifest. By the time a Pod starts and tries to resolve the Service name, DNS and routing rules are already in place.

---

Multi-Cluster Services (MCS API)

As clusters scale to fleet management, cross-cluster discovery is standardized by the Multi-Cluster Services (MCS) API. Rather than using messy API federations or bespoke syncing controllers, MCS uses ServiceExport and ServiceImport to define cross-cluster boundaries declaratively.

Core Concepts

• ClusterSet: A fleet of clusters managed together (the boundary of trust).
• ServiceExport: An opt-in resource created in the source cluster to declare a local Service should be accessible to the rest of the ClusterSet.
• ServiceImport: Created automatically in destination clusters by an MCS controller (e.g., Cilium Cluster Mesh or GKE MCS) to mirror the exported Service.

Example Workflow

# Source Cluster: Export the local 'payments' service
apiVersion: multicluster.x-k8s.io/v1alpha1
kind: ServiceExport
metadata:
  name: payments
  namespace: finance

Once exported, the service becomes globally discoverable across the ClusterSet using a specialized DNS domain:

# Destination Cluster: resolve the imported service
nslookup payments.finance.svc.clusterset.local

DNS and Routing

The <svc>.<ns>.svc.clusterset.local FQDN pattern is standard. When a Pod queries this domain, CoreDNS resolves it to a virtual IP (VIP) managed by the MCS controller, which securely tunnels the traffic (often via eBPF/WireGuard tunnels or service meshes) to the remote endpoints.

---

NodeLocal DNSCache

In large clusters, every DNS query from every Pod hits the CoreDNS Pods directly, creating a bottleneck. NodeLocal DNSCache solves this by running a DNS caching agent as a DaemonSet on every node - queries are answered locally without a network hop to CoreDNS.

• How it works: a node-local-dns DaemonSet binds to a link-local IP (typically 169.254.20.10) on each node. kubelet configures new Pods to use this local IP as nameserver instead of the kube-dns ClusterIP.
• Cache hits: served in microseconds from the node, no CoreDNS round-trip.
• Cache misses: the node agent forwards to CoreDNS and caches the response for subsequent queries.
• Conntrack benefit: uses TCP for upstream queries to CoreDNS, avoiding conntrack race conditions that can drop UDP DNS responses under load.

# Check if NodeLocal DNSCache is deployed
kubectl get daemonset -n kube-system node-local-dns

# Verify the link-local IP is listening on a node
kubectl debug node/<node-name> -it --image=busybox -- nslookup kubernetes 169.254.20.10

Note

NodeLocal DNSCache is not enabled by default in all distributions. Check your cluster provider’s docs - GKE, EKS, and AKS all have options to enable it. It is recommended for clusters with 50+ nodes or latency-sensitive workloads.

---

ExternalDNS

ExternalDNS is a controller that watches Kubernetes Services and Ingresses and automatically creates/updates records in external DNS providers (Route53, Cloud DNS, Azure DNS, Cloudflare, etc.). It bridges the gap between in-cluster DNS and public DNS.

How It Works

1. Annotate a Service or Ingress with the desired hostname:

apiVersion: v1
kind: Service
metadata:
  name: web-public
  annotations:
    external-dns.alpha.kubernetes.io/hostname: app.example.com
spec:
  type: LoadBalancer

2. ExternalDNS detects the annotation, reads the Service’s external IP (assigned by the cloud load balancer), and creates an A record in your DNS provider:

app.example.com -> 203.0.113.45   # created automatically in Route53 / Cloud DNS

3. When the Service is deleted or the annotation removed, ExternalDNS deletes the record.

Why It Matters

• No manual DNS management - hostnames follow the lifecycle of Kubernetes objects.
• Works with Ingress - can create DNS records for every Ingress host rule automatically.
• Provider-agnostic - same annotations work across AWS, GCP, Azure, and 30+ other providers.

# Check ExternalDNS is running and watching the correct sources
kubectl get pods -n kube-system -l app.kubernetes.io/name=external-dns
kubectl logs -n kube-system -l app.kubernetes.io/name=external-dns | grep "Desired change"
# Desired change: CREATE app.example.com A [203.0.113.45] in zone Z1234

Note

ExternalDNS is a separate deployment - not built into Kubernetes. Install it via Helm (bitnami/external-dns or the official chart). Configure --source=service,ingress and --provider=<your-provider> at minimum. Ingress-based DNS creation is covered in detail in Ingress and Gateway API.

---

Troubleshooting Service Discovery

Step 1 - Check CoreDNS Health

# Deployment should show all replicas ready
kubectl get deploy -n kube-system -l k8s-app=kube-dns
# NAME      READY   UP-TO-DATE   AVAILABLE
# coredns   2/2     2            2

# Pods should be Running with 0 restarts
kubectl get pods -n kube-system -l k8s-app=kube-dns

# Check logs for config errors or plugin failures
kubectl logs <coredns-pod-name> -n kube-system
# Healthy output:
# .:53
# [INFO] plugin/reload: Running configuration SHA512 = 591cf3...
# CoreDNS-1.11.1 linux/arm64

Step 2 - Verify kube-dns Service IP

kubectl get svc kube-dns -n kube-system
# NAME       TYPE        CLUSTER-IP   PORT(S)
# kube-dns   ClusterIP   10.96.0.10   53/UDP,53/TCP,9153/TCP

Cross-check that 10.96.0.10 matches the nameserver in a container’s /etc/resolv.conf:

kubectl exec -it <any-pod> -- cat /etc/resolv.conf

Step 3 - Verify EndpointSlice is Populated

kubectl get endpointslice -n kube-system -l k8s-app=kube-dns
# NAME             ADDRESSTYPE   PORTS       ENDPOINTS
# kube-dns-jb72g   IPv4          9153,53,53  10.244.1.9,10.244.1.14

Empty ENDPOINTS means CoreDNS Pods are not passing readiness - check Pod status and logs.

Step 4 - Live DNS Resolution Test

Launch a diagnostic Pod with DNS utilities:

kubectl run dnsutils --image=registry.k8s.io/e2e-test-images/jessie-dnsutils:1.7 -it --rm

Inside the Pod, query the kubernetes Service (present in every cluster):

nslookup kubernetes
# Server:    10.96.0.10
# Address:   10.96.0.10#53
#
# Name:    kubernetes.default.svc.cluster.local
# Address: 10.96.0.1

• Lines 1-2: DNS queries are reaching kube-dns at port 53 - CoreDNS is reachable.
• Lines 3-4: name resolved to FQDN and correct ClusterIP - DNS records are intact.

Cross-verify the returned IP:

kubectl get svc kubernetes   # ClusterIP should match the Address above

Recovery: Restart CoreDNS

If nslookup: can't resolve kubernetes - delete the Pods; the Deployment recreates them:

kubectl delete pod -n kube-system -l k8s-app=kube-dns

# Wait, then verify and re-test
kubectl get pods -n kube-system -l k8s-app=kube-dns

Common Failure Modes

Symptom	Likely cause	Fix
nslookup: can't resolve <name>	CoreDNS crash-looping or nameserver IP mismatch	Restart CoreDNS Pods; verify ClusterIP matches resolv.conf
DNS resolves but traffic fails	kube-proxy rules stale or EndpointSlice empty	Check kubectl get endpointslice; restart kube-proxy DaemonSet
Short name resolves wrong Service	Pod in wrong namespace	Use FQDN to explicitly target the correct namespace
Cross-namespace comms fail	Using short name for cross-namespace call	Replace with <svc>.<ns>.svc.cluster.local

Cleanup

# Delete the diagnostic Pod (--rm handles this if used above, otherwise:)
kubectl delete pod dnsutils
