Scaling & HPA

Kubernetes provides a layered approach to scaling: you can scale manually when you know your capacity needs, or let autoscalers respond to real-time demand. The two dimensions of scaling — Pods and nodes — can be combined for fully elastic infrastructure.

---

Manual Scaling

You can adjust the number of running Pods at any time using two methods. Unlike rolling updates, manual scaling is near-instantaneous.

Imperative (flag)

kubectl scale deployment <name> --replicas=5

Caution

The imperative scale command causes your live cluster to drift from your YAML manifests. If you later re-apply the original manifest, Kubernetes will revert the replica count to whatever is in the file. Always prefer the declarative method for persistent changes.

Declarative (preferred)

Edit spec.replicas in the manifest and re-apply:

spec:
  replicas: 5 # updated from 3

kubectl apply -f deployment.yaml

This keeps your source YAML as the single source of truth, ensuring the live cluster never drifts from your declared state.

Scaling to Zero

kubectl scale deployment <name> --replicas=0

All Pods are terminated but the Deployment and ReplicaSet objects remain. Scale back up at any time — useful for temporarily suspending a workload without losing its configuration.

---

Autoscalers

For dynamic workloads, manually adjusting replicas is impractical. Kubernetes provides three autoscalers that react to real-time signals:

Autoscaler	What it scales	Default installed	Disruption
HPA	Number of Pods	✅ Yes	None — adds/removes Pods smoothly
Cluster Autoscaler (CA)	Number of nodes	✅ Yes (cloud)	None for running Pods
VPA	CPU/memory per Pod	❌ No	Disruptive — deletes and recreates Pods

---

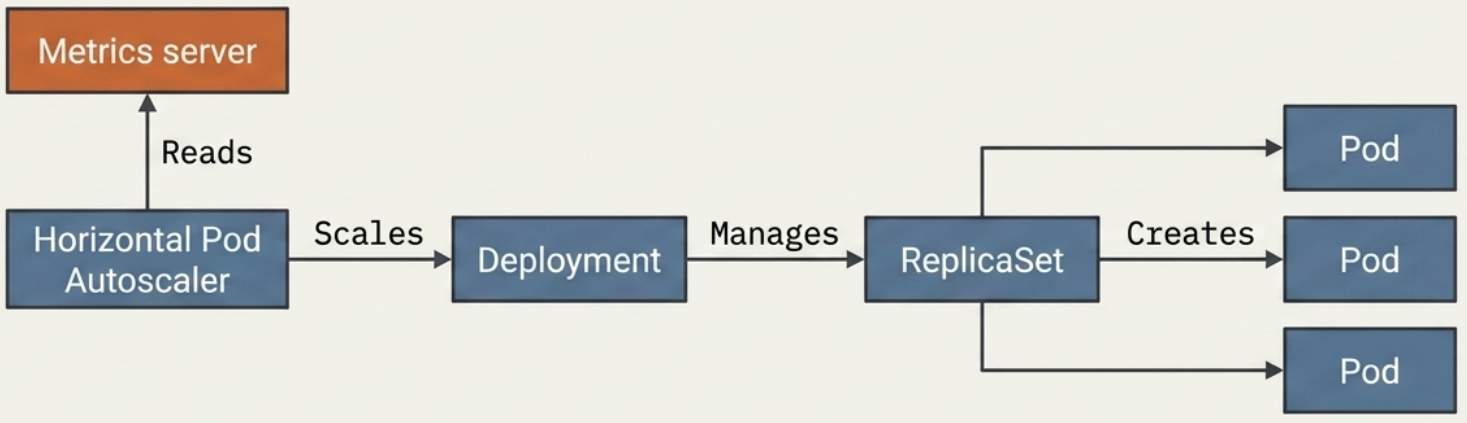

Horizontal Pod Autoscaler (HPA)

The HPA automatically adds or removes Pods in a Deployment (or StatefulSet/ReplicaSet) based on observed metrics. It is the primary autoscaler for handling traffic fluctuations.

How it Works

The HPA controller polls metrics at a configurable interval and computes the target replica count:

desired replicas = ceil(current replicas × (current metric / target metric))

Minimal HPA Spec

apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: my-app-hpa
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: my-app
  minReplicas: 2
  maxReplicas: 10
  metrics:
    - type: Resource
      resource:
        name: cpu
        target:
          type: Utilization
          averageUtilization: 70 # scale out when average CPU > 70%

kubectl apply -f hpa.yaml

# Check HPA status and current metrics
kubectl get hpa
kubectl describe hpa my-app-hpa

Prerequisites

Before an HPA can function, three conditions must be met:

Requirement	Detail
Metrics Server	Must be installed and running. Without it, the HPA cannot evaluate workload performance. Allow a few minutes after installation for metric collection to begin.
Resource requests defined	Containers must declare resources.requests.cpu (for CPU scaling) and/or resources.requests.memory (for memory scaling). These serve as the utilisation baseline for percentage calculations.
Sufficient cluster capacity	The cluster must have enough CPU and memory headroom to schedule additional Pod replicas when scaling out.

Caution

If a Pod template does not define resource requests, the HPA will report <unknown> in the TARGETS column and will not scale. See Monitoring & Troubleshooting below.

Metric Sources

Metric type	What it measures	Example use case
Resource (CPU/memory)	Average utilisation across Pods	Web servers, APIs
Pods	Custom per-pod metric	Requests per second
Object	Metric from another K8s object	Queue depth on a Service
External	Metric from outside the cluster	Message queue depth (SQS, Pub/Sub)

Note

HPA requires metrics-server to be installed in the cluster for CPU/memory metrics. Without it, the HPA cannot read resource utilisation and will remain inactive. For custom or external metrics, you additionally need an adapter (e.g., Prometheus Adapter) or a tool like KEDA.

Multi-Metric HPA

You can evaluate both CPU and memory simultaneously — the HPA scales out if either threshold is exceeded:

apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: app-cache
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: app-cache
  minReplicas: 3
  maxReplicas: 5
  metrics:
    - type: Resource
      resource:
        name: cpu
        target:
          type: Utilization
          averageUtilization: 80
    - type: Resource
      resource:
        name: memory
        target:
          type: AverageValue
          averageValue: 500Mi

The target Deployment’s Pod template must define both CPU and memory requests for multi-metric evaluation:

resources:
  requests:
    cpu: 250m
    memory: 100Mi
  limits:
    cpu: 500m
    memory: 500Mi

Imperative Shortcut

# Create an HPA targeting 80% CPU, scaling between 3–5 replicas
kubectl autoscale deployment <name> --cpu-percent=80 --min=3 --max=5

# Check current state
kubectl get hpa

Note

The kubectl autoscale command only supports a CPU percentage threshold. To configure memory-based or multi-metric scaling, use a declarative YAML manifest.

Monitoring and Troubleshooting

# List all HPAs and their current metric values vs. targets
kubectl get hpa

# Detailed configuration, status conditions, and scaling events
kubectl describe hpa <name>

Sample kubectl get hpa output:

NAME        REFERENCE              TARGETS                 MINPODS   MAXPODS   REPLICAS   AGE
app-cache   Deployment/app-cache   1994752/500Mi, 0%/80%   3         5         3          2m14s

Status conditions in kubectl describe hpa:

Condition	What it signals
AbleToScale	HPA controller is ready to execute scaling operations
ScalingActive	HPA is successfully calculating replica counts from valid metrics
ScalingLimited	Scaling is constrained — replicas have hit the min or max boundary

Troubleshooting <unknown> in the TARGETS column:

Cause	Fix
Pod template missing resources.requests	Add CPU and/or memory requests to the container spec
Metrics Server not installed or unhealthy	Install/restart Metrics Server; allow a few minutes for metric collection

---

Cluster Autoscaler (CA)

The Cluster Autoscaler operates at the infrastructure level — it adds or removes nodes rather than Pods. It works in tandem with the HPA.

Scale-Out Flow

When the HPA requests more Pods than the current nodes can accommodate:

1. HPA instructs the scheduler to add Pods
2. Scheduler cannot place Pods — marks them as Pending
3. CA detects Pending Pods and provisions a new node from the cloud provider
4. Once the node joins the cluster, the scheduler assigns the Pending Pods to it

Scale-In Flow

When demand drops:

1. HPA scales down Pods
2. Nodes become underutilised
3. CA safely evicts any remaining Pods from the underutilised node, rescheduling them elsewhere
4. CA terminates the now-empty node

Note

The CA is typically provided by the managed Kubernetes offering (GKE, EKS, AKS) and configured through node pool settings — not via a Kubernetes manifest you write yourself.

---

Vertical Pod Autoscaler (VPA)

The VPA adjusts the CPU and memory requests/limits on existing Pods rather than changing their count. It is less common in production for these reasons:

• Not installed by default — requires manual installation
• Disruptive — currently scales by deleting the existing Pod and replacing it with one that has updated resource settings. In-place resource updates are under active development upstream
• Conflicts with HPA — running both on CPU/memory metrics simultaneously is not recommended without careful configuration

apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: my-app-vpa
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: my-app
  updatePolicy:
    updateMode: Auto # Off | Initial | Recreate | Auto

Update mode	Behaviour
Off	Recommendations only — no automatic changes
Initial	Apply recommendations only at Pod creation
Recreate	Evict and recreate Pods when adjustments are needed
Auto	Currently equivalent to Recreate (in-place update is not yet stable)

---

Multi-Dimensional Autoscaling

Combining the HPA and CA gives you fully elastic infrastructure — Pods scale horizontally with demand, and nodes scale to accommodate the Pods.

Traffic spike → HPA adds Pods → Nodes fill up → CA adds nodes → Pods schedule

Traffic drops → HPA removes Pods → Nodes underutilised → CA removes nodes

This is sometimes called multi-dimensional autoscaling and is the standard pattern for production cloud-native applications.

---

KEDA (Advanced)

For workloads driven by external event sources (message queues, databases, HTTP request rate), the Kubernetes Event-Driven Autoscaler (KEDA) extends the HPA with custom scalers. It can scale from zero (no Pods when idle) to many, based on signals like:

• Queue depth (RabbitMQ, Kafka, SQS, Azure Service Bus)
• Cron schedule
• Prometheus query result
• HTTP request rate

KEDA is a CNCF project and a common complement to the built-in HPA in event-driven architectures. For multi-cluster scaling at enterprise scale, community projects like Karmada extend these capabilities across multiple Kubernetes clusters.
